GSL20L-PRAQKA (2006)
Toyota Sienna

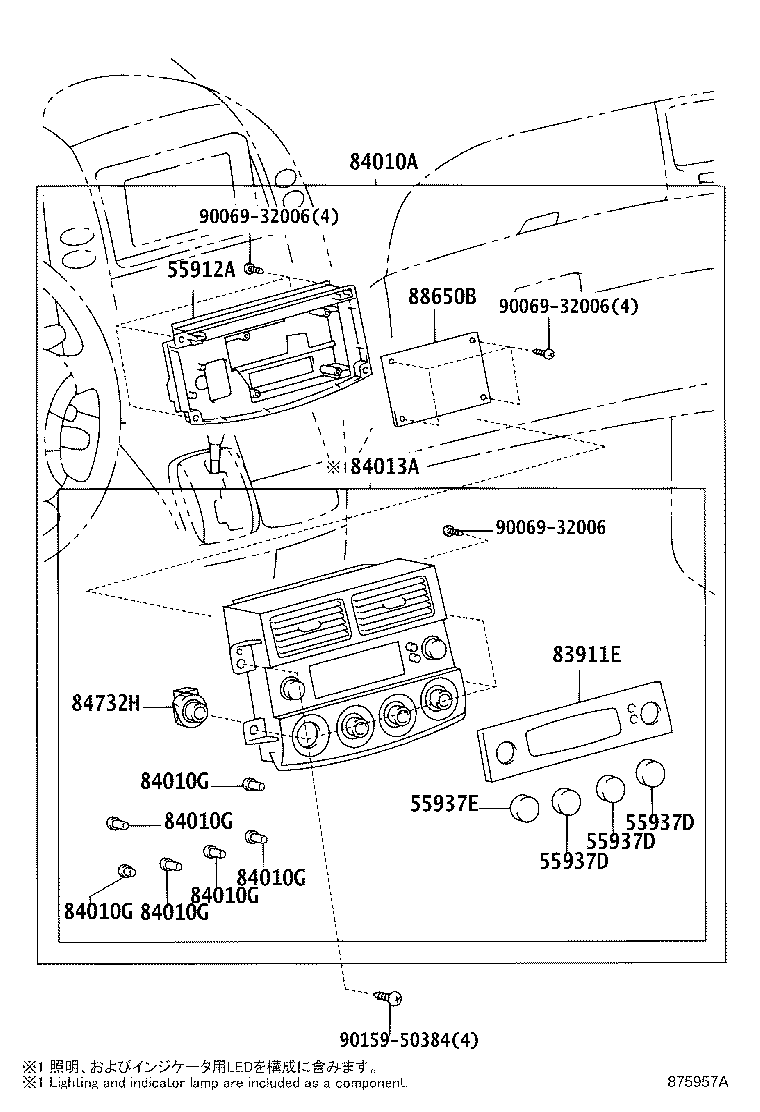

ILLUST NO. 1 OF 5(0301- )CE,LE
FRONT CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-08040 |
GSL20,25..XLE |
1 | ||
| 55912-08020 |
GSL2#..CE,LE |
1 | ||
| 55937D - KNOB, CENTER CLUSTER MODULE, NO.1 | ||||
| 55937-08010 |
GSL2#..CE,LE |
3 | ||
| 55937D - KNOB, CENTER CLUSTER MODULE, NO.1 | ||||
| 55937-08010 |
GSL2#..CE,LE |
3 | ||
| 55937D - KNOB, CENTER CLUSTER MODULE, NO.1 | ||||
| 55937-08010 |
GSL2#..CE,LE |
3 | ||
| 55937E - KNOB, CENTER CLUSTER MODULE, NO.2 | ||||
| 55937-08020 |
GSL2#..CE,LE |
1 | ||
| 83911E - ORNAMENT, CLOCK | ||||
| 83911-08050 |
GSL2#..CE,LE |
1 | ||
| 83911-08060 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 83911-08070 |
GSL20,25..XLE |
1 | ||
| 83911-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 83911-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 83911-08060 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-08140 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84010-08140 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84010-08130 |
GSL2#..CE,LE |
1 | ||
| 84010-08160 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84010-08150 |
GSL20,25..XLE |
1 | ||
| 84010-08160 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90011-11034 |
GSL2#..CE,LE 14V 0.82W |
1 | ||
| 90011-11032 |
GSL2#..CE,LE 14V 1.02W |
5 | ||
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90011-11034 |
GSL2#..CE,LE 14V 0.82W |
1 | ||
| 90011-11032 |
GSL2#..CE,LE 14V 1.02W |
5 | ||
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90011-11034 |
GSL2#..CE,LE 14V 0.82W |
1 | ||
| 90011-11032 |
GSL2#..CE,LE 14V 1.02W |
5 | ||
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90011-11034 |
GSL2#..CE,LE 14V 0.82W |
1 | ||
| 90011-11032 |
GSL2#..CE,LE 14V 1.02W |
5 | ||
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90011-11034 |
GSL2#..CE,LE 14V 0.82W |
1 | ||
| 90011-11032 |
GSL2#..CE,LE 14V 1.02W |
5 | ||
| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90011-11034 |
GSL2#..CE,LE 14V 0.82W |
1 | ||
| 90011-11032 |
GSL2#..CE,LE 14V 1.02W |
5 | ||
| 84013A - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84013-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84013-08100 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84013-08100 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84013-08090 |
GSL2#..CE,LE |
1 | ||
| 84013-08070 |
GSL20,25..XLE |
1 | ||
| 84732H - SWITCH, HEATER BLOWER | ||||
| 84732-08070 |
GSL2#..CE,LE |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-08130 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
11 | ||
| 88650-08130 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
11 | ||
| 88650-08140 |
GSL20,25..XLE |
1 | ||
| 88650-08130 |
GSL2#..CE,LE |
1 | ||
| Common parts | ||||
| 90069-32006 | ||||
| 90159-50384 | ||||

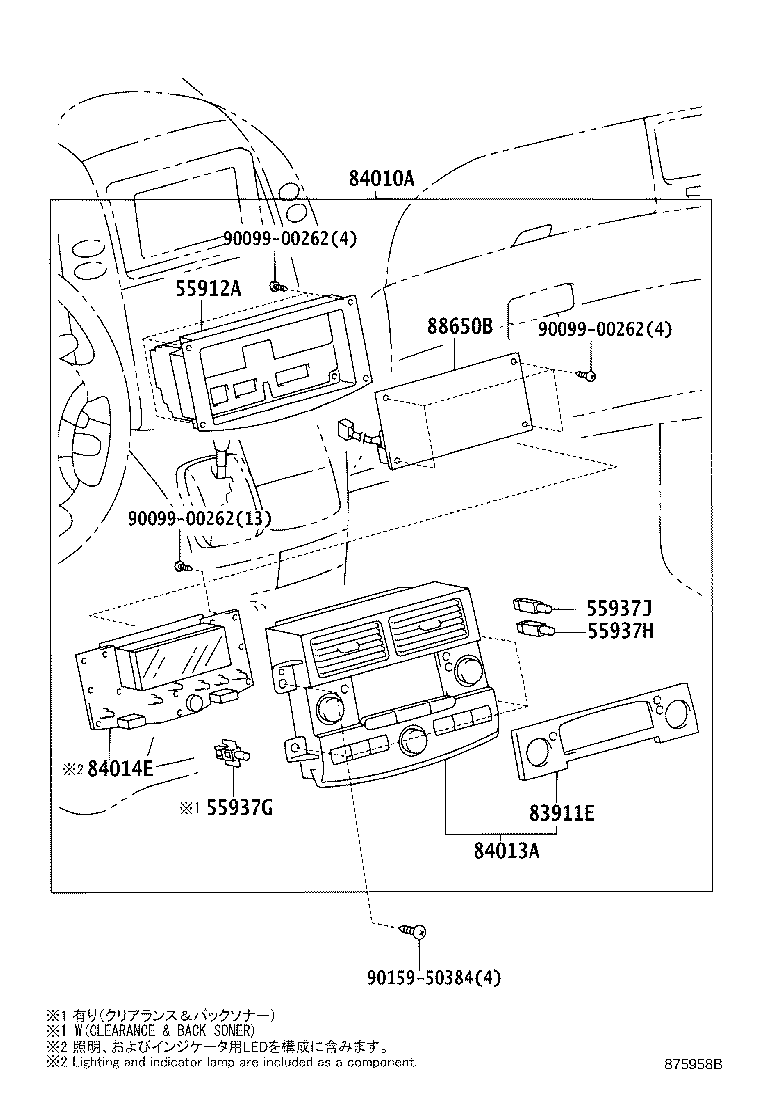

ILLUST NO. 1 OF 5(0301- )XLE
FRONT CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-08040 |
GSL20,25..XLE |
1 | ||
| 55912-08020 |
GSL2#..CE,LE |
1 | ||
| 55937G - KNOB, CENTER CLUSTER MODULE, NO.4 | ||||
| 55937-08050 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 55937-08050 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 55937H - KNOB, CENTER CLUSTER MODULE, NO.5 | ||||
| 55937-08040 |
GSL20,25..XLE |
1 | ||
| 55937J - KNOB, CENTER CLUSTER MODULE, NO.6 | ||||
| 55937-08030 |
GSL20,25..XLE |
1 | ||
| 83911E - ORNAMENT, CLOCK | ||||
| 83911-08050 |
GSL2#..CE,LE |
1 | ||
| 83911-08060 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 83911-08070 |
GSL20,25..XLE |
1 | ||
| 83911-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 83911-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 83911-08060 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-08140 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84010-08140 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84010-08130 |
GSL2#..CE,LE |
1 | ||
| 84010-08160 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84010-08150 |
GSL20,25..XLE |
1 | ||
| 84010-08160 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84013A - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84013-08080 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84013-08100 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 84013-08100 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84013-08090 |
GSL2#..CE,LE |
1 | ||
| 84013-08070 |
GSL20,25..XLE |
1 | ||
| 84014E - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-08040 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
1 | ||
| 84014-08030 |
GSL20,25..XLE |
1 | ||
| 84014-08040 |
GSL20,25..XLE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-08130 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK) |
11 | ||
| 88650-08130 |
GSL20,25..LE CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK) |
11 | ||
| 88650-08140 |
GSL20,25..XLE |
1 | ||
| 88650-08130 |
GSL2#..CE,LE |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90159-50384 | ||||
ILLUST NO. 2 OF 5(0301- )
REAR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90011-01038 |
GSL2# 14V 0.84W,W(CAP) |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90011-01038 |
GSL2# 14V 0.84W,W(CAP) |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90011-01038 |
GSL2# 14V 0.84W,W(CAP) |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90011-01038 |
GSL2# 14V 0.84W,W(CAP) |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90011-01038 |
GSL2# 14V 0.84W,W(CAP) |
3 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90011-01038 |
GSL2# 14V 0.84W,W(CAP) |
3 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-08100B0 |
GSL2#..CE,LE LT.GRAY,TRIM1# |
1 | ||
| 55900-08110A0 |
GSL20,25..XLE IVORY,TRIM4# |
1 | ||
| 55900-08110B0 |
GSL20,25..XLE LT.GRAY,TRIM1# |
1 | ||
| 55900-08100A0 |
GSL2#..CE,LE IVORY,TRIM4# |
1 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-08100B0 |
GSL2#..CE,LE LT.GRAY,TRIM1# |
1 | ||
| 55900-08110A0 |
GSL20,25..XLE IVORY,TRIM4# |
1 | ||
| 55900-08110B0 |
GSL20,25..XLE LT.GRAY,TRIM1# |
1 | ||
| 55900-08100A0 |
GSL2#..CE,LE IVORY,TRIM4# |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-08070B0 |
GSL2#..CE,LE LT.GRAY,TRIM1# |
2 | ||
| 55905-08070A0 |
GSL2#..CE,LE IVORY,TRIM4# |
2 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-08070B0 |
GSL2#..CE,LE LT.GRAY,TRIM1# |
2 | ||
| 55905-08070A0 |
GSL2#..CE,LE IVORY,TRIM4# |
2 | ||
| 55911A - BASE, HEATER CONTROL | ||||
| 88300-08010B0 |
GSL2# LT.GRAY,TRIM1# |
1 | ||
| 88300-08010A0 |
GSL2# IVORY,TRIM4# |
1 | ||
| 55911A - BASE, HEATER CONTROL | ||||
| 88300-08010B0 |
GSL2# LT.GRAY,TRIM1# |
1 | ||
| 88300-08010A0 |
GSL2# IVORY,TRIM4# |
1 | ||

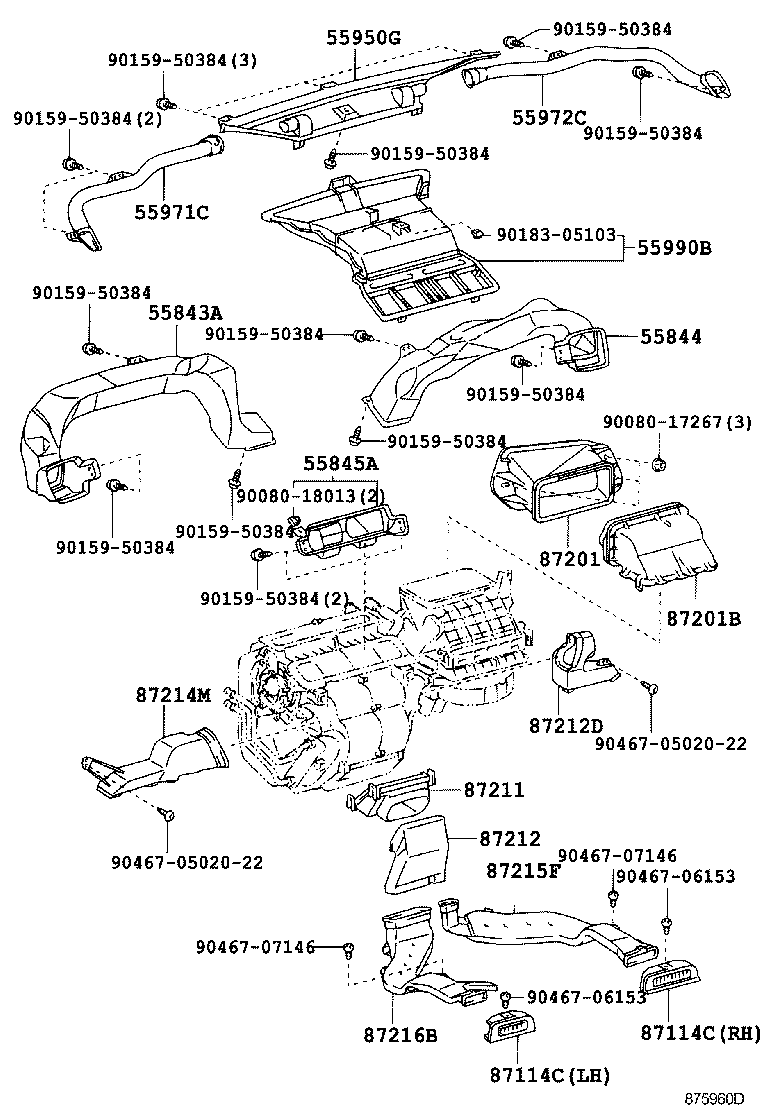

ILLUST NO. 3 OF 5(0301- )
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-AE010 |
GSL2# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-AE010 |
GSL2# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-AE010 |
GSL2# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-AE010 |
GSL2# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-AE010 |
GSL2# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-AE010 |
GSL2# |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-AE010 |
GSL2# |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-08060 |
GSL2# RH |
1 | ||
| 87114-08050 |
GSL2# LH |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-08060 |
GSL2# RH |
1 | ||
| 87114-08050 |
GSL2# LH |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-08050 |
GSL2# |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-08060 |
GSL2# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-08030 |
GSL2# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-08050 |
GSL2# |
1 | ||
| 87212D - DUCT, HEATER TO FOOT, NO.1 | ||||
| 55823-AE010 |
GSL2# |
1 | ||
| 87214M - DUCT, HEATER TO FOOT, NO.3 | ||||
| 55824-AE010 |
GSL2# |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-08050 |
GSL2# |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-08050 |
GSL2# |
1 | ||
| Common parts | ||||
| 90080-17267 | ||||
| 90080-18013 | ||||
| 90159-50384 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-06153 | ||||
| 90467-07146 | ||||

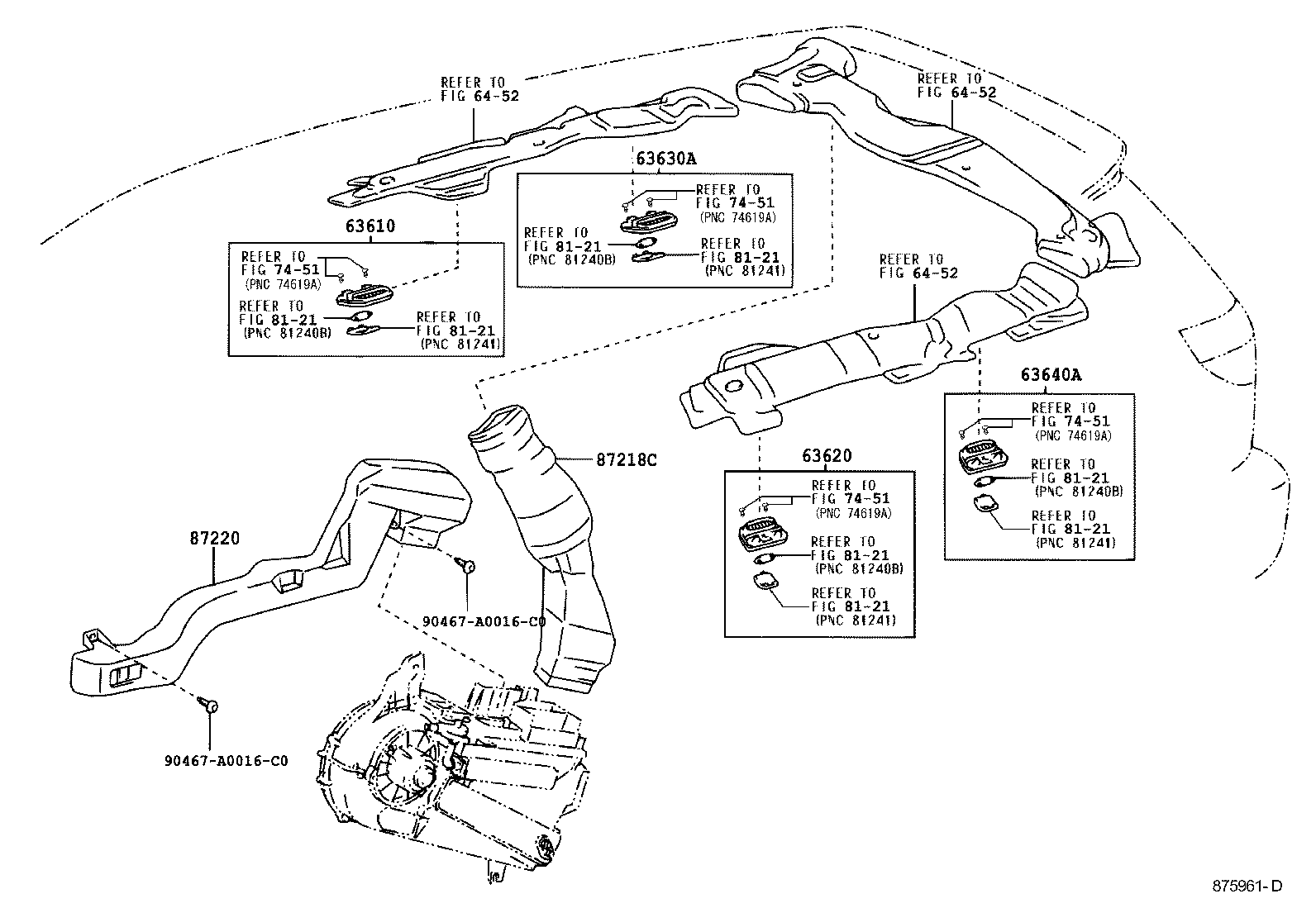

ILLUST NO. 4 OF 5(0301- )
REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-08080B0 |
GSL2# LT.GRAY,TRIM1# |
1 | ||
| 63610-08080A0 |
GSL2# IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH,IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&W(REAR SEATENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63610-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&W(REAR SEATENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63610-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63620-08080A0 |
GSL2# IVORY,TRIM4# |
1 | ||
| 63620-08080B0 |
GSL2# LT.GRAY,TRIM1# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&W(REAR SEATENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH,IVORY,TRIM4# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE..USA MOON ROOF-WITH&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&W(REAR SEATENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&AUDIO-AM/FM6CD-CHANGER 10SPEAKER(JBL),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090B0 |
GSL20,25..XLE MOON ROOF-WITH&W(REAR SEAT ENTERTAINMENT),LT.GRAY,TRIM1# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL)&W(REAR SEAT ENTERTAINMENT),IVORY,TRIM4# |
1 | ||
| 63620-08090A0 |
GSL20,25..XLE MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),IVORY,TRIM4# |
1 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-08010A0 |
GSL2# IVORY,TRIM4# |
1 | ||
| 63630-08010B0 |
GSL2# LT.GRAY,TRIM1# |
1 | ||
| 63640A - REGISTER ASSY, AIR OUTLET, NO.4 | ||||
| 63640-08040A0 |
GSL2# IVORY,TRIM4# |
1 | ||
| 63640-08040B0 |
GSL2# LT.GRAY,TRIM1# |
1 | ||
| 87218C - DUCT, AIR, REAR NO.6 | ||||
| 87218-08040 |
GSL2# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-AE011 |
GSL2# |
1 | ||
| Common parts | ||||
| 90467-A0016C0 | ||||
| Linked diagrams | ||||
| 6452 | ||||
| 7451 | ||||
| 8121 | ||||
ILLUST NO. 5 OF 5(0301- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
GSL2# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-45020B0 |
GSL20,25..XLE STONE,TRIM1#,REAR |
1 | ||
| 88625-45020E0 |
GSL20,25..XLE FAWN,TRIM4#,REAR |
1 | ||
| 88625-47021 |
GSL20,25..XLE FRONT |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-45020B0 |
GSL20,25..XLE STONE,TRIM1#,REAR |
1 | ||
| 88625-45020E0 |
GSL20,25..XLE FAWN,TRIM4#,REAR |
1 | ||
| 88625-47021 |
GSL20,25..XLE FRONT |
1 | ||
| Linked diagrams | ||||
| 8416 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
