GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

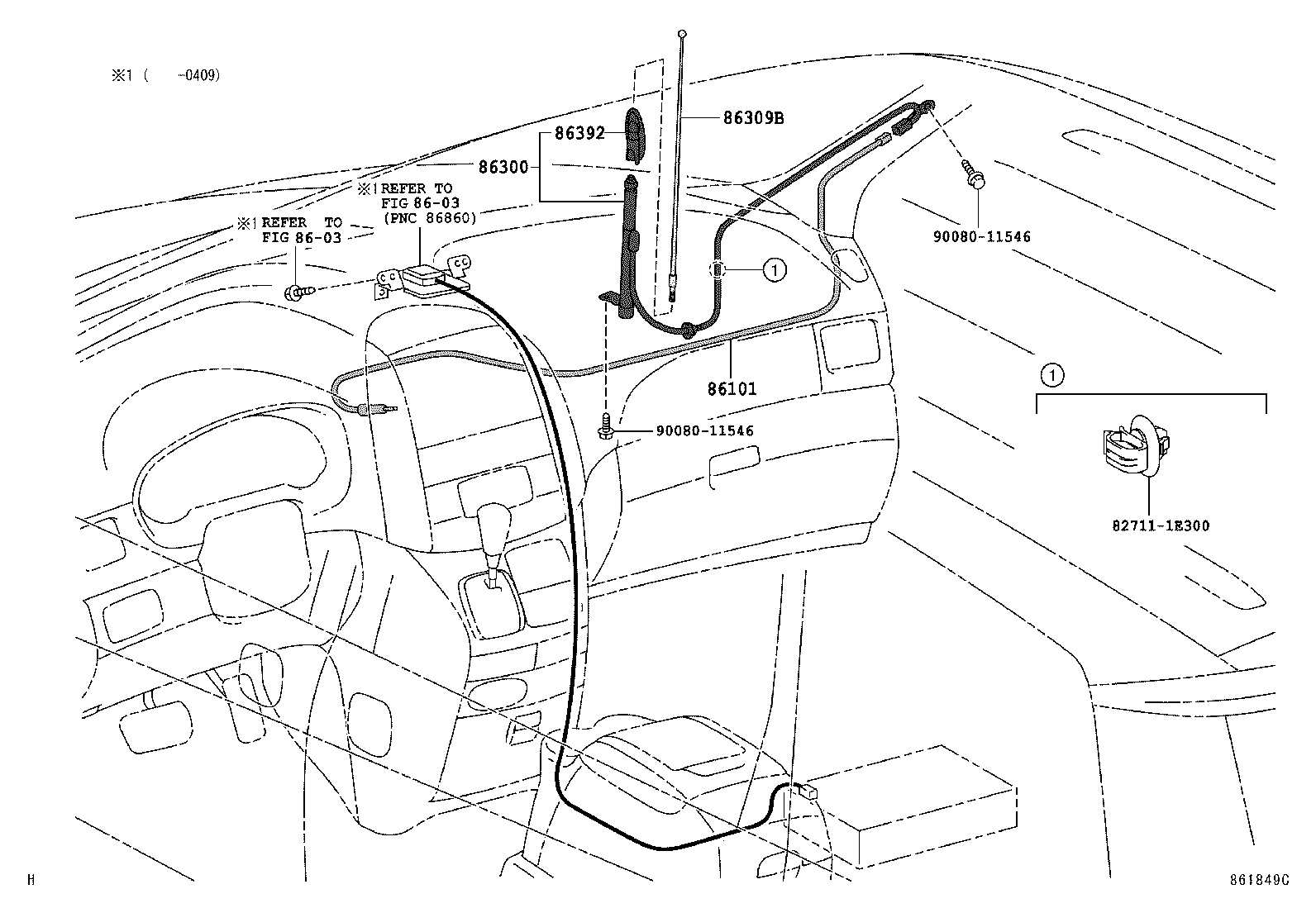

Click highlighted areas on diagram

POLE ANTENNA

diagram 827111E300 8603 8603 86101 86300 86309B 86392 9008011546 9008011546
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-AE031

GSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

 1
86101-AE010

GSL2#..CE,LE

POLE ANTENNA

 1
86101-AE020

GSL20,25..LE

AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

 1
86101-AE010

GSL20,25..XLE

POLE ANTENNA

 1
86101-AE020

GSL20,25..XLE

QUAR. WINDOW ANTENNA

 1
86101-AE020

GSL20,25..XLE

AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-AE021

GSL20,25..XLE

QUAR. WINDOW ANTENNA

 1
86300-AE021

GSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND

AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

 1
86300-AE010

GSL2#..CE,LE

POLE ANTENNA

 1
86300-AE021

GSL20,25..LE

AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

 1
86300-AE010

GSL20,25..XLE

POLE ANTENNA

 1
86300-AE021

GSL20,25..XLE

AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL),QUAR. WINDOW ANTENNA

 1
86309B - POLE SUB-ASSY, PULL TOP ANTENNA
86309-AA041

GSL2#..CE,LE

 1
86309-AA041

GSL20,25..XLE

 1
86392 - ORNAMENT, ANTENNA
86392-AE010

GSL2#..CE,LE

 1
86392-AE010

GSL20,25..XLE

 1
Common parts
82711-1E300
90080-11546
Linked diagrams
8603
