GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

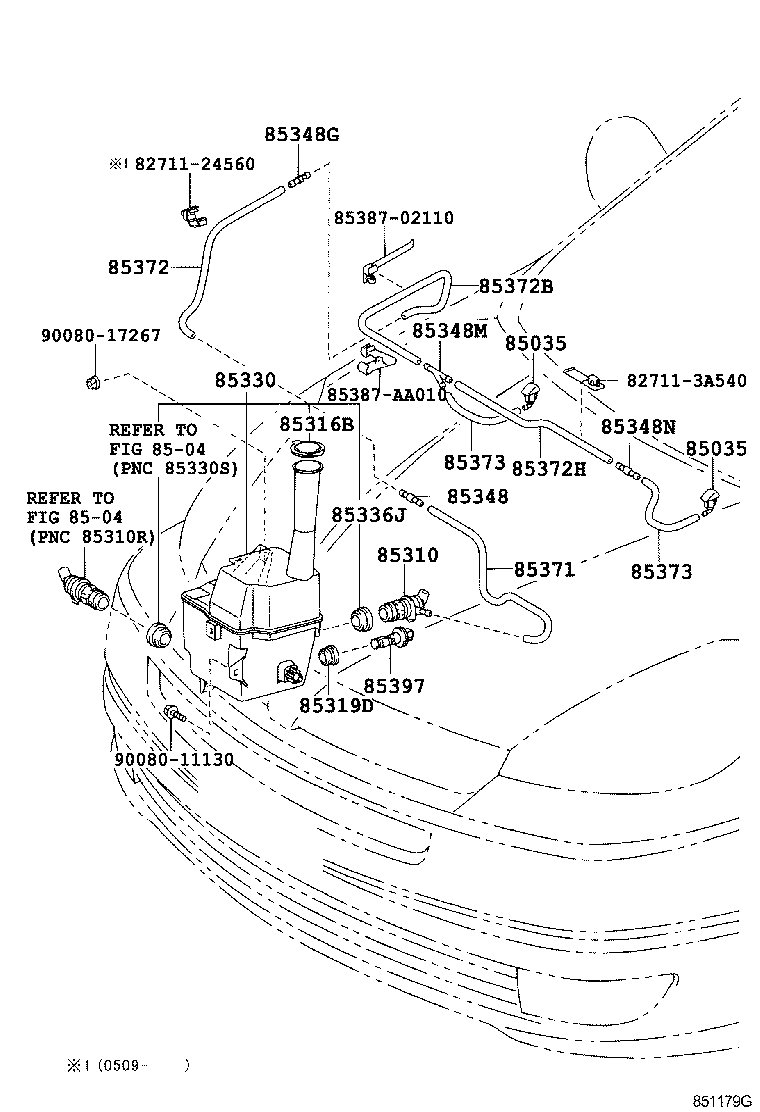

Click highlighted areas on diagram

diagram 8271124560 827113A540 85035 85035 8504 8504 85310 85316B 85319D 85330 85336J 85348 85348G 85348M 85348N 85371 85372 85372B 85372H 85373 85373 8538702110 85387AA010 85397 9008011130 9008017267
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-AE020

GSL2#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-AE020

GSL2#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-AE010

GSL2#

 1
85316B - CAP, WASHER, INLET
85386-0C010

GSL2#

 1
85319D - PACKING, FRONT WASHER
85319-AA020

GSL2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-AE010

GSL2#

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

GSL2#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-AA010

GSL2#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-AA010

GSL2#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85378-AA010

GSL2#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85375-06020

GSL2#

 1
85375-0E010

GSL2#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33021

GSL2#

L=280

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85374-AE011

GSL2#

L=705

 1
85374-AE010

GSL2#

L=708

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85374-AE021

GSL2#

L=815

 1
85374-AE020

GSL2#

L=815

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85374-AE041

GSL2#

L=570

 1
85374-AE040

GSL2#

L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33011

GSL2#

*H,L=250

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33011

GSL2#

*H,L=250

 2
85397 - SWITCH ASSY,LEVEL WARNING
85397-AA040

GSL2#

 1
Common parts
82711-24560
82711-3A540
85387-02110
85387-AA010
90080-11130
90080-17267
Linked diagrams
8504
