GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

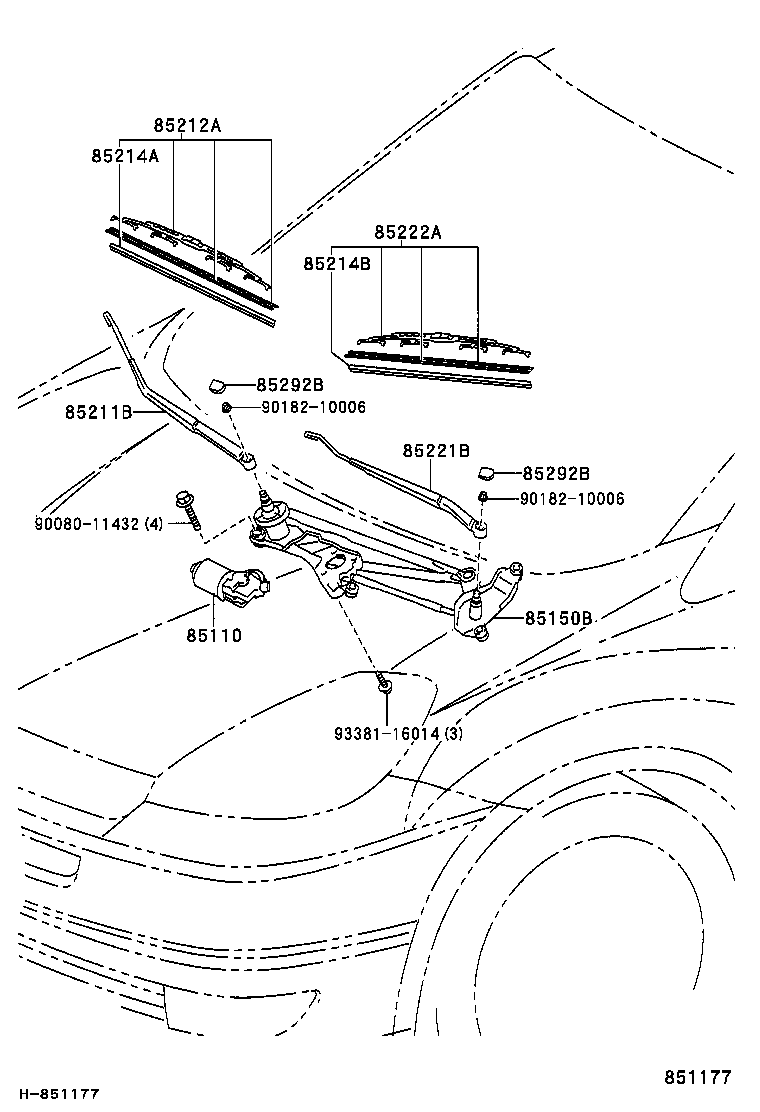

Click highlighted areas on diagram

diagram 85110 85150B 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9008011432 9018210006 9018210006 9338116014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-AE010

GSL2#

 1
85150B - LINK ASSY, WIPER
85150-AE010

GSL2#

 1
85211B - ARM, FRONT WIPER, RH
85211-AE010

GSL2#

 1
85212A - BLADE, FR WIPER, RH
85212-0C011

GSL2#

 1
85214A - RUBBER, WIPER, RH
85214-0C011

GSL2#

 1
85214B - RUBBER, WIPER, LH
85214-AE010

GSL2#

 1
85221B - ARM, FRONT WIPER, LH
85221-AE010

GSL2#

 1
85222A - BLADE, FR WIPER, LH
85222-AE010

GSL2#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

GSL2#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-AA010

GSL2#

 2
Common parts
90080-11432
90182-10006
93381-16014
