GSL20L-PRAQKA (2006)
Toyota Sienna

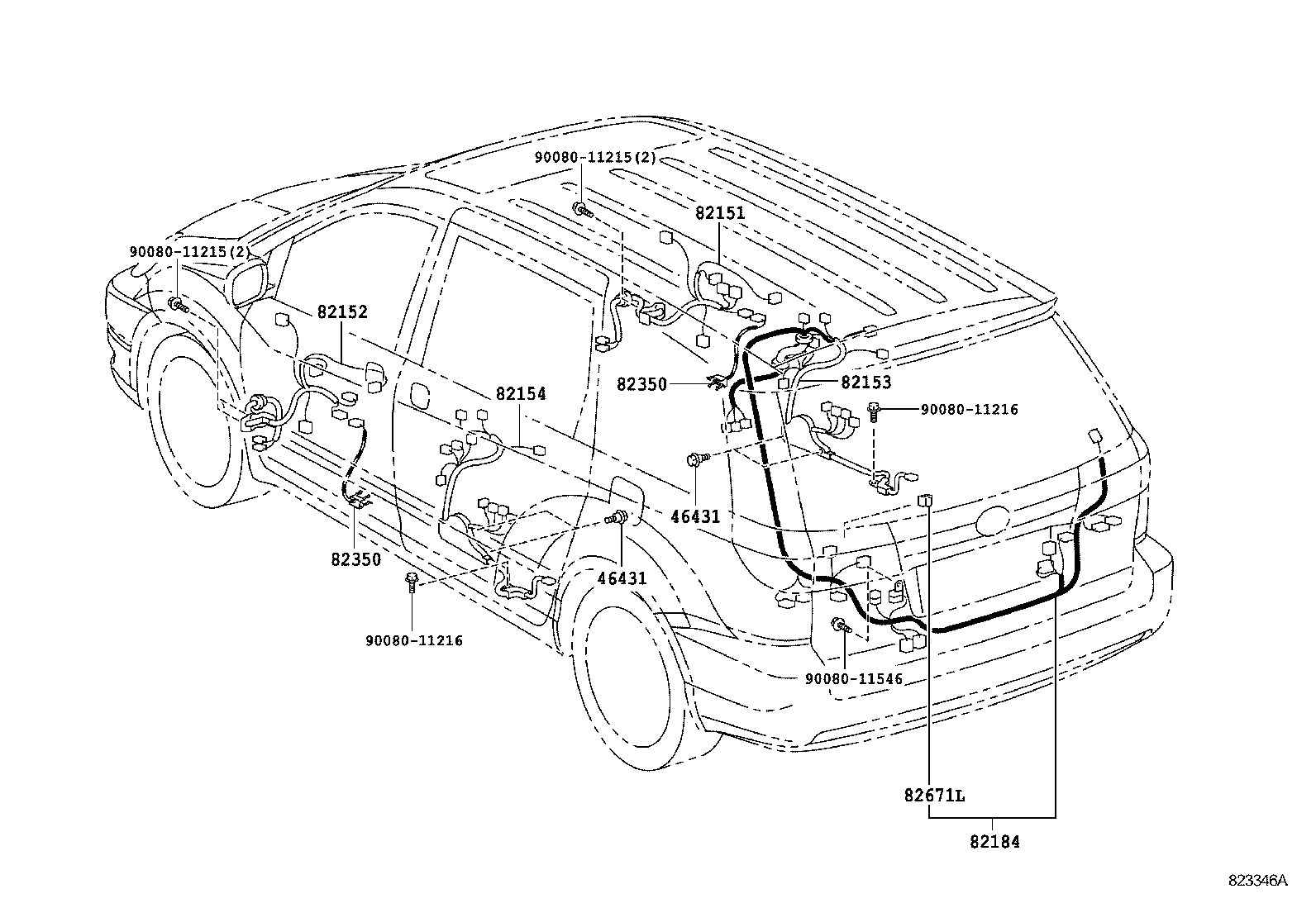

ILLUST NO. 4 OF 9(0301- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46431 - BOLT, WIRE | ||||
| 46431-08010 |
GSL2# |
4 | ||
| 46431 - BOLT, WIRE | ||||
| 46431-08010 |
GSL2# |
4 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-08050 |
GSL20,25..XLE INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER |
1 | ||
| 82151-08040 |
GSL2# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-08081 |
GSL20,25..XLE INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER |
1 | ||
| 82152-08071 |
GSL20,25..LE,XLE |
1 | ||
| 82152-08091 |
GSL20..LE..USA CE PACKAGE |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82053-08011 |
GSL2#..CE,LE |
1 | ||
| 82053-08010 |
GSL2#..CE,LE |
1 | ||
| 82053-08020 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 82053-08020 |
GSL20,25..XLE |
1 | ||
| 82053-08020 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 82053-08021 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 82053-08021 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 82053-08021 |
GSL20,25..XLE |
1 | ||
| 82053-08020 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 82053-08021 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82054-08010 |
GSL2#..CE,LE |
1 | ||
| 82054-08011 |
GSL2#..CE,LE |
1 | ||
| 82054-08021 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 82054-08020 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 82054-08021 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 82054-08020 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 82054-08031 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 82054-08021 |
GSL20,25..XLE |
1 | ||
| 82054-08020 |
GSL20,25..XLE |
1 | ||
| 82054-08030 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-08100 |
GSL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08140 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 82184-08070 |
GSL20,25..LE,XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 82184-08130 |
GSL20..LE..USA;GSL20..7S..XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08140 |
GSL20,25..XLE |
1 | ||
| 82184-08090 |
GSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08060 |
GSL2#..CE,LE |
1 | ||
| 82184-08150 |
GSL20,25..LE..USA AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08160 |
GSL20..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08140 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 82184-08150 |
GSL20,25..XLE..USA EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08150 |
GSL20,25..LE..USA AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08160 |
GSL20..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08061 |
GSL2#..CE,LE |
1 | ||
| 82184-08101 |
GSL20..LE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08071 |
GSL20,25..LE,XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 82184-08151 |
GSL20,25..XLE..USA EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08111 |
GSL20..LE;GSL20..7S..XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08110 |
GSL20..LE;GSL20..7S..XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08170 |
GSL20..LE..USA AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08141 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 82184-08161 |
GSL20..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08151 |
GSL20,25..LE..USA AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08151 |
GSL20,25..LE..USA AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08131 |
GSL20..LE..USA;GSL20..7S..XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08141 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 82184-08141 |
GSL20,25..XLE |
1 | ||
| 82184-08091 |
GSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08161 |
GSL20..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD) |
1 | ||
| 82184-08171 |
GSL20..LE..USA AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08170 |
GSL20..LE..USA AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82184-08171 |
GSL20..LE..USA AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-AE010 |
GSL20,25..XLE INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER&SEAT COVER MATERIAL-LEATHER,RH |
1 | ||
| 82350-AE010 |
GSL20,25..XLE INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER,RH |
1 | ||
| 82350-08020 |
GSL20,25..XLE FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER,LH |
1 | ||
| 82350-AE010 |
GSL2# LH |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-AE010 |
GSL20,25..XLE INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER&SEAT COVER MATERIAL-LEATHER,RH |
1 | ||
| 82350-AE010 |
GSL20,25..XLE INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE&FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER,RH |
1 | ||
| 82350-08020 |
GSL20,25..XLE FRONT SEAT-D:8WAY POWER+MEMORY & P:POWER,LH |
1 | ||
| 82350-AE010 |
GSL2# LH |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-30350 |
GSL2# |
1 | ||
| Common parts | ||||
| 90080-11215 | ||||
| 90080-11216 | ||||
| 90080-11546 | ||||

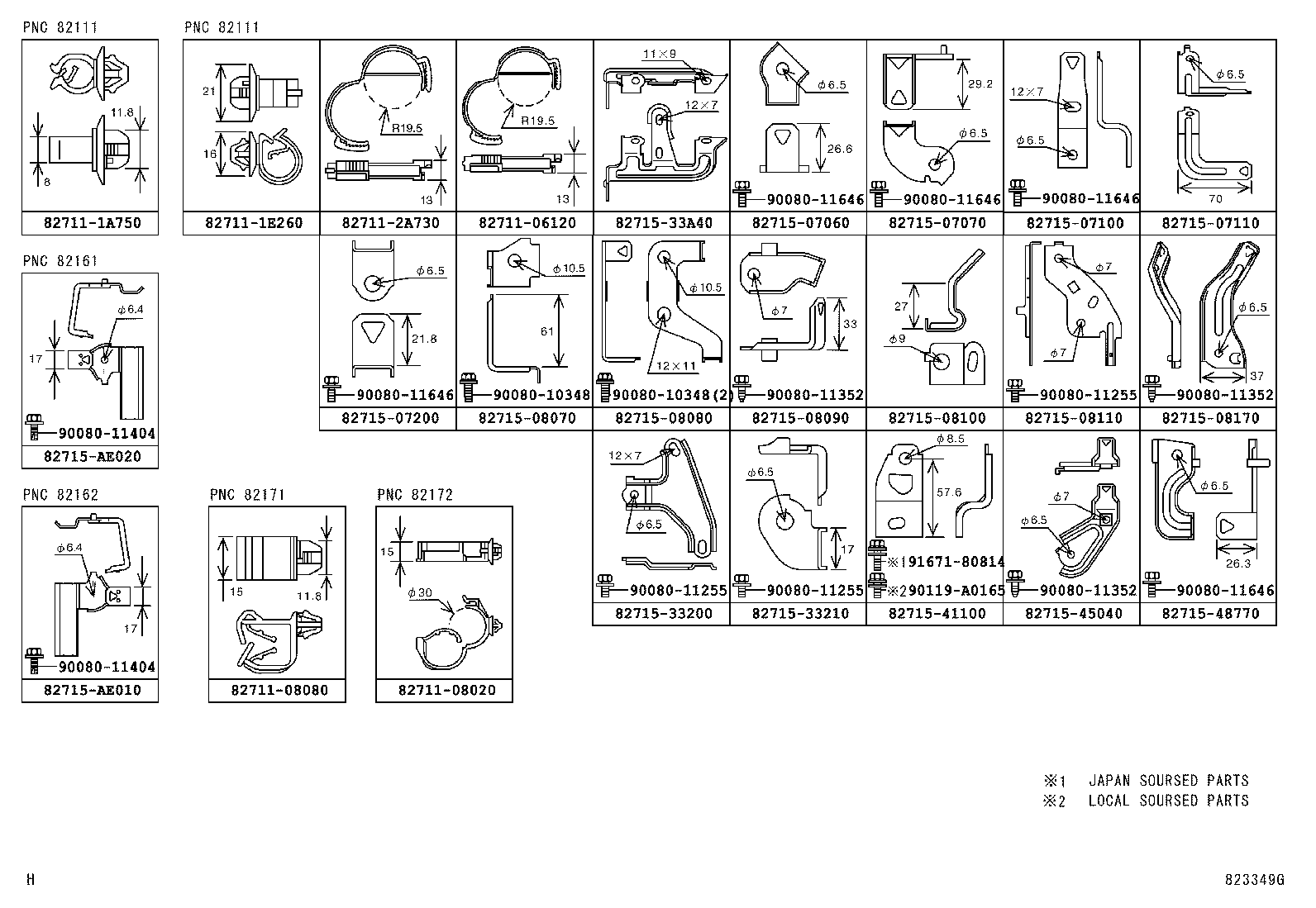

ILLUST NO. 8 OF 9(0301- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-06120 | ||||
| 82711-08020 | ||||
| 82711-08080 | ||||
| 82711-1A750 | ||||
| 82711-1E260 | ||||
| 82711-2A730 | ||||
| 82715-07060 | ||||
| 82715-07070 | ||||
| 82715-07100 | ||||
| 82715-07110 | ||||
| 82715-07200 | ||||
| 82715-08070 | ||||
| 82715-08080 | ||||
| 82715-08090 | ||||
| 82715-08100 | ||||
| 82715-08110 | ||||
| 82715-08170 | ||||
| 82715-33200 | ||||
| 82715-33210 | ||||
| 82715-33A40 | ||||
| 82715-41100 | ||||
| 82715-45040 | ||||
| 82715-48770 | ||||
| 82715-AE010 | ||||
| 82715-AE020 | ||||
| 90080-10348 | ||||
| 90080-11255 | ||||
| 90080-11352 | ||||
| 90080-11404 | ||||
| 90080-11646 | ||||
| 90119-A0165 | ||||
| 91671-80814 | ||||

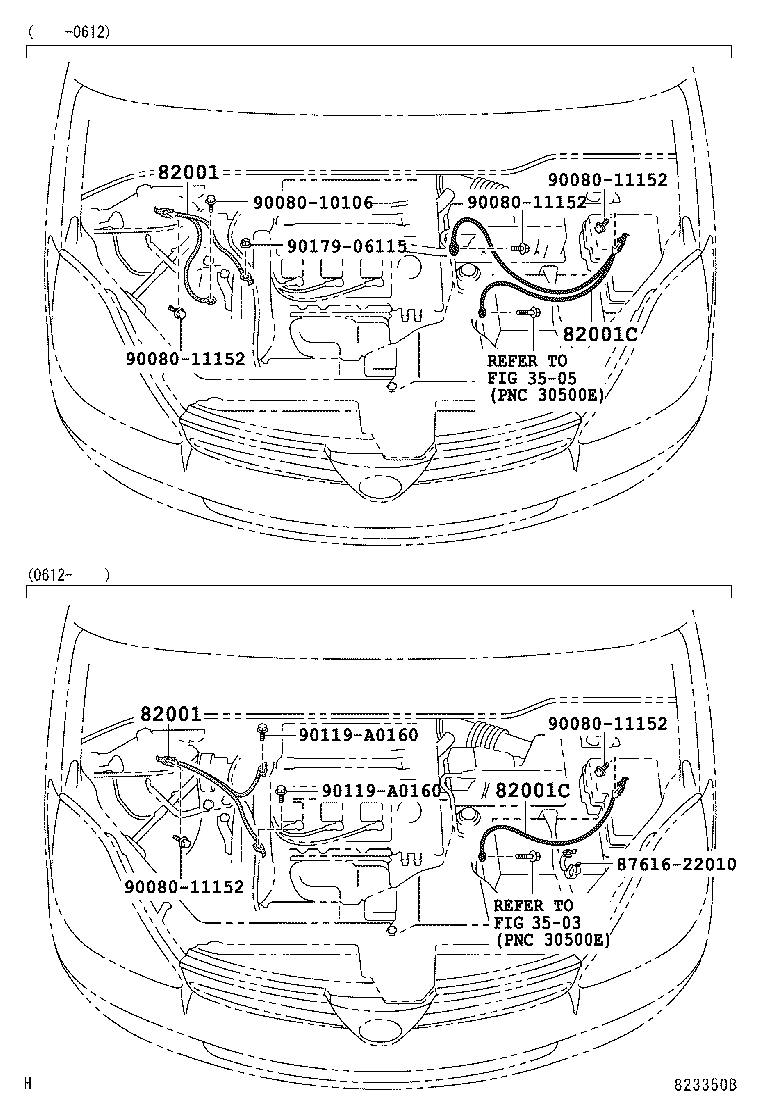

ILLUST NO. 7 OF 9(0301- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7015 |
GSL2# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-A7015 |
GSL2# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-A7016 |
GSL2# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-A7016 |
GSL2# |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90080-10106 | ||||
| 90080-11152 | ||||
| 90119-A0160 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 3505 | ||||

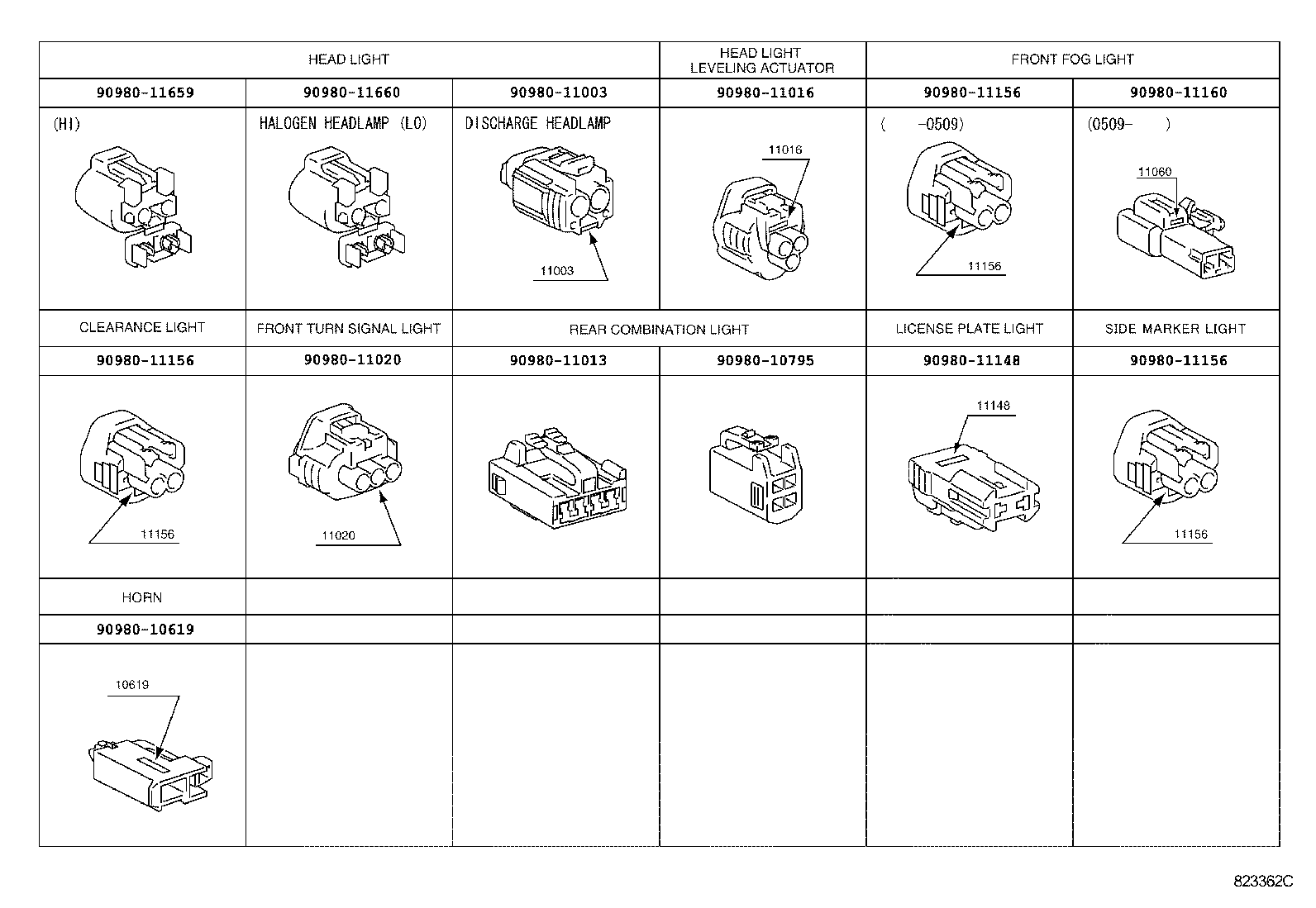

ILLUST NO. 9 OF 9(0301- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-11003 | ||||
| 90980-11013 | ||||
| 90980-11016 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11160 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||

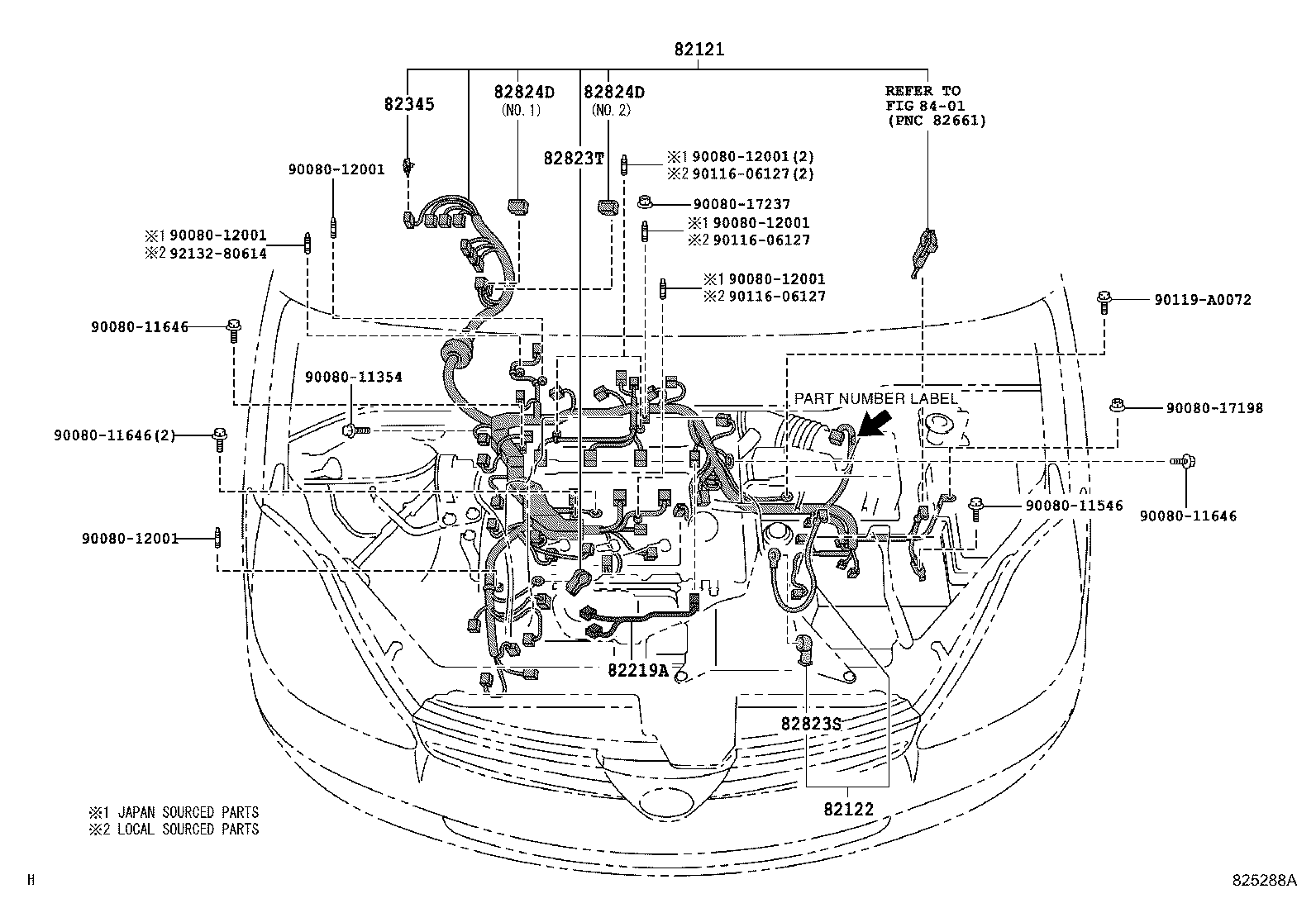

ILLUST NO. 2 OF 9(0612- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-08080 |
GSL2# |
1 | ||
| 82121-08090 |
GSL2# |
1 | ||
| 82121-08081 |
GSL2# TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-08020 |
GSL2# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-41010 |
GSL2# (J) |
1 | ||
| 82219-06010 |
GSL2# (L) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GSL2# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
GSL2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-0C010 |
GSL2# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
GSL2# NO.1 |
1 | ||
| 82824-50110 |
GSL2# NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
GSL2# NO.1 |
1 | ||
| 82824-50110 |
GSL2# NO.2 |
1 | ||
| Common parts | ||||
| 90080-11354 | ||||
| 90080-11546 | ||||
| 90080-11646 | ||||
| 90080-12001 | ||||
| 90080-17198 | ||||
| 90080-17237 | ||||
| 90116-06127 | ||||
| 90119-A0072 | ||||
| 92132-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
