GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

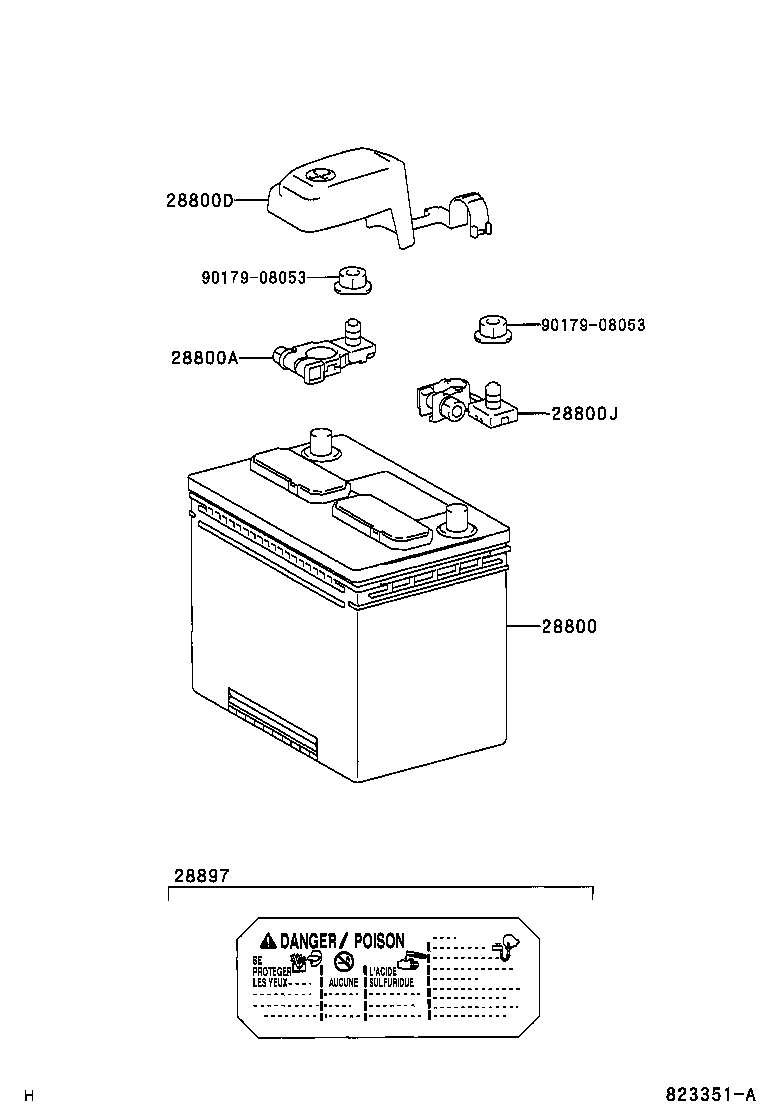

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28897 9017908053 9017908053
Part # Description Qty Price
28800 - BATTERY
28800-03044

2GRFE..GSL2#

80D26L,JOHNSON

 1
28800-AA041

2GRFE..GSL2#

80D26L,GNB

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2GRFE..GSL2#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

2GRFE..GSL2#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056

2GRFE..GSL2#

 1
Common parts
90179-08053
