GSL20L-PRAQKA (2006)
Toyota Sienna

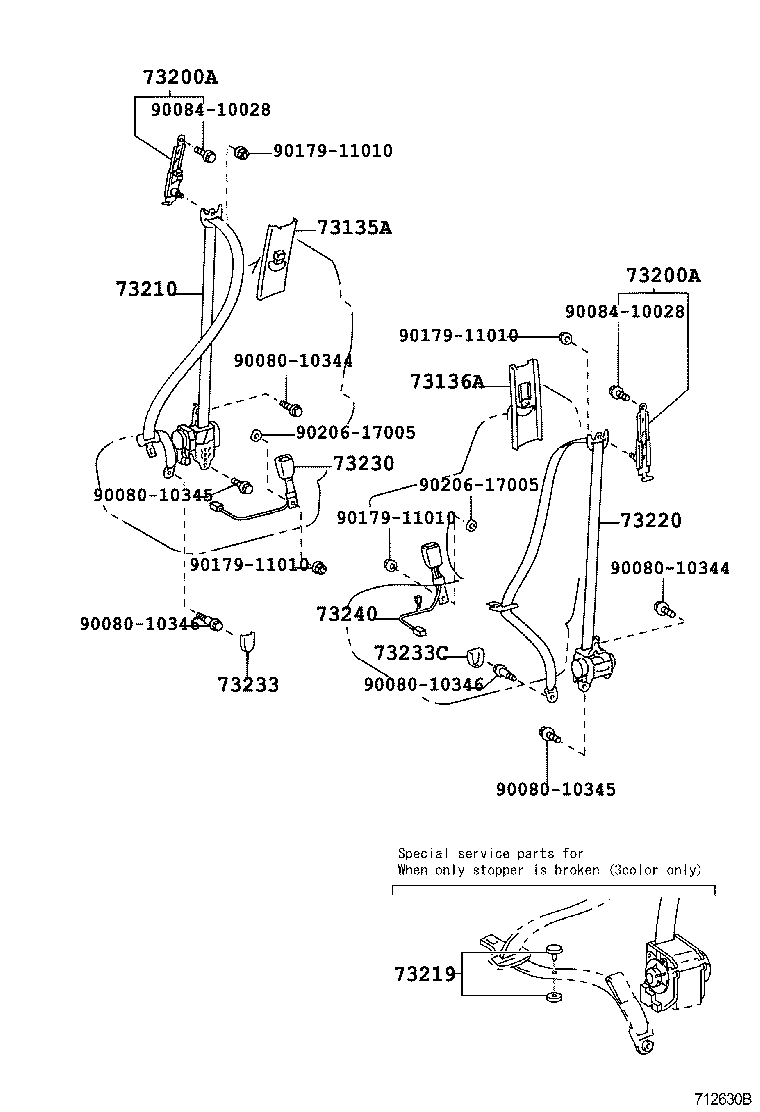

ILLUST NO. 1 OF 3(0301- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73023-AE010B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 73023-AE010E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73024-AE010E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73024-AE010B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-AE010 |
GSL20..8S |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-AE010 |
GSL20..8S |
4 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-AE021B0 |
GSL2# CHARCOAL,TRIM1# |
1 | ||
| 73210-AE022E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73210-AE021E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73210-AE022B0 |
GSL2# CHARCOAL,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-AE010 |
GSL2# BLACK |
1 | ||
| 73219-AE020 |
GSL2# GRAY |
1 | ||
| 73219-AE030 |
GSL2# BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-AE021B0 |
GSL2# CHARCOAL,TRIM1# |
1 | ||
| 73220-AE021E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-AE031E0 |
GSL20,25..CE,LE FAWN,TRIM4# |
1 | ||
| 73230-AE020E0 |
GSL20,25..XLE FAWN,TRIM4# |
1 | ||
| 73230-AE031B0 |
GSL20,25..CE,LE STONE,TRIM1# |
1 | ||
| 73230-AE020B0 |
GSL20,25..XLE STONE,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-AA010B0 |
GSL20,25 STONE,TRIM1# |
1 | ||
| 73233-AA010E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73233C - COVER, LAP BELT OUTER ANCHOR, LH | ||||
| 73233-AA010B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 73233-AA010E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-AE030B0 |
GSL20,25..XLE STONE,TRIM1# |
1 | ||
| 73240-AE030E0 |
GSL20,25..XLE FAWN,TRIM4# |
1 | ||
| 73240-AE040E0 |
GSL2#..CE,LE FAWN,TRIM4# |
1 | ||
| 73240-AE030B0 |
GSL20,25..LE FRONT SEAT-D:8WAY POWER P:SLIDE&REC.,STONE,TRIM1# |
1 | ||
| 73240-AE040B0 |
GSL2#..CE,LE STONE,TRIM1# |
1 | ||
| 73240-AE030E0 |
GSL20,25..LE FRONT SEAT-D:8WAY POWER P:SLIDE&REC.,FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-10344 | ||||
| 90080-10345 | ||||
| 90080-10346 | ||||
| 90084-10028 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||

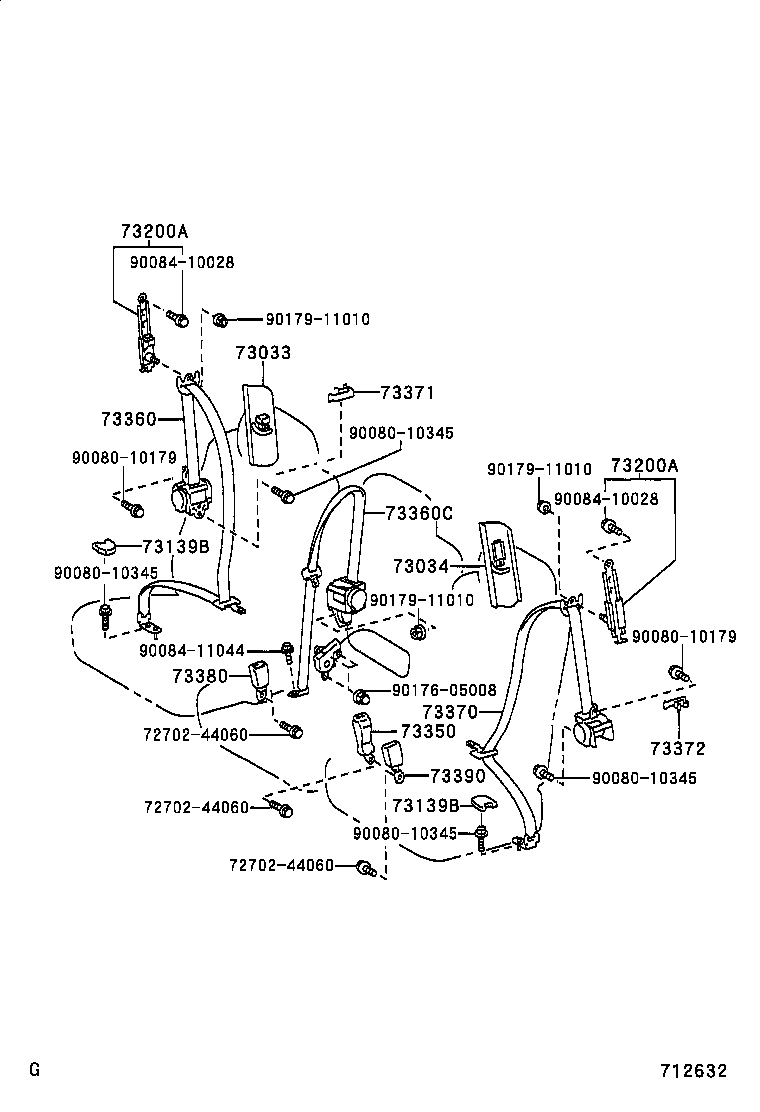

ILLUST NO. 2 OF 3(0301- )8S
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-AE010B0 |
GSL20..8S..(LE,XLE) AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,STONE,TRIM1# |
1 | ||
| 73033-AE010E0 |
GSL20..8S..(LE,XLE) AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,FAWN,TRIM4# |
1 | ||
| 73033-AE010B0 |
GSL20..8S..(LE,XLE) AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,STONE,TRIM1# |
1 | ||
| 73033-AE010E0 |
GSL20..8S..(LE,XLE) AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,FAWN,TRIM4# |
1 | ||
| 73033-AE010E0 |
GSL20..8S SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,FAWN,TRIM4# |
1 | ||
| 73033-AE010B0 |
GSL20..8S SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,STONE,TRIM1# |
1 | ||
| 73033-AE010B0 |
GSL20..8S STONE,TRIM1# |
1 | ||
| 73033-AE010E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73034 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, LH | ||||
| 73034-AE010B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 73034-AE010B0 |
GSL20,25..LE,XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,STONE,TRIM1# |
1 | ||
| 73034-AE010E0 |
GSL20,25..LE,XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,FAWN,TRIM4# |
1 | ||
| 73034-AE010E0 |
GSL20,25 SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,FAWN,TRIM4# |
1 | ||
| 73034-AE010E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73034-AE010B0 |
GSL20,25 SRS AIR BAG-DRIVER&PASSENGER&SIDE&CURTAIN SHIELD,STONE,TRIM1# |
1 | ||
| 73034-AE010E0 |
GSL20,25..LE,XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,FAWN,TRIM4# |
1 | ||
| 73034-AE010B0 |
GSL20,25..LE,XLE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,STONE,TRIM1# |
1 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-AE010B0 |
GSL20..8S STONE,TRIM1# |
2 | ||
| 73139-AE010E0 |
GSL20..8S FAWN,TRIM4# |
2 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-AE010B0 |
GSL20..8S STONE,TRIM1# |
2 | ||
| 73139-AE010E0 |
GSL20..8S FAWN,TRIM4# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-AE010 |
GSL20..8S |
4 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-AE010 |
GSL20..8S |
4 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73306-AE011E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73306-AE011B0 |
GSL20..8S CHARCOAL,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-AE011E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73360-AE010E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73360-AE011B0 |
GSL20..8S CHARCOAL,TRIM1# |
1 | ||
| 73360-AE010B0 |
GSL20..8S CHARCOAL,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73301-AE020B0 |
GSL20..8S CHARCOAL,TRIM1# |
1 | ||
| 73301-AE021E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73301-AE020E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73301-AE021B0 |
GSL20..8S CHARCOAL,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-AE010E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73370-AE010B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73370-AE011E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73370-AE012E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73370-AE012B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73370-AE011B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-AE010B0 |
GSL20..8S STONE,TRIM1# |
1 | ||
| 73371-AE010E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-AE010B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 73371-AE010E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-AE021E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73380-AE021B0 |
GSL20..8S STONE,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-AE021E0 |
GSL20..8S FAWN,TRIM4# |
1 | ||
| 73380-AE021B0 |
GSL20..8S STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-44060 | ||||
| 90080-10179 | ||||
| 90080-10345 | ||||
| 90084-10028 | ||||
| 90084-11044 | ||||
| 90176-05008 | ||||
| 90179-11010 | ||||
ILLUST NO. 3 OF 3(0301- )GSL20,25,MCL20,25
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-AE010 |
GSL20,25 |
1 | ||
| 73016A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-AE010 |
GSL20,25 |
1 | ||
| 73060 - BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER LH | ||||
| 73060-AE010B0 |
GSL20,25 STONE,TRIM1# |
1 | ||
| 73060-AE010E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-AE020E0 |
GSL20,25 FAWN,TRIM4# |
2 | ||
| 73178-AE020B0 |
GSL20,25 CHARCOAL,TRIM1# |
3 | ||
| 73178-AE020B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
4 | ||
| 73178-AE020B0 |
GSL20,25 CHARCOAL,TRIM1# |
2 | ||
| 73178-AE020E0 |
GSL20,25 FAWN,TRIM4# |
3 | ||
| 73178-AE020E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
4 | ||
| 73178-AE020E0 |
GSL20,25 FAWN,TRIM4# |
2 | ||
| 73178-AE020B0 |
GSL20,25 CHARCOAL,TRIM1# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-AE020E0 |
GSL20,25 FAWN,TRIM4# |
2 | ||
| 73178-AE020B0 |
GSL20,25 CHARCOAL,TRIM1# |
3 | ||
| 73178-AE020B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
4 | ||
| 73178-AE020B0 |
GSL20,25 CHARCOAL,TRIM1# |
2 | ||
| 73178-AE020E0 |
GSL20,25 FAWN,TRIM4# |
3 | ||
| 73178-AE020E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
4 | ||
| 73178-AE020E0 |
GSL20,25 FAWN,TRIM4# |
2 | ||
| 73178-AE020B0 |
GSL20,25 CHARCOAL,TRIM1# |
2 | ||
| 73187A - GUIDE, REAR SEAT SHOULDER BELT | ||||
| 73187-08010 |
GSL20,25 |
1 | ||
| 73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT | ||||
| 73233-AA010E0 |
GSL20,25 FAWN,TRIM4# |
2 | ||
| 73233-AA010B0 |
GSL20,25 STONE,TRIM1# |
2 | ||
| 73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT | ||||
| 73233-AA010E0 |
GSL20,25 FAWN,TRIM4# |
2 | ||
| 73233-AA010B0 |
GSL20,25 STONE,TRIM1# |
2 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-AE011B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73510-AE013B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73510-AE011E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73510-AE012B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73510-AE012E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73510-AE013E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-AE010E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73560-AE010B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73560-AE011E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73560-AE011B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-AE011E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 73570-AE010B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73570-AE011B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
1 | ||
| 73570-AE010E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73570-AE011B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73570-AE011E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73570-AE012B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
1 | ||
| 73570-AE012E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-AE011B0 |
GSL20,25 STONE,TRIM1# |
1 | ||
| 73580-AE011E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-08020B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
1 | ||
| 73590-08020E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 73590-AE021E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73590-AE021B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73590-AE011B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73590-08010E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 73590-08011B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
1 | ||
| 73590-AE011E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| 73590-08010B0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),CHARCOAL,TRIM1# |
1 | ||
| 73590-08011E0 |
GSL20..LE;GSL20..7S..XLE SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4# |
1 | ||
| 73590-AE012B0 |
GSL20,25 CHARCOAL,TRIM1# |
1 | ||
| 73590-AE012E0 |
GSL20,25 FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-10177 | ||||
| 90080-10179 | ||||
| 90080-10344 | ||||
| 90080-10345 | ||||
| 90080-10346 | ||||
| 90084-10013 | ||||
| 90084-11055 | ||||
| 90182-A0008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
