GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

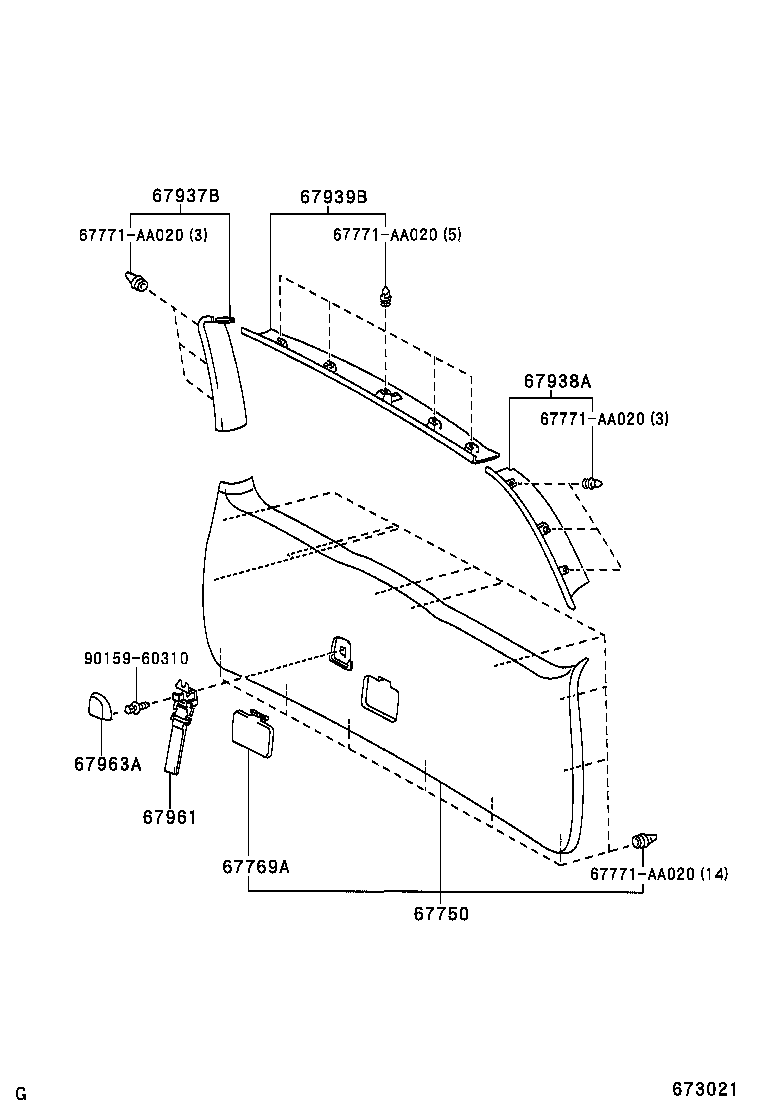

ILLUST NO. 1 OF 2(0301- )

Click highlighted areas on diagram

diagram 67750 67769A 67771AA020 67771AA020 67771AA020 67771AA020 67937B 67938A 67939B 67961 67963A 9015960310
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-AE010B0

GSL2#

STONE,TRIM1#

 1
67750-AE010E0

GSL2#

FAWN,TRIM4#

 1
67769A - PLATE, BACK DOOR SERVICE HOLE
67807-AE010B0

GSL2#

STONE,TRIM1#

 1
67807-AE010E0

GSL2#

FAWN,TRIM4#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-AE010B0

GSL2#

STONE,TRIM1#

 1
67937-AE010E0

GSL2#

FAWN,TRIM4#

 1
67938A - GARNISH, BACK DOOR SIDE, LH
67938-AE010E0

GSL2#

FAWN,TRIM4#

 1
67938-AE010B0

GSL2#

STONE,TRIM1#

 1
67938-AE020B0

GSL20..LE;GSL20..7S..XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#

 1
67938-AE020E0

GSL20,25..LE,XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,FAWN,TRIM4#

 1
67938-AE020B0

GSL20,25..LE,XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR,STONE,TRIM1#

 1
67938-AE020E0

GSL20..LE;GSL20..7S..XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-AE010E0

GSL2#

FAWN,TRIM4#

 1
67939-AE010B0

GSL2#

STONE,TRIM1#

 1
67939-AE020E0

GSL20..LE;GSL20..7S..XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#

 1
67939-AE020B0

GSL20..LE;GSL20..7S..XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#

 1
67939-AE020B0

GSL20..LE;GSL20..7S..XLE

SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),STONE,TRIM1#

 1
67939-AE020E0

GSL20..LE;GSL20..7S..XLE

SEAT, REAR NO.2-60/40 BENCH(POWER FOLD),FAWN,TRIM4#

 1
67961 - STRAP, BACK DOOR PULL
67908-08011B1

GSL2#

CHARCOAL,TRIM1#

 1
67908-08011E3

GSL2#

FAWN,TRIM4#

 1
67963A - COVER, BACK DOOR STRAP
67963-08010B2

GSL2#

STONE,TRIM1#

 1
67963-08010E1

GSL2#

FAWN,TRIM4#

 1
Common parts
67771-AA020
90159-60310

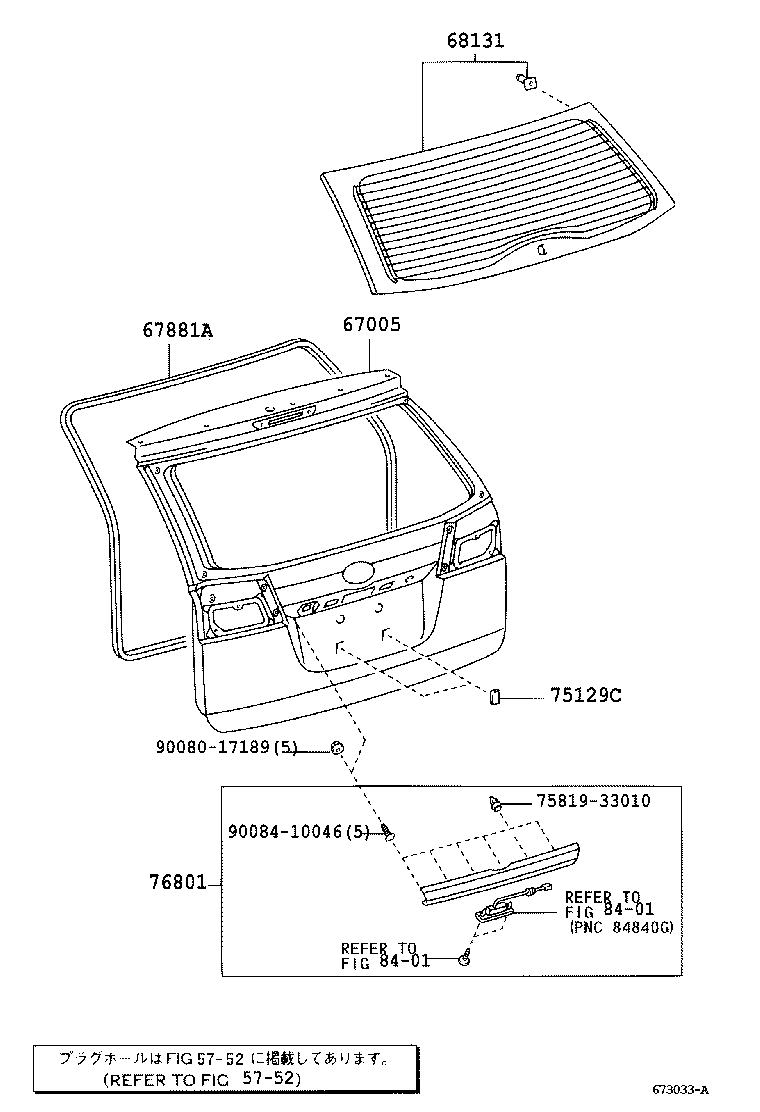

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

diagram 5752 67005 67881A 68131 75129C 7581933010 76801 8401 8401 9008017189 9008410046
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-AE120

GSL20,25..LE,XLE

REAR SPOILER-WITH(PEINTED)&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR

 1
67005-AE130

GSL20,25..XLE..USA

EMV & NAVIGATION SYSTEM-WITH

 1
67005-AE100

GSL20,25

REAR SPOILER-WITH(PEINTED)

 1
67005-AE110

GSL20,25..LE,XLE

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR

 1
67005-AE160

GSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND

REAR SPOILER-WITH(PEINTED)&AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&EMV & NAVIGATION SYSTEM-WITH

 1
67005-AE140

GSL20..USA;GSL25..XLE;GSL25..LE..USA;GSL20..XLE..CND

AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&EMV & NAVIGATION SYSTEM-WITH

 1
67005-AE090

GSL2#

 1
67005-AE130

GSL20,25..LE..USA

AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&EMV & NAVIGATION SYSTEM-WITH

 1
67005-AE150

GSL20,25..LE..USA

REAR SPOILER-WITH(PEINTED)&AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&EMV &NAVIGATION SYSTEM-WITH

 1
67005-AE150

GSL20,25..LE..USA

REAR SPOILER-WITH(PEINTED)&AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&EMV & NAVIGATION SYSTEM-WITH

 1
67005-AE130

GSL20,25..LE..USA

AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&EMV & NAVIGATION SYSTEM-WITH

 1
67005-AE150

GSL20,25..XLE..USA

REAR SPOILER-WITH(PEINTED)&EMV & NAVIGATION SYSTEM-WITH

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-AE011

GSL2#

 1
67881-AE010

GSL2#

 1
68131 - GLASS, BACK DOOR
68105-AE020

GSL20,25..LE,XLE

*EHT,T=3.5,PRIVATE

 1
68105-AE030

GSL20..LE..USA

*EHT,T=3.5,GREEN,BACK GLASS-H.S.E.A. GREEN

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-13020

GSL2#

 2
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-AE011J2

GSL20,25..LE,XLE

DK.BLUE MC.,8S6

 1
76801-AE011A0

GSL20,25..LE,XLE

WHITE,056

 1
76801-AE041J2

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,DK.BLUE MC.,8S6

 1
76801-AE011B2

GSL20,25..LE,XLE

GRAY ME.,1F9

 1
76801-AE031

GSL20,25..XLE

PLATED,LIMITED PACKAGE

 1
76801-AE011B0

GSL20,25..LE,XLE

SILVER M.M.,1D7

 1
76801-AE011A1

GSL20,25..LE,XLE

WHITE PEARL CS.,071

 1
76801-AE051

GSL20,25..XLE

PLATED,LIMITED PACKAGE&EMV & NAVIGATION SYSTEM-WITH

 1
76801-AE041G1

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,LT.GREEN ME.,6U0

 1
76801-AE011G1

GSL20,25..LE,XLE

LT.GREEN ME.,6U0

 1
76801-AE041E0

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,BEIGE M. M.,4Q2

 1
76801-AE041A1

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,WHITE PEARL CS.,071

 1
76801-AE011E0

GSL20,25..LE,XLE

BEIGE M. M.,4Q2

 1
76801-AE011J1

GSL20,25..LE,XLE

BLUE ME.,8R5

 1
76801-AE041J1

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,BLUE ME.,8R5

 1
76801-AE041A0

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,WHITE,056

 1
76801-AE041D0

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,DK. RED M.M.,3Q3

 1
76801-AE041B2

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,GRAY ME.,1F9

 1
76801-AE011D0

GSL20,25..LE,XLE

DK. RED M.M.,3Q3

 1
76801-AE021

GSL20..LE..USA

NO PAINT REQ.,CE PACKAGE

 1
76801-AE041B0

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,SILVER M.M.,1D7

 1
76801-AE011A3

GSL20,25..LE,XLE

WHITE PEARL CS.,070

 1
76801-AE031

GSL20,25..XLE

PLATED,LWR.BACK & BACK DR.GARN.-CHROMIUM PLATING

 1
76801-AE041A3

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,WHITE PEARL CS.,070

 1
76801-AE011C0

GSL20,25..LE,XLE

BLACK,202

 1
76801-AE041A2

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,SUPER WHITE 2,040

 1
76801-AE041C0

GSL20,25..USA

EMV & NAVIGATION SYSTEM-WITH,BLACK,202

 1
76801-AE011A2

GSL20,25..LE,XLE

SUPER WHITE 2,040

 1
76801-AE051

GSL20,25..XLE

PLATED,LWR.BACK & BACK DR.GARN.-CHROMIUM PLATING&EMV & NAVIGATION SYSTEM-WITH

 1
Common parts
75819-33010
90080-17189
90084-10046
Linked diagrams
5752
8401
