GSL20L-PRAQKA (2006)
Toyota Sienna

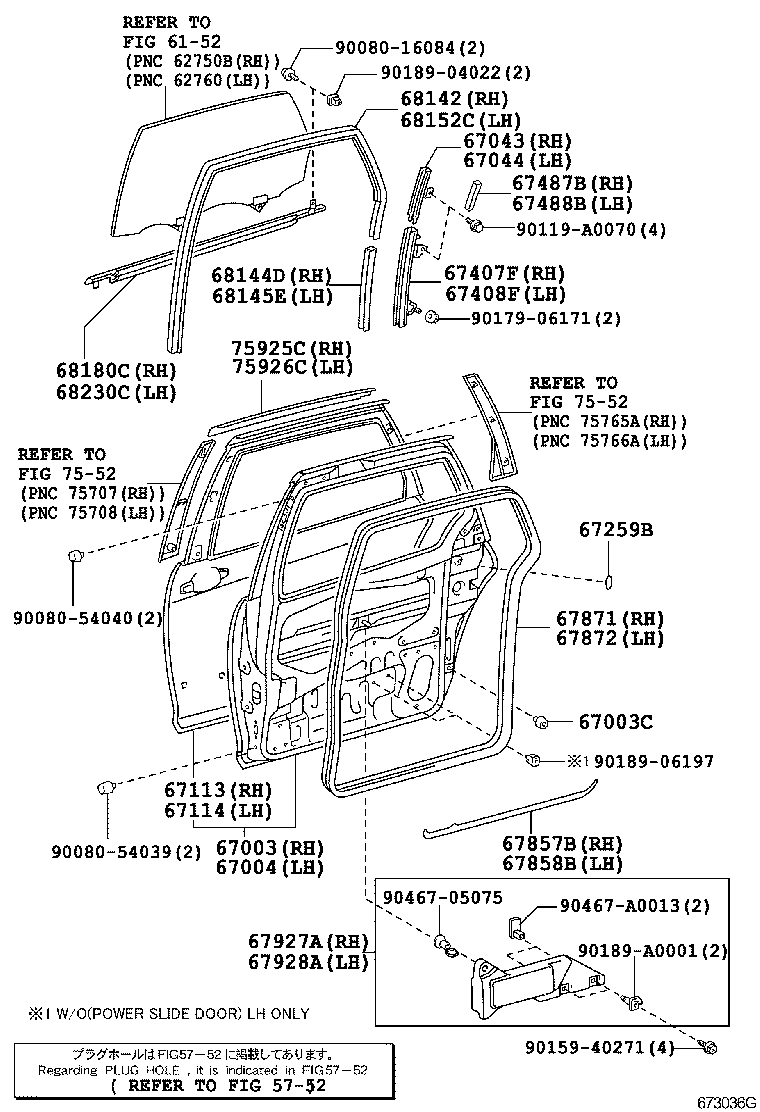

ILLUST NO. 1 OF 2(0301- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-08093 |
GSL20,25..XLE |
1 | ||
| 67003-08103 |
GSL20,25..XLE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08093 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 67003-08103 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08103 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08094 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY |
1 | ||
| 67003-08073 |
GSL2#..CE,LE |
1 | ||
| 67003-08103 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08093 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 67003-08083 |
GSL20,25..LE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08074 |
GSL2#..CE,LE |
1 | ||
| 67003-08104 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08084 |
GSL20,25..LE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08094 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 67003-08104 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08094 |
GSL20,25..XLE |
1 | ||
| 67003-08104 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08104 |
GSL20,25..XLE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67003-08093 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 67003-08094 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90084-54012 |
GSL2# |
2 | ||
| 90541-09117 |
GSL2# |
2 | ||
| 90541-09103 |
GSL2# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-08093 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 67004-08093 |
GSL20,25..XLE |
1 | ||
| 67004-08085 |
GSL20,25..LE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08093 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 67004-08103 |
GSL20,25..XLE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08103 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08094 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR |
1 | ||
| 67004-08084 |
GSL20,25..LE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08074 |
GSL2#..CE,LE |
1 | ||
| 67004-08103 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08075 |
GSL2#..CE,LE |
1 | ||
| 67004-08104 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08094 |
GSL20,25..XLE |
1 | ||
| 67004-08094 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR |
1 | ||
| 67004-08104 |
GSL20,25..LE AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR&SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67004-08104 |
GSL20,25..XLE SUN SHADE-WITH/SLIDE DOOR&QUARTER |
1 | ||
| 67043 - FRAME SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 67043-08010 |
GSL2# |
1 | ||
| 67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 67044-08010 |
GSL2# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-08020 |
GSL2# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-08020 |
GSL2# |
1 | ||
| 67259B - REFLECTOR, SLIDE DOOR | ||||
| 67259-AE010 |
GSL2# |
2 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-08010 |
GSL2# |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-08010 |
GSL2# |
1 | ||
| 67487B - SEAL, REAR DOOR DIVISION BAR, RH | ||||
| 67487-08010 |
GSL2# |
1 | ||
| 67488B - SEAL, REAR DOOR DIVISION BAR, LH | ||||
| 67487-08010 |
GSL2# |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-08020 |
GSL2# |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-08020 |
GSL2# |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-08021E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 67871-08021B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-08021B0 |
GSL2# STONE,TRIM1# |
1 | ||
| 67872-08021E0 |
GSL2# FAWN,TRIM4# |
1 | ||
| 67927A - CUSHION, REAR DOOR STIFFENER, RH | ||||
| 67927-08010 |
GSL2# |
1 | ||
| 67928A - CUSHION, REAR DOOR STIFFENER, LH | ||||
| 67928-08010 |
GSL2# |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-08010 |
GSL2# |
1 | ||
| 68144D - RUN, REAR DOOR GLASS, LOWER RH | ||||
| 68144-08010 |
GSL2# |
1 | ||
| 68145E - RUN, REAR DOOR GLASS, LOWER REAR | ||||
| 68145-08020 |
GSL2# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-08010 |
GSL2# |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-08010 |
GSL2# |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-08010 |
GSL2# |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75931-AE010 |
GSL2# |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75932-AE010 |
GSL2# |
1 | ||
| Common parts | ||||
| 90080-16084 | ||||
| 90080-54039 | ||||
| 90080-54040 | ||||
| 90119-A0070 | ||||
| 90159-40271 | ||||
| 90179-06171 | ||||
| 90189-04022 | ||||
| 90189-06197 | ||||
| 90189-A0001 | ||||
| 90467-05075 | ||||
| 90467-A0013 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6152 | ||||
| 7552 | ||||
