GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

Click highlighted areas on diagram

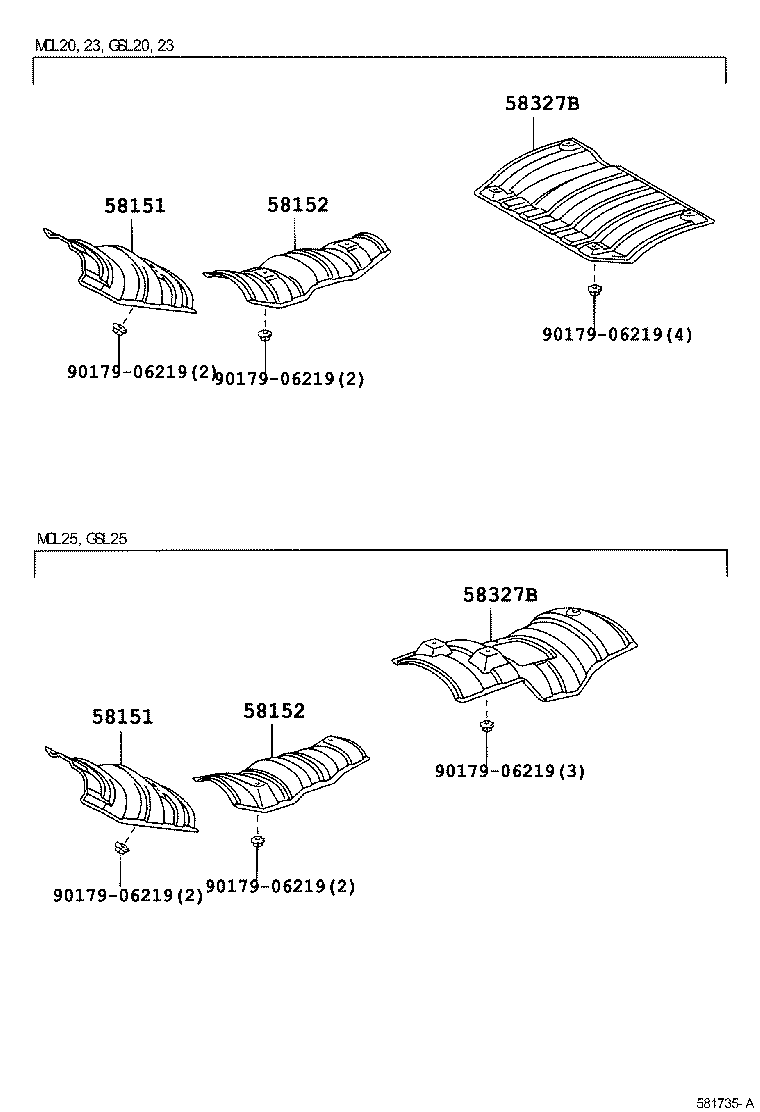

diagram 58151 58151 58152 58152 58327B 58327B 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-08020

GSL2#

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-08020

GSL2#

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-08030

GSL20,23

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-08030

GSL20,23

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-08020

GSL20,23

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-08020

GSL20,23

 1
Common parts
90179-06219
