GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0301- )

Click highlighted areas on diagram

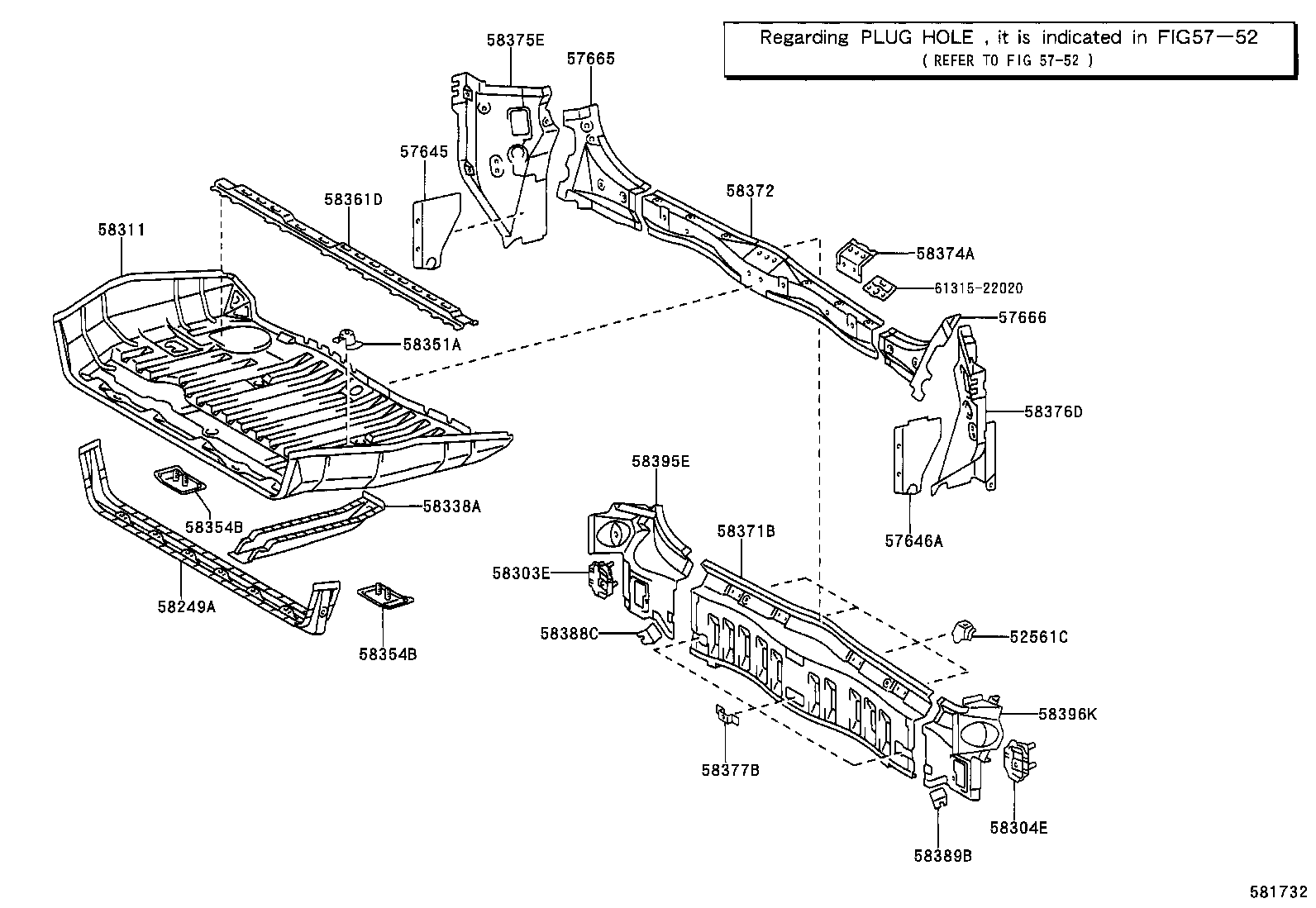

FLOOR & LOWER BACK PANEL

diagram 52561C 5752 57645 57646A 57665 57666 58249A 58303E 58304E 58311 58338A 58351A 58354B 58354B 58361D 58371B 58372 58374A 58375E 58376D 58377B 58388C 58389B 58395E 58396K 6131522020
Part # Description Qty Price
52561C - RETAINER, REAR BUMPER, UPPER CENTER
52561-08020

GSL2#

 4
57645 - REINFORCEMENT, REAR SIDE MEMBER, RH
57645-08020

GSL2#

 1
57646A - REINFORCEMENT, REAR SIDE MEMBER, LH
57646-08020

GSL2#

 1
57665 - PANEL, LOWER BACK SIDE, RH
57665-08020

GSL2#

 1
57666 - PANEL, LOWER BACK SIDE, LH
57666-08020

GSL2#

 1
58249A - REINFORCEMENT, REAR SEAT MOUNTING
58205-08011

GSL2#

 1
58303E - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58303-08010

GSL2#

 1
58304E - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58304-08010

GSL2#

 1
58311 - PAN, REAR FLOOR
58311-08031

GSL2#

 1
58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2
58338-08020

GSL2#

 1
58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4
58354-08010

GSL2#

 2
58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4
58354-08010

GSL2#

 2
58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58361-08010

GSL2#

 1
58371B - PANEL, BODY LOWER BACK, OUTER
58371-08020

GSL2#

 1
58372 - PANEL, BODY LOWER BACK, INNER
58372-08020

GSL2#

 1
58374A - REINFORCEMENT, BACK DOOR LOCK STRIKER
58374-08020

GSL2#

 1
58375E - REINFORCEMENT, BODY LOWER BACK PANEL
58375-08010

GSL2#

 1
58376D - REINFORCEMENT, BODY LOWER BACK, LH
58376-08010

GSL2#

 1
58377B - RETAINER, LOWER BACK TRIM
58377-08010

GSL2#

 3
58388C - PLATE, BODY LOWER BACK REINFORCEMENT, RH
58388-08020

GSL2#

 1
58389B - PLATE, BODY LOWER BACK REINFORCEMENT, LH
58389-08010

GSL2#

 1
58395E - GUSSET, BACK DOOR OPENING, LOWER RH
58395-08010

GSL2#

 1
58396K - GUSSET, BACK DOOR OPENING, LOWER LH
58396-08020

GSL2#

 1
Common parts
61315-22020
Linked diagrams
5752
