GSL20L-PRAQKA (2006)
Toyota Sienna
Production
Dec 2006
-
Jan 2010
Engine
2GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )

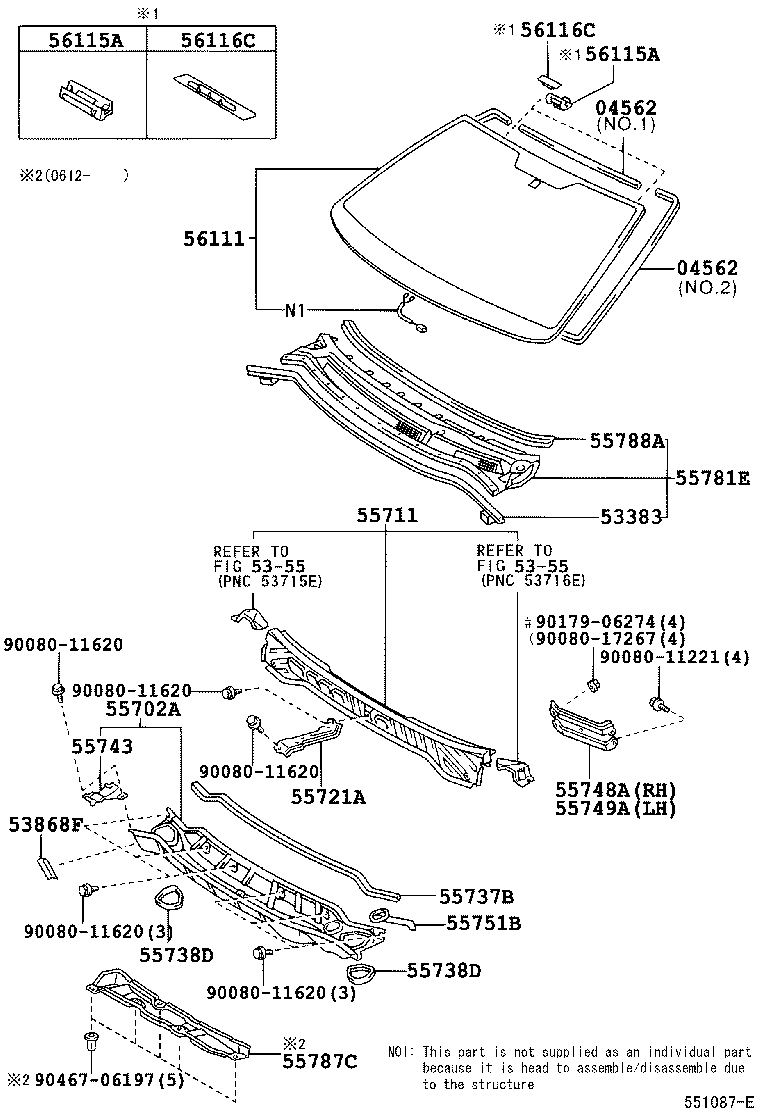

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 90998-91004 |
GSL2# NO.2 |
1 | ||
| 90998-91003 |
GSL2# NO.1 |
1 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 90998-91004 |
GSL2# NO.2 |
1 | ||
| 90998-91003 |
GSL2# NO.1 |
1 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-08020 |
GSL2# |
1 | ||
| 53868F - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-08010 |
GSL2# |
1 | ||
| 55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT | ||||
| 55702-08030 |
GSL2# |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-08010 |
GSL2# |
1 | ||
| 55721A - BRACE, COWL TOP TO COWL, INNER NO.1 | ||||
| 55721-08010 |
GSL2# |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-08010 |
GSL2# |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-08020 |
GSL2# |
2 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-08020 |
GSL2# |
2 | ||
| 55743 - PANEL, COWL TOP OUTSIDE CORNER, RH | ||||
| 55743-08020 |
GSL2# |
1 | ||
| 55748A - BRACE, COWL TOP INNER TO PILLAR | ||||
| 55748-08010 |
GSL2# |
1 | ||
| 55749A - BRACE, COWL TOP INNER TO PILLAR, LH | ||||
| 55749-08010 |
GSL2# |
1 | ||
| 55751B - HOSE, COWL WATER EXTRACT, NO.1 | ||||
| 55751-08020 |
GSL2# |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-08031 |
GSL2# |
1 | ||
| 55787C - INSULATOR, COWL TOP PANEL, NO.1 | ||||
| 55787-08010 |
GSL2# |
1 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55788-08010 |
GSL2# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-AE020 |
GSL23;GSL20,25..USA *HSEAL,T=4.7,GREEN |
1 | ||
| 56101-AE041 |
GSL20,25..USA *HSEAL,T=4.7,GREEN,WINDSHIELD DEICER-WITH |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-22010 |
GSL2# |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-22010 |
GSL2# |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GSL2# |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GSL2# |
1 | ||
| Common parts | ||||
| 90080-11221 | ||||
| 90080-11620 | ||||
| 90080-17267 | ||||
| 90179-06274 | ||||
| 90467-06197 | ||||
| Linked diagrams | ||||
| 5355 | ||||
