GSL20L-PRAQKA (2006)
Toyota Sienna
Production
Dec 2006
-
Jan 2010
Engine
2GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

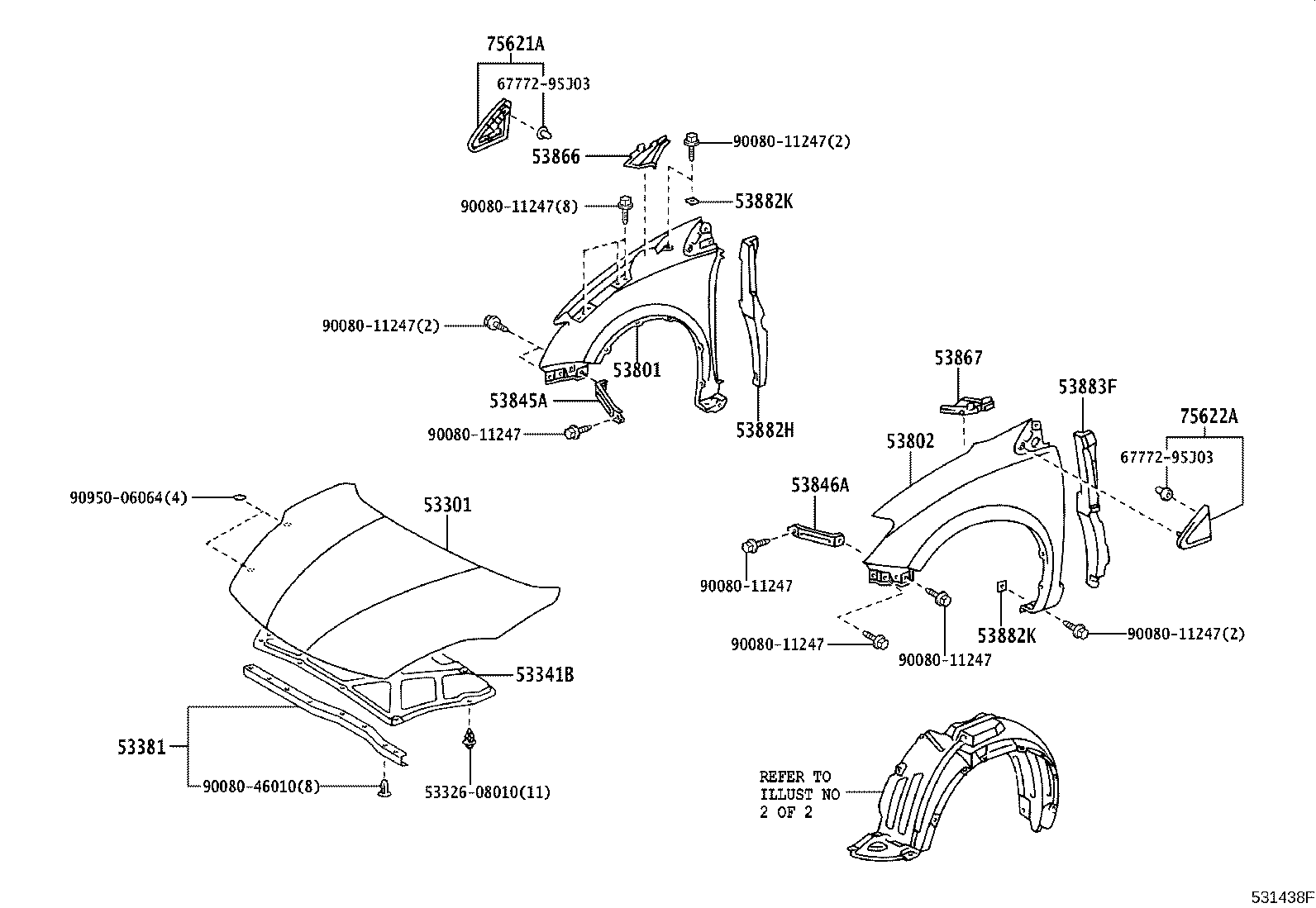

ILLUST NO. 1 OF 2(0301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-AE020 |
GSL2# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-AE010 |
GSL2# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-AE010 |
GSL2# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-AE040 |
GSL20,25..LE AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL) |
1 | ||
| 53811-AE030 |
GSL20,25..XLE |
1 | ||
| 53811-AE040 |
GSL20,25..LE..USA AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL) |
1 | ||
| 53811-AE030 |
GSL2#..CE,LE |
1 | ||
| 53811-AE040 |
GSL20,25..XLE AUDIO-AM/FM 6CD-CHANGER 10SPEAKER(JBL) |
1 | ||
| 53811-AE040 |
GSL20,25..XLE |
1 | ||
| 53811-AE040 |
GSL20,25..XLE AUDIO-AVN:AM/FM/4CD-CHANGER 10SPEAKER(JBL) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-AE020 |
GSL2# |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-AE010 |
GSL2# |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53845-AE010 |
GSL2# |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-08010 |
GSL2# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-08010 |
GSL2# |
1 | ||
| 53882H - SEAL, FRONT FENDER MAIN, RH | ||||
| 53882-AE010 |
GSL2# |
1 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-16030 |
GSL2# |
4 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-16030 |
GSL2# |
4 | ||
| 53883F - SEAL, FRONT FENDER MAIN, LH | ||||
| 53883-AE010 |
GSL2# |
1 | ||
| 75621A - GARNISH, FRONT FENDER, RH | ||||
| 75621-AE010 |
GSL2# |
1 | ||
| 75622A - GARNISH, FRONT FENDER, LH | ||||
| 75622-AE010 |
GSL2# |
1 | ||
| Common parts | ||||
| 53326-08010 | ||||
| 67772-95J03 | ||||
| 90080-11247 | ||||
| 90080-46010 | ||||
| 90950-06064 | ||||

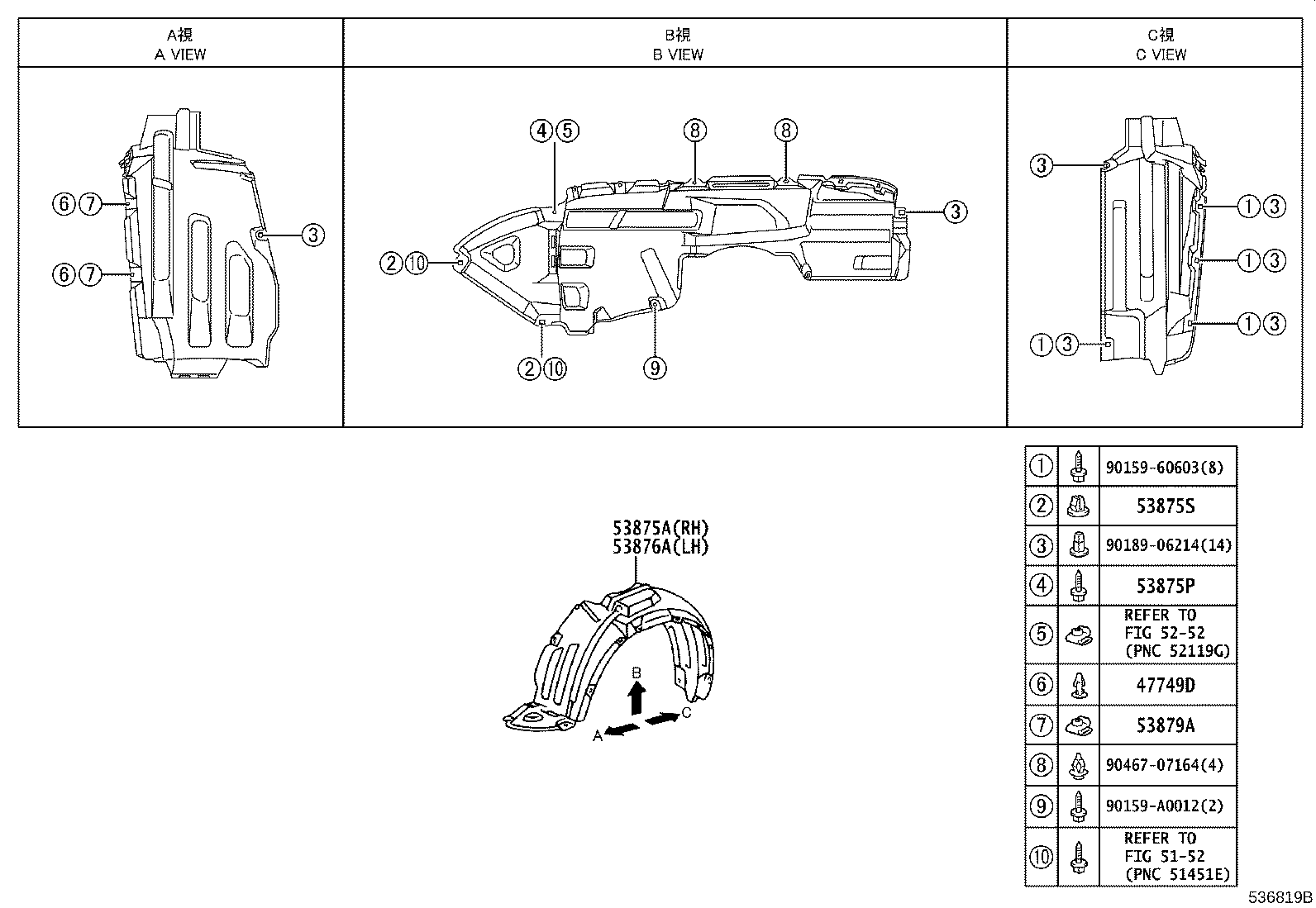

ILLUST NO. 2 OF 2(0301- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-08010 |
GSL2# |
4 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-AE020 |
GSL2# |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90080-15090 |
GSL2# |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06193 |
GSL2# |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-AE020 |
GSL2# |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GSL2# |
4 | ||
| Common parts | ||||
| 90159-60603 | ||||
| 90159-A0012 | ||||
| 90189-06214 | ||||
| 90467-07164 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5252 | ||||
