GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

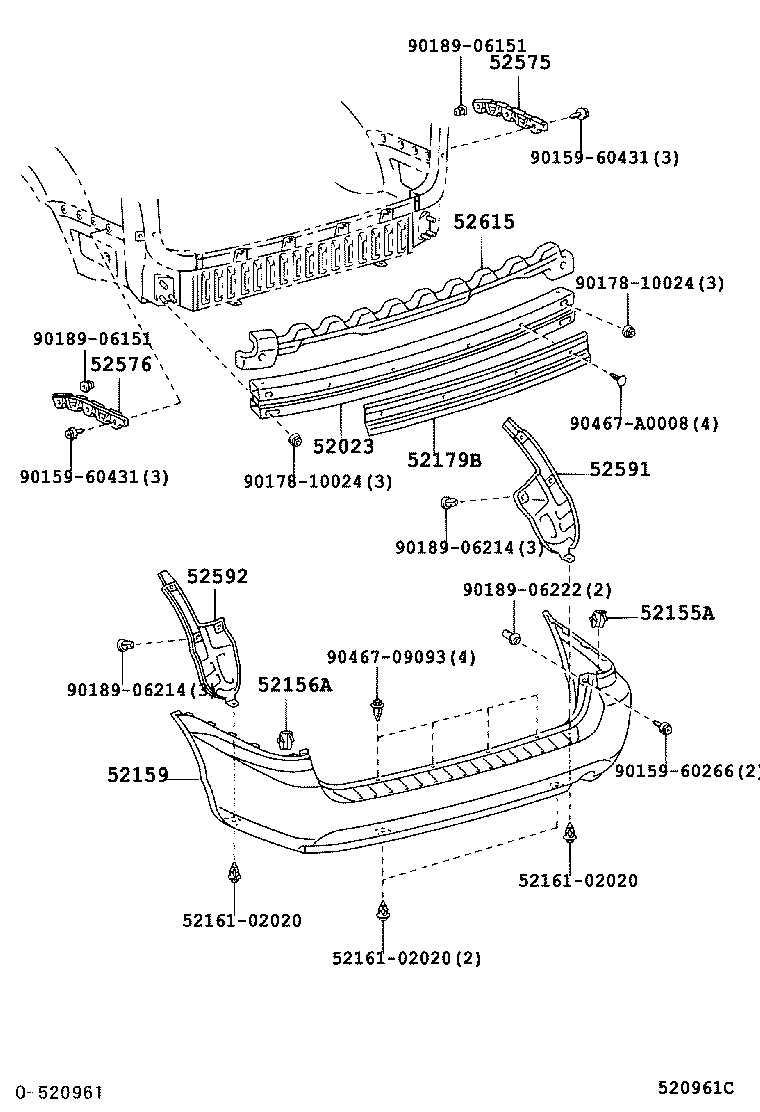

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52159 5216102020 5216102020 5216102020 52179B 52575 52576 52591 52592 52615 9015960266 9015960431 9015960431 9017810024 9017810024 9018906151 9018906151 9018906214 9018906214 9018906222 9046709093 90467A0008
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52171-AE010

GSL2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-AE010

GSL2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-AE010

GSL2#

 1
52159 - COVER, REAR BUMPER
52159-AE902

GSL20,25..LE,XLE

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

 1
52159-AE902

GSL20..LE..USA

PAINT REQ.,CE PACKAGE&CLEARANCE & BACK SONAR-WITH(REAR-CORNER & BACK)

 1
52159-AE902

GSL20..LE..USA

PAINT REQ.,CE PACKAGE&CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
52159-AE900

GSL2#

PAINT REQ.

 1
52159-AE902

GSL20,25..LE,XLE

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(4-CORNER & BACK)

 1
52179B - PLATE, REAR BUMPER BAR
52179-AE010

GSL2#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-AE010

GSL2#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-AE010

GSL2#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-AE010

GSL2#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-AE010

GSL2#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-AE010

GSL2#

 1
Common parts
52161-02020
90159-60266
90159-60431
90178-10024
90189-06151
90189-06214
90189-06222
90467-09093
90467-A0008
