GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

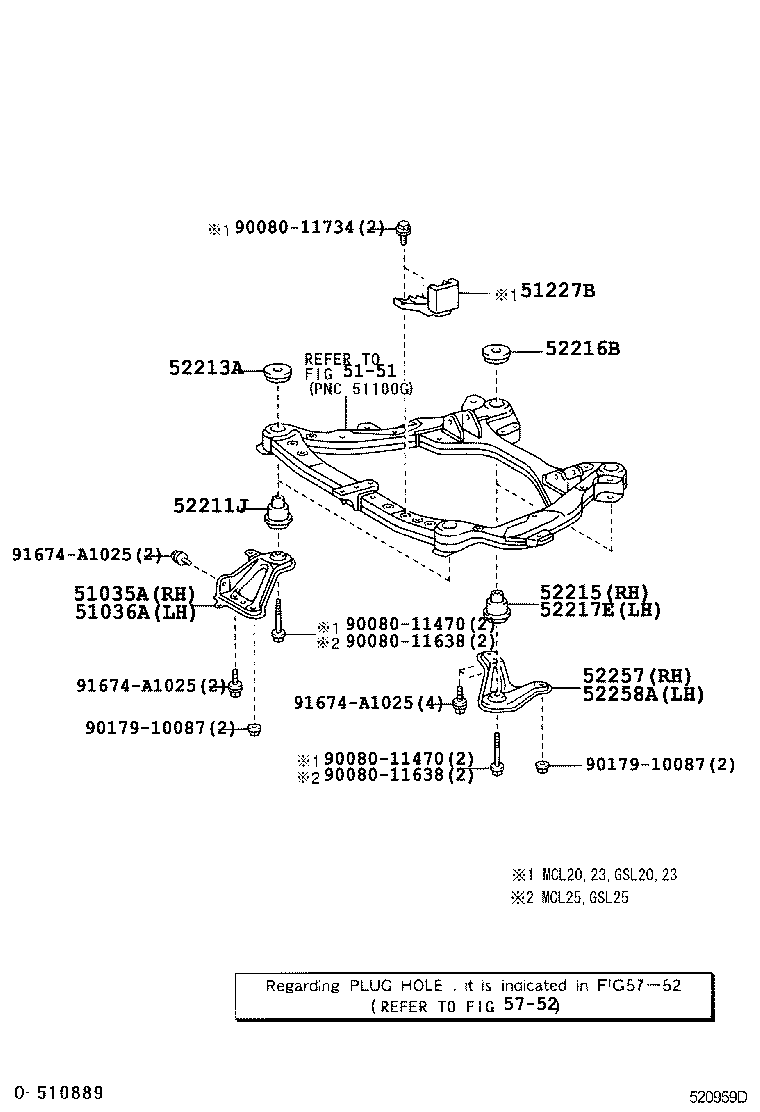

Click highlighted areas on diagram

diagram 51035A 51036A 51227B 5151 52211J 52213A 52215 52216B 52217E 52257 52258A 5752 9008011470 9008011470 9008011638 9008011638 9008011734 9017910087 9017910087 91674A1025 91674A1025 91674A1025
Part # Description Qty Price
51035A - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-08010

GSL20,23

 1
51036A - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-08010

GSL20,23

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-08010

GSL20,23

 1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-06030

GSL20,23

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-06030

GSL20,23

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-06030

GSL20,23

 1
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-06030

GSL20,23

 2
52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52217-06010

GSL20,23

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
51023-08010

GSL20,23

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
51024-08010

GSL20,23

 1
Common parts
90080-11470
90080-11638
90080-11734
90179-10087
91674-A1025
Linked diagrams
5151
5752
