GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

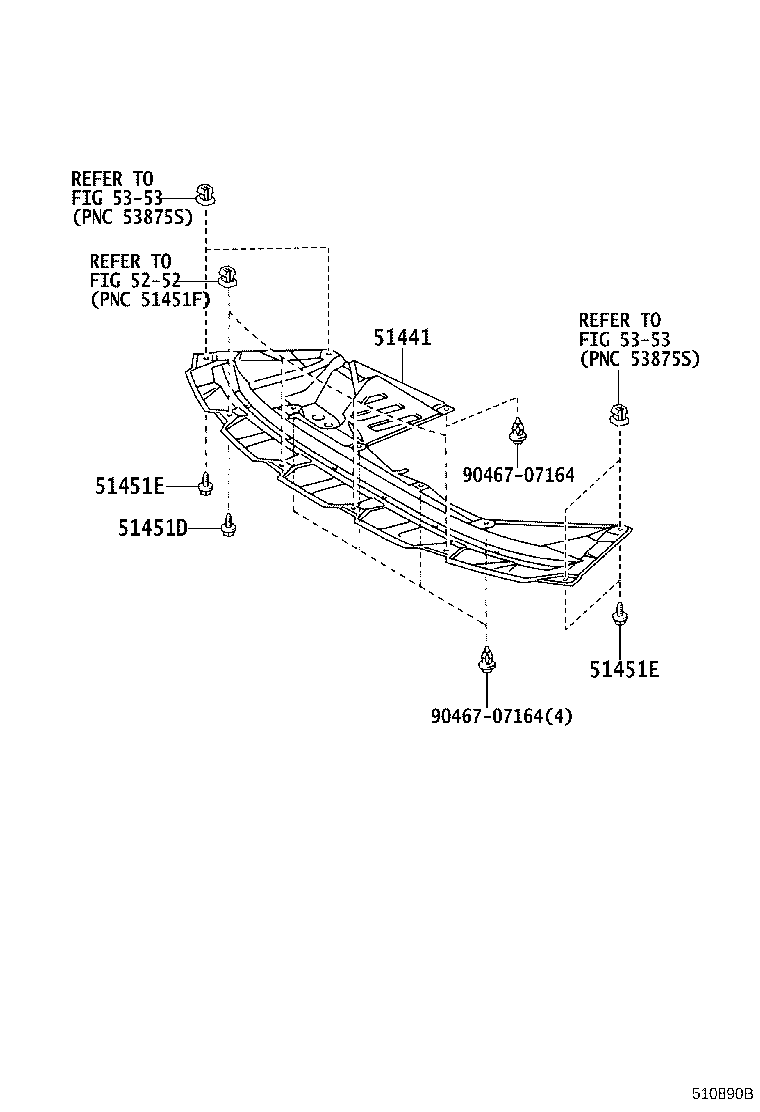

Click highlighted areas on diagram

diagram 51441 51451D 51451E 51451E 5252 5353 5353 9046707164 9046707164
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-08020

GSL2#

 1
51451D - SCREW, NO.1
90159-A0010

GSL2#

 4
51451E - SCREW, NO.2
90159-A0010

GSL2#

 4
51451E - SCREW, NO.2
90159-A0010

GSL2#

 4
Common parts
90467-07164
Linked diagrams
5252
5353
