GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

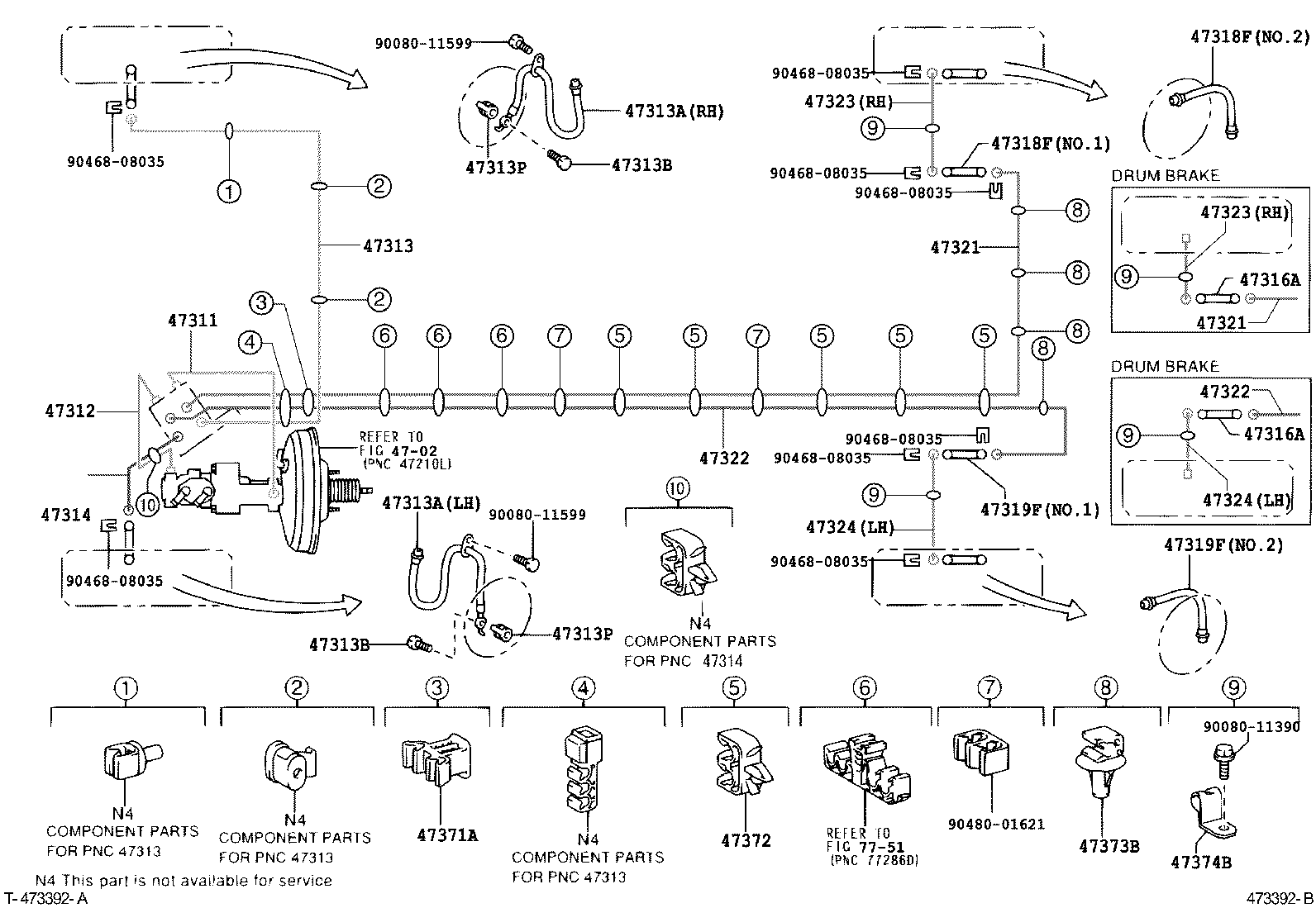

ILLUST NO. 1 OF 2(0301- )GSL20,23,MCL20,23

Click highlighted areas on diagram

W(ABS)

diagram 4702 47311 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47316A 47316A 47318F 47318F 47319F 47319F 47321 47321 47322 47322 47323 47323 47324 47324 47371A 47372 47373B 47374B 7751 9008011390 9008011599 9008011599 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9048001621
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-08040

GSL20

W(VSC)

 1
47311-08030

GSL20

 1
47311-08040

GSL20

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-08031

GSL20

 1
47312-08040

GSL20

W(VSC)

 1
47312-08040

GSL20

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-08050

GSL20

 1
47313-08060

GSL20

W(VSC)

 1
47313-08060

GSL20

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94191

GSL2#

LH

 1
90080-94192

GSL2#

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94191

GSL2#

LH

 1
90080-94192

GSL2#

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSL2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GSL2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

GSL2#

 2
47389-50020

GSL2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

GSL2#

 2
47389-50020

GSL2#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-08041

GSL20

W(VSC)

 1
47314-08041

GSL20

 1
47314-08031

GSL20

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94193

GSL20

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90080-94193

GSL20

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94190

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.2

 1
90080-94190

GSL20

NO.2

 1
90080-94193

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.1

 1
90080-94193

GSL20

NO.1

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94190

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.2

 1
90080-94190

GSL20

NO.2

 1
90080-94193

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.1

 1
90080-94193

GSL20

NO.1

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94193

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.1

 1
90080-94190

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.2

 1
90080-94190

GSL20

NO.2

 1
90080-94193

GSL20

NO.1

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94193

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.1

 1
90080-94190

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S,NO.2

 1
90080-94190

GSL20

NO.2

 1
90080-94193

GSL20

NO.1

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-08060

GSL20

 1
47321-08050

GSL20

 1
47321-08060

GSL20

W(VSC)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-08060

GSL20

 1
47321-08050

GSL20

 1
47321-08060

GSL20

W(VSC)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-08060

GSL20

 1
47322-08050

GSL20

 1
47322-08060

GSL20

W(VSC)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-08060

GSL20

 1
47322-08050

GSL20

 1
47322-08060

GSL20

W(VSC)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-08020

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S

 1
47323-08010

GSL20

 1
47323-08020

GSL20

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-08020

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S

 1
47323-08010

GSL20

 1
47323-08020

GSL20

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-08010

GSL20

 1
47324-08020

GSL20

 1
47324-08020

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-08010

GSL20

 1
47324-08020

GSL20

 1
47324-08020

GSL20

REAR WHEEL BRAKE-DISK 15INCH 12S

 1
47371A - CLAMP, BRAKE TUBE, NO.1
77285-08030

GSL2#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90469-07012

GSL2#

 5
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01C74

GSL2#

 4
47374B - CLAMP, BRAKE TUBE, NO.4
90080-46342

GSL2#

 2
Common parts
90080-11390
90080-11599
90468-08035
90480-01621
Linked diagrams
4702
7751

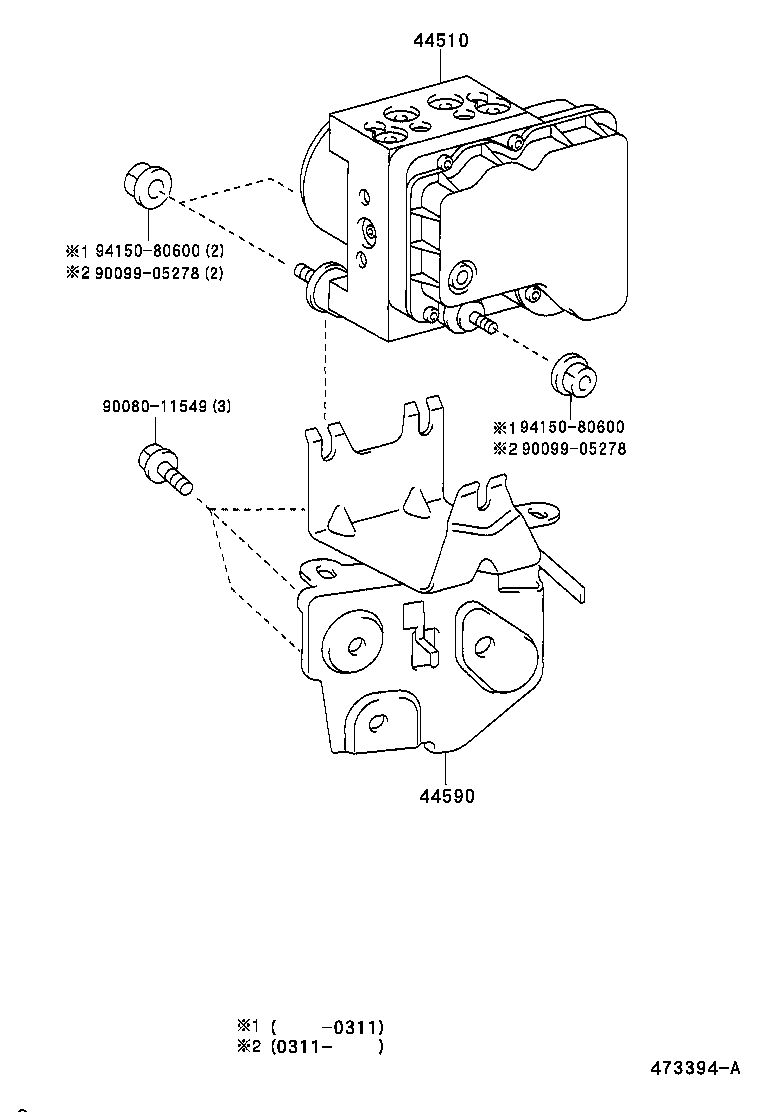

ILLUST NO. 2 OF 2(0301- )GSL20,23,MCL20,23

Click highlighted areas on diagram

W(ABS)

diagram 44510 44590 9008011549 9009905278 9009905278 9415080600 9415080600
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-08150

GSL20

W(VSC)

 1
44050-08161

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)

 1
44050-08140

GSL20

 1
44050-08160

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)

 1
44050-08160

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 1
44050-08150

GSL20

 1
44050-08151

GSL20

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-08021

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 1
44590-08021

GSL20

 1
44590-08022

GSL20,25

 1
44590-08021

GSL20

W(VSC)

 1
44590-08013

GSL20

 1
Common parts
90080-11549
90099-05278
94150-80600

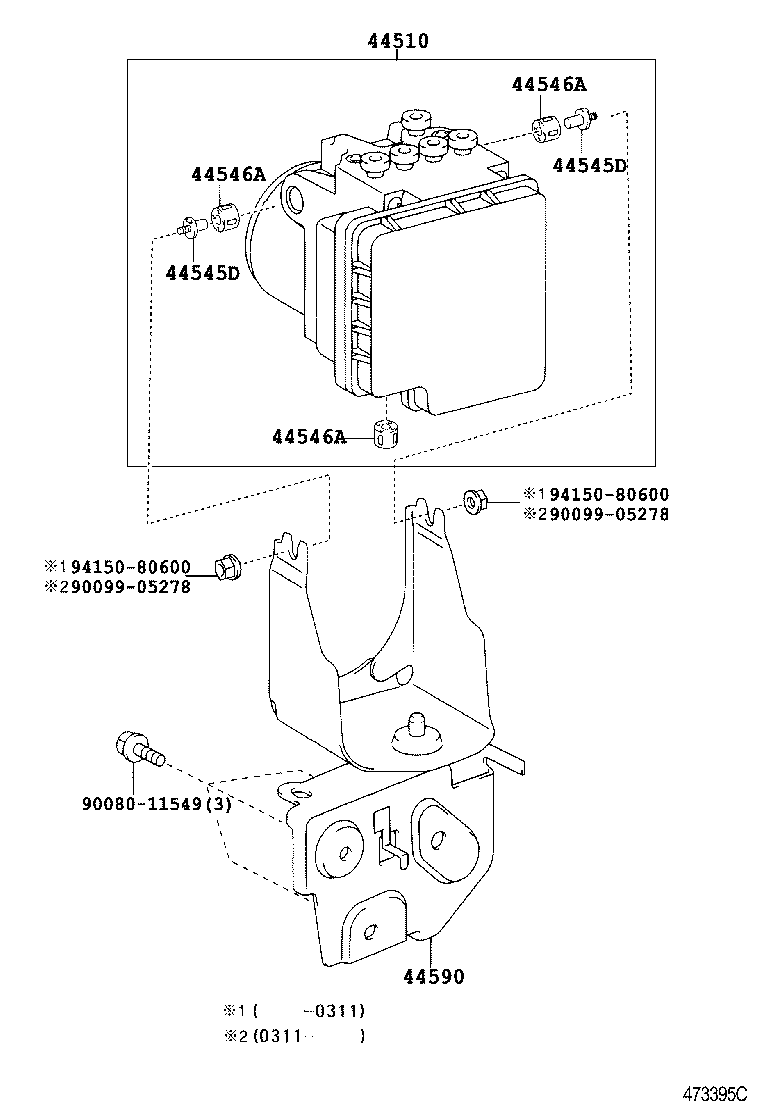

ILLUST NO. 2 OF 2(0301- )GSL20,25,MCL20,25

Click highlighted areas on diagram

W(VSC)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9008011549 9009905278 9009905278 9415080600 9415080600
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-08150

GSL20

W(VSC)

 1
44050-08161

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)

 1
44050-08140

GSL20

 1
44050-08160

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)

 1
44050-08160

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 1
44050-08150

GSL20

 1
44050-08151

GSL20

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 2
44545-42090

GSL20

W(VSC)

 2
44545-42090

GSL20

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 2
44545-42090

GSL20

W(VSC)

 2
44545-42090

GSL20

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSL20

W(VSC)

 3
44546-42090

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 3
44546-42090

GSL20

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSL20

W(VSC)

 3
44546-42090

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 3
44546-42090

GSL20

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GSL20

W(VSC)

 3
44546-42090

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 3
44546-42090

GSL20

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-08021

GSL20..XLE

CRUISE CONTROL-WITH(RADAR)&W(VSC)

 1
44590-08021

GSL20

 1
44590-08022

GSL20,25

 1
44590-08021

GSL20

W(VSC)

 1
44590-08013

GSL20

 1
Common parts
90080-11549
90099-05278
94150-80600
