GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

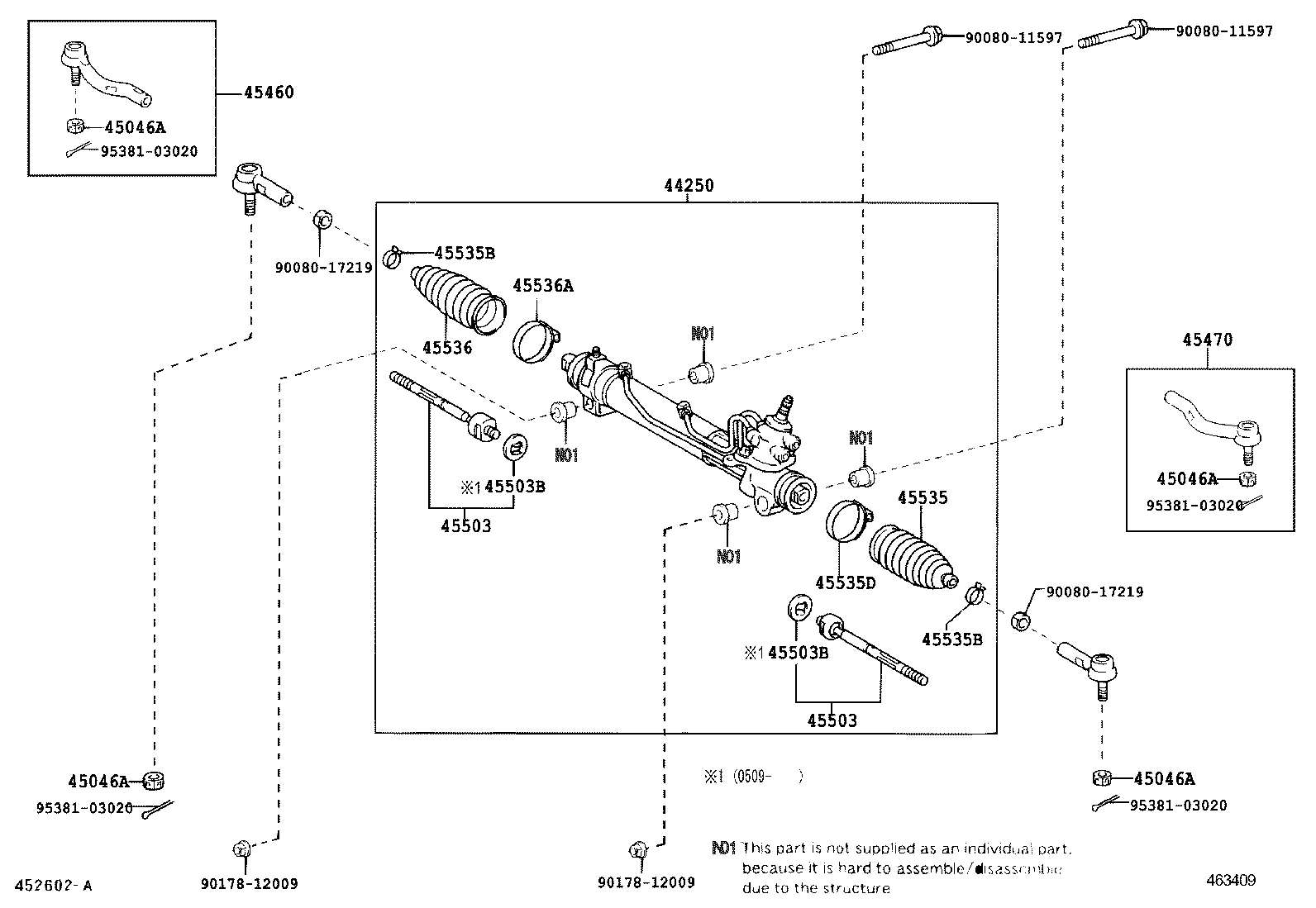

ILLUST NO. 1 OF 2(0301- )

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 9008011597 9008011597 9008017219 9008017219 9017812009 9017812009 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-08040

GSL2#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

GSL2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

GSL2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

GSL2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

GSL2#

 2
45460 - ROD ASSY, TIE, RH
45460-09040

GSL2#

 1
45470 - ROD ASSY, TIE, LH
45470-09030

GSL2#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-09250

GSL2#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-09250

GSL2#

 1
45503B - WASHER, CLAW(FOR STEERING RACK END)
90080-21005

GSL2#

OD=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90080-21005

GSL2#

OD=38

 2
45535 - BOOT, STEERING RACK, NO.1
45535-08010

GSL2#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46153

GSL2#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46153

GSL2#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90080-46340

GSL2#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-08010

GSL2#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90080-46340

GSL2#

 1
Common parts
90080-11597
90080-17219
90178-12009
95381-03020

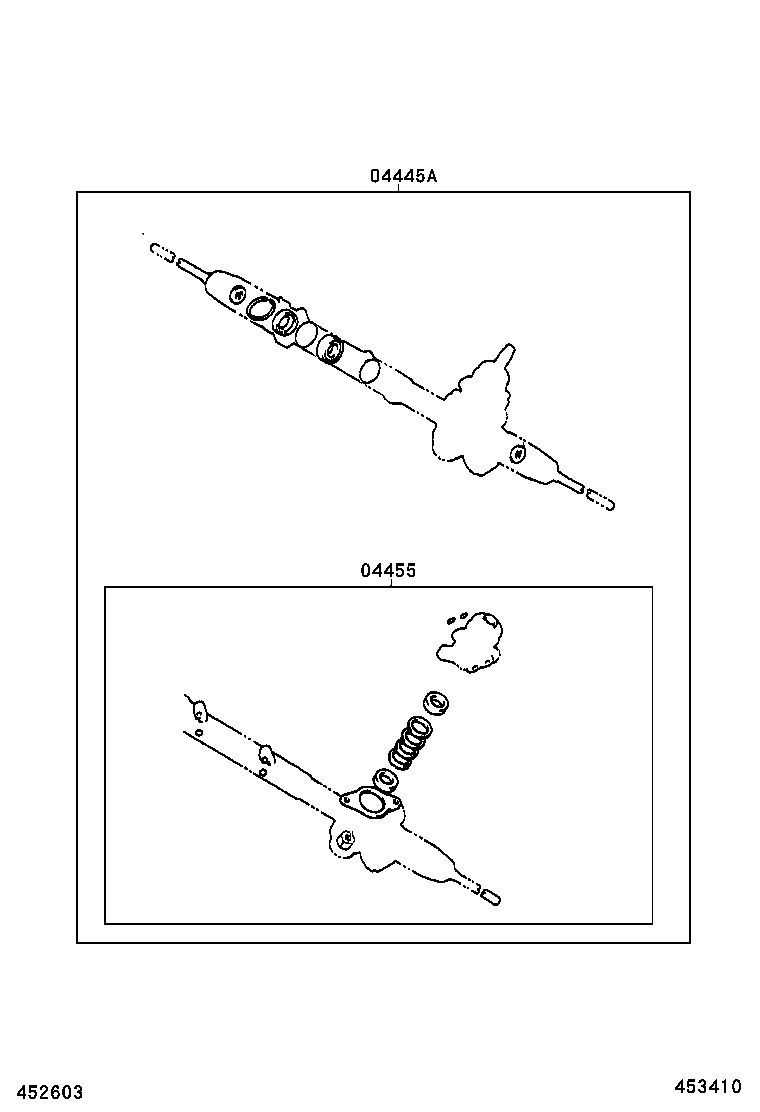

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-08030

GSL2#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-06030

GSL2#

 1
