GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

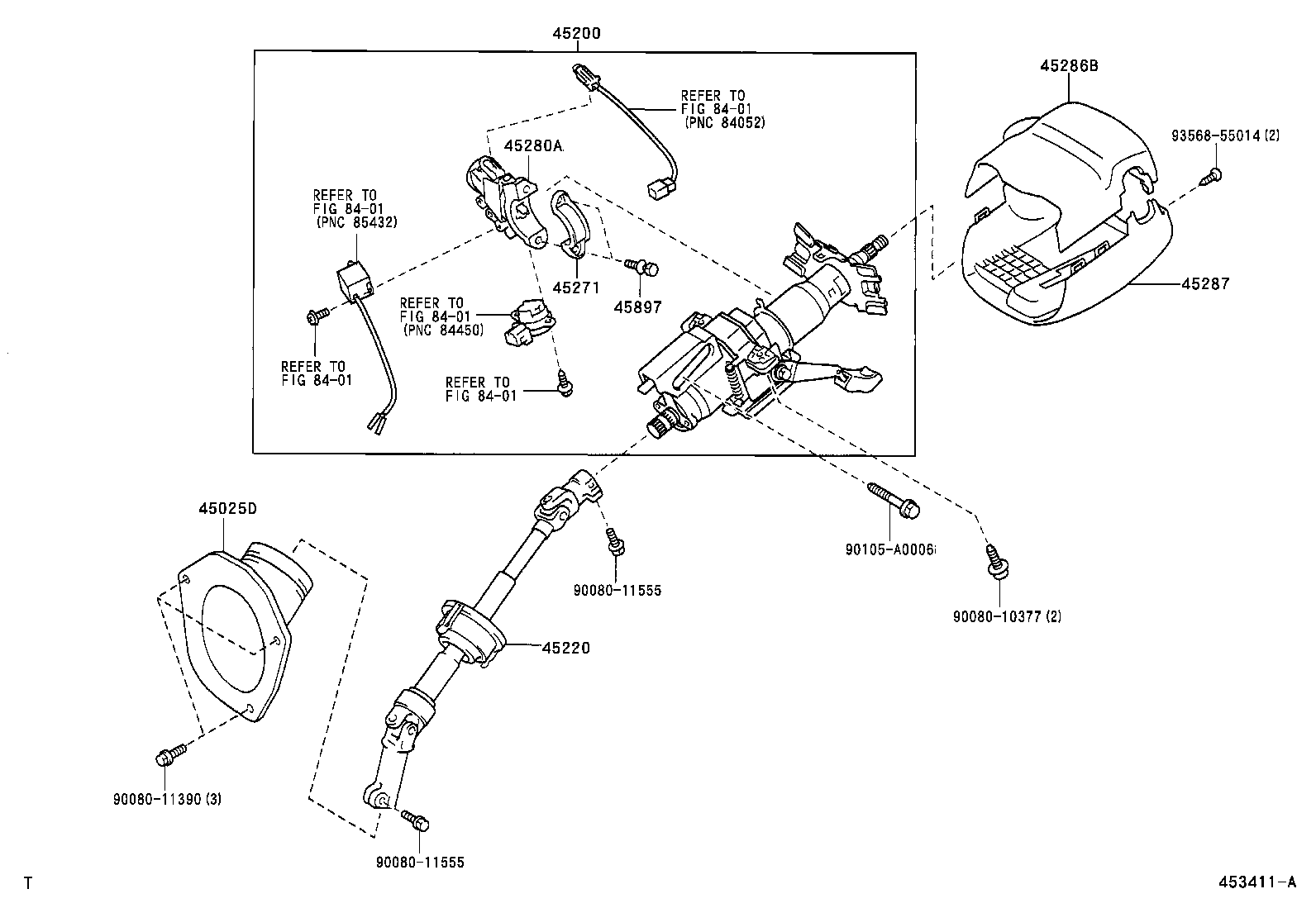

Click highlighted areas on diagram

diagram 45025D 45200 45220 45271 45280A 45286B 45287 45897 8401 8401 8401 8401 8401 9008010377 9008011390 9008011555 9008011555 90105A0006 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-08020

GSL20,23

 1
45200 - POST ASSY, STEERING
45200-08040

GSL2#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-08042

GSL20,23

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-08010

GSL2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-08010

GSL2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-08020B0

GSL2#

STONE,TRIM1#

 1
45286-08020E0

GSL2#

FAWN,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-08020E0

GSL2#

FAWN,TRIM4#

 1
45287-08020B0

GSL2#

STONE,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-08010

GSL2#

 2
Common parts
90080-10377
90080-11390
90080-11555
90105-A0006
93568-55014
Linked diagrams
8401
