GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )GSL20,23,MCL20,23

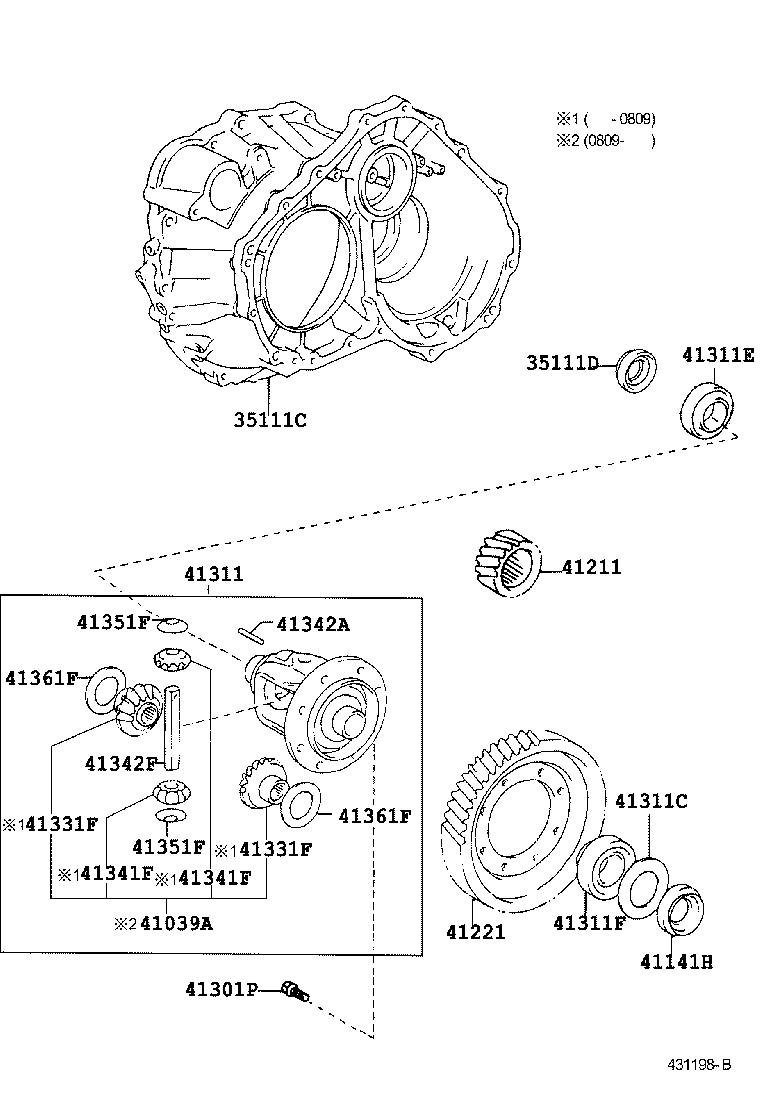

Click highlighted areas on diagram

U151E

diagram 35111C 35111D 41039A 41141H 41211 41221 41301P 41311 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35105-07010

GSL20,23

 1
35105-07011

GSL20,23

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-40029

GSL20,23

 1
41039A - GEAR KIT, DIFFERENTIAL
41039-45020

GSL20,23

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-50031

GSL2#

 1
41211 - PINION, DIFFERENTIAL DRIVE
41211-45030

GSL20,23

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-45030

GSL20,23

 1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90080-10239

GSL20,23

 14
41311 - CASE, FRONT DIFFERENTIAL
41301-07020

GSL20,23

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90080-56082

GSL2#

T=2.00,MARK 0

 1
90080-56084

GSL2#

T=2.10,MARK 2

 1
90080-56086

GSL2#

T=2.20,MARK 4

 1
90080-56087

GSL2#

T=2.25,MARK 5

 1
90080-56083

GSL2#

T=2.05,MARK 1

 1
90080-56092

GSL2#

T=2.50,MARK A

 1
90080-56097

GSL2#

T=2.75,MARK F

 1
90080-56088

GSL2#

T=2.30,MARK 6

 1
90080-56090

GSL2#

T=2.40,MARK 8

 1
90080-56098

GSL2#

T=2.80,MARK G

 1
90080-56089

GSL2#

T=2.35,MARK 7

 1
90080-56093

GSL2#

T=2.55,MARK B

 1
90080-56099

GSL2#

T=2.85,MARK H

 1
90080-56095

GSL2#

T=2.65,MARK D

 1
90080-56096

GSL2#

T=2.70,MARK E

 1
90080-56085

GSL2#

T=2.15,MARK 3

 1
90080-56094

GSL2#

T=2.60,MARK C

 1
90080-56091

GSL2#

T=2.45,MARK 9

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-A0005

GSL2#

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-A0005

GSL20,23

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-33010

GSL20,23

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-33010

GSL20,23

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-48010

GSL20,23

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-48010

GSL20,23

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-A0006

GSL20,23

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-48010

GSL20,23

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-33011

GSL20,23

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-33011

GSL20,23

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-33080

GSL20,23

T=1.725

 2
41363-33010

GSL20,23

T=1.825

 2
41361-33010

GSL20,23

T=1.625

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-33080

GSL20,23

T=1.725

 2
41363-33010

GSL20,23

T=1.825

 2
41361-33010

GSL20,23

T=1.625

 2
