GSL20L-PRAQKA (2006)
Toyota Sienna

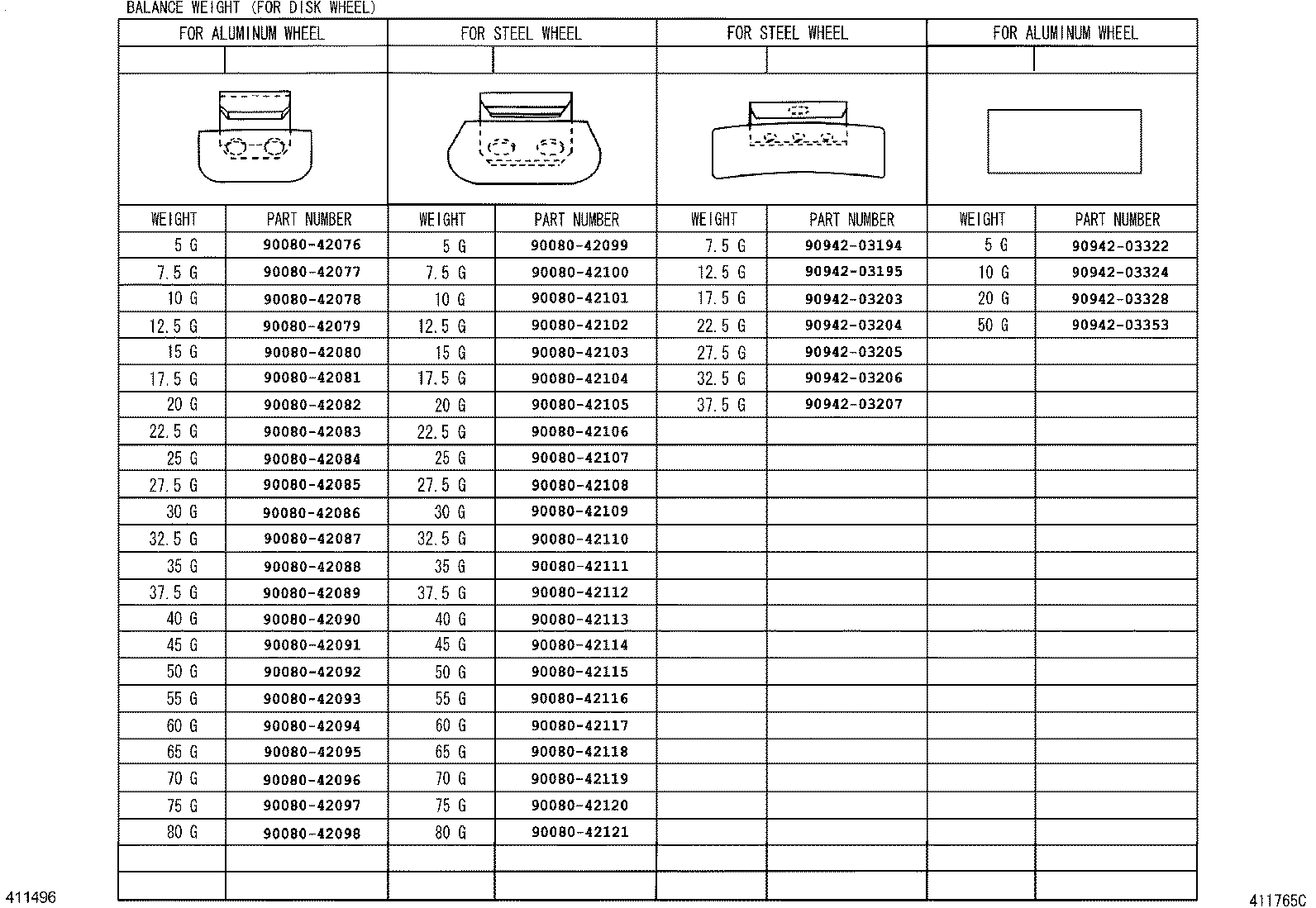

ILLUST NO. 3 OF 3(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42076 | ||||
| 90080-42077 | ||||
| 90080-42078 | ||||
| 90080-42079 | ||||
| 90080-42080 | ||||
| 90080-42081 | ||||
| 90080-42082 | ||||
| 90080-42083 | ||||
| 90080-42084 | ||||
| 90080-42085 | ||||
| 90080-42086 | ||||
| 90080-42087 | ||||
| 90080-42088 | ||||
| 90080-42089 | ||||
| 90080-42090 | ||||
| 90080-42091 | ||||
| 90080-42092 | ||||
| 90080-42093 | ||||
| 90080-42094 | ||||
| 90080-42095 | ||||
| 90080-42096 | ||||
| 90080-42097 | ||||
| 90080-42098 | ||||
| 90080-42099 | ||||
| 90080-42100 | ||||
| 90080-42101 | ||||
| 90080-42102 | ||||
| 90080-42103 | ||||
| 90080-42104 | ||||
| 90080-42105 | ||||
| 90080-42106 | ||||
| 90080-42107 | ||||
| 90080-42108 | ||||
| 90080-42109 | ||||
| 90080-42110 | ||||
| 90080-42111 | ||||
| 90080-42112 | ||||
| 90080-42113 | ||||
| 90080-42114 | ||||
| 90080-42115 | ||||
| 90080-42116 | ||||
| 90080-42117 | ||||
| 90080-42118 | ||||
| 90080-42119 | ||||
| 90080-42120 | ||||
| 90080-42121 | ||||
| 90942-03194 | ||||
| 90942-03195 | ||||
| 90942-03203 | ||||
| 90942-03204 | ||||
| 90942-03205 | ||||
| 90942-03206 | ||||
| 90942-03207 | ||||
| 90942-03322 | ||||
| 90942-03324 | ||||
| 90942-03328 | ||||
| 90942-03353 | ||||

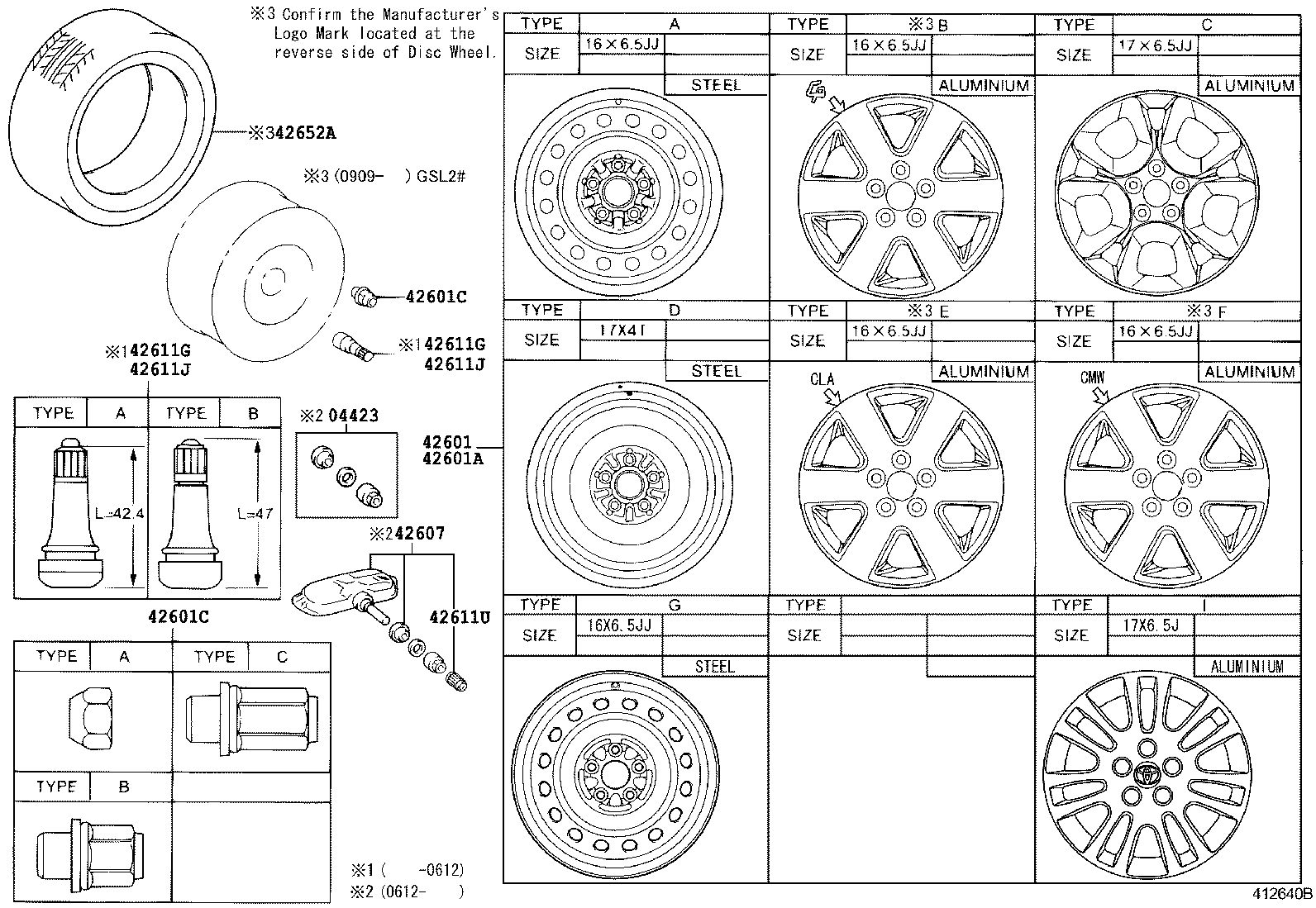

ILLUST NO. 1 OF 3(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-0C170 |
GSL20..LE,XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 04423-0C170 |
GSL2# |
4 | ||
| 04423-0C170 |
GSL20..LE,XLE REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-08040 |
GSL20..LE,XLE 17X6.5J,#,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-AE021 |
GSL20,23..CE,LE 16X6.5JJ, #,TYPE G:REFER ILLUST. |
4 | ||
| 42611-AE031 |
GSL20..LE 16X6.5JJ, #,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY),TYPE B:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL25;GSL20..8S..XLE 17X6.5J,#,TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..8S..XLE 17X6.5J,#,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..LE;GSL20..7S..XLE 17X6.5J,#,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL25;GSL20..LE;GSL20..7S..XLE 17X6.5J,#,TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY),TYPE I:REFER ILLUST. |
4 | ||
| 42611-AE021 |
GSL20..LE 16X6.5JJ, #,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE G:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..LE,XLE 17X6.5J,#,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..8S..XLE 17X6.5J,#,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-AE031 |
GSL20..LE 16X6.5JJ, #,TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY),TYPE B:REFER ILLUST. |
4 | ||
| 42611-AE021 |
GSL20..LE 16X6.5JJ, #,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE G:REFER ILLUST. |
4 | ||
| 42611-AE031 |
GSL20..LE 16X6.5JJ, #,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY),TYPE B:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..LE,XLE 17X6.5J,#,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL25;GSL20..8S..XLE 17X6.5J,#,TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..8S..XLE 17X6.5J,#,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..8S..XLE 17X6.5J,#,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..LE,XLE 17X6.5J,#,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE I:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL25;GSL20..LE;GSL20..7S..XLE 17X6.5J,#,TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY),TYPE I:REFER ILLUST. |
4 | ||
| 42611-AE031 |
GSL20..LE 16X6.5JJ, #,TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY),TYPE B:REFER ILLUST. |
4 | ||
| 42611-AE021 |
GSL20,23..CE,LE 16X6.5JJ, #,TYPE G:REFER ILLUST. |
4 | ||
| 42611-AE021 |
GSL20..LE 16X6.5JJ, #,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM);TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE G:REFER ILLUST. |
4 | ||
| 42611-08040 |
GSL20..LE;GSL20..7S..XLE 17X6.5J,#,REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY),TYPE I:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-AE050 |
GSL20,23 17X4T,TYPE D:REFER ILLUST. |
1 | ||
| 42611-AE050 |
GSL20..LE,XLE 17X4T,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE D:REFER ILLUST. |
1 | ||
| 42611-AE050 |
GSL20..LE,XLE 17X4T,SPARE TIRE-WITHOUT,TYPE D:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01051 |
GSL20,23..CE,LE TYPE A:REFER ILLUST. |
20 | ||
| 90084-94001 |
GSL20..LE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
20 | ||
| 90084-94001 |
GSL20..LE TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY) |
20 | ||
| 90084-94001 |
GSL25;GSL20..XLE |
20 | ||
| 90084-94001 |
GSL20..LE TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY) |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01051 |
GSL20,23..CE,LE TYPE A:REFER ILLUST. |
20 | ||
| 90084-94001 |
GSL20..LE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
20 | ||
| 90084-94001 |
GSL20..LE TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY) |
20 | ||
| 90084-94001 |
GSL25;GSL20..XLE |
20 | ||
| 90084-94001 |
GSL20..LE TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY) |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-0C030 |
GSL20,23..CE,LE |
4 | ||
| 42607-0C030 |
GSL25;GSL20..XLE |
4 | ||
| 42607-0C030 |
GSL20..LE TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY) |
4 | ||
| 42607-0C030 |
GSL20..LE TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY) |
4 | ||
| 42607-0C050 |
GSL2# |
4 | ||
| 42607-0C030 |
GSL20..XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42607-0C050 |
GSL20..LE,XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42607-0C050 |
GSL20..LE,XLE REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42607-0C030 |
GSL20..LE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42607-0C030 |
GSL20..LE,XLE REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
GSL20..LE,XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE B:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSL20..LE,XLE SPARE TIRE-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSL20,23 TYPE B:REFER ILLUST. |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90080-45006 |
GSL20..LE,XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE B:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSL20..LE,XLE SPARE TIRE-WITHOUT,TYPE B:REFER ILLUST. |
1 | ||
| 90080-45006 |
GSL20,23 TYPE B:REFER ILLUST. |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-A5004 |
GSL20..LE,XLE REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 90942-A5004 |
GSL20..LE,XLE REAR WHEEL BRAKE-DISK 15INCH 12S&TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 90942-A5004 |
GSL20..LE,XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 90942-A5004 |
GSL2# |
4 | ||
| 90942-A5004 |
GSL20..LE,XLE TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 4265A-08010 |
GSL20..LE,XLE T155/80R17,SPARE TIRE-WITHOUT |
1 | ||
| 4265A-08010 |
GSL20,23 T155/80R17 |
1 | ||
| 4265A-08010 |
GSL20..LE,XLE T155/80R17,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM) |
1 | ||
ILLUST NO. 2 OF 3(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-08020 |
GSL20..LE;GSL20..7S..XLE *ALU,TIRE & DISK WHEEL-P225/60R17 R/F(6.5JJ ALUMINUM),TYPE B:REFER ILLUST. |
4 | ||
| 42603-08020 |
GSL20..LE;GSL20..7S..XLE *ALU,TIRE & DISK WHEEL-P225/60R17(6.5JJ ALLOY),TYPE B:REFER ILLUST. |
4 | ||
| 42603-08020 |
GSL25;GSL20..8S..XLE *ALU,TYPE B:REFER ILLUST. |
4 | ||
| 42603-AE020 |
GSL20..LE *ALU,TIRE & DISK WHEEL-P215/65R16(6.5JJ ALLOY),TYPE A:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-AE031 |
GSL20,23..CE,LE TYPE A:REFER ILLUST. |
4 | ||
