GSL20L-PRAQKA (2006)
Toyota Sienna
Production
Dec 2006
-
Jan 2010
Engine
2GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )

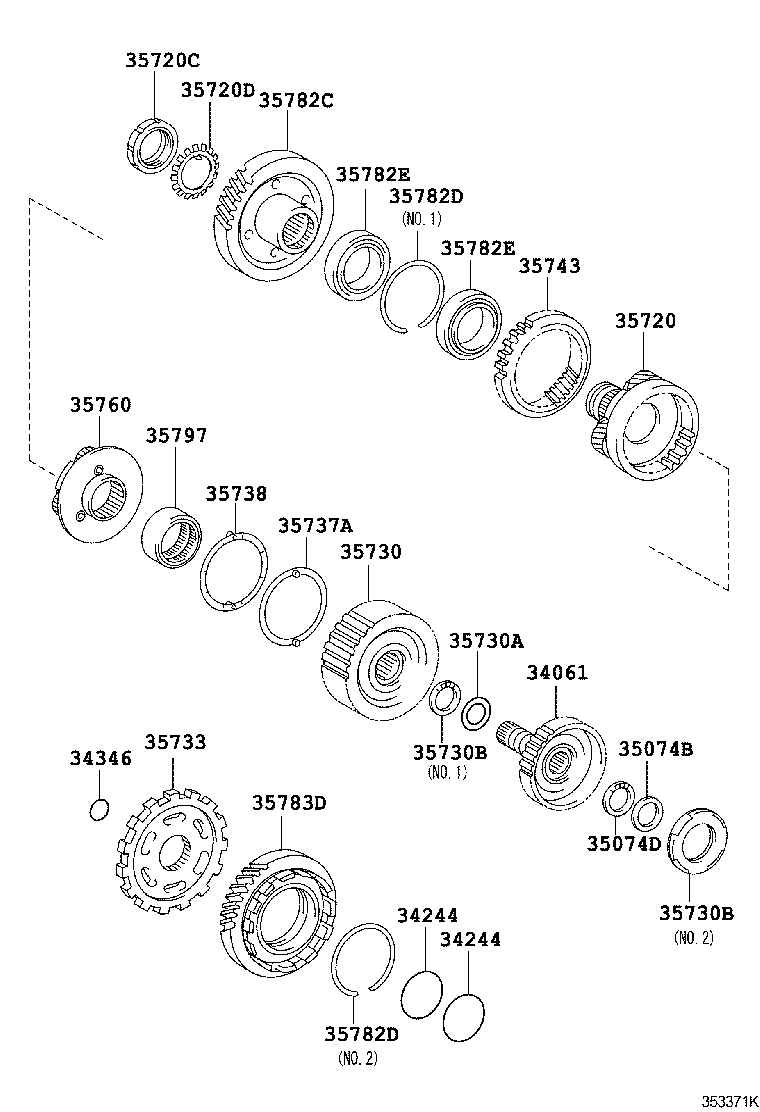

Click highlighted areas on diagram
U151E,U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34061 - HUB SUB-ASSY, OVERDREVE DIRECT CLUTCH | ||||
| 34061-07010 |
GSL2# |
1 | ||
| 34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL | ||||
| 34244-21010 |
GSL2# |
2 | ||
| 34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL | ||||
| 34244-21010 |
GSL2# |
2 | ||
| 34346 - RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL | ||||
| 34346-21011 |
GSL2# |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-08010 |
GSL2# |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90080-37022 |
GSL2# |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-07010 |
GSL2# (L) |
1 | ||
| 35720C - NUT (FOR FRONT PLANETARY GEAR) | ||||
| 90179-A0012 |
GSL2# |
1 | ||
| 35720D - WASHER (FOR FRONT PLANETARY GEAR) | ||||
| 90209-46001 |
GSL2# |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-07010 |
GSL2# |
1 | ||
| 35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR) | ||||
| 35785-08010 |
GSL2# |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90080-37025 |
GSL2# NO.1 |
1 | ||
| 90080-37024 |
GSL2# NO.2 BROWN PAINTED |
1 | ||
| 90080-37023 |
GSL2# NO.2 BLACK PAINTED |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90080-37025 |
GSL2# NO.1 |
1 | ||
| 90080-37024 |
GSL2# NO.2 BROWN PAINTED |
1 | ||
| 90080-37023 |
GSL2# NO.2 BLACK PAINTED |
1 | ||
| 35733 - GEAR, PARKING LOCK | ||||
| 35733-21010 |
GSL20,23 |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-08010 |
GSL2# (L) |
1 | ||
| 35737-21010 |
GSL2# (J) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-08010 |
GSL2# (L) |
1 | ||
| 35738-33030 |
GSL2# (J) |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-07010 |
GSL2# (L) |
1 | ||
| 35743-21010 |
GSL2# (J) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-07010 |
GSL2# (L) |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-07010 |
GSL2# (L) |
1 | ||
| 35782-45010 |
GSL2# (J) |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-84001 |
GSL2# NO.1,(J) |
1 | ||
| 90080-52134 |
GSL2# NO.2,(L) |
1 | ||
| 90080-52128 |
GSL2# NO.1,(L) |
1 | ||
| 90520-89004 |
GSL2# NO.2,(J) |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-84001 |
GSL2# NO.1,(J) |
1 | ||
| 90080-52134 |
GSL2# NO.2,(L) |
1 | ||
| 90080-52128 |
GSL2# NO.1,(L) |
1 | ||
| 90520-89004 |
GSL2# NO.2,(J) |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90080-36121 |
GSL2# |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90080-36121 |
GSL2# |
2 | ||
| 35783D - GEAR, COUNTER DRIVEN | ||||
| 35783-07010 |
GSL2# (L) |
1 | ||
| 35783-45010 |
GSL2# (J) |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-21010 |
GSL2# |
1 | ||
