GSL20L-PRAQKA (2006)
Toyota Sienna
Production
Dec 2006
-
Jan 2010
Engine
2GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )

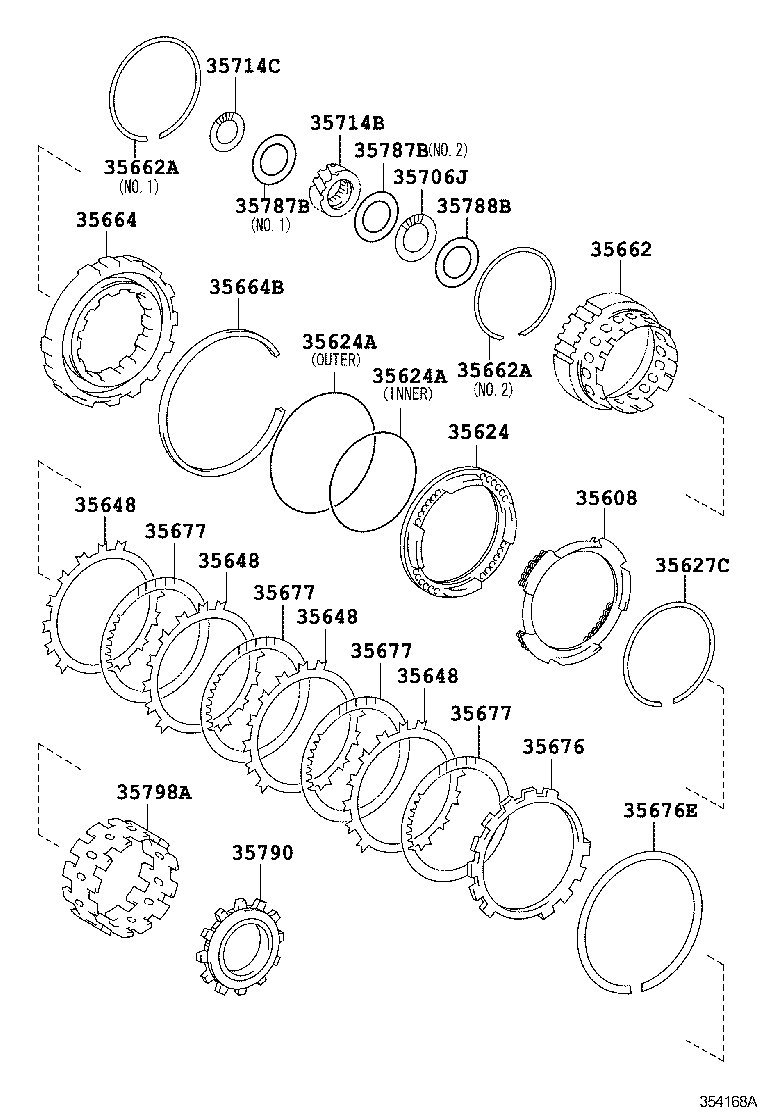

Click highlighted areas on diagram
U151E,U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-06010 |
GSL2# |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-08010 |
GSL2# |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90080-30082 |
GSL2# INNER |
1 | ||
| 90080-30080 |
GSL2# OUTER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90080-30082 |
GSL2# INNER |
1 | ||
| 90080-30080 |
GSL2# OUTER |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-99036 |
GSL2# (J) |
1 | ||
| 90080-52130 |
GSL2# (L) |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-06011 |
GSL2# T=2.0 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-06011 |
GSL2# T=2.0 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-06011 |
GSL2# T=2.0 |
4 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-06011 |
GSL2# T=2.0 |
4 | ||
| 35662 - HUB, BRAKE | ||||
| 35662-06010 |
GSL2# |
1 | ||
| 35662A - RING, SNAP (FOR BRAKE HUB) | ||||
| 90080-52132 |
GSL2# (L),NO.2 |
1 | ||
| 90520-99033 |
GSL2# (J),NO.1 |
1 | ||
| 90080-52136 |
GSL2# (L),NO.1 |
1 | ||
| 90520-99024 |
GSL2# (J),NO.2 |
1 | ||
| 35662A - RING, SNAP (FOR BRAKE HUB) | ||||
| 90080-52132 |
GSL2# (L),NO.2 |
1 | ||
| 90520-99033 |
GSL2# (J),NO.1 |
1 | ||
| 90080-52136 |
GSL2# (L),NO.1 |
1 | ||
| 90520-99024 |
GSL2# (J),NO.2 |
1 | ||
| 35664 - CYLINDER, 2ND BRAKE | ||||
| 35664-33010 |
GSL2# |
1 | ||
| 35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER) | ||||
| 90520-99027 |
GSL2# (J) |
1 | ||
| 90080-52129 |
GSL2# (L) |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-06030 |
GSL2# T=3.2,MARK 3 |
1 | ||
| 35676-06050 |
GSL2# T=3.4,MARK 5 |
1 | ||
| 35676-06010 |
GSL2# T=3.0,MARK 1 |
1 | ||
| 35676-06070 |
GSL2# T=3.6,MARK 7 |
1 | ||
| 35676-06090 |
GSL2# T=2.9,MARK 0 |
1 | ||
| 35676-06080 |
GSL2# T=3.7,MARK 8 |
1 | ||
| 35676-06060 |
GSL2# T=3.5,MARK 6 |
1 | ||
| 35676-06040 |
GSL2# T=3.3,MARK 4 |
1 | ||
| 35676-06020 |
GSL2# T=3.1,MARK 2 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90520-99026 |
GSL2# (J) |
1 | ||
| 90080-52131 |
GSL2# (L) |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-08010 |
GSL2# |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-08010 |
GSL2# |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-08010 |
GSL2# |
4 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-08010 |
GSL2# |
4 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90080-37004 |
GSL2# |
1 | ||
| 35714B - GEAR, INPUT SUN | ||||
| 35714-45010 |
GSL2# |
1 | ||
| 35714C - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR) | ||||
| 90080-37026 |
GSL2# |
1 | ||
| 35787B - RACE, THRUST BEARING, NO.2 | ||||
| 35787-06010 |
GSL2# NO.2 |
1 | ||
| 34739-08010 |
GSL2# NO.1 |
1 | ||
| 35787B - RACE, THRUST BEARING, NO.2 | ||||
| 35787-06010 |
GSL2# NO.2 |
1 | ||
| 34739-08010 |
GSL2# NO.1 |
1 | ||
| 35788B - RACE, THRUST BEARING, NO.3 | ||||
| 35788-06010 |
GSL2# |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-06010 |
GSL2# |
1 | ||
| 35798A - SLEEVE, 1WAY CLUTCH, OUTER | ||||
| 35798-06010 |
GSL2# |
1 | ||
