GSL20L-PRAQKA (2006)
Toyota Sienna
Production
Dec 2006
-
Jan 2010
Engine
2GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )

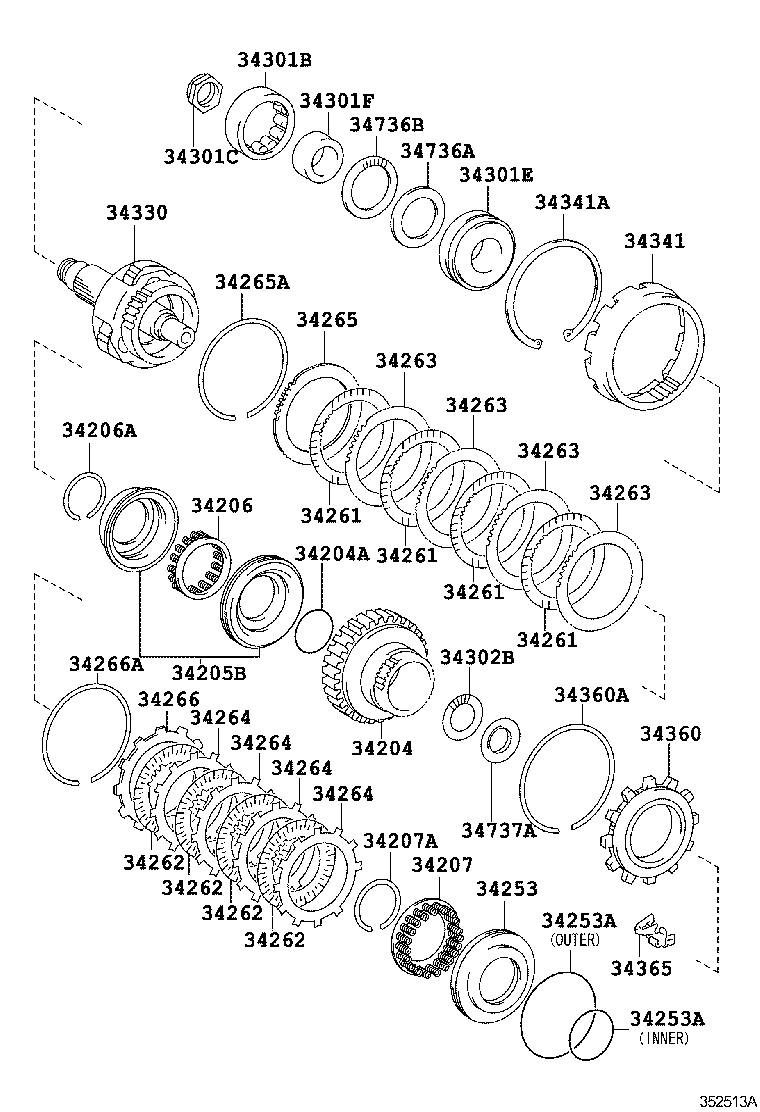

Click highlighted areas on diagram
U151E,U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34204 - DRUM SUB-ASSY, UNDERDRIVE CLUTCH | ||||
| 34204-06010 |
GSL2# |
1 | ||
| 34204A - RING, O (FOR UNDERDRIVE CLUTCH DRUM) | ||||
| 90080-30061 |
GSL2# |
1 | ||
| 34205B - PISTON SET, UNDERDRIVE CLUTCH | ||||
| 34205-06010 |
GSL2# |
1 | ||
| 34206 - SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN | ||||
| 34206-08010 |
GSL2# |
1 | ||
| 34206A - RING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING) | ||||
| 90080-52119 |
GSL2# |
1 | ||
| 34207 - SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN | ||||
| 34207-06010 |
GSL2# |
1 | ||
| 34207A - RING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING) | ||||
| 90520-59004 |
GSL2# (J) |
1 | ||
| 90080-52135 |
GSL2# (L) |
1 | ||
| 34253 - PISTON, UNDERDRIVE BRAKE | ||||
| 34253-06010 |
GSL2# |
1 | ||
| 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) | ||||
| 90080-30079 |
GSL2# OUTER |
1 | ||
| 90301-A0019 |
GSL2# INNER |
1 | ||
| 34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON) | ||||
| 90080-30079 |
GSL2# OUTER |
1 | ||
| 90301-A0019 |
GSL2# INNER |
1 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-06010 |
GSL2# |
4 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-06010 |
GSL2# |
4 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-06010 |
GSL2# |
4 | ||
| 34261 - DISC, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34261-06010 |
GSL2# |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-08010 |
GSL2# |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-08010 |
GSL2# |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-08010 |
GSL2# |
4 | ||
| 34262 - DISC, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34262-08010 |
GSL2# |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-06010 |
GSL2# |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-06010 |
GSL2# |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-06010 |
GSL2# |
4 | ||
| 34263 - PLATE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34263-06010 |
GSL2# |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-06010 |
GSL2# |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-06010 |
GSL2# |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-06010 |
GSL2# |
4 | ||
| 34264 - PLATE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34264-06010 |
GSL2# |
4 | ||
| 34265 - FLANGE, UNDERDRIVE CLUTCH, NO.1 | ||||
| 34265-08030 |
GSL2# T=3.2 MARK 2 |
1 | ||
| 34265-08010 |
GSL2# T=3.0 MARK 1 |
1 | ||
| 34265-08020 |
GSL2# T=3.1 MARK 4 |
1 | ||
| 34265-08050 |
GSL2# T=3.4 MARK 3 |
1 | ||
| 34265-08040 |
GSL2# T=3.3 MARK 5 |
1 | ||
| 34265A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1) | ||||
| 90080-52120 |
GSL2# |
1 | ||
| 34266 - FLANGE, UNDERDRIVE CLUTCH, NO.2 | ||||
| 34266-06070 |
GSL2# T=3.6,MARK 4 |
1 | ||
| 34266-06020 |
GSL2# T=3.2 MARK 2 |
1 | ||
| 34266-06010 |
GSL2# T=3.0 MARK 1 |
1 | ||
| 34266-06080 |
GSL2# T=2.8,MARK 0 |
1 | ||
| 34266-06030 |
GSL2# T=3.4 MARK 3 |
1 | ||
| 34266A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2) | ||||
| 90080-52148 |
GSL2# (L) |
1 | ||
| 90520-99032 |
GSL2# (J) |
1 | ||
| 34301B - BEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE) | ||||
| 90080-37011 |
GSL2# (L) |
1 | ||
| 90080-37011 |
GSL2# |
1 | ||
| 90365-53001 |
GSL2# (J) |
1 | ||
| 34301C - NUT (FOR UNDERDRIVE INPUT SHAFT) | ||||
| 90179-A0011 |
GSL2# |
1 | ||
| 34301E - BEARING, TAPERED ROLLER (FOR UNDERDRIVE) | ||||
| 90363-A0005 |
GSL2# |
1 | ||
| 34301F - RACE, CYLINDRICAL ROLLER BEARING, INNER | ||||
| 34733-06010 |
GSL2# (L) |
1 | ||
| 34733-06010 |
GSL2# |
1 | ||
| 34733-21010 |
GSL2# (J) |
1 | ||
| 34302B - BEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEA | ||||
| 90080-37007 |
GSL2# |
1 | ||
| 34330 - GEAR ASSY, UNDERDRIVE PLANETARY | ||||
| 34330-07010 |
GSL2# (L) |
1 | ||
| 34341 - GEAR, UNDERDRIVE PLANETARY RING | ||||
| 34341-45010 |
GSL2# |
1 | ||
| 34341A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING) | ||||
| 90521-A0002 |
GSL2# |
1 | ||
| 34360 - CLUTCH ASSY, UNDERDRIVE 1 WAY | ||||
| 34360-21011 |
GSL2# |
1 | ||
| 34360A - RING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH) | ||||
| 90080-52146 |
GSL2# (L) |
1 | ||
| 90520-99031 |
GSL2# (J) |
1 | ||
| 34365 - RETAINER, OUTER RACE | ||||
| 34365-48011 |
GSL2# |
1 | ||
| 34736A - RACE, THRUST BEARING UNDERDRIVE, NO.2 | ||||
| 34736-21010 |
GSL2# T=3.5 |
1 | ||
| 34736-21020 |
GSL2# T=3.8 |
1 | ||
| 34736B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-67001 |
GSL2# |
1 | ||
| 34737A - RACE, THRUST BEARING UNDERDRIVE, NO.3 | ||||
| 34737-06010 |
GSL2# |
1 | ||
