GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )

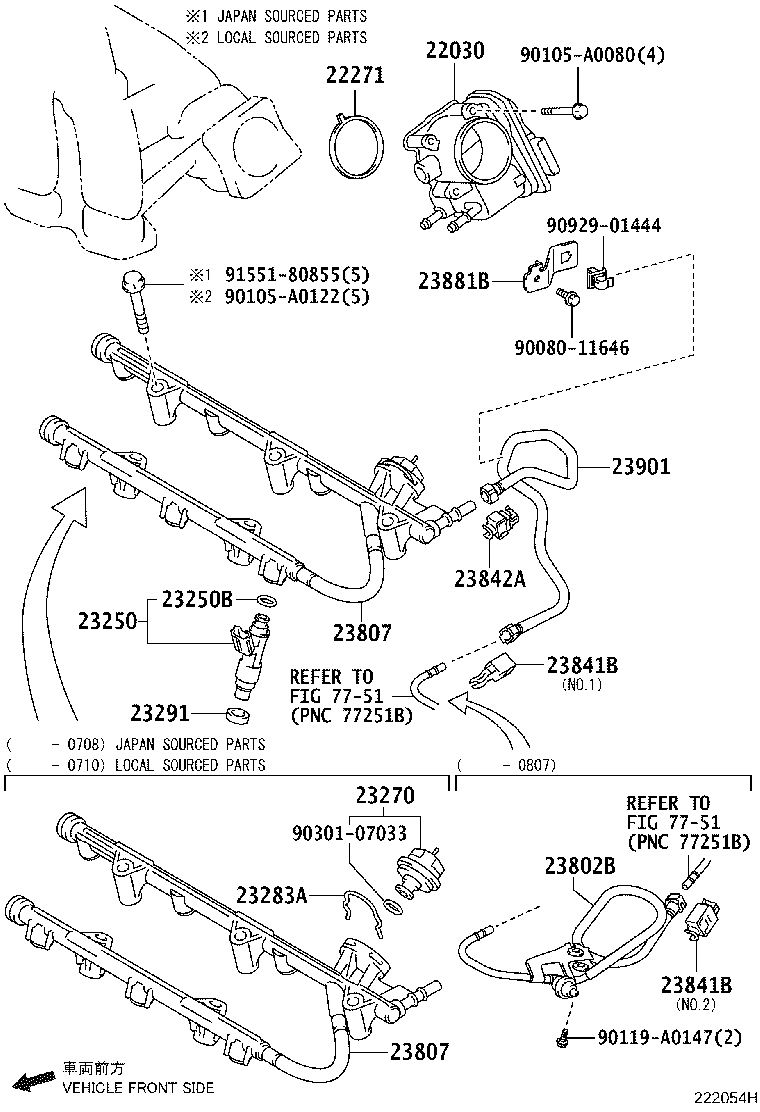

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23270 23283A 23291 23802B 23807 23807 23841B 23841B 23842A 23881B 23901 7751 7751 9008011646 90105A0080 90105A0122 90119A0147 9030107033 9092901444 9155180855
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0P050

2GRFE..GSL2#

 1
22271 - GASKET, THROTTLE BODY
22271-0P020

2GRFE..GSL2#

 1
23250 - INJECTOR ASSY, FUEL
23209-0P040

2GRFE..GSL2#

(L)

 6
23209-31050

2GRFE..GSL2#

(J)

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

2GRFE..GSL2#

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-31010

2GRFE..GSL2#

 1
23283A - HOLDER, FUEL PRESSURE REGULATOR
23283-31010

2GRFE..GSL2#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

2GRFE..GSL2#

 6
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-31080

2GRFE..GSL2#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-0P040

2GRFE..GSL2#

(L)

 1
23807-0P020

2GRFE..GSL2#

(L)

 1
23807-31040

2GRFE..GSL2#

(J)

 1
23807-31090

2GRFE..GSL2#

(J)

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-0P040

2GRFE..GSL2#

(L)

 1
23807-0P020

2GRFE..GSL2#

(L)

 1
23807-31040

2GRFE..GSL2#

(J)

 1
23807-31090

2GRFE..GSL2#

(J)

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0P010

2GRFE..GSL2#

NO.1

 1
23841-21050

2GRFE..GSL2#

NO.1

 1
23841-0P040

2GRFE..GSL2#

NO.2

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0P010

2GRFE..GSL2#

NO.1

 1
23841-21050

2GRFE..GSL2#

NO.1

 1
23841-0P040

2GRFE..GSL2#

NO.2

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31040

2GRFE..GSL2#

 1
23881B - BRACKET, FUEL HOSE
23881-AD010

2GRFE..GSL2#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0P030

2GRFE..GSL2#

 1
Common parts
90080-11646
90105-A0080
90105-A0122
90119-A0147
90301-07033
90929-01444
91551-80855
Linked diagrams
7751
