GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

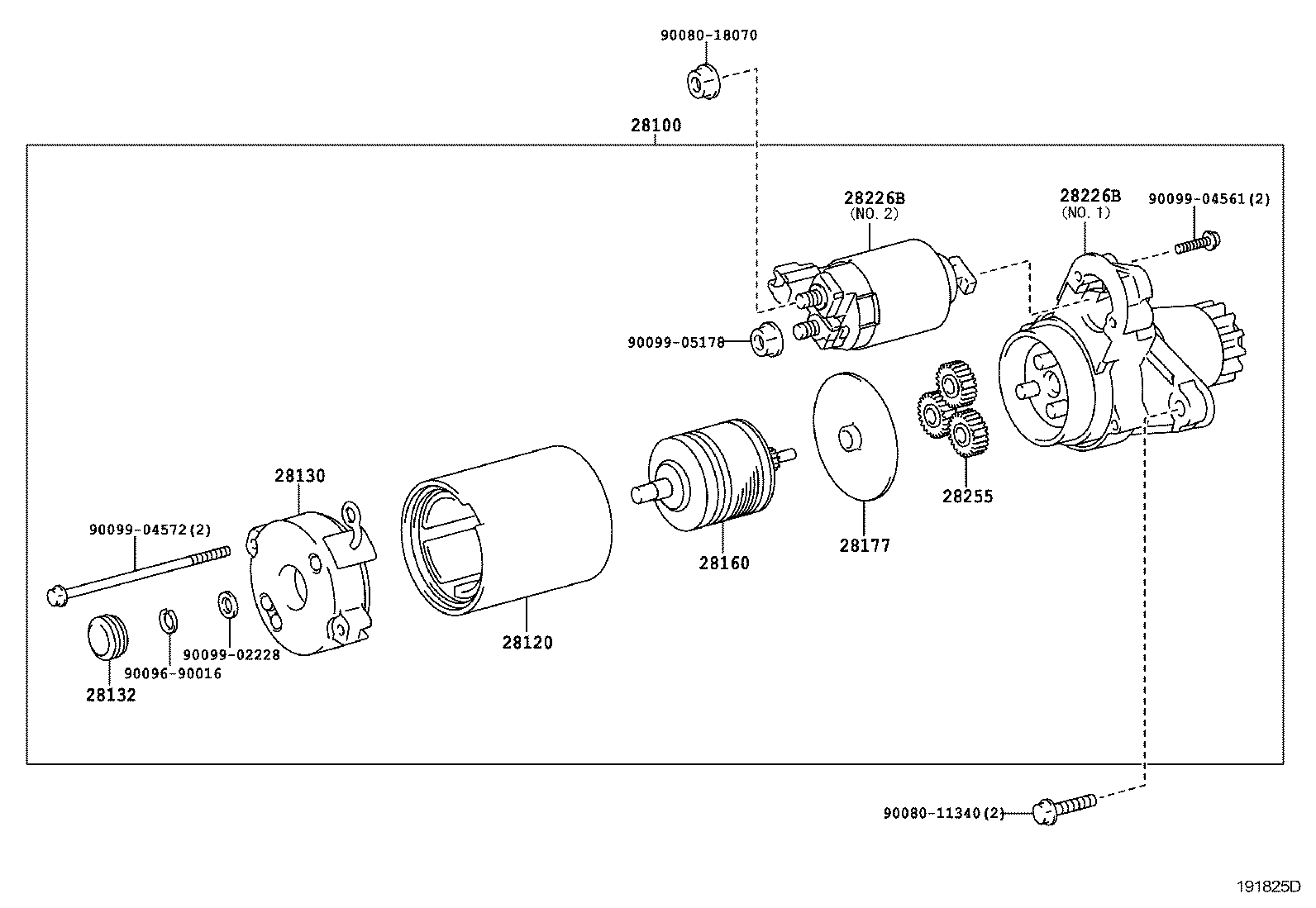

Click highlighted areas on diagram

12V 1.7KW

diagram 28100 28120 28130 28132 28160 28177 28226B 28226B 28255 9008011340 9008018070 9009690016 9009902228 9009904561 9009904572 9009905178
Part # Description Qty Price
28100 - STARTER ASSY
28100-0A010

2GRFE..GSL2#

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-28040

2GRFE..GSL2#

 1
28120-28060

2GRFE..GSL2#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-20020

2GRFE..GSL2#

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28132-28040

2GRFE..GSL2#

 1
28160 - ARMATURE ASSY, STARTER
28160-28040

2GRFE..GSL2#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

2GRFE..GSL2#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-28041

2GRFE..GSL2#

NO.1

 1
28226-28051

2GRFE..GSL2#

NO.2

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-28041

2GRFE..GSL2#

NO.1

 1
28226-28051

2GRFE..GSL2#

NO.2

 1
28255 - GEAR, PLANET
28255-20020

2GRFE..GSL2#

 3
Common parts
90080-11340
90080-18070
90096-90016
90099-02228
90099-04561
90099-04572
90099-05178
