GSL20L-PRAQKA (2006)
Toyota Sienna

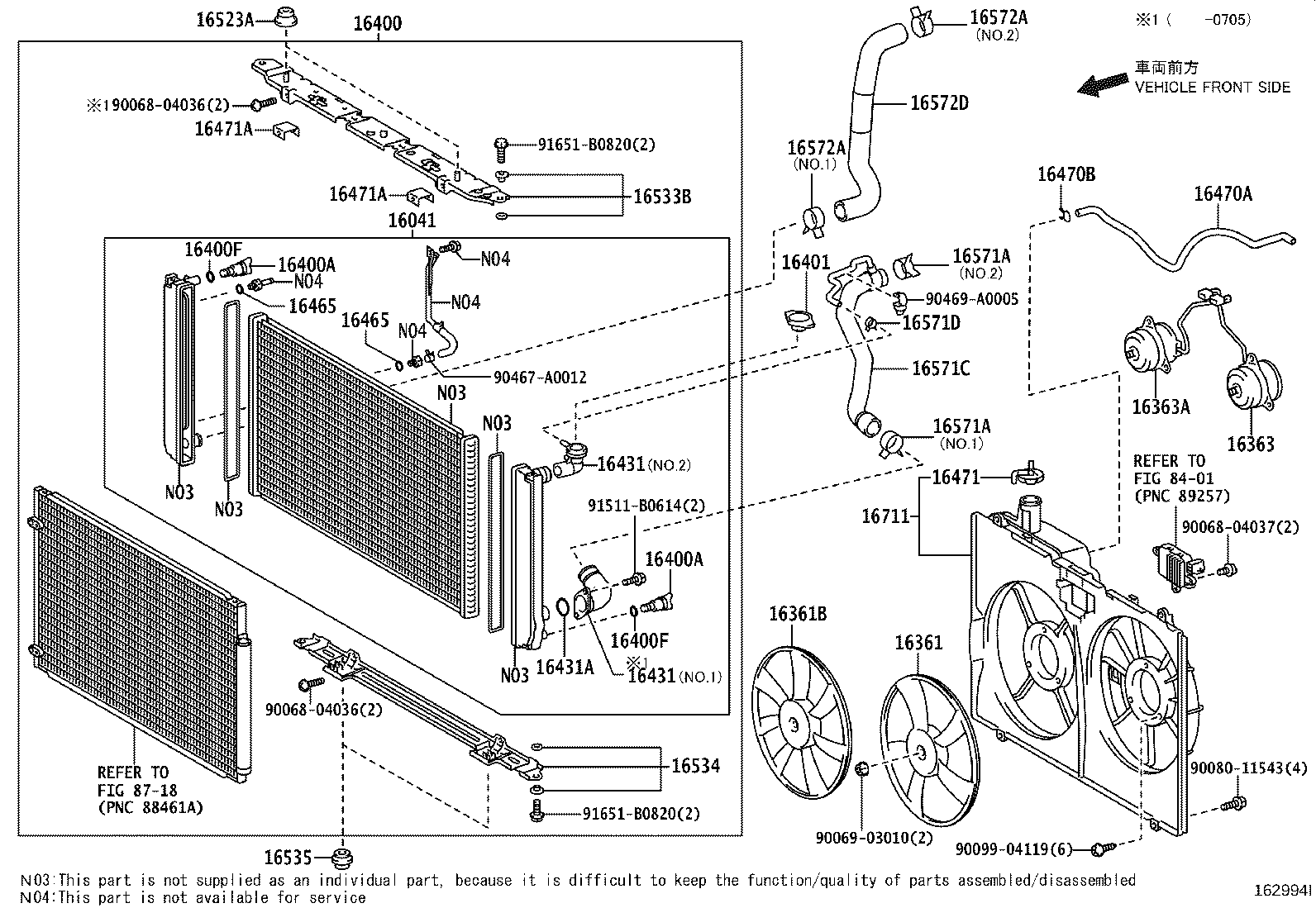

ILLUST NO. 1 OF 2(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-0P200 |
2GRFE..GSL2# |
1 | ||
| 16041-0P201 |
2GRFE..GSL2# |
1 | ||
| 16361 - FAN | ||||
| 16361-0P100 |
2GRFE..GSL2# |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0P120 |
2GRFE..GSL2# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0A150 |
2GRFE..GSL2# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0P110 |
2GRFE..GSL2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-0P160 |
2GRFE..GSL2# |
1 | ||
| 16410-0P161 |
2GRFE..GSL2# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-21280 |
2GRFE..GSL2# |
2 | ||
| 16417-21280 |
2GRFE..GSL2# |
2 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-21280 |
2GRFE..GSL2# |
2 | ||
| 16417-21280 |
2GRFE..GSL2# |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSL2# |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSL2# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
2GRFE..GSL2# |
1 | ||
| 16401-31480 |
2GRFE..GSL2# |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-0A380 |
2GRFE..GSL2# NO.1 |
1 | ||
| 16431-0P200 |
2GRFE..GSL2# NO.2 |
1 | ||
| 16431-31490 |
2GRFE..GSL2# NO.2 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-0A380 |
2GRFE..GSL2# NO.1 |
1 | ||
| 16431-0P200 |
2GRFE..GSL2# NO.2 |
1 | ||
| 16431-31490 |
2GRFE..GSL2# NO.2 |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-0A380 |
2GRFE..GSL2# |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16492-07120 |
2GRFE..GSL2# |
2 | ||
| 16492-50240 |
2GRFE..GSL2# |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16492-07120 |
2GRFE..GSL2# |
2 | ||
| 16492-50240 |
2GRFE..GSL2# |
2 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-20142 |
2GRFE..GSL2# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
2GRFE..GSL2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0A030 |
2GRFE..GSL2# |
1 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-0A380 |
GSL2# |
2 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-0A380 |
GSL2# |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0A020 |
2GRFE..GSL2# |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16505-0P010 |
2GRFE..GSL2# |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16506-0A090 |
2GRFE..GSL2# |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSL2# |
2 | ||
| 16535-0A090 |
2GRFE..GSL2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90080-46346 |
2GRFE..GSL2# NO.1 |
1 | ||
| 90080-46344 |
2GRFE..GSL2# NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90080-46346 |
2GRFE..GSL2# NO.1 |
1 | ||
| 90080-46344 |
2GRFE..GSL2# NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P140 |
2GRFE..GSL2# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-15022 |
2GRFE..GSL2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90080-46344 |
2GRFE..GSL2# NO.2 |
1 | ||
| 90080-46346 |
2GRFE..GSL2# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90080-46344 |
2GRFE..GSL2# NO.2 |
1 | ||
| 90080-46346 |
2GRFE..GSL2# NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P140 |
2GRFE..GSL2# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P120 |
2GRFE..GSL2# |
1 | ||
| Common parts | ||||
| 90068-04036 | ||||
| 90068-04037 | ||||
| 90069-03010 | ||||
| 90080-11543 | ||||
| 90099-04119 | ||||
| 90467-A0012 | ||||
| 90469-A0005 | ||||
| 91511-B0614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||

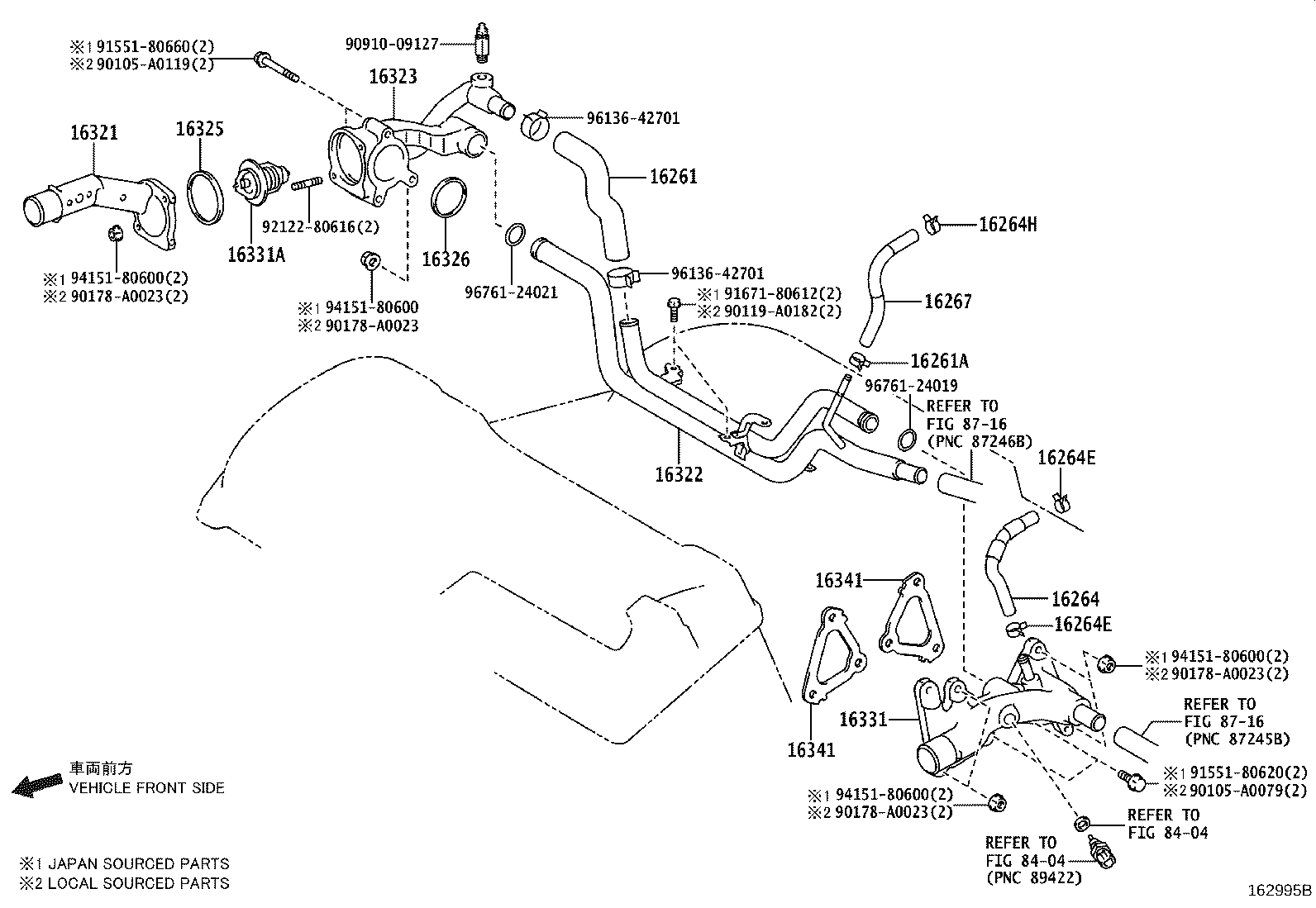

ILLUST NO. 2 OF 2(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0P030 |
2GRFE..GSL2# TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16261-0P030 |
2GRFE..GSL2# *185 |
1 | ||
| 16261-31050 |
2GRFE..GSL2# *132 |
1 | ||
| 16261-0P030 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC,*185 |
1 | ||
| 16261-0P030 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC&TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2GRFE..GSL2# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0P031 |
2GRFE..GSL2# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSL2# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSL2# |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSL2# |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P020 |
2GRFE..GSL2# *185 |
1 | ||
| 16267-0P020 |
2GRFE..GSL2# TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16267-31040 |
2GRFE..GSL2# *132 |
1 | ||
| 16267-0P020 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC&TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16267-0P020 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC,*185 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-31011 |
2GRFE..GSL2# *132 |
1 | ||
| 16321-0P010 |
2GRFE..GSL2# *185 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-31030 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC,*185 |
1 | ||
| 16322-0P020 |
2GRFE..GSL2# TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16322-31010 |
2GRFE..GSL2# (J),*185 |
1 | ||
| 16322-31030 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC&TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16322-0P010 |
2GRFE..GSL2# (L),*185 |
1 | ||
| 16322-0P020 |
2GRFE..GSL2# *185 |
1 | ||
| 16322-31020 |
2GRFE..GSL20..LE..USA;2GRFE..GSL20..7S..XLE..USA MEXICO SPEC,*185 |
1 | ||
| 16322-31030 |
2GRFE..GSL2# *132 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31040 |
2GRFE..GSL2# *132 |
1 | ||
| 16323-0W011 |
2GRFE..GSL2# *132 |
1 | ||
| 16323-0P030 |
2GRFE..GSL2# *185 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GSL2# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-31010 |
2GRFE..GSL2# *132 |
1 | ||
| 16325-0P020 |
2GRFE..GSL2# *185 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31140 |
2GRFE..GSL2# *185 |
1 | ||
| 16331-31150 |
2GRFE..GSL2# TOWING PACKAGE-FOR 3500LBS,*185 |
1 | ||
| 16331-31150 |
2GRFE..GSL2# *132 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GRFE..GSL2# *WAX 82-95,(J) |
1 | ||
| 90916-03133 |
2GRFE..GSL2# *WAX 82-95,(J) |
1 | ||
| 90916-A3001 |
2GRFE..GSL2# *WAX 82-95,(L) |
1 | ||
| 90916-A3002 |
2GRFE..GSL2# *WAX 82-95,(L) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSL2# (J) |
2 | ||
| 16341-AD010 |
2GRFE..GSL2# (L) |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
2GRFE..GSL2# (J) |
2 | ||
| 16341-AD010 |
2GRFE..GSL2# (L) |
2 | ||
| Common parts | ||||
| 90105-A0079 | ||||
| 90105-A0119 | ||||
| 90119-A0182 | ||||
| 90178-A0023 | ||||
| 90910-09127 | ||||
| 91551-80620 | ||||
| 91551-80660 | ||||
| 91671-80612 | ||||
| 92122-80616 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||
