AXLH45L-PPXEHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

Click highlighted areas on diagram

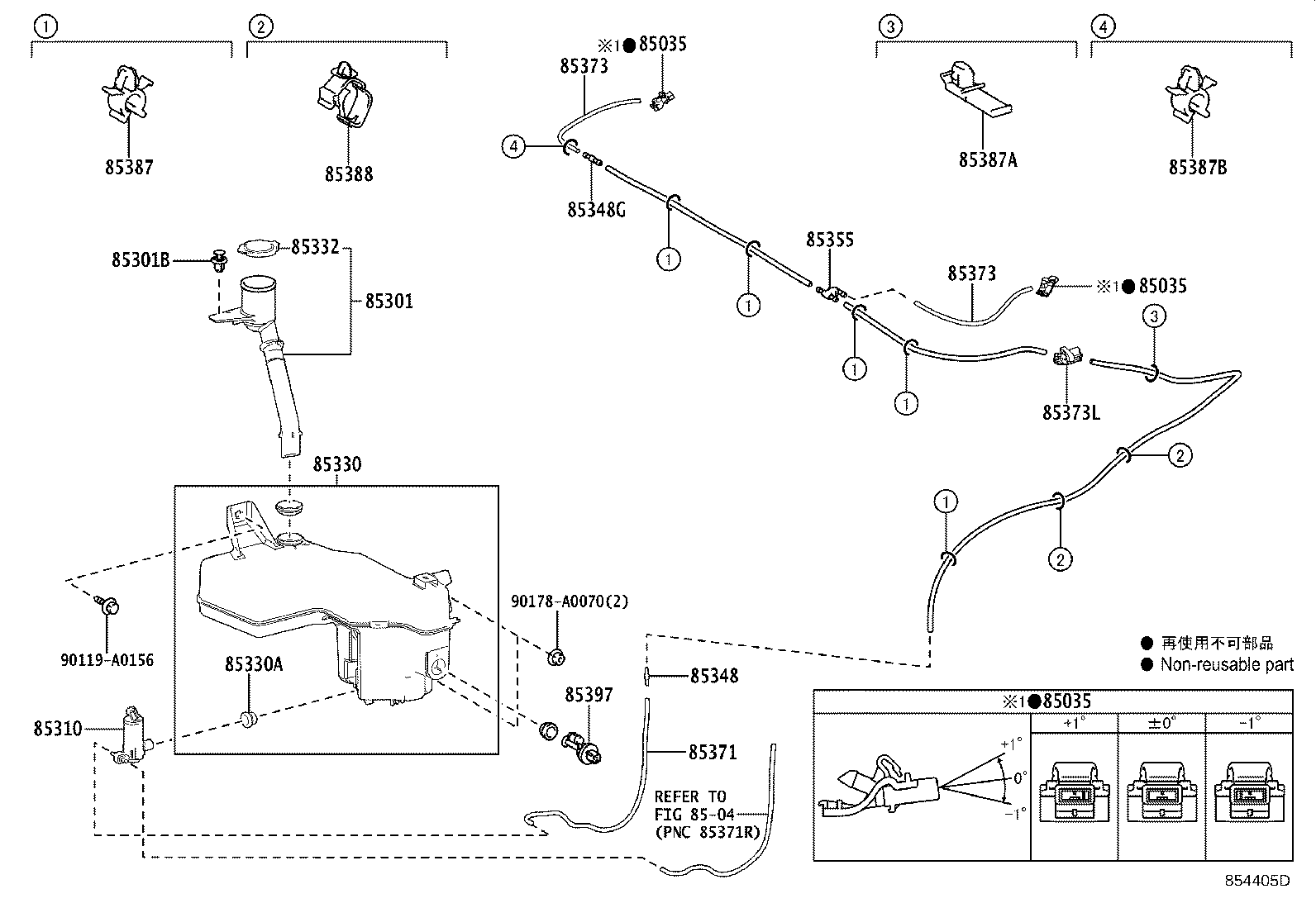

diagram 85035 85035 85035 8504 85301 85301B 85310 85330 85330A 85332 85348 85348G 85355 85371 85373 85373 85373L 85387 85387A 85387B 85388 85397 90119A0156 90178A0070
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0T010

AXLH4#

ANGLE 0

 2
85381-0T020

AXLH4#

ANGLE +1

 2
85381-0T030

AXLH4#

ANGLE -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0T010

AXLH4#

ANGLE 0

 2
85381-0T020

AXLH4#

ANGLE +1

 2
85381-0T030

AXLH4#

ANGLE -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0T010

AXLH4#

ANGLE 0

 2
85381-0T020

AXLH4#

ANGLE +1

 2
85381-0T030

AXLH4#

ANGLE -1

 2
85301 - INLET SUB-ASSY, WASHER
85301-08010

AXLH4#

 1
85301B - CLIP, WASHER
90467-07215

AXLH4#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0E031

AXLH4#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-08040

AXLH4#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AXLH4#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-24130

AXLH4#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85317-02300

AXLH4#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-02300

AXLH4#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AXLH4#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-45008

AXLH4#

L=460

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-46090

AXLH4#

L=290

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90069-46090

AXLH4#

L=290

 2
85373L - GROMMET, WASHER
85373-12050

AXLH4#

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
90469-07011

AXLH4#

 5
85387A - CLAMP, WASHER, NO.2
82711-3A640

AXLH4#

 1
85387B - CLAMP, WASHER, NO.3
90469-07011

AXLH4#

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
82711-1E350

AXLH4#

 2
85397 - SWITCH ASSY,LEVEL WARNING
85397-AA040

AXLH4#

 1
Common parts
90119-A0156
90178-A0070
Linked diagrams
8504
