AXLH45L-PPXEHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )08S

Click highlighted areas on diagram

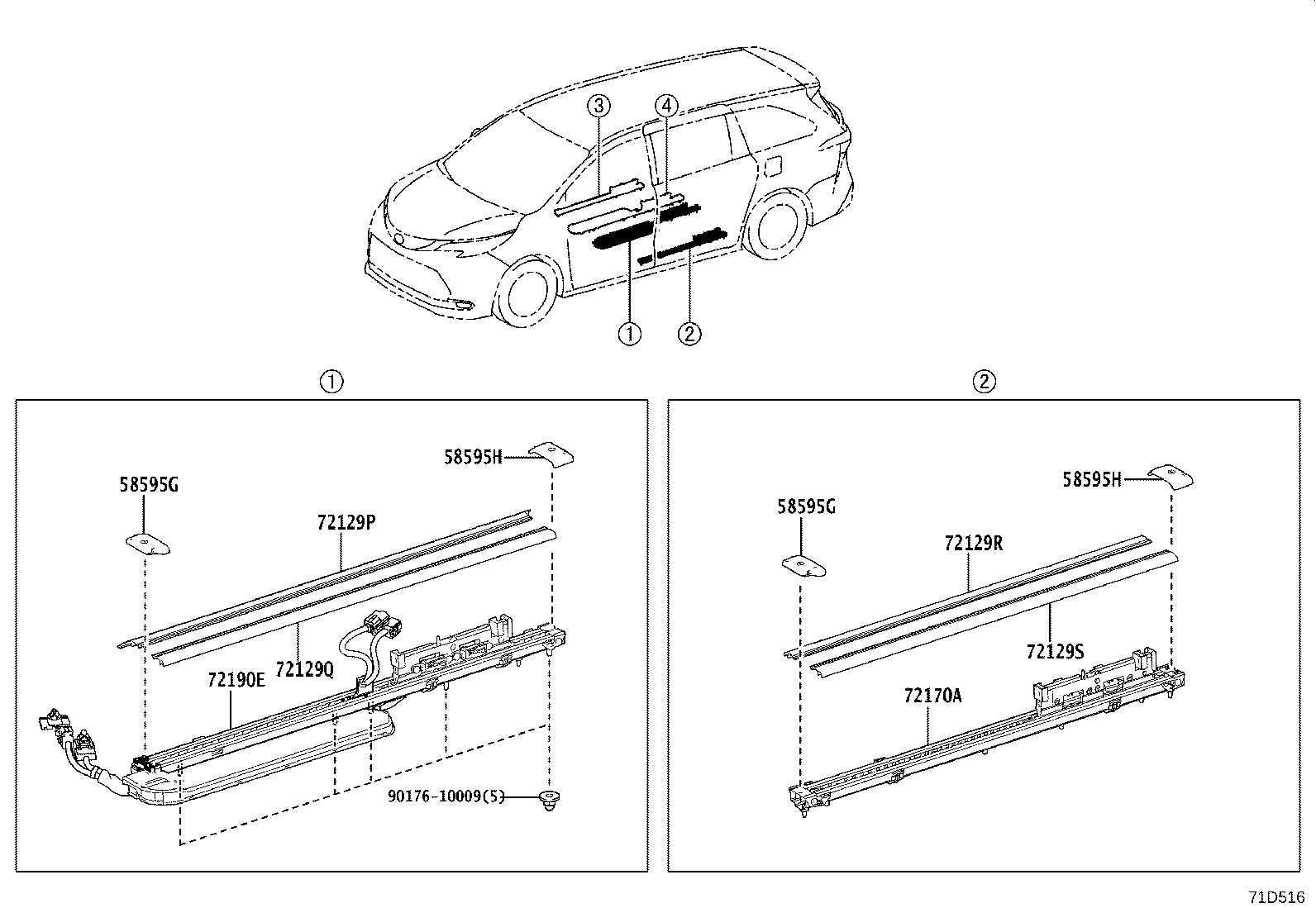

LH

diagram 58595G 58595G 58595H 58595H 72129P 72129Q 72129R 72129S 72170A 72190E 9017610009
Part # Description Qty Price
58595G - MOULDING, FLOOR CARPET, NO.1
58595-08110C0

AXLH4#..S

BLACK,TRIM1#

 6
58595-08110C0

AXLH4#..E

BLACK,TRIM1#

 4
58595G - MOULDING, FLOOR CARPET, NO.1
58595-08110C0

AXLH4#..S

BLACK,TRIM1#

 6
58595-08110C0

AXLH4#..E

BLACK,TRIM1#

 4
58595H - MOULDING, FLOOR CARPET, NO.2
58595-08120C0

AXLH4#..S

BLACK,TRIM1#

 2
58595-08030C0

AXLH4#..E

BLACK,TRIM1#

 4
58595H - MOULDING, FLOOR CARPET, NO.2
58595-08120C0

AXLH4#..S

BLACK,TRIM1#

 2
58595-08030C0

AXLH4#..E

BLACK,TRIM1#

 4
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-08160C0

AXLH4#..E

BLACK,TRIM1#

 1
72129-08190C0

AXLH4#..S

BLACK,TRIM1#

 1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-08190C0

AXLH4#..S

BLACK,TRIM1#

 1
72129-08150C0

AXLH4#..E

BLACK,TRIM1#

 1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-08140C0

AXLH4#..E

BLACK,TRIM1#

 1
72129-08170C0

AXLH4#..S

BLACK,TRIM1#

 1
72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129-08140C0

AXLH4#..E

BLACK,TRIM1#

 1
72129-08180C0

AXLH4#..S

BLACK,TRIM1#

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-08100

AXLH4#..08S

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-08190

AXLH4#..L

SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

 1
72190-08240

AXLH4#..08S

 1
Common parts
90176-10009

(2011- )08S

Click highlighted areas on diagram

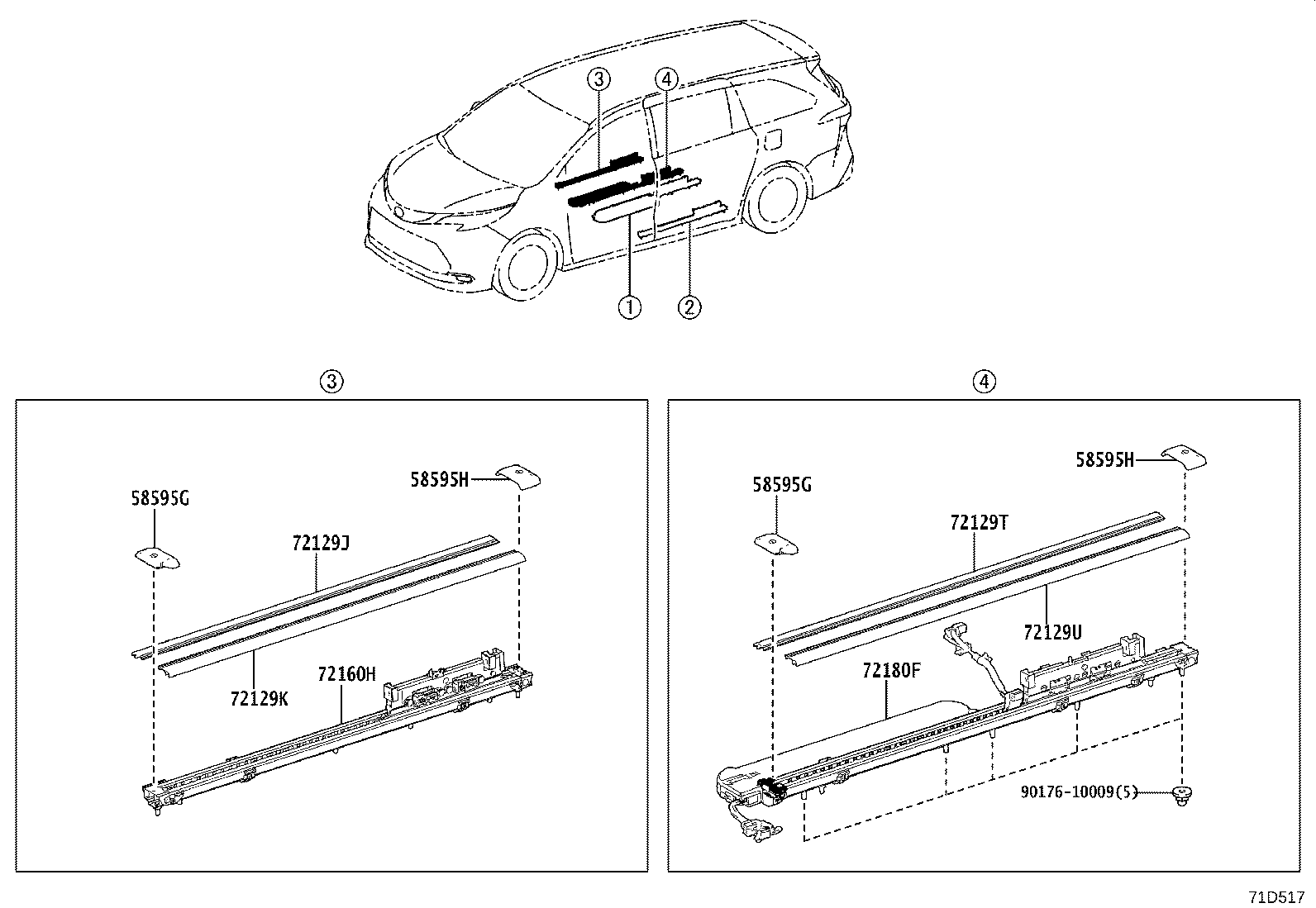

RH

diagram 58595G 58595G 58595H 58595H 72129J 72129K 72129T 72129U 72160H 72180F 9017610009
Part # Description Qty Price
58595G - MOULDING, FLOOR CARPET, NO.1
58595-08110C0

AXLH4#..S

BLACK,TRIM1#

 6
58595-08110C0

AXLH4#..E

BLACK,TRIM1#

 4
58595G - MOULDING, FLOOR CARPET, NO.1
58595-08110C0

AXLH4#..S

BLACK,TRIM1#

 6
58595-08110C0

AXLH4#..E

BLACK,TRIM1#

 4
58595H - MOULDING, FLOOR CARPET, NO.2
58595-08120C0

AXLH4#..S

BLACK,TRIM1#

 2
58595-08030C0

AXLH4#..E

BLACK,TRIM1#

 4
58595H - MOULDING, FLOOR CARPET, NO.2
58595-08120C0

AXLH4#..S

BLACK,TRIM1#

 2
58595-08030C0

AXLH4#..E

BLACK,TRIM1#

 4
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-08170C0

AXLH4#..S

BLACK,TRIM1#

 1
72129-08140C0

AXLH4#..E

BLACK,TRIM1#

 1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-08140C0

AXLH4#..E

BLACK,TRIM1#

 1
72129-08180C0

AXLH4#..S

BLACK,TRIM1#

 1
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-08190C0

AXLH4#..S

BLACK,TRIM1#

 1
72129-08150C0

AXLH4#..E

BLACK,TRIM1#

 1
72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
72129-08150C0

AXLH4#..E

BLACK,TRIM1#

 1
72129-08190C0

AXLH4#..S

BLACK,TRIM1#

 1
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-08110

AXLH4#..08S

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-08190

AXLH4#..L

SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

 1
72180-08240

AXLH4#..08S

 1
Common parts
90176-10009
