AXLH45L-PNXXHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

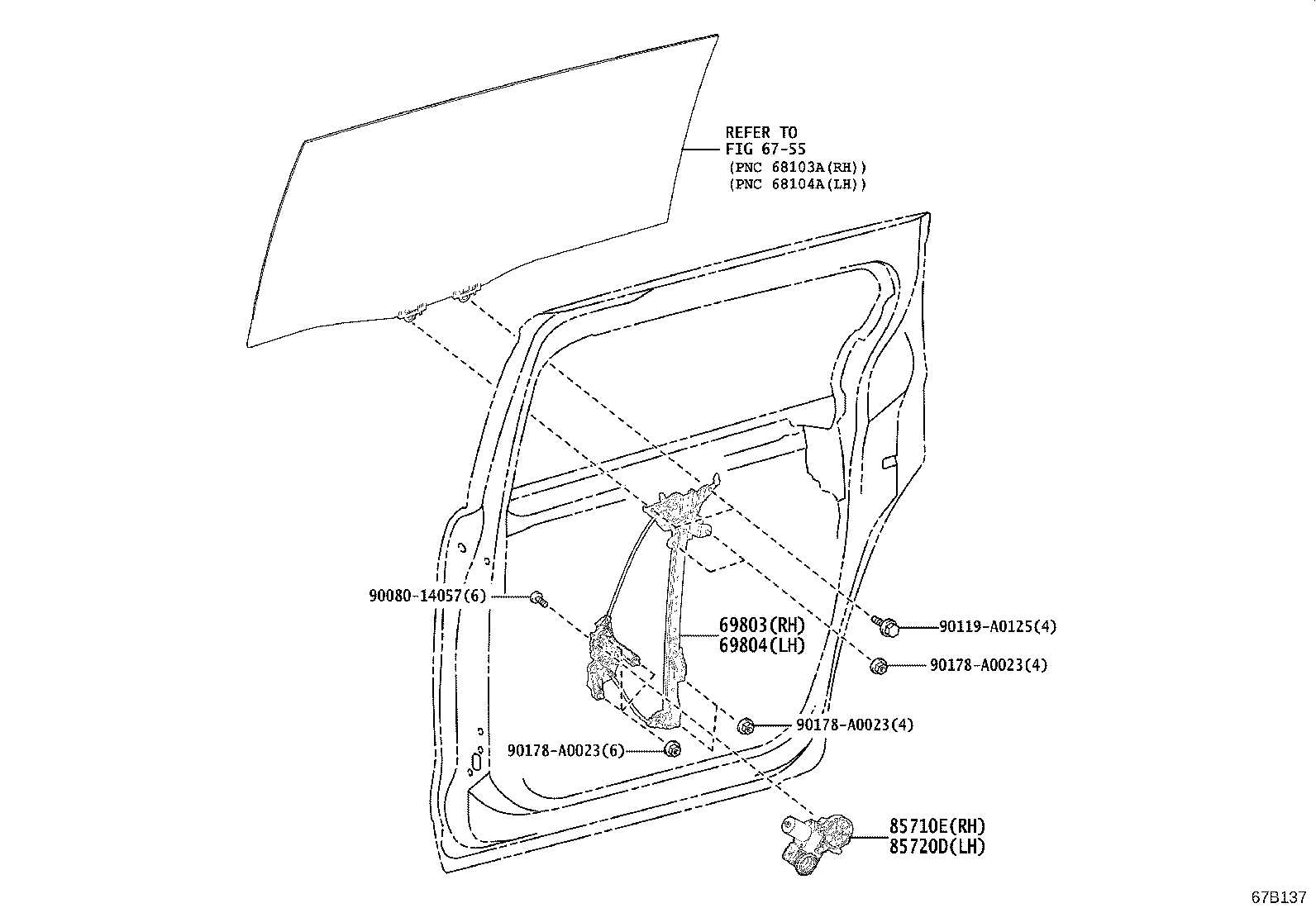

Click highlighted areas on diagram

diagram 6755 69803 69804 85710E 85720D 9008014057 90119A0125 90178A0023 90178A0023 90178A0023
Part # Description Qty Price
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-08030

AXLH4#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-08030

AXLH4#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-08070

AXLH4#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-08070

AXLH4#

 1
Common parts
90080-14057
90119-A0125
90178-A0023
Linked diagrams
6755
