AXLH45L-PNXXHA (2020)
Toyota Sienna
Production
Nov 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

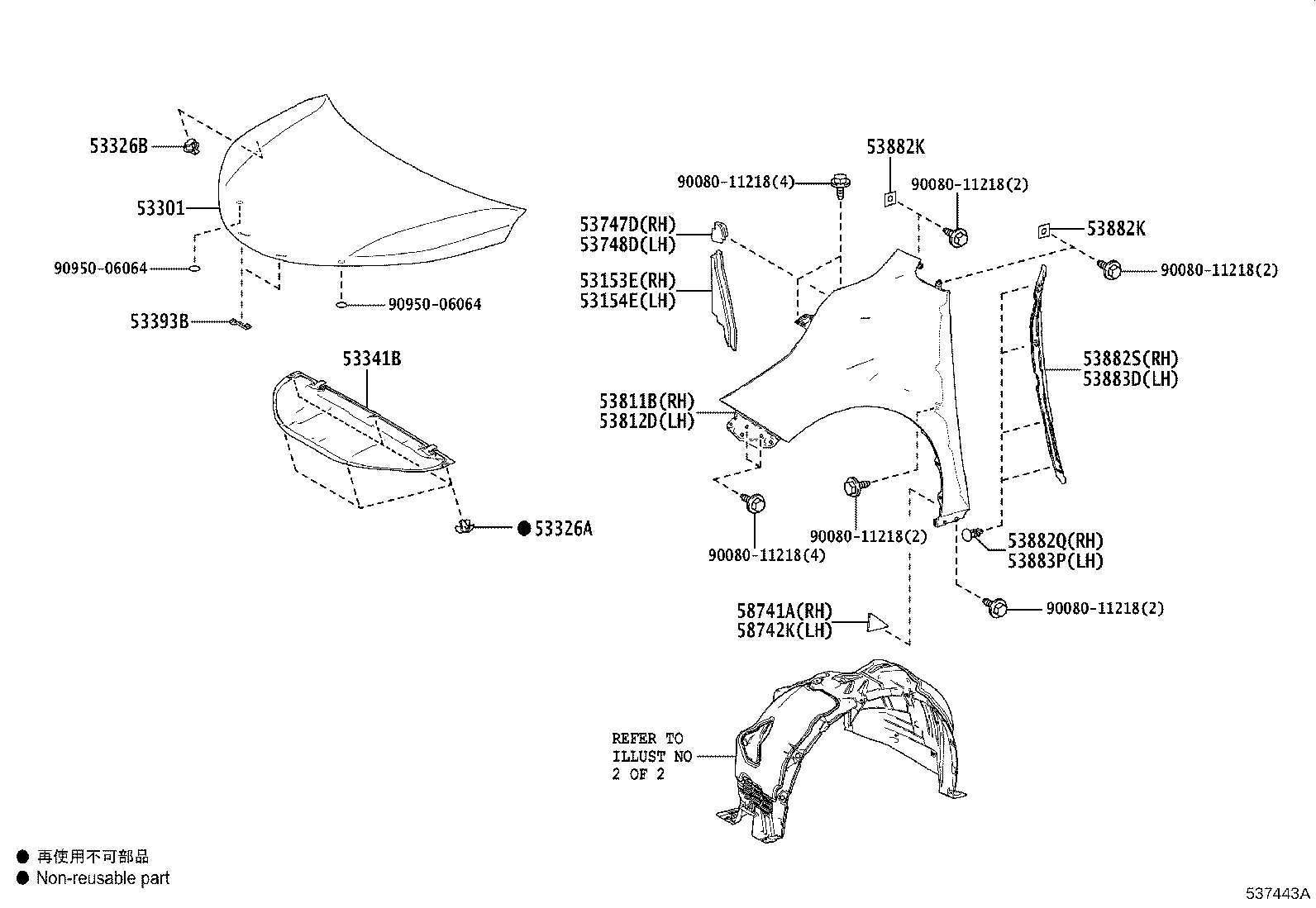

ILLUST NO. 1 OF 2(2011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153E - GUIDE, FRONT SIDE AIR | ||||
| 53153-08020 |
AXLH4#..L,S |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-08020 |
AXLH4#..L,S |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-08060 |
AXLH4# |
1 | ||
| 53326A - CLIP, HOOD MOULDING | ||||
| 53326-08010 |
AXLH4# |
5 | ||
| 53326B - CLIP, HOOD MOULDING | ||||
| 53326-52010 |
AXLH4# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-08020 |
AXLH4# |
1 | ||
| 53393B - PROTECTOR, HOOD, FRONT | ||||
| 53393-08010 |
AXLH4# |
2 | ||
| 53747D - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-08030 |
AXLH4#..L,S |
1 | ||
| 53748D - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-08020 |
AXLH4#..L,S |
1 | ||
| 53811B - PANEL, FRONT FENDER, RH | ||||
| 53811-08090 |
AXLH4# |
1 | ||
| 53812D - PANEL, FRONT FENDER, LH | ||||
| 53812-08050 |
AXLH4# |
1 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
AXLH4# |
4 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
AXLH4# |
4 | ||
| 53882Q - CLIP, NO.1(FOR FRONT FENDER SEAL) | ||||
| 90467-A0002C4 |
AXLH4# BLACK |
4 | ||
| 53882S - SEAL, FRONT FENDER, RH | ||||
| 53882-08030 |
AXLH4# |
1 | ||
| 53883D - SEAL, FRONT FENDER, LH | ||||
| 53883-08030 |
AXLH4# |
1 | ||
| 53883P - CLIP, NO.1(FOR FRONT FENDER SEAL) | ||||
| 90467-A0002C4 |
AXLH4# BLACK |
4 | ||
| 58741A - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-08020 |
AXLH4# |
1 | ||
| 58742K - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-08020 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90080-11218 | ||||
| 90950-06064 | ||||

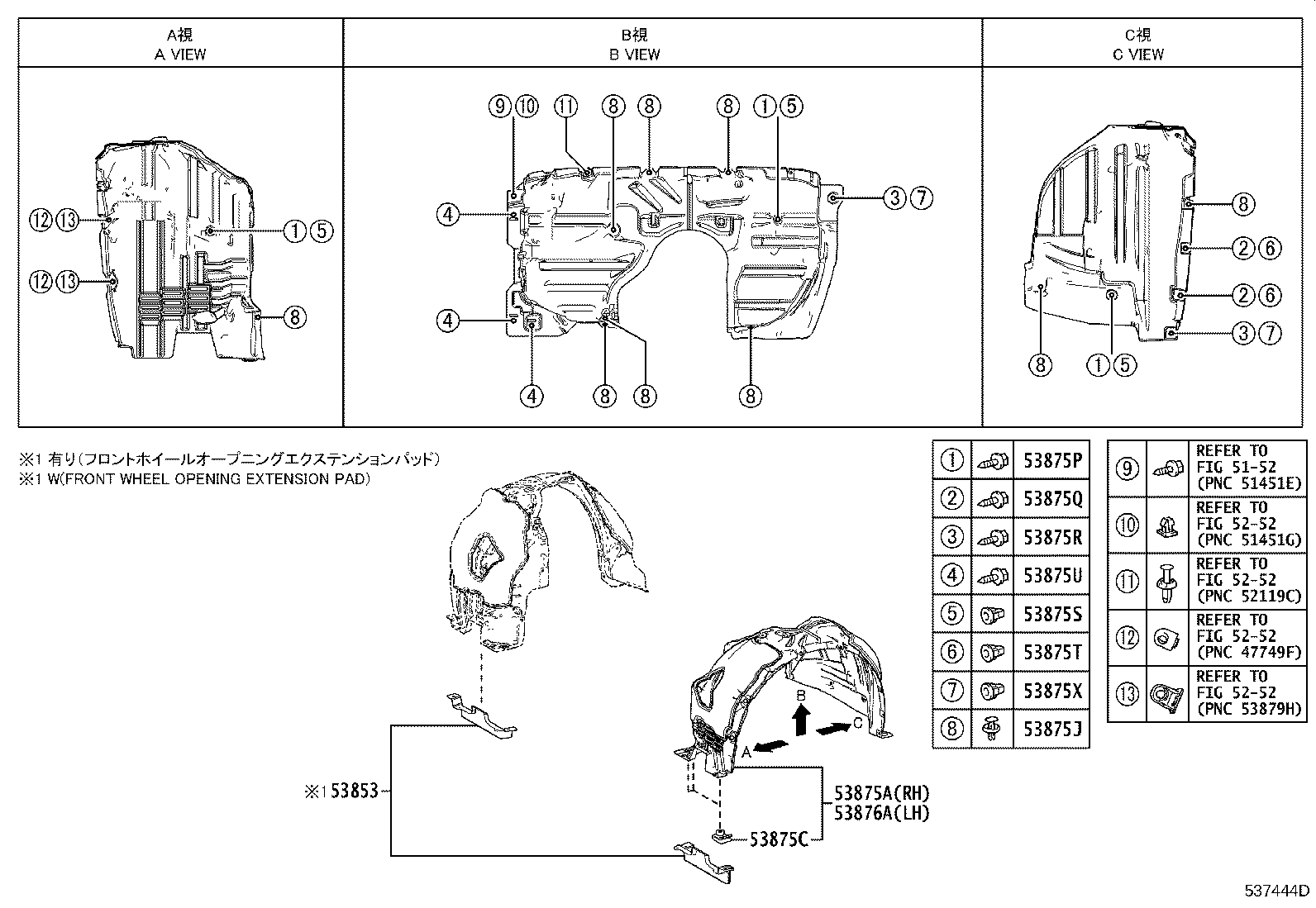

ILLUST NO. 2 OF 2(2011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-08010 |
AXLH4# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-08060 |
AXLH4# |
1 | ||
| 53805-08071 |
AXLH4#..L KOREA SPEC |
1 | ||
| 53805-08070 |
AXLH4#..L KOREA SPEC |
1 | ||
| 53805-08061 |
AXLH4# |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-A0036 |
AXLH4# |
6 | ||
| 90467-A0040 |
AXLH4# |
6 | ||
| 53875J - CLIP, FRONT FENDER LINER | ||||
| 90467-07220 |
AXLH4# |
18 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60602 |
AXLH4# (J) |
6 | ||
| 90159-A0053 |
AXLH4# (L) |
6 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-A0053 |
AXLH4# (L) |
4 | ||
| 90159-60602 |
AXLH4# (J) |
4 | ||
| 53875R - SCREW, NO.3 | ||||
| 90159-A0053 |
AXLH4# (L) |
4 | ||
| 90159-60602 |
AXLH4# (J) |
4 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06236 |
AXLH4# |
6 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06236 |
AXLH4# |
4 | ||
| 53875U - SCREW, NO.4 | ||||
| 90159-A0059 |
AXLH4# |
6 | ||
| 53875X - GROMMET, NO.3 | ||||
| 90189-06236 |
AXLH4# |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-08060 |
AXLH4# |
1 | ||
| 53806-08070 |
AXLH4#..L KOREA SPEC |
1 | ||
| 53806-08071 |
AXLH4#..L KOREA SPEC |
1 | ||
| 53806-08061 |
AXLH4# |
1 | ||
| Linked diagrams | ||||
| 5152 | ||||
| 5252 | ||||
