AXLH45L-PNXXHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

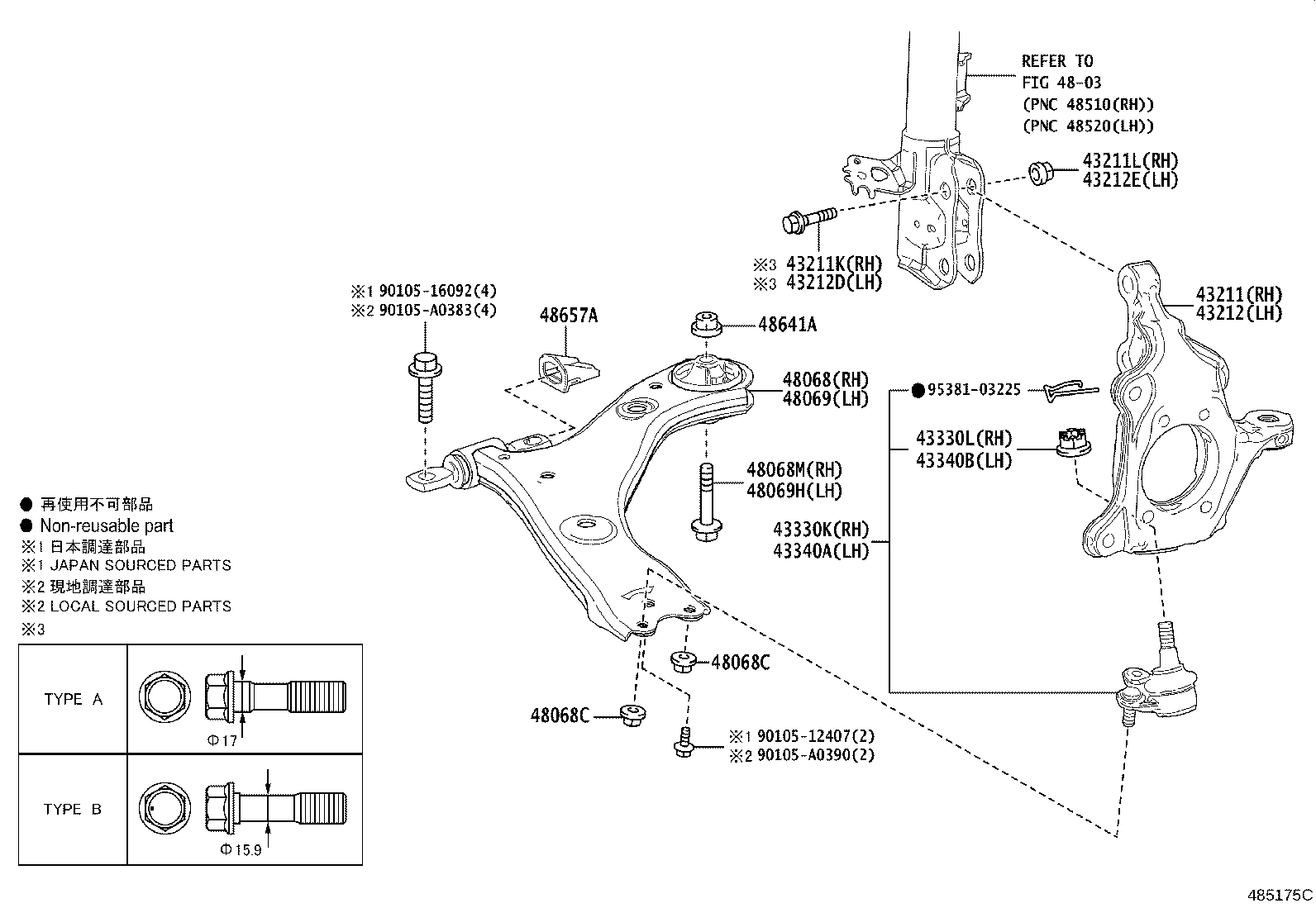

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48068C 48068C 48068M 48069 48069H 48641A 48657A 9010512407 9010516092 90105A0383 90105A0390 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-0E010

AXLH4#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-A0385

AXLH4#

OD=17,(L),TYPE A:REF ILL.

 2
90105-17013

AXLH4#

OD=15.9,TYPE B:REFER ILLUST.

 2
90105-17020

AXLH4#

OD=17,(J),TYPE A:REF ILL.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-A0027

AXLH4#

(L)

 2
90178-17002

AXLH4#

(J)

 2
43212 - KNUCKLE, STEERING, LH
43202-0E010

AXLH4#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-A0385

AXLH4#

OD=17,(L),TYPE A:REF ILL.

 2
90105-17020

AXLH4#

OD=17,(J),TYPE A:REF ILL.

 2
90105-17013

AXLH4#

OD=15.9,TYPE B:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

AXLH4#

(J)

 2
90178-A0027

AXLH4#

(L)

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09B60

AXLH4#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14017

AXLH4#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09B60

AXLH4#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14017

AXLH4#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-08050

AXLH4#

 1
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90178-A0094

AXLH4#

 4
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90178-A0094

AXLH4#

 4
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-A0459

AXLH4#

(L)

 1
90119-14180

AXLH4#

(J)

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-08050

AXLH4#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-A0459

AXLH4#

(L)

 1
90119-14180

AXLH4#

(J)

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90080-17223

AXLH4#

 2
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

AXLH4#

(J)

 2
48657-06010

AXLH4#

(L)

 2
Common parts
90105-12407
90105-16092
90105-A0383
90105-A0390
95381-03225
Linked diagrams
4803
