AXLH45L-PNXSHA (2020)
Toyota Sienna
Production
Nov 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

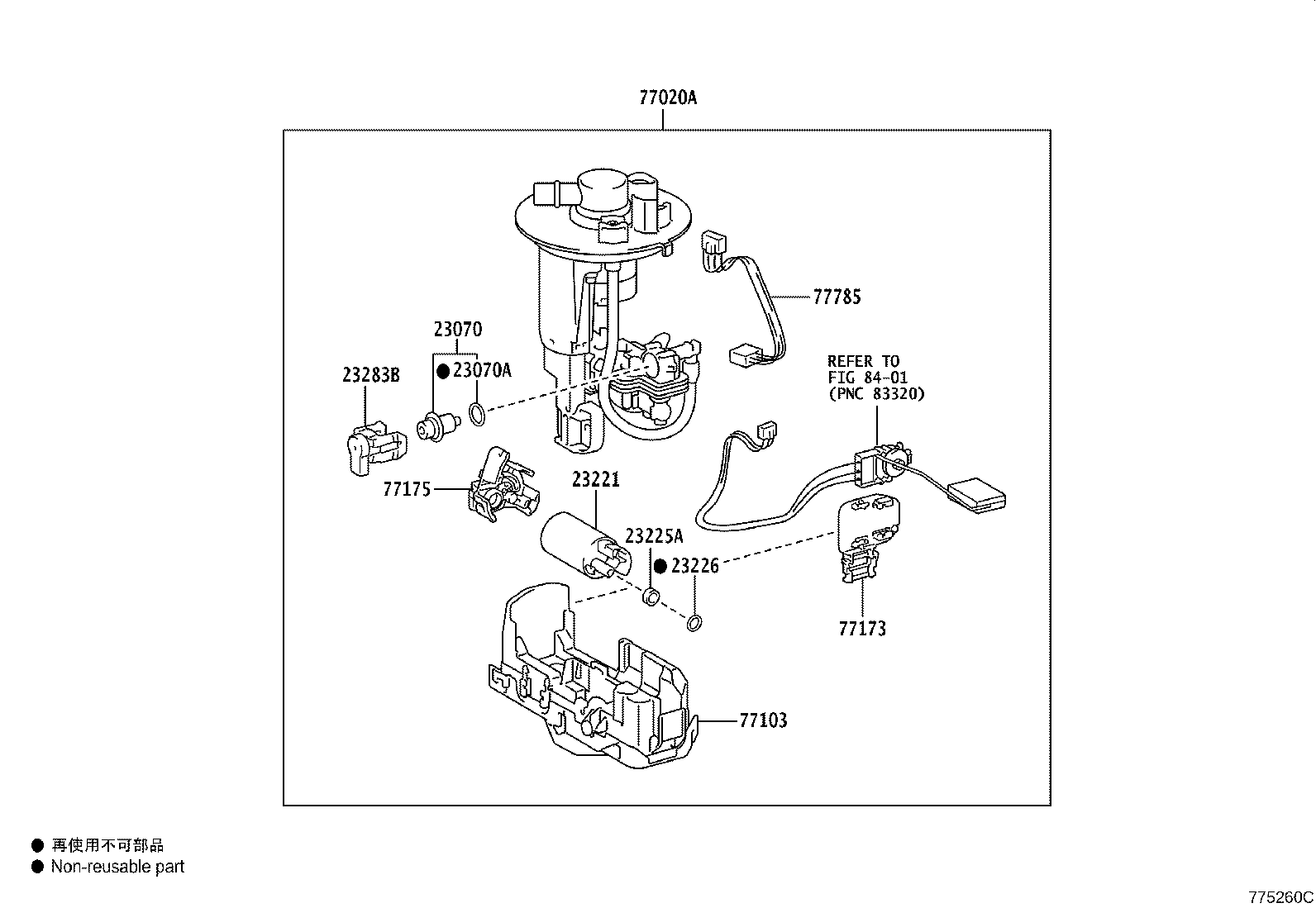

ILLUST NO. 2 OF 4(2011- )
Click highlighted areas on diagram
FUEL SUCTUIN TUBE(PUMP & GAGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-25020 |
A25AFXS..AXLH4# |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
A25AFXS..AXLH4# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-25030 |
A25AFXS..AXLH4# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-F0010 |
A25AFXS..AXLH4# |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-A0021 |
A25AFXS..AXLH4# |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-F0010 |
A25AFXS..AXLH4# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-08091 |
AXLH4# |
1 | ||
| 77020-08090 |
AXLH4# |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-0E040 |
AXLH4# |
1 | ||
| 77173 - BRACKET, FUEL GAGE | ||||
| 77173-0E020 |
AXLH4# |
1 | ||
| 77173-0E021 |
AXLH4# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-0R010 |
AXLH4# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0R040 |
AXLH4# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

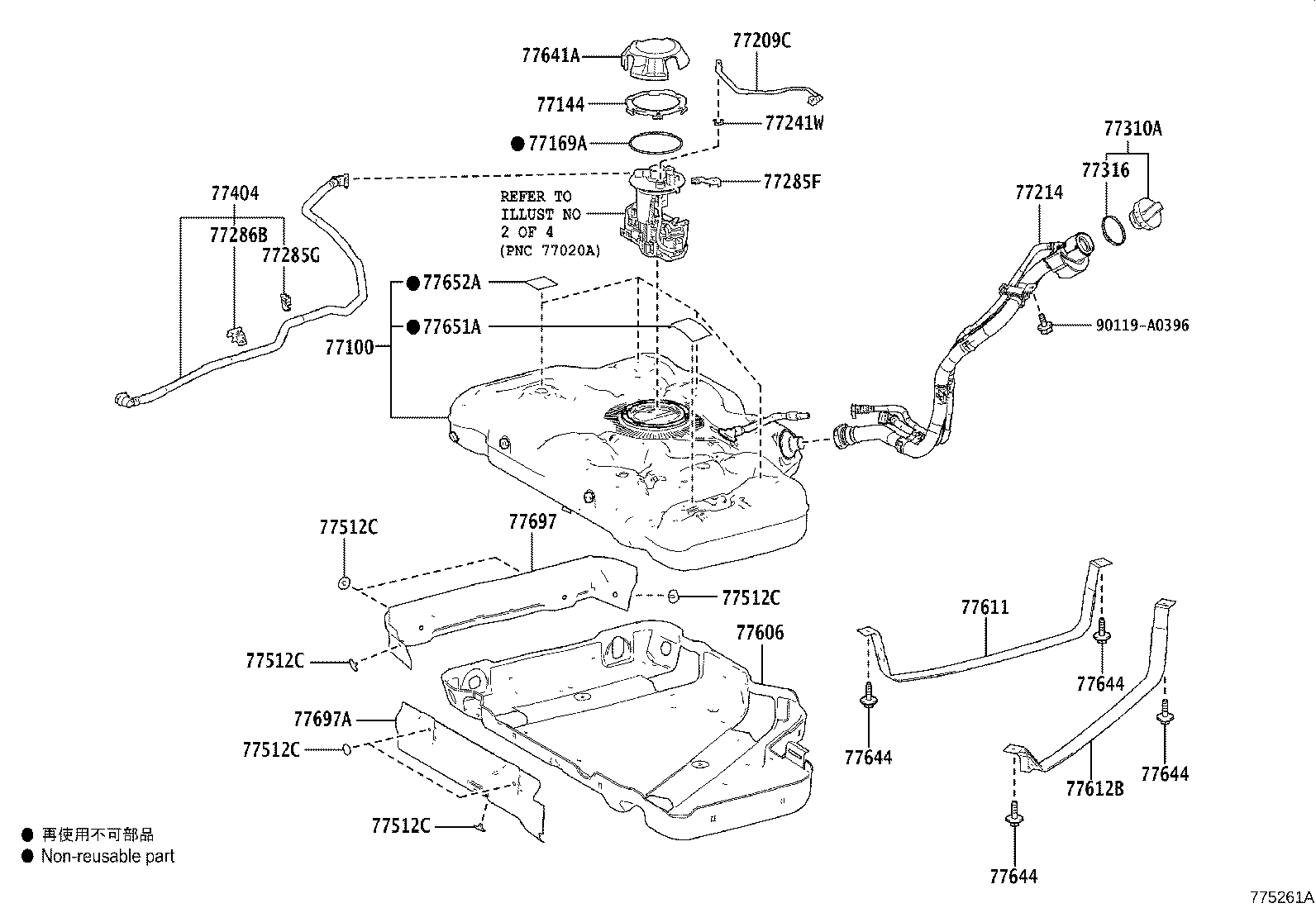

ILLUST NO. 1 OF 4(2011- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-08120 |
AXLH4# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-06040 |
AXLH4# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-06060 |
AXLH4# |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-08070 |
AXLH4# |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-08070 |
AXLH4# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
AXLH4# |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-08240 |
AXLH4# |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0R090 |
AXLH4# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77285-08280 |
AXLH4# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06090 |
AXLH4# (L) |
1 | ||
| 77300-53040 |
AXLH4# (J) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06090 |
AXLH4# (L) |
1 | ||
| 77316-75020 |
AXLH4# (J) |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-08070 |
AXLH4# |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-06060 |
AXLH4# |
7 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-06060 |
AXLH4# |
7 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-06060 |
AXLH4# |
7 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-06060 |
AXLH4# |
7 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-06060 |
AXLH4# |
7 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-08010 |
AXLH4# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-08020 |
AXLH4# |
1 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-08020 |
AXLH4# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-08040 |
AXLH4# |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-A0509 |
AXLH4# |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-A0509 |
AXLH4# |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-A0509 |
AXLH4# |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-A0509 |
AXLH4# |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-08040 |
AXLH4# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-12070 |
AXLH4# |
4 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-08030 |
AXLH4# |
1 | ||
| 77697A - INSULATOR, FUEL TANK HEAT, NO.2 | ||||
| 77698-08010 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90119-A0396 | ||||

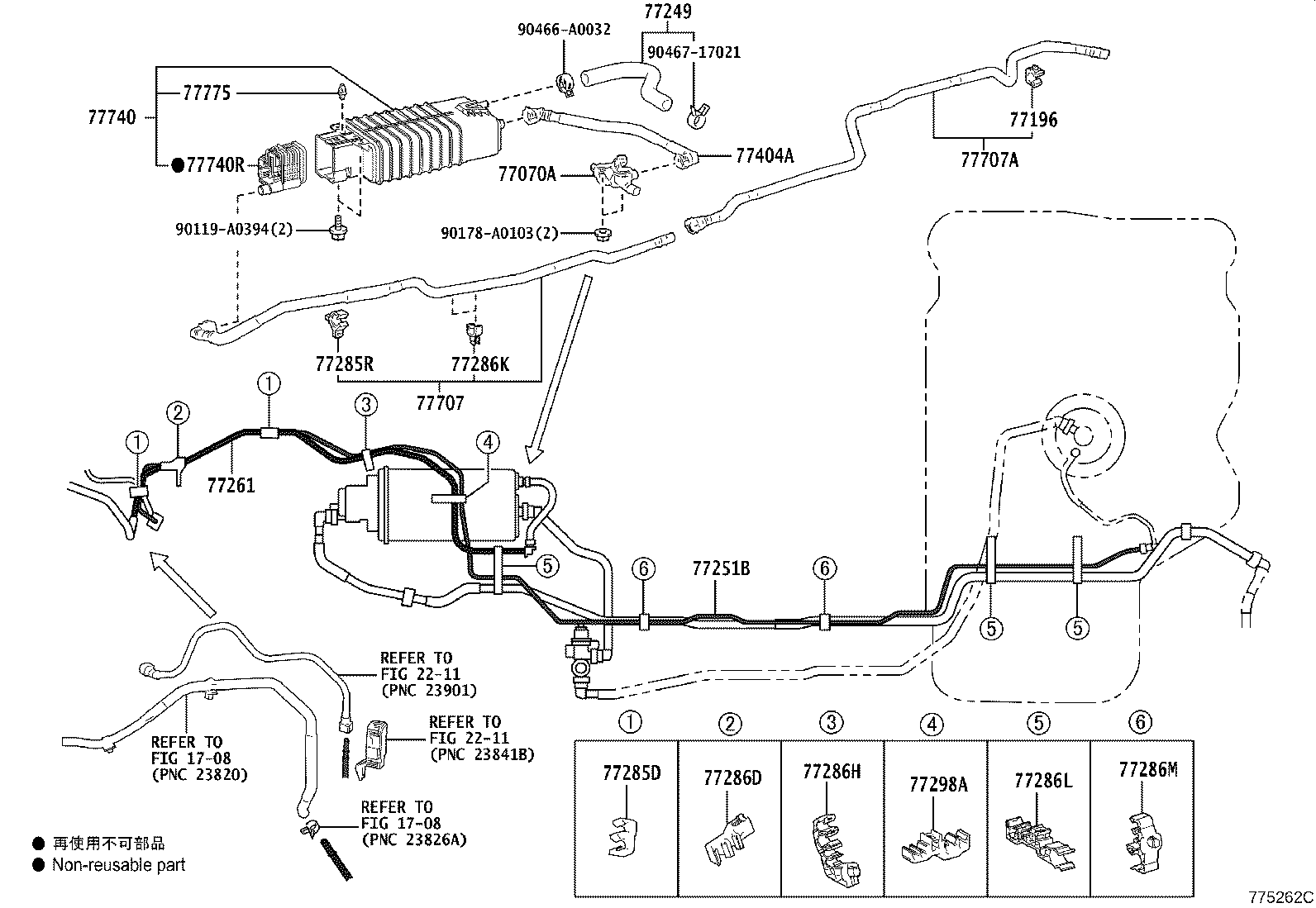

ILLUST NO. 3 OF 4(2011- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77070A - VALVE ASSY, CLOSE TANK | ||||
| 90910-15085 |
AXLH4# |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77197-42020 |
AXLH4# |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-08050 |
AXLH4# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-08090 |
AXLH4# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-08050 |
AXLH4# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-08270 |
AXLH4# |
2 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-08280 |
AXLH4# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-08300 |
AXLH4# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-08210 |
AXLH4# |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-08290 |
AXLH4# |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-08220 |
AXLH4# |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-08230 |
AXLH4# |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12160 |
AXLH4# |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-08080 |
AXLH4# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-08040 |
AXLH4# |
1 | ||
| 77707A - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77707-08050 |
AXLH4# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-0E140 |
AXLH4# |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-AF006 |
AXLH4# |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90119-A0394 | ||||
| 90178-A0103 | ||||
| 90466-A0032 | ||||
| 90467-17021 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

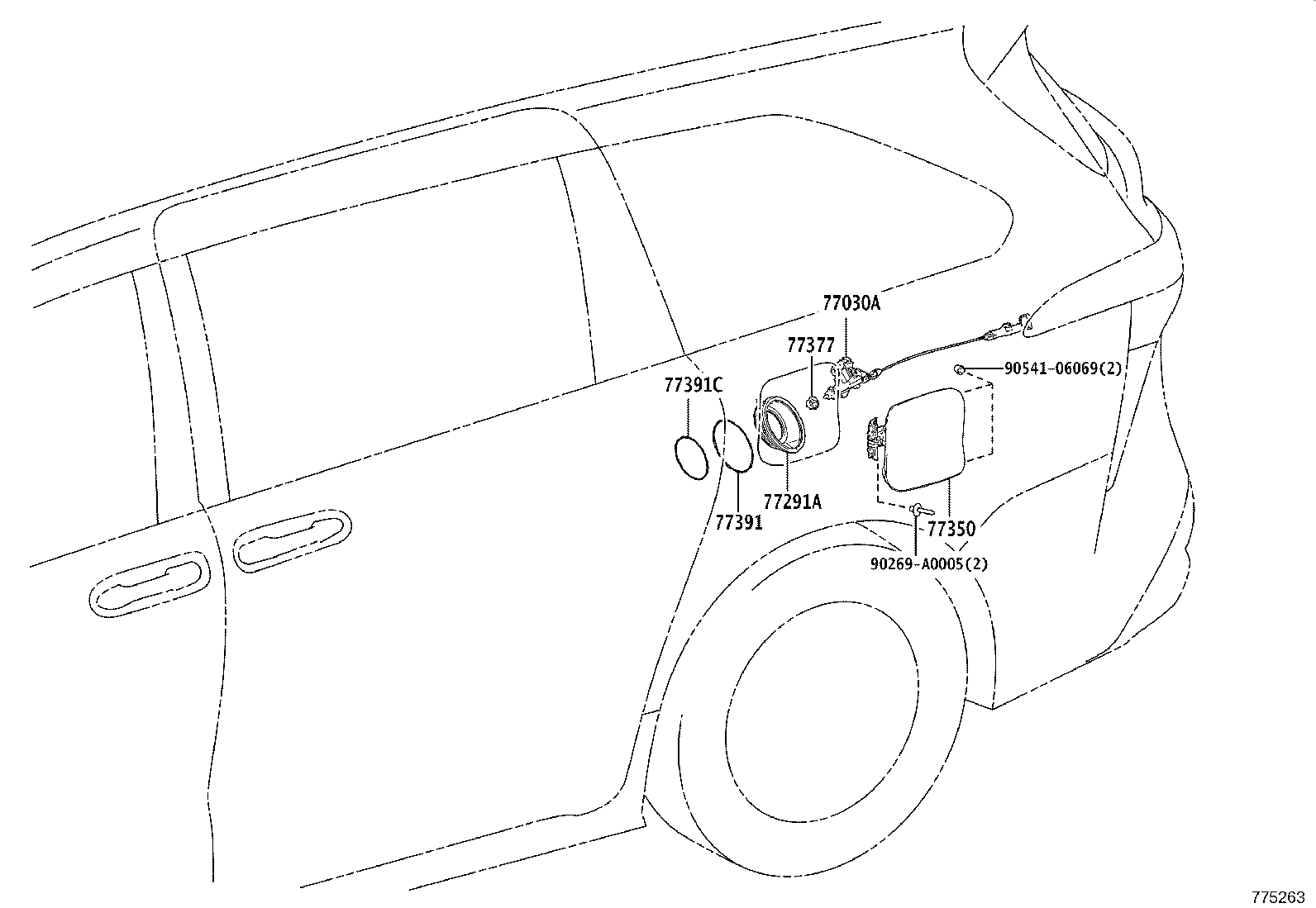

ILLUST NO. 4 OF 4(2011- )
Click highlighted areas on diagram
FUEL LID OPNER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-08010 |
AXLH4# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-06200 |
AXLH4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-08030 |
AXLH4# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-08010 |
AXLH4# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02041 |
AXLH4# |
1 | ||
| 77391C - RING, UREA INLET BOX | ||||
| 77391-33060 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90269-A0005 | ||||
| 90541-06069 | ||||
