AXLH40L-PPXXHA (2020)
Toyota Sienna

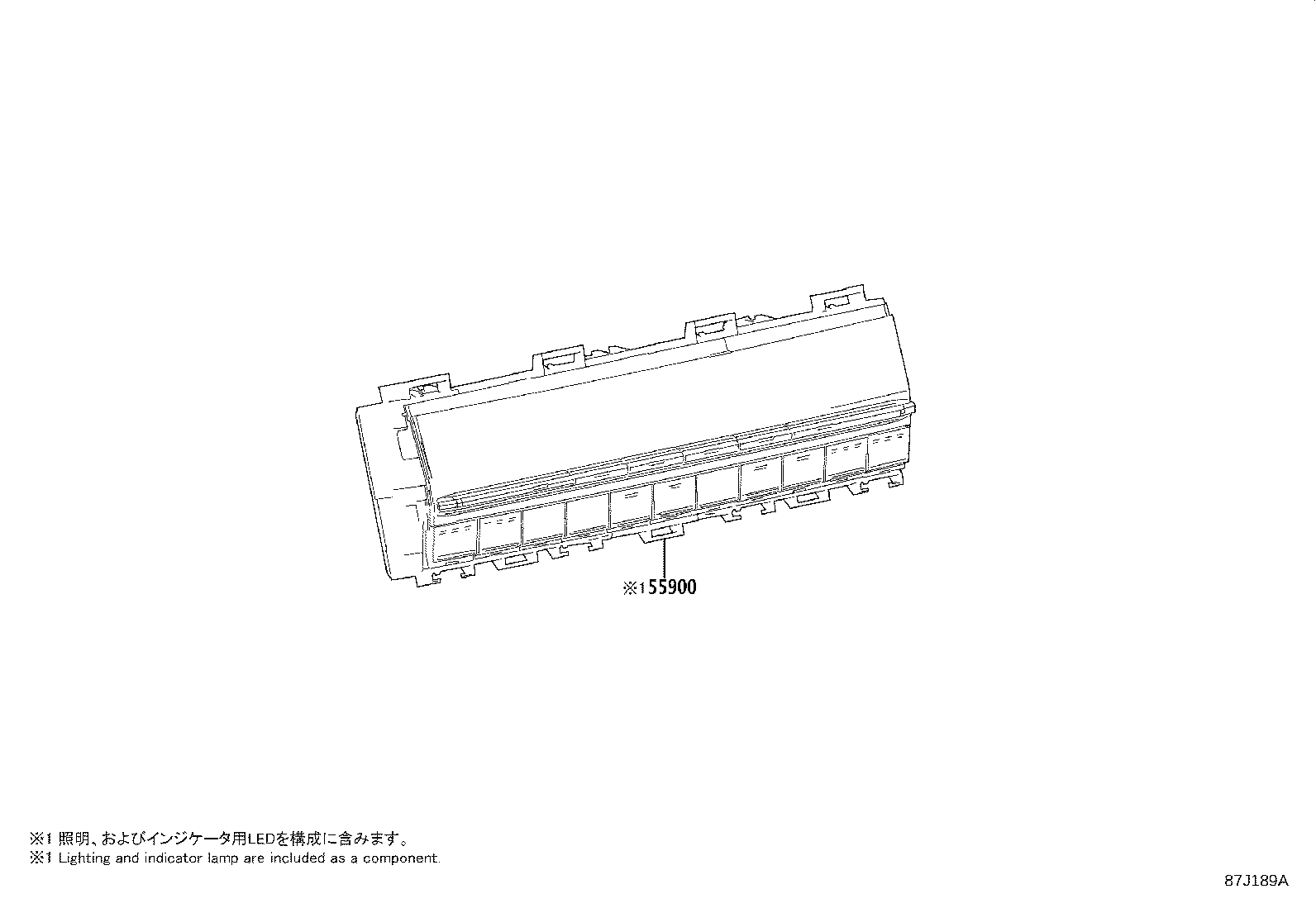

ILLUST NO. 1 OF 5(2011- )
FRONT HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-08300 |
AXLH4#..X |
1 | ||
| 55900-08240 |
AXLH40..08S..X SEAT HEATER-WITHOUT |
1 | ||
| 55900-08260 |
AXLH4#..L |
1 | ||
| 55900-08250 |
AXLH4#..S |
1 | ||

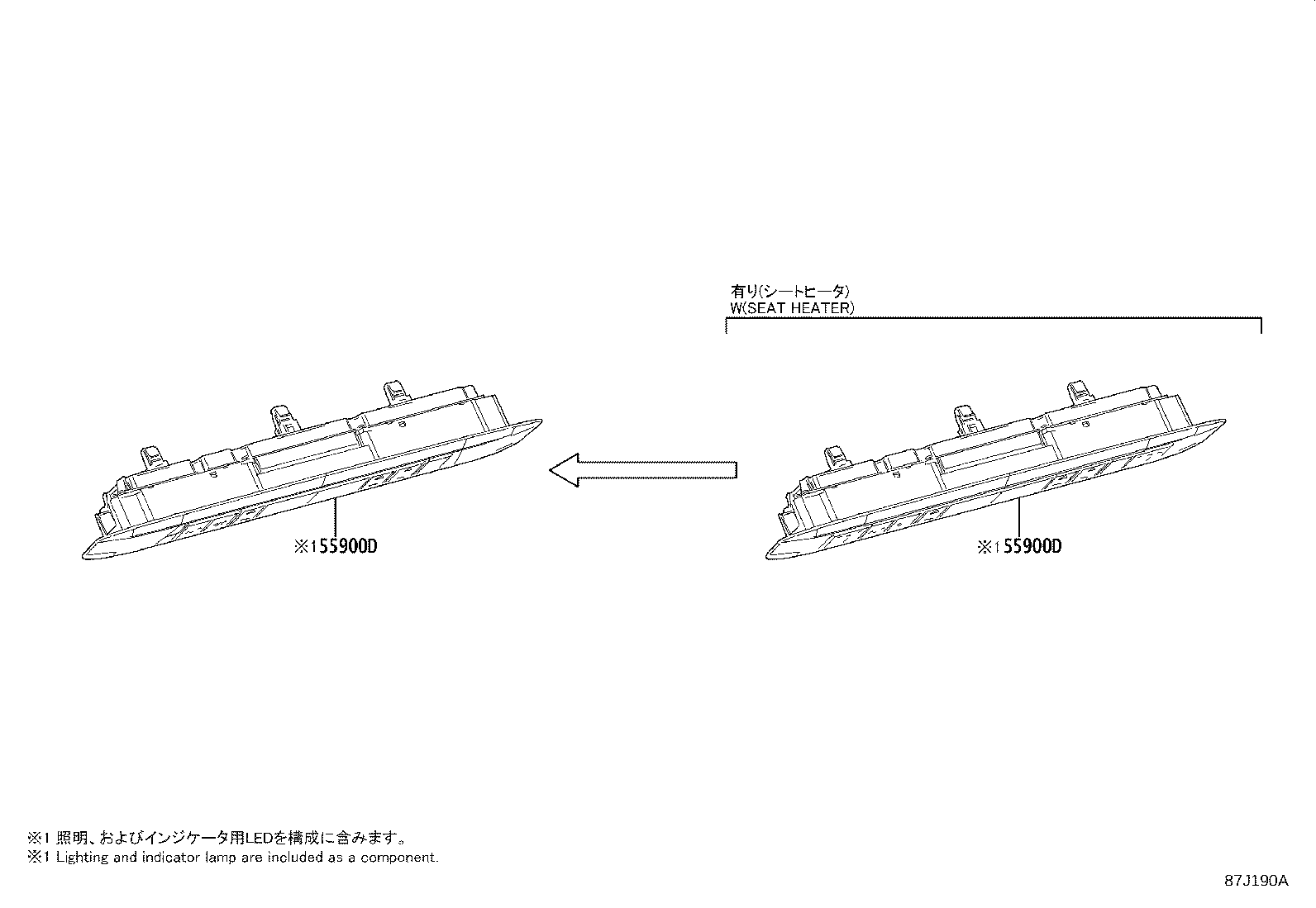

ILLUST NO. 2 OF 5(2011- )
REAR HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-08270B0 |
AXLH4#..L SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),LT.GRAY,TRIM1# |
1 | ||
| 55900-08280B0 |
AXLH4#..L,X LT.GRAY,TRIM1# |
1 | ||
| 55900-08280B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55900-08270B1 |
AXLH4#..L SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55900-08280B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-08270B0 |
AXLH4#..L SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),LT.GRAY,TRIM1# |
1 | ||
| 55900-08280B0 |
AXLH4#..L,X LT.GRAY,TRIM1# |
1 | ||
| 55900-08280B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55900-08270B1 |
AXLH4#..L SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55900-08280B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
1 | ||

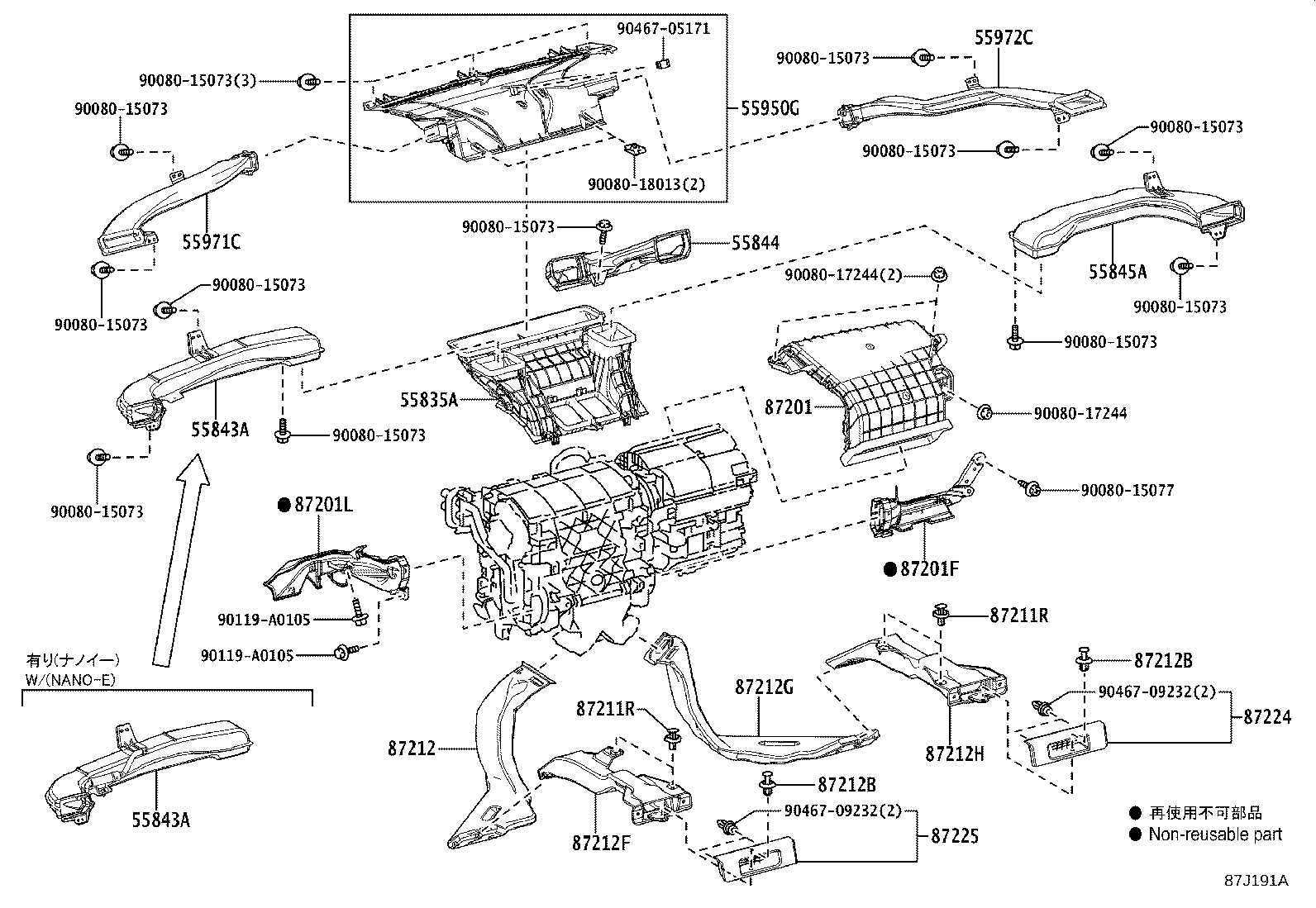

ILLUST NO. 3 OF 5(2011- )
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55990-08020 |
AXLH4# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-08050 |
AXLH4# |
1 | ||
| 55843-08060 |
AXLH4#..L,S,X AIR PURIFIER-WITH(NANO - E) |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-08060 |
AXLH4#..L,S,X AIR PURIFIER-WITH(NANO - E) |
1 | ||
| 55843-08050 |
AXLH4# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-08070 |
AXLH4# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-08030 |
AXLH4# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-08040 |
AXLH4# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-08040 |
AXLH4# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-08040 |
AXLH4# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-08120 |
AXLH4# |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87213-08040 |
AXLH4# |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87212-08070 |
AXLH4# |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07220 |
AXLH4# |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-07220 |
AXLH4# |
4 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87222-08010 |
AXLH4# |
1 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-07217 |
AXLH4# |
2 | ||
| 87212B - CLIP, AIR DUCT | ||||
| 90467-07217 |
AXLH4# |
2 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87216-08080 |
AXLH4# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87221-08010 |
AXLH4# |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87215-08080 |
AXLH4# |
1 | ||
| 87224 - GUIDE, AIR DUCT, RH | ||||
| 87224-08020 |
AXLH4# |
1 | ||
| 87225 - GUIDE, AIR DUCT, LH | ||||
| 87225-08020 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90080-17244 | ||||
| 90080-18013 | ||||
| 90119-A0105 | ||||
| 90467-05171 | ||||
| 90467-09232 | ||||

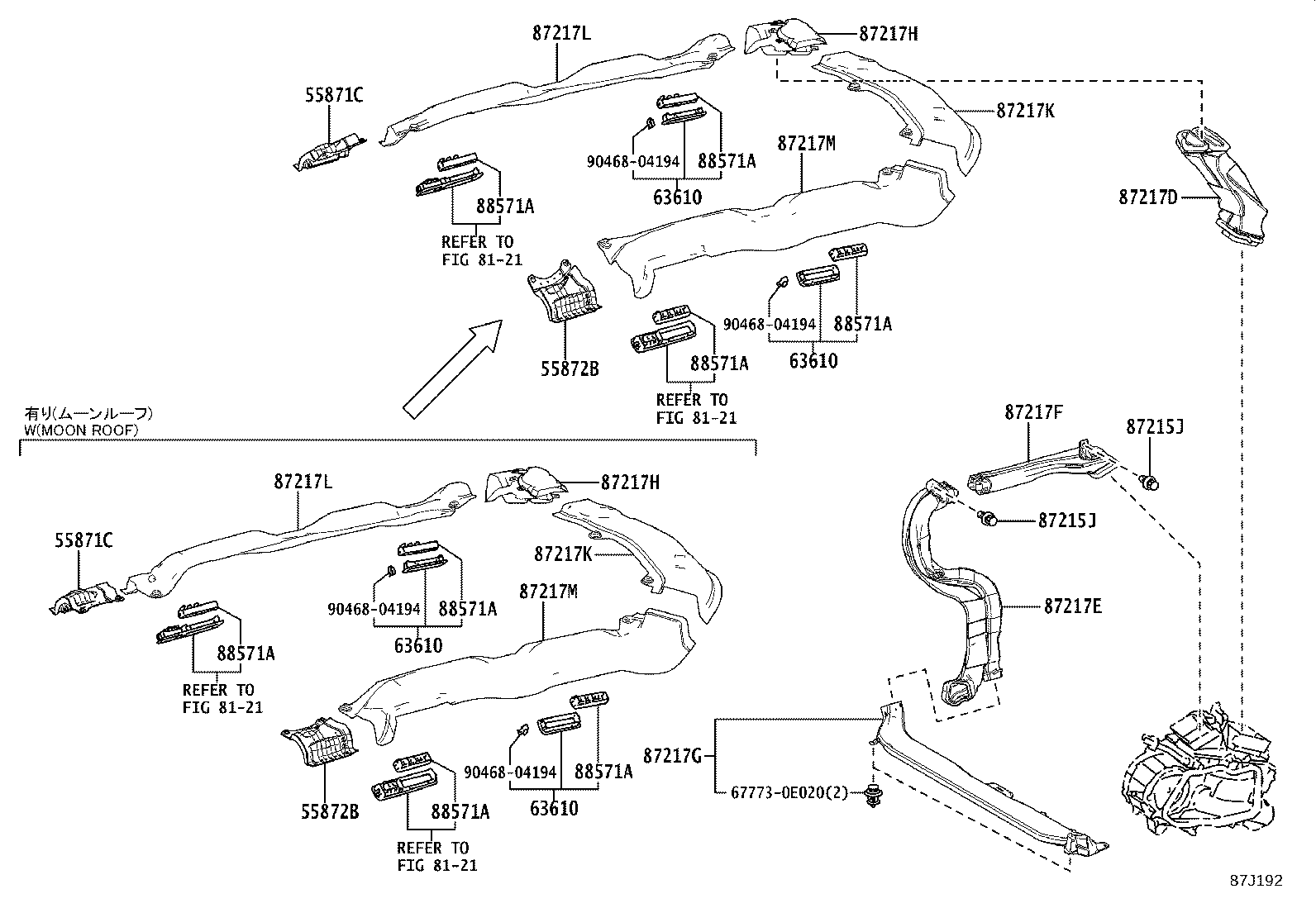

ILLUST NO. 4 OF 5(2011- )
REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55871C - SEAL, AIR DUCT | ||||
| 55871-08020 |
AXLH4#..L,S,X |
1 | ||
| 55871-08030 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55871-08020 |
AXLH4#..L,S,X |
1 | ||
| 55871-08030 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55872-08020 |
AXLH4#..L,S,X |
1 | ||
| 55872-08030 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55872-08020 |
AXLH4#..L,S,X |
1 | ||
| 55872-08030 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0E010B0 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B0 |
AXLH4#..E,L,X LT.GRAY,TRIM1# |
2 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0E010B0 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B0 |
AXLH4#..E,L,X LT.GRAY,TRIM1# |
2 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0E010B0 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B0 |
AXLH4#..E,L,X LT.GRAY,TRIM1# |
2 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-0E010B0 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B1 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 63610-0E010B0 |
AXLH4#..E,L,X LT.GRAY,TRIM1# |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-A0037 |
AXLH4# |
2 | ||
| 87215J - CLIP (FOR AIR REAR DUCT) | ||||
| 90467-A0037 |
AXLH4# |
2 | ||
| 87217D - DUCT, AIR, REAR SIDE NO.1 | ||||
| 87218-08030 |
AXLH4# |
1 | ||
| 87217E - DUCT, AIR, REAR SIDE NO.2 | ||||
| 87211-08070 |
AXLH4# |
1 | ||
| 87217F - DUCT, AIR, REAR SIDE NO.3 | ||||
| 87215-08090 |
AXLH4# |
1 | ||
| 87217G - DUCT, AIR, REAR SIDE NO.4 | ||||
| 87212-08080 |
AXLH4# |
1 | ||
| 87217H - DUCT, AIR, REAR SIDE NO.5 | ||||
| 62901-08010 |
AXLH4# |
1 | ||
| 87217H - DUCT, AIR, REAR SIDE NO.5 | ||||
| 62901-08010 |
AXLH4# |
1 | ||
| 87217K - DUCT, AIR, REAR SIDE NO.6 | ||||
| 62971-08030 |
AXLH4# |
1 | ||
| 87217K - DUCT, AIR, REAR SIDE NO.6 | ||||
| 62971-08030 |
AXLH4# |
1 | ||
| 87217L - DUCT, AIR, REAR SIDE NO.7 | ||||
| 62973-08030 |
AXLH4#..L,S,X |
1 | ||
| 62971-08040 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 87217L - DUCT, AIR, REAR SIDE NO.7 | ||||
| 62973-08030 |
AXLH4#..L,S,X |
1 | ||
| 62971-08040 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 87217M - DUCT, AIR, REAR SIDE NO.8 | ||||
| 62972-08010 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 62974-08030 |
AXLH4#..L,S,X |
1 | ||
| 87217M - DUCT, AIR, REAR SIDE NO.8 | ||||
| 62972-08010 |
AXLH40..X MOON ROOF-WITHOUT |
1 | ||
| 62974-08030 |
AXLH4#..L,S,X |
1 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 88571-0E010B1 |
AXLH4#..E,X LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L LT.GRAY,TRIM1# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B1 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L PLATINUM&TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| 88571-0E010B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM1# |
4 | ||
| 88571-0E010B2 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM4# |
2 | ||
| 88571-0E010B2 |
AXLH4#..L,X TELEVISION & DVD PLAYER-WITH,NEUTRAL WARM GRAY,TRIM4# |
4 | ||
| Common parts | ||||
| 67773-0E020 | ||||
| 90468-04194 | ||||
| Linked diagrams | ||||
| 8121 | ||||

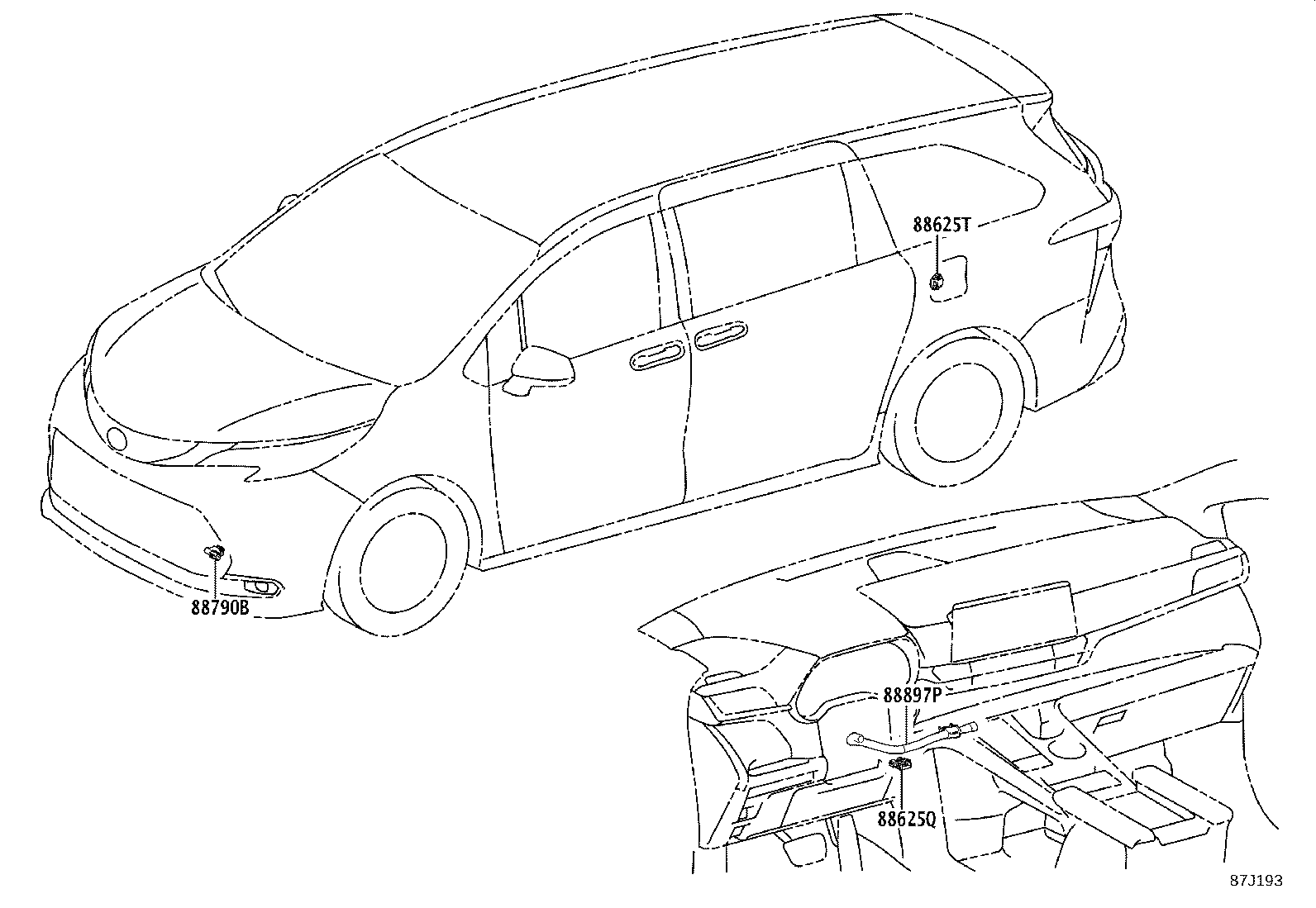

ILLUST NO. 5 OF 5(2011- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-06040 |
AXLH4# |
1 | ||
| 88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2) | ||||
| 88625-45020B5 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 88625-45020B5 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 88625-45020C1 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 88625-45020C1 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-06020 |
AXLH4# |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-08130 |
AXLH4# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
