AXLH40L-PPXXHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

Click highlighted areas on diagram

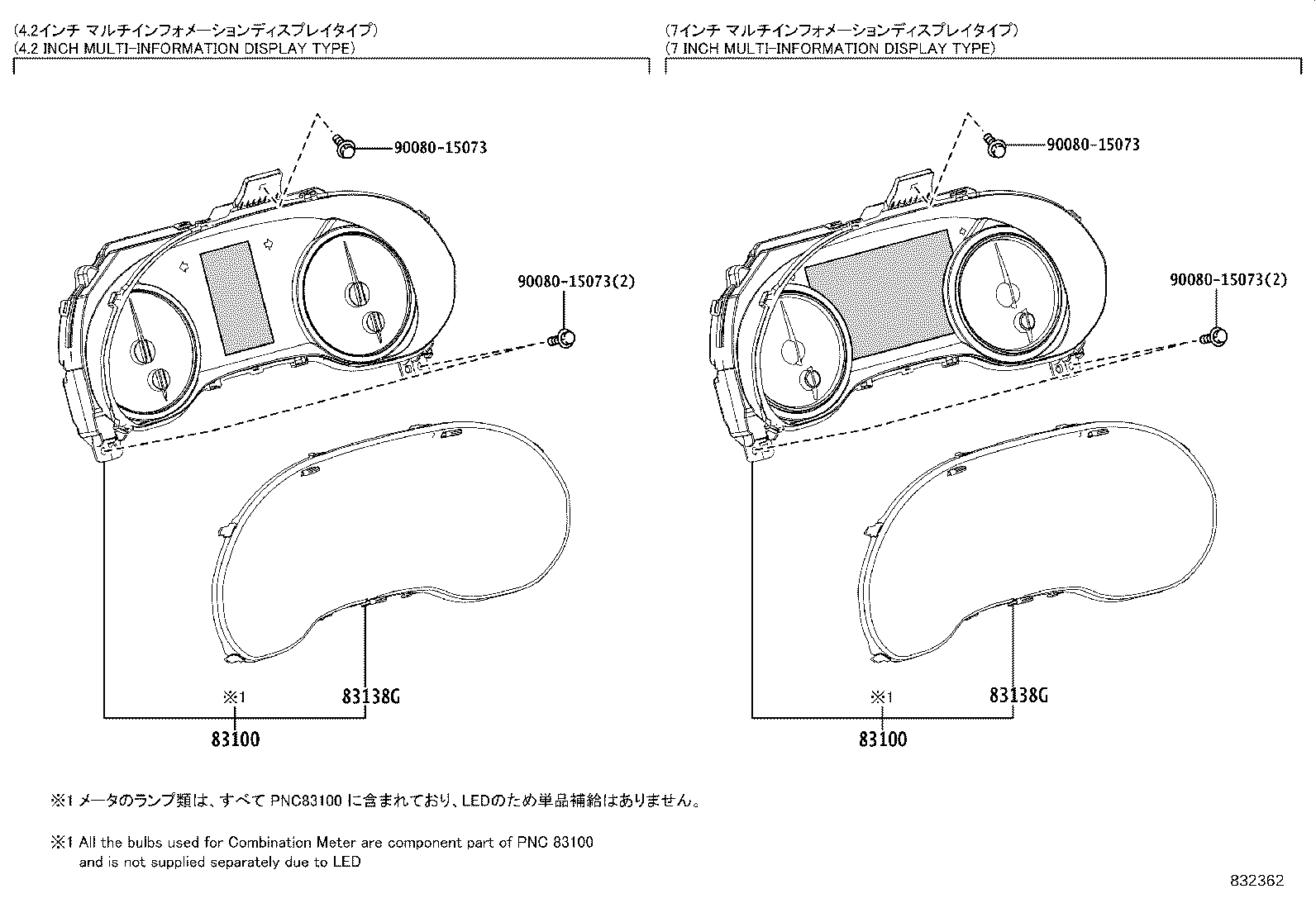

COMBINATION METER

diagram 83100 83100 83138G 83138G 9008015073 9008015073 9008015073 9008015073
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-08B11

AXLH4#..L

DENSO

 1
83800-08B21

AXLH4#..L

DENSO,CANADA SPEC

 1
83800-08B51

AXLH4#..E,S,X

DENSO

 1
83800-08B31

AXLH4#..L

DENSO,KOREA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
83800-08B61

AXLH40..S;AXLH45..S,X;AXLH40..08S..X

DENSO,CANADA SPEC

 1
83800-08B41

AXLH40..L

DENSO,TAIWAN SPEC&HEADLAMP-LED(MATERIAL=*PES) & *DRL & W(*AHS)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
83800-08C01

AXLH40..X

DENSO,MEXICO SPEC&FRONT FOG & DRIVING LAMP-WITH(LED)&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *RCTA)

 1
83800-08C01

AXLH40..L

DENSO,MEXICO SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
83800-08C21

AXLH4#..L

DENSO,HEADLAMP-LED(MATERIAL=*PES) & *DRL

 1
83100 - METER ASSY, COMBINATION
83800-08B11

AXLH4#..L

DENSO

 1
83800-08B21

AXLH4#..L

DENSO,CANADA SPEC

 1
83800-08B51

AXLH4#..E,S,X

DENSO

 1
83800-08B31

AXLH4#..L

DENSO,KOREA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
83800-08B61

AXLH40..S;AXLH45..S,X;AXLH40..08S..X

DENSO,CANADA SPEC

 1
83800-08B41

AXLH40..L

DENSO,TAIWAN SPEC&HEADLAMP-LED(MATERIAL=*PES) & *DRL & W(*AHS)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
83800-08C01

AXLH40..X

DENSO,MEXICO SPEC&FRONT FOG & DRIVING LAMP-WITH(LED)&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *RCTA)

 1
83800-08C01

AXLH40..L

DENSO,MEXICO SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
83800-08C21

AXLH4#..L

DENSO,HEADLAMP-LED(MATERIAL=*PES) & *DRL

 1
83138G - GLASS, COMBINATION METER
83852-08B10

AXLH4#

 1
83138G - GLASS, COMBINATION METER
83852-08B10

AXLH4#

 1
Common parts
90080-15073

(2011- )L

Click highlighted areas on diagram

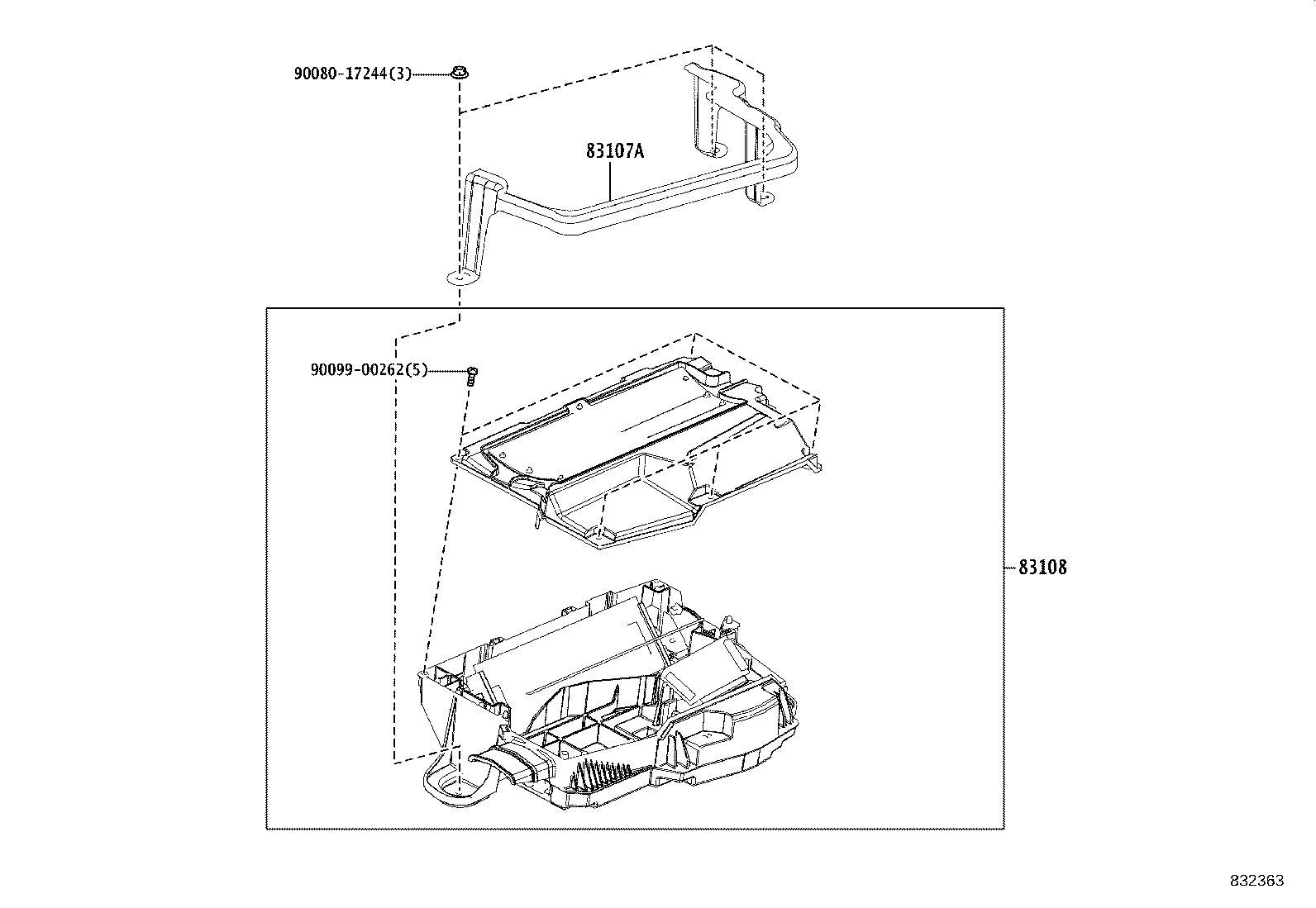

HEAD UP DISPLAY

diagram 83107A 83108 9008017244 9009900262
Part # Description Qty Price
83107A - BRACKET SUB-ASSY, METER, NO.1
83107-08020

AXLH4#..L

HEAD UP DISPLAY-WITH

 1
83108 - MIRROR SUB-ASSY, METER
83108-08010

AXLH4#..L

HEAD UP DISPLAY-WITH

 1
Common parts
90080-17244
90099-00262
