AXLH40L-PPXXHA (2020)
Toyota Sienna
Production
Nov 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

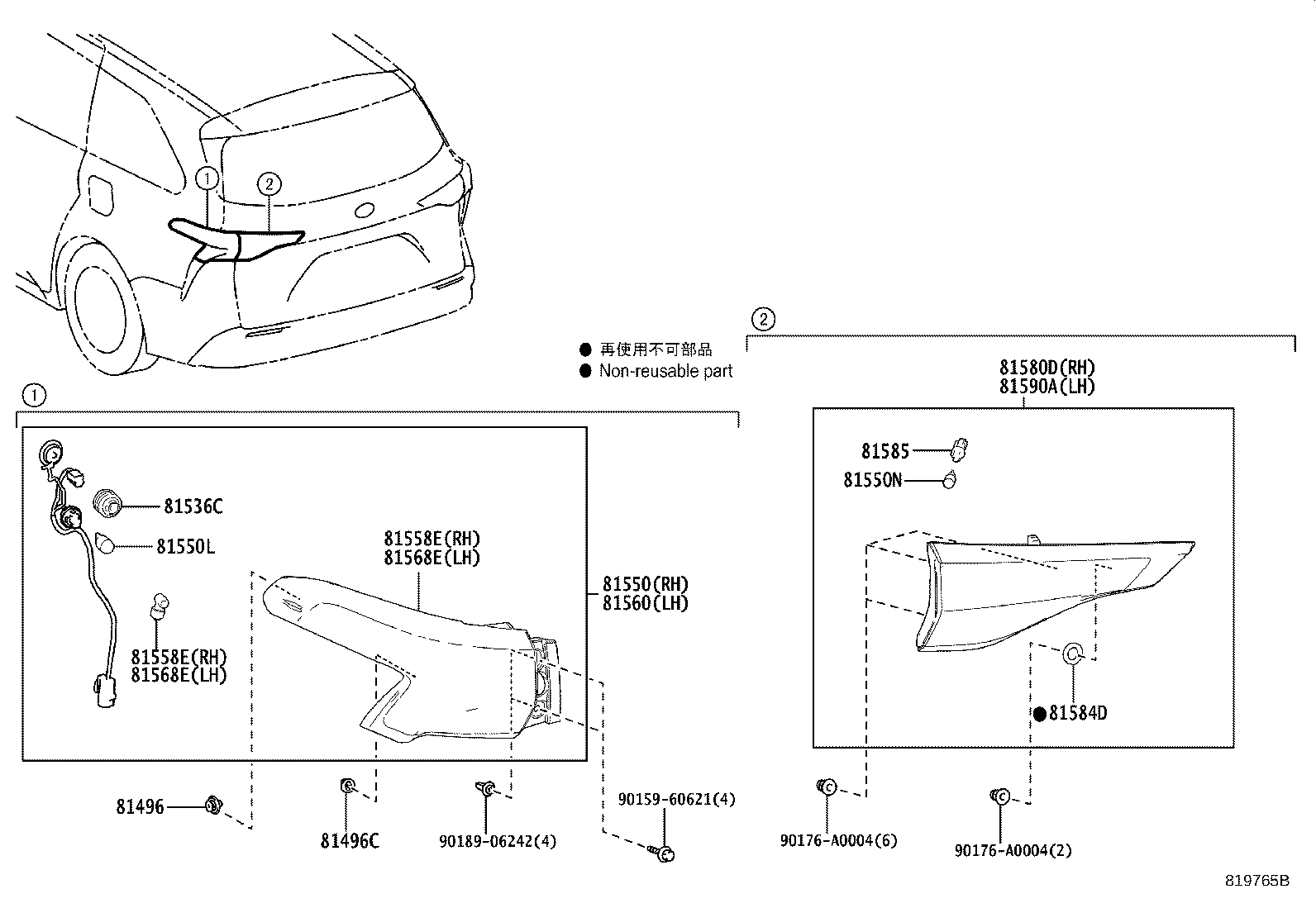

(2011- )E,X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-0E010 |
AXLH4# |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-0E020 |
AXLH4# |
2 | ||
| 81536C - LED, TAIL & STOP LAMP | ||||
| 81536-15120 |
AXLH4#..E,X |
2 | ||
| 81536-15120 |
AXLH40..L TAIWAN SPEC |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-08070 |
AXLH4#..E,X |
1 | ||
| 81550-08090 |
AXLH4#..L,S |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
AXLH4# 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
AXLH4# 12V 16W |
2 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-08070 |
AXLH4#..E,X |
1 | ||
| 81560-08090 |
AXLH4#..L,S |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-08090 |
AXLH4#..L,S |
1 | ||
| 81580-08070 |
AXLH4#..E,X |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-0E180 |
AXLH4# |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-0E120 |
AXLH4# |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-08090 |
AXLH4#..L,S |
1 | ||
| 81590-08070 |
AXLH4#..E,X |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-A0004 | ||||
| 90189-06242 | ||||

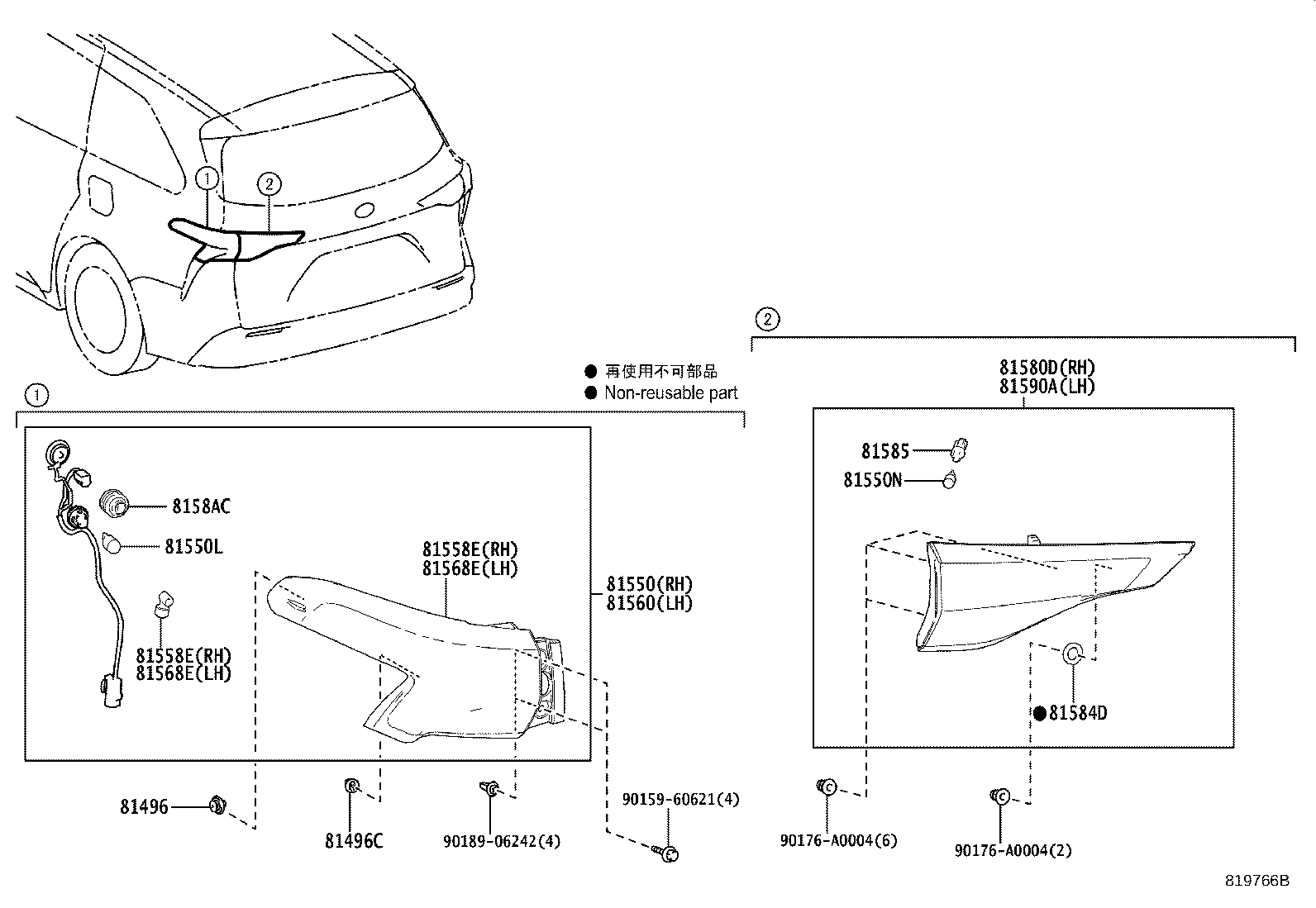

(2011- )L,S
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-0E010 |
AXLH4# |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-0E020 |
AXLH4# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-08070 |
AXLH4#..E,X |
1 | ||
| 81550-08090 |
AXLH4#..L,S |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
AXLH4# 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
AXLH4# 12V 16W |
2 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-08070 |
AXLH4#..E,X |
1 | ||
| 81560-08090 |
AXLH4#..L,S |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 90075-15513 |
AXLH4# |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-08090 |
AXLH4#..L,S |
1 | ||
| 81580-08070 |
AXLH4#..E,X |
1 | ||
| 81584D - GASKET, REAR LAMP | ||||
| 81584-0E180 |
AXLH4# |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-0E120 |
AXLH4# |
2 | ||
| 8158AC - LED, STOP LAMP | ||||
| 8158A-0D610 |
AXLH4#..L,S |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-08090 |
AXLH4#..L,S |
1 | ||
| 81590-08070 |
AXLH4#..E,X |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-A0004 | ||||
| 90189-06242 | ||||
