AXLH40L-PPXXHA (2020)
Toyota Sienna

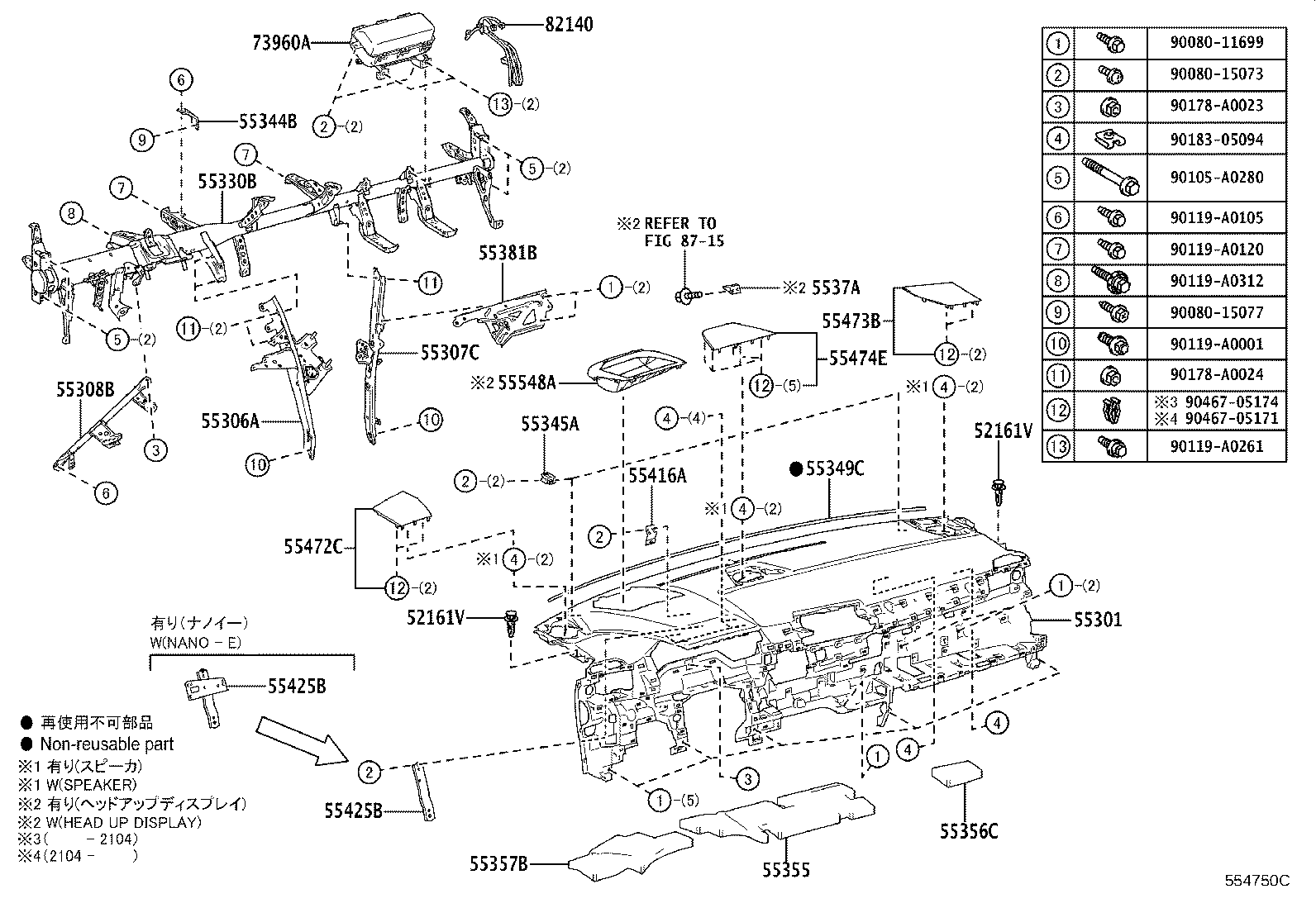

ILLUST NO. 1 OF 3(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-02020 |
AXLH4# |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-02020 |
AXLH4# |
2 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-08060C0 |
AXLH4#..L,X BLACK,TRIM1#,4# |
1 | ||
| 55301-08070E0 |
AXLH4#..L HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM41 |
1 | ||
| 55301-08070C0 |
AXLH4#..L HEAD UP DISPLAY-WITH,BLACK,TRIM1#,40,41 |
1 | ||
| 55301-08060C0 |
AXLH4#..E,S BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-08050 |
AXLH4# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-08040 |
AXLH4# |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-08020 |
AXLH4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-08070 |
AXLH4# |
1 | ||
| 55344B - BRACKET, AIR CONDITIONING MOUNTING, NO.1 | ||||
| 55344-08010 |
AXLH4# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E060 |
AXLH4# (L) |
2 | ||
| 55328-60090 |
AXLH4# (J) |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-08030 |
AXLH4# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-08040 |
AXLH4# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-08040 |
AXLH4# |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-08040 |
AXLH4# |
1 | ||
| 5537A - BRACKET, INSTRUMENT PANEL GUIDE, NO.3 | ||||
| 5537A-08020 |
AXLH4#..L HEAD UP DISPLAY-WITH |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-08040 |
AXLH4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-08030 |
AXLH4# |
1 | ||
| 55425B - REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55425-08040 |
AXLH4#..L,S,X AIR PURIFIER-WITH(NANO - E) |
1 | ||
| 55425-08030 |
AXLH4# |
1 | ||
| 55425B - REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55425-08040 |
AXLH4#..L,S,X AIR PURIFIER-WITH(NANO - E) |
1 | ||
| 55425-08030 |
AXLH4# |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-08020C0 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55472-08020C0 |
AXLH4#..L BLACK,TRIM1#,40,41 |
1 | ||
| 55472-08020C0 |
AXLH4#..E,S BLACK,TRIM1# |
1 | ||
| 55472-08020E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-08020E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 55473-08020C0 |
AXLH4#..L BLACK,TRIM1#,40,41 |
1 | ||
| 55473-08020C0 |
AXLH4#..E,S BLACK,TRIM1# |
1 | ||
| 55473-08020C0 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-08070C0 |
AXLH4#..L BLACK,TRIM1#,40,41 |
1 | ||
| 55474-08070C0 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55474-08070E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 55474-08070C0 |
AXLH4#..E,S BLACK,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-08010C0 |
AXLH4#..L HEAD UP DISPLAY-WITH,BLACK,TRIM1#,40,41 |
1 | ||
| 55548-08010E0 |
AXLH4#..L HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM41 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-08120 |
AXLH4# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-08030 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90105-A0280 | ||||
| 90119-A0001 | ||||
| 90119-A0105 | ||||
| 90119-A0120 | ||||
| 90119-A0261 | ||||
| 90119-A0312 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05174 | ||||
| Linked diagrams | ||||
| 8715 | ||||

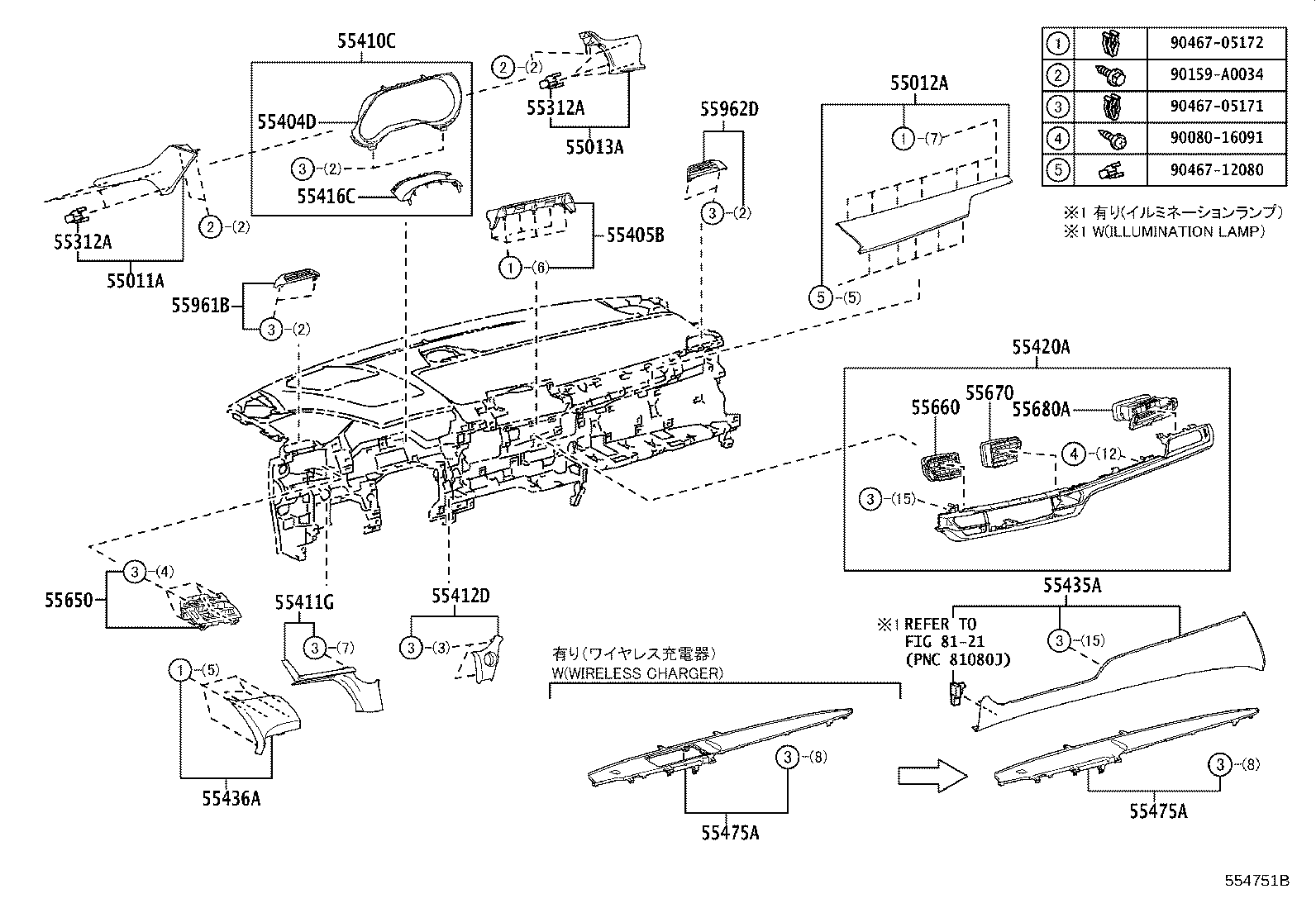

ILLUST NO. 2 OF 3(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-08050C1 |
AXLH4#..S BLACK/ORANGE,TRIM1# |
1 | ||
| 55011-08040C1 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55011-08050C0 |
AXLH4#..L BLACK/BLACK,TRIM1#,40 |
1 | ||
| 55011-08050E0 |
AXLH4#..L NOBLE BROWN/DARK BROWN,TRIM41 |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-08010C1 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55012-08020C0 |
AXLH4#..L BLACK/BLACK,TRIM1#,40 |
1 | ||
| 55012-08020E0 |
AXLH4#..L NOBLE BROWN/DARK BROWN,TRIM41 |
1 | ||
| 55012-08020C1 |
AXLH4#..S BLACK/ORANGE,TRIM1# |
1 | ||
| 55013A - STAY SUB-ASSY, COWL, RH | ||||
| 55013-08020C0 |
AXLH4#..L BLACK/BLACK,TRIM1#,40 |
1 | ||
| 55013-08020C1 |
AXLH4#..S BLACK/ORANGE,TRIM1# |
1 | ||
| 55013-08010C1 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55013-08020E0 |
AXLH4#..L NOBLE BROWN/DARK BROWN,TRIM41 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
AXLH4#..L,S MELLOW WHITE |
14 | ||
| 90467-A0011 |
AXLH4#..E,X |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
AXLH4#..L,S MELLOW WHITE |
14 | ||
| 90467-A0011 |
AXLH4#..E,X |
7 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-08040 |
AXLH4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-08090 |
AXLH4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-08080 |
AXLH4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-08070 |
AXLH4#..E,X |
1 | ||
| 55411-08080 |
AXLH4#..L,S |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-08080 |
AXLH4# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-08040 |
AXLH4# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-08100C0 |
AXLH4#..S BLACK,TRIM1# |
1 | ||
| 55420-08100E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 55420-08090C0 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55420-08100C0 |
AXLH4#..L BLACK,TRIM1#,40 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-08030A0 |
AXLH4#..X FROMAGE,TRIM4# |
1 | ||
| 55435-08030B0 |
AXLH4#..E,X LT.GRAY,TRIM1# |
1 | ||
| 55435-08040B1 |
AXLH4#..S COOL GRAY,TRIM11 |
1 | ||
| 55435-08040B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM12 |
1 | ||
| 55435-08040B0 |
AXLH4#..L LT.GRAY,TRIM1# |
1 | ||
| 55435-08040A0 |
AXLH4#..L FROMAGE,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-08030B1 |
AXLH4#..S COOL GRAY,TRIM11 |
1 | ||
| 55436-08030A0 |
AXLH4#..L,X FROMAGE,TRIM4# |
1 | ||
| 55436-08030B0 |
AXLH4#..E,L,X LT.GRAY,TRIM1# |
1 | ||
| 55436-08030B2 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM12 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-08090B0 |
AXLH4#..S ANODIZED GUN METAL,TRIM1# |
1 | ||
| 55475-08090E0 |
AXLH40..X ANODIZED DARK BROWN,TRIM1#,4# |
1 | ||
| 55475-08100B0 |
AXLH4#..S WIRELESS CHARGER-WITH,ANODIZED GUN METAL,TRIM1# |
1 | ||
| 55475-08100E0 |
AXLH40..X WIRELESS CHARGER-WITH,ANODIZED DARK BROWN,TRIM1#,4# |
1 | ||
| 55475-08110E0 |
AXLH4#..L WOLF WOOD,TRIM1#,4# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-08090B0 |
AXLH4#..S ANODIZED GUN METAL,TRIM1# |
1 | ||
| 55475-08090E0 |
AXLH40..X ANODIZED DARK BROWN,TRIM1#,4# |
1 | ||
| 55475-08100B0 |
AXLH4#..S WIRELESS CHARGER-WITH,ANODIZED GUN METAL,TRIM1# |
1 | ||
| 55475-08100E0 |
AXLH40..X WIRELESS CHARGER-WITH,ANODIZED DARK BROWN,TRIM1#,4# |
1 | ||
| 55475-08110E0 |
AXLH4#..L WOLF WOOD,TRIM1#,4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-08080 |
AXLH4#..L,S |
1 | ||
| 55650-08070 |
AXLH4#..E,X |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-08080 |
AXLH4#..L,S |
1 | ||
| 55660-08070 |
AXLH4#..E,X |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-08060 |
AXLH4#..E,X |
1 | ||
| 55670-08070 |
AXLH4#..L,S |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-08060 |
AXLH4#..L,S |
1 | ||
| 55680-08050 |
AXLH4#..E,X |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-08020C0 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55961-08020E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 55961-08020C0 |
AXLH4#..L BLACK,TRIM1#,40,41 |
1 | ||
| 55961-08020C0 |
AXLH4#..E,S BLACK,TRIM1# |
1 | ||
| 55962D - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-08020C0 |
AXLH4#..L BLACK,TRIM1#,40,41 |
1 | ||
| 55962-08020C0 |
AXLH4#..X BLACK,TRIM1#,4# |
1 | ||
| 55962-08020E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 55962-08020C0 |
AXLH4#..E,S BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-16091 | ||||
| 90159-A0034 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| Linked diagrams | ||||
| 8121 | ||||

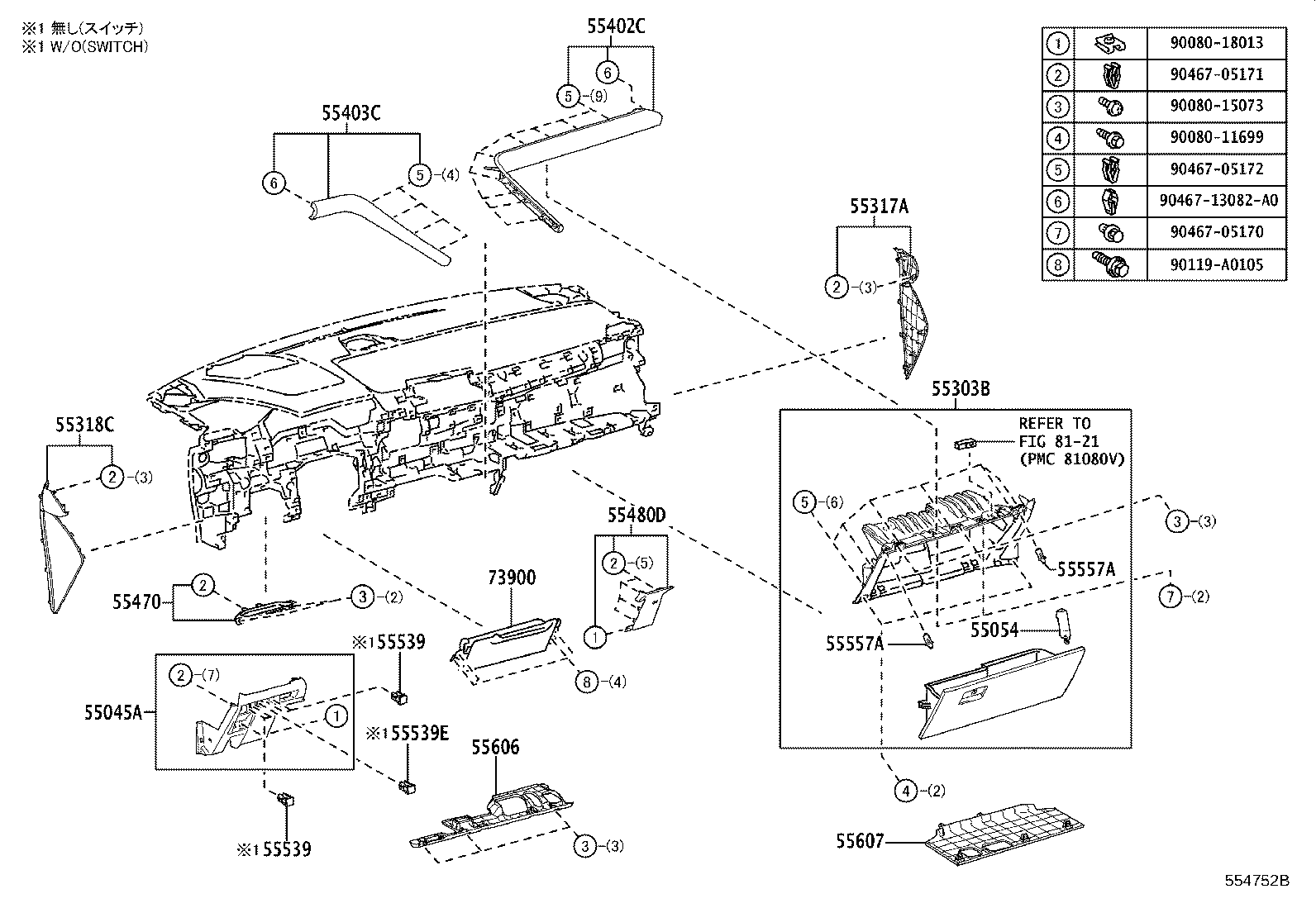

ILLUST NO. 3 OF 3(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-08040B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55045-08040C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 55045-08040B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 55045-08040C0 |
AXLH45..L;AXLH40..L,X BLACK,TRIM4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXLH4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-08010B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 55303-08010B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55303-08010C0 |
AXLH45..L;AXLH40..L,X BLACK,TRIM4# |
1 | ||
| 55303-08010C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-08040 |
AXLH4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-08040 |
AXLH4# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-08010B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY/GRAY,TRIM1# |
1 | ||
| 55402-08010C1 |
AXLH4#..S BLACK/ORANGE,TRIM12 |
1 | ||
| 55402-08010C0 |
AXLH4#..L,X BLACK/BLACK,TRIM4# |
1 | ||
| 55402-08010B1 |
AXLH4#..S NEUTRAL WARM GRAY/ORANGE,TRIM11 |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-08040C1 |
AXLH4#..S BLACK/ORANGE,TRIM12 |
1 | ||
| 55403-08040B1 |
AXLH4#..S NEUTRAL WARM GRAY/ORANGE,TRIM11 |
1 | ||
| 55403-08040B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY/GRAY,TRIM1# |
1 | ||
| 55403-08040C0 |
AXLH4#..L,X BLACK/BLACK,TRIM4# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-08010C0 |
AXLH45..L;AXLH40..L,X BLACK,TRIM4# |
1 | ||
| 55470-08010B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 55470-08010B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55470-08010C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-08030C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 55480-08030C0 |
AXLH45..L;AXLH40..L,X BLACK,TRIM4# |
1 | ||
| 55480-08030B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 55480-08030B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-06110 |
AXLH4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-06110 |
AXLH4# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-06110 |
AXLH4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AXLH4# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AXLH4# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-08010 |
AXLH4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-08020 |
AXLH4# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-08020C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 73900-08020B0 |
AXLH45..E,L;AXLH40..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 73900-08020C0 |
AXLH45..L;AXLH40..L,X BLACK,TRIM4# |
1 | ||
| 73900-08020B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-18013 | ||||
| 90119-A0105 | ||||
| 90467-05170 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
