AXLH40L-PNXXHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

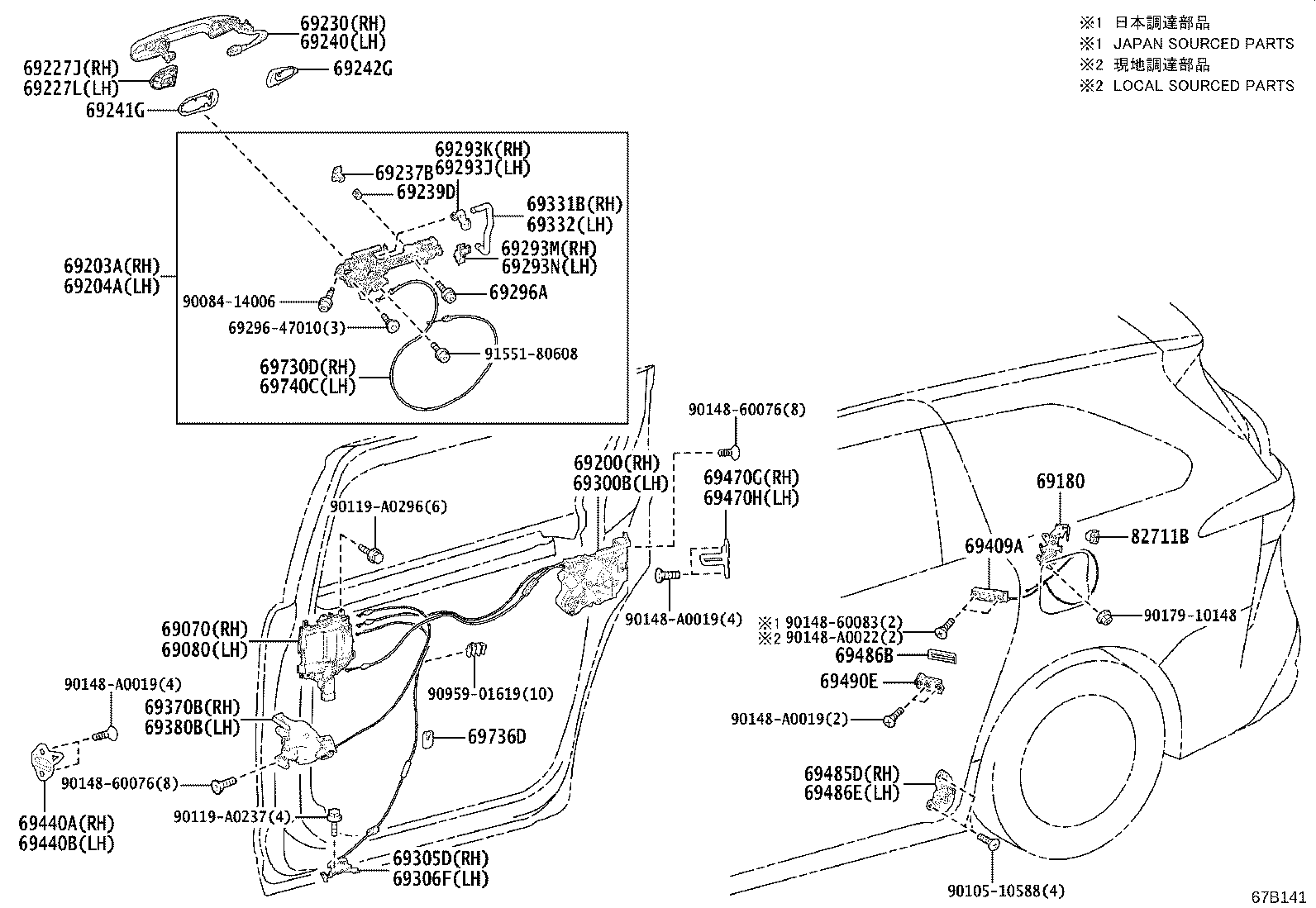

Click highlighted areas on diagram

diagram 69070 69080 69180 69200 69203A 69204A 69227J 69227L 69230 69237B 69239D 69240 69241G 69242G 69293J 69293K 69293M 69293N 6929647010 69296A 69300B 69305D 69306F 69331B 69332 69370B 69380B 69409A 69440A 69440B 69470G 69470H 69485D 69486B 69486E 69490E 69730D 69736D 69740C 82711B 9008414006 9010510588 90119A0237 90119A0296 9014860076 9014860076 9014860083 90148A0019 90148A0019 90148A0019 90148A0022 9017910148 9095901619 9155180608
Part # Description Qty Price
69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH
69070-08130B1

AXLH4#..S

COOL GRAY,TRIM11

 1
69070-08120A0

AXLH4#..X

FROMAGE,TRIM4#

 1
69070-08130A0

AXLH4#..L

FROMAGE,TRIM4#

 1
69070-08130B0

AXLH4#..L

LT.GRAY,TRIM1#

 1
69070-08130B2

AXLH4#..S

NEUTRAL WARM GRAY,TRIM12

 1
69070-08120B0

AXLH4#..E,X

LT.GRAY,TRIM1#

 1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-08130B0

AXLH4#..L

LT.GRAY,TRIM1#

 1
69080-08120B0

AXLH4#..E,X

LT.GRAY,TRIM1#

 1
69080-08130A0

AXLH4#..L

FROMAGE,TRIM4#

 1
69080-08120A0

AXLH4#..X

FROMAGE,TRIM4#

 1
69080-08130B2

AXLH4#..S

NEUTRAL WARM GRAY,TRIM12

 1
69080-08130B1

AXLH4#..S

COOL GRAY,TRIM11

 1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-08070

AXLH4#

 1
69200 - LOCK ASSY, POWER SLIDE DOOR, RH
69200-08040

AXLH4#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-08030

AXLH4#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-08030

AXLH4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69217-0R160

AXLH4#

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69217-0R160

AXLH4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-08920

AXLH4#..L,S,X

PAINT REQ.

 1
69237B - NUT, REAR DOOR HANDLE
69237-62010

AXLH4#

 2
69239D - BUSH, REAR DOOR HANDLE
69239-06040

AXLH4#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69230-08920

AXLH4#..L,S,X

PAINT REQ.

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69244-08020

AXLH4#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69243-08020

AXLH4#

 2
69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH
69293-08060

AXLH4#

 1
69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH
69293-08050

AXLH4#

 1
69293M - SNAP, REAR DOOR OUTSIDE HANDLE, NO.1
69293-08070

AXLH4#

 1
69293N - SNAP, REAR DOOR OUTSIDE HANDLE, NO.2
69293-08080

AXLH4#

 1
69296A - SCREW, DOOR INSIDE HANDLE
69296-0T010

AXLH4#

 2
69300B - LOCK ASSY, POWER SLIDE DOOR, LH
69300-08040

AXLH4#

 1
69305D - LOCK SUB-ASSY, REAR DOOR, RH
69305-08010

AXLH4#

 1
69306F - LOCK SUB-ASSY, REAR DOOR, LH
69306-08010

AXLH4#

 1
69331B - ROD, REAR DOOR LOCK OPEN, RH
69331-08030

AXLH4#

 1
69332 - ROD, REAR DOOR LOCK OPEN, LH
69332-08030

AXLH4#

 1
69370B - LOCK ASSY, SLIDE DOOR, FRONT RH
69370-08060

AXLH4#

 1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-08060

AXLH4#

 1
69409A - STOPPER SUB-ASSY, SLIDE DOOR HALF OPEN
69409-08030

AXLH4#

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-08050

AXLH4#

 1
69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-08050

AXLH4#

 1
69470G - PLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, RH
69470-08020

AXLH4#

 1
69470H - PLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, LH
69470-08020

AXLH4#

 1
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-08040

AXLH4#

 1
69486B - COVER, SLIDE DOOR HALF OPEN STOPPER
69486-08080

AXLH4#

 1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-08090

AXLH4#

 1
69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN
69492-08010

AXLH4#

 1
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-08030

AXLH4#

 1
69736D - GUIDE, REAR DOOR LOCKING LINK
69736-08010

AXLH4#

 2
69740C - CABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, LH
69730-08030

AXLH4#

 1
82711B - CLAMP, WIRING HARNESS
82711-1E300

AXLH4#

 3
Common parts
69296-47010
90084-14006
90105-10588
90119-A0237
90119-A0296
90148-60076
90148-60083
90148-A0019
90148-A0022
90179-10148
90959-01619
91551-80608
