AXLH40L-PNXXHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

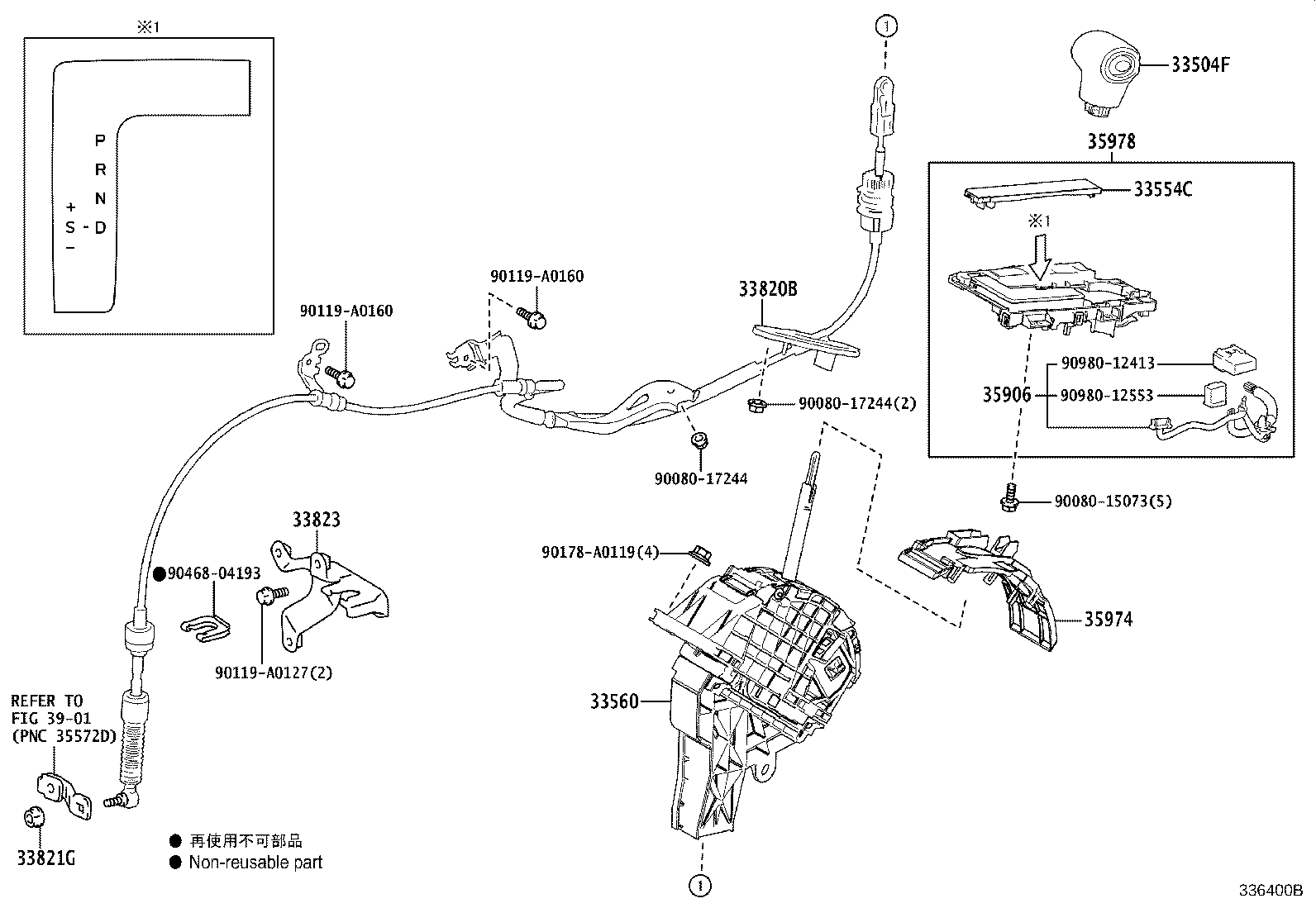

Click highlighted areas on diagram

diagram 33504F 33554C 33560 33820B 33821G 33823 35906 35974 35978 3901 9008015073 9008017244 9008017244 90119A0127 90119A0160 90119A0160 90178A0119 9046804193 9098012413 9098012553
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-08120

AXLH4#..X

 1
33504-08110

AXLH4#..L,S

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-08040

AXLH4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-08040

AXLH4#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-08070

AXLH4#

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-A0024

AXLH4#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0R100

AXLH4#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-08040

AXLH4#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-08040

AXLH4#

 1
35978 - INDICATOR, SHIFT POSITION
35978-08030

AXLH4#

 1
Common parts
90080-15073
90080-17244
90119-A0127
90119-A0160
90178-A0119
90468-04193
90980-12413
90980-12553
Linked diagrams
3901
