AXLH40L-PNXSHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

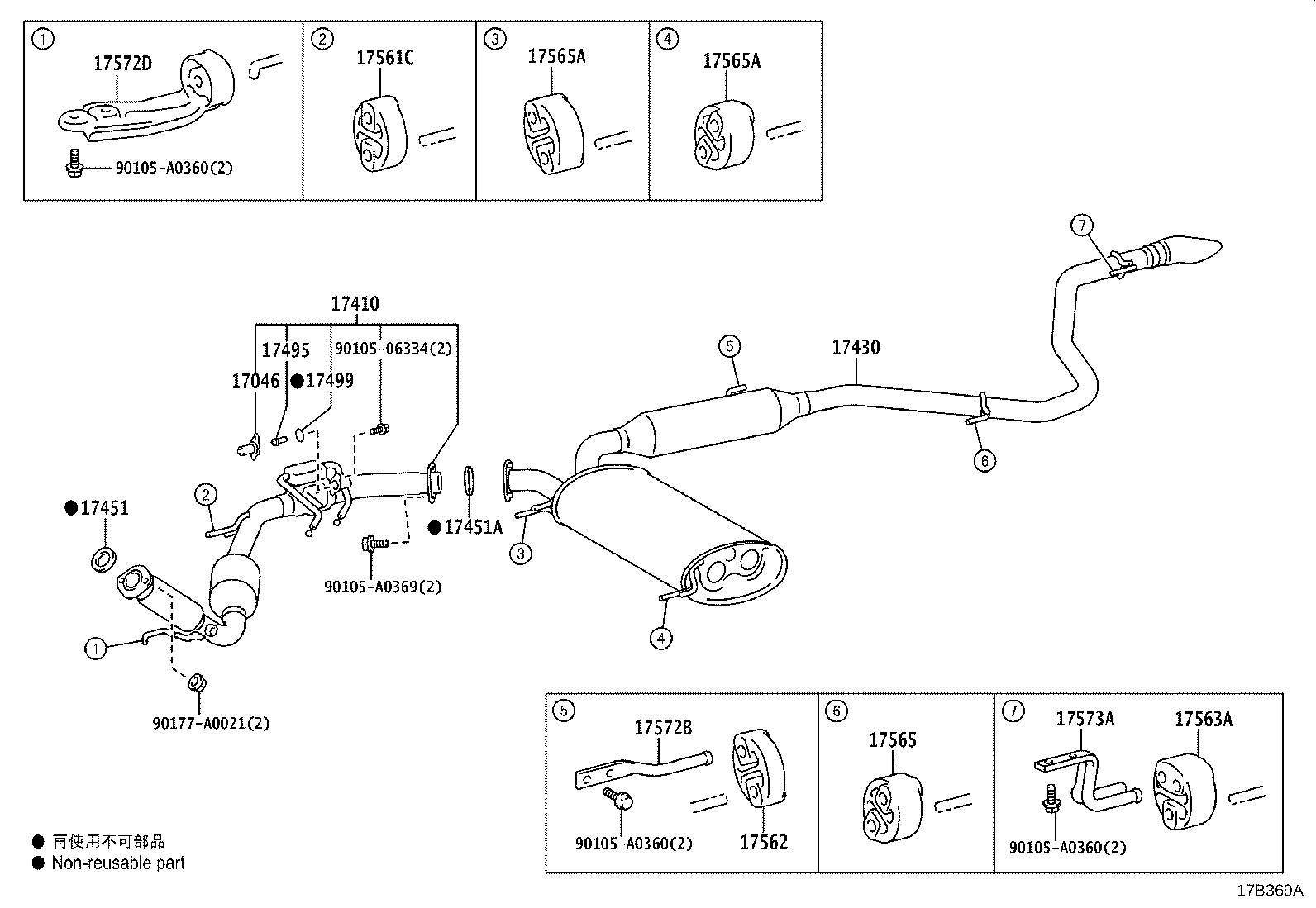

Click highlighted areas on diagram

diagram 17046 17410 17430 17451 17451A 17495 17499 17561C 17562 17563A 17565 17565A 17565A 17572B 17572D 17573A 9010506334 90105A0360 90105A0360 90105A0360 90105A0369 90177A0021
Part # Description Qty Price
17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17046-24010

A25AFXS..AXLH4#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F0331

A25AFXS..AXLH4#

 1
17410-F0121

A25AFXS..AXLH40..E,L,X

MEXICO SPEC

 1
17410-F0121

A25AFXS..AXLH40..07S..(L,X)

TAIWAN SPEC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F0321

A25AFXS..AXLH4#

 1
17451 - GASKET, EXHAUST PIPE
90917-A6002

A25AFXS..AXLH4#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-F0020

A25AFXS..AXLH4#

 1
17451-F0130

A25AFXS..AXLH4#

 1
17495 - ACTUATOR, EXHAUST PIPE GAS CONTROL
17495-24010

A25AFXS..AXLH4#

 1
17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17499-24010

A25AFXS..AXLH4#

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17565-0P051

A25AFXS..AXLH4#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0P051

A25AFXS..AXLH4#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0S021

A25AFXS..AXLH4#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P041

A25AFXS..AXLH4#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P041

A25AFXS..AXLH4#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P041

A25AFXS..AXLH4#

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17575-F0080

A25AFXS..AXLH4#

 1
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572-F0040

A25AFXS..AXLH4#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17577-F0080

A25AFXS..AXLH4#

 1
Common parts
90105-06334
90105-A0360
90105-A0369
90177-A0021

(2011- )A25AFXS..AXLH40

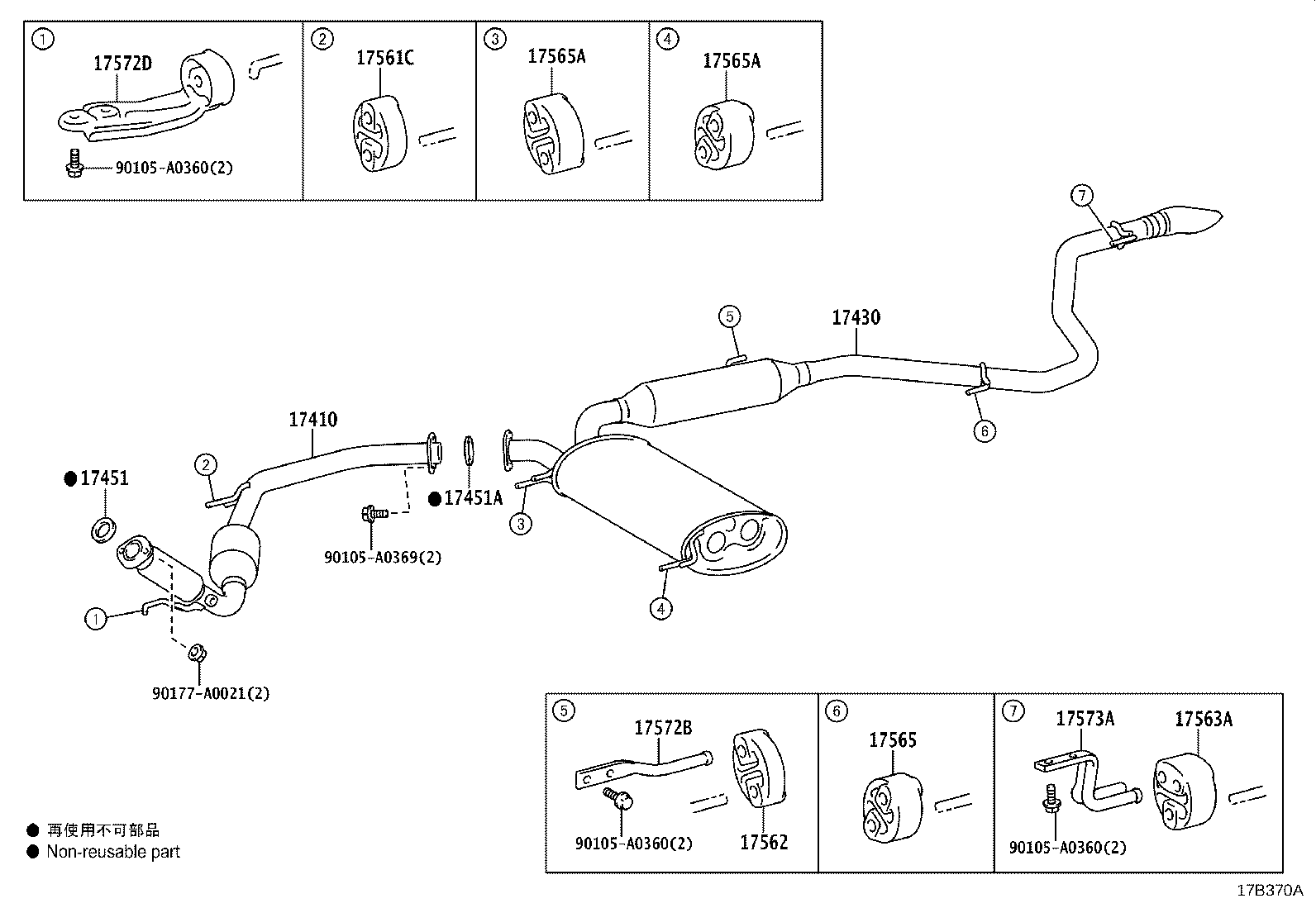

Click highlighted areas on diagram

MEXICO SPEC

diagram 17410 17430 17451 17451A 17561C 17562 17563A 17565 17565A 17565A 17572B 17572D 17573A 90105A0360 90105A0360 90105A0360 90105A0369 90177A0021
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-F0331

A25AFXS..AXLH4#

 1
17410-F0121

A25AFXS..AXLH40..E,L,X

MEXICO SPEC

 1
17410-F0121

A25AFXS..AXLH40..07S..(L,X)

TAIWAN SPEC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-F0321

A25AFXS..AXLH4#

 1
17451 - GASKET, EXHAUST PIPE
90917-A6002

A25AFXS..AXLH4#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-F0020

A25AFXS..AXLH4#

 1
17451-F0130

A25AFXS..AXLH4#

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17565-0P051

A25AFXS..AXLH4#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-0P051

A25AFXS..AXLH4#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0S021

A25AFXS..AXLH4#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P041

A25AFXS..AXLH4#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P041

A25AFXS..AXLH4#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P041

A25AFXS..AXLH4#

 2
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17575-F0080

A25AFXS..AXLH4#

 1
17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572-F0040

A25AFXS..AXLH4#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17577-F0080

A25AFXS..AXLH4#

 1
Common parts
90105-A0360
90105-A0369
90177-A0021
