AXLH40L-PNXLHA (2020)
Toyota Sienna

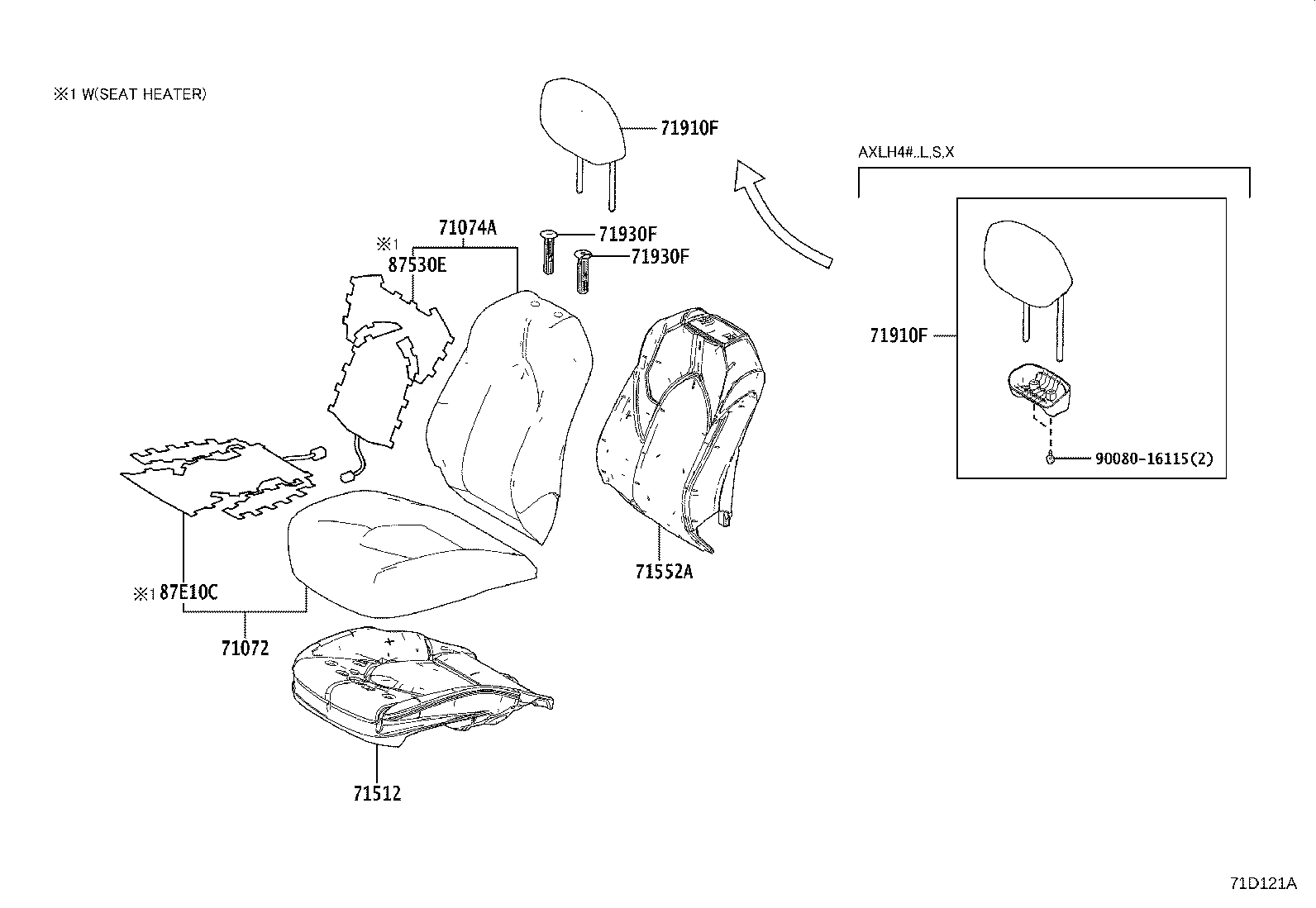

ILLUST NO. 1 OF 4(2011- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-08230B5 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71072-08210B3 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71072-08240E3 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71072-08240B6 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71072-08210C2 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71072-08230B6 |
AXLH4#..X GRAY,TRIM1# |
1 | ||
| 71072-08240B7 |
AXLH4#..L GRAY,TRIM1# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-08260B1 |
AXLH4#..S COOL GRAY/NUTRL WARM GRAY,TRIM11 |
1 | ||
| 71074-08280B4 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71074-08290B7 |
AXLH4#..L GRAY,TRIM1# |
1 | ||
| 71074-08290B6 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71074-08280B3 |
AXLH4#..X GRAY,TRIM1# |
1 | ||
| 71074-08260C0 |
AXLH4#..S NEUTRAL WARM GRAY/BLACK,TRIM12 |
1 | ||
| 71074-08290E3 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71512-08070 |
AXLH4#..L |
1 | ||
| 71512-08050 |
AXLH4#..E,S,X |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-08050 |
AXLH4#..E,S,X |
1 | ||
| 71552-08070 |
AXLH4#..L |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-08180B0 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71910-08180B1 |
AXLH4#..L,X GRAY,TRIM1# |
1 | ||
| 71910-08180B0 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71910-08200B4 |
AXLH40..07S..(L,X) TAIWAN SPEC,CHATEAU,TRIM4# |
1 | ||
| 71910-08180B6 |
AXLH4#..S COOL GRAY,TRIM11 |
1 | ||
| 71910-08180E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71910-08180B7 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM12 |
1 | ||
| 71910-08200B5 |
AXLH40..07S..(L,X) TAIWAN SPEC,GRAY,TRIM1# |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-08180B0 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71910-08180B1 |
AXLH4#..L,X GRAY,TRIM1# |
1 | ||
| 71910-08180B0 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71910-08200B4 |
AXLH40..07S..(L,X) TAIWAN SPEC,CHATEAU,TRIM4# |
1 | ||
| 71910-08180B6 |
AXLH4#..S COOL GRAY,TRIM11 |
1 | ||
| 71910-08180E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71910-08180B7 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM12 |
1 | ||
| 71910-08200B5 |
AXLH40..07S..(L,X) TAIWAN SPEC,GRAY,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-0R070C0 |
AXLH4#..S W(LOCK),BLACK,TRIM12 |
1 | ||
| 71930-0R070B0 |
AXLH4#..E,L,X W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71931-0R050C0 |
AXLH4#..L,X W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-0R050B0 |
AXLH4#..E,L,X W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71930-0R070B0 |
AXLH4#..S W(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71931-0R050B0 |
AXLH4#..S W/O(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71930-0R070C0 |
AXLH4#..L,X W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-0R050C0 |
AXLH4#..S W/O(LOCK),BLACK,TRIM12 |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-0R070C0 |
AXLH4#..S W(LOCK),BLACK,TRIM12 |
1 | ||
| 71930-0R070B0 |
AXLH4#..E,L,X W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71931-0R050C0 |
AXLH4#..L,X W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-0R050B0 |
AXLH4#..E,L,X W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71930-0R070B0 |
AXLH4#..S W(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71931-0R050B0 |
AXLH4#..S W/O(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71930-0R070C0 |
AXLH4#..L,X W(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-0R050C0 |
AXLH4#..S W/O(LOCK),BLACK,TRIM12 |
1 | ||
| 87530E - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-0R080 |
AXLH4#..L |
1 | ||
| 87530-08040 |
AXLH4#..S,X |
1 | ||
| 87E10C - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-08050 |
AXLH4#..L |
1 | ||
| 87510-08040 |
AXLH4#..S,X |
1 | ||
| Common parts | ||||
| 90080-16115 | ||||

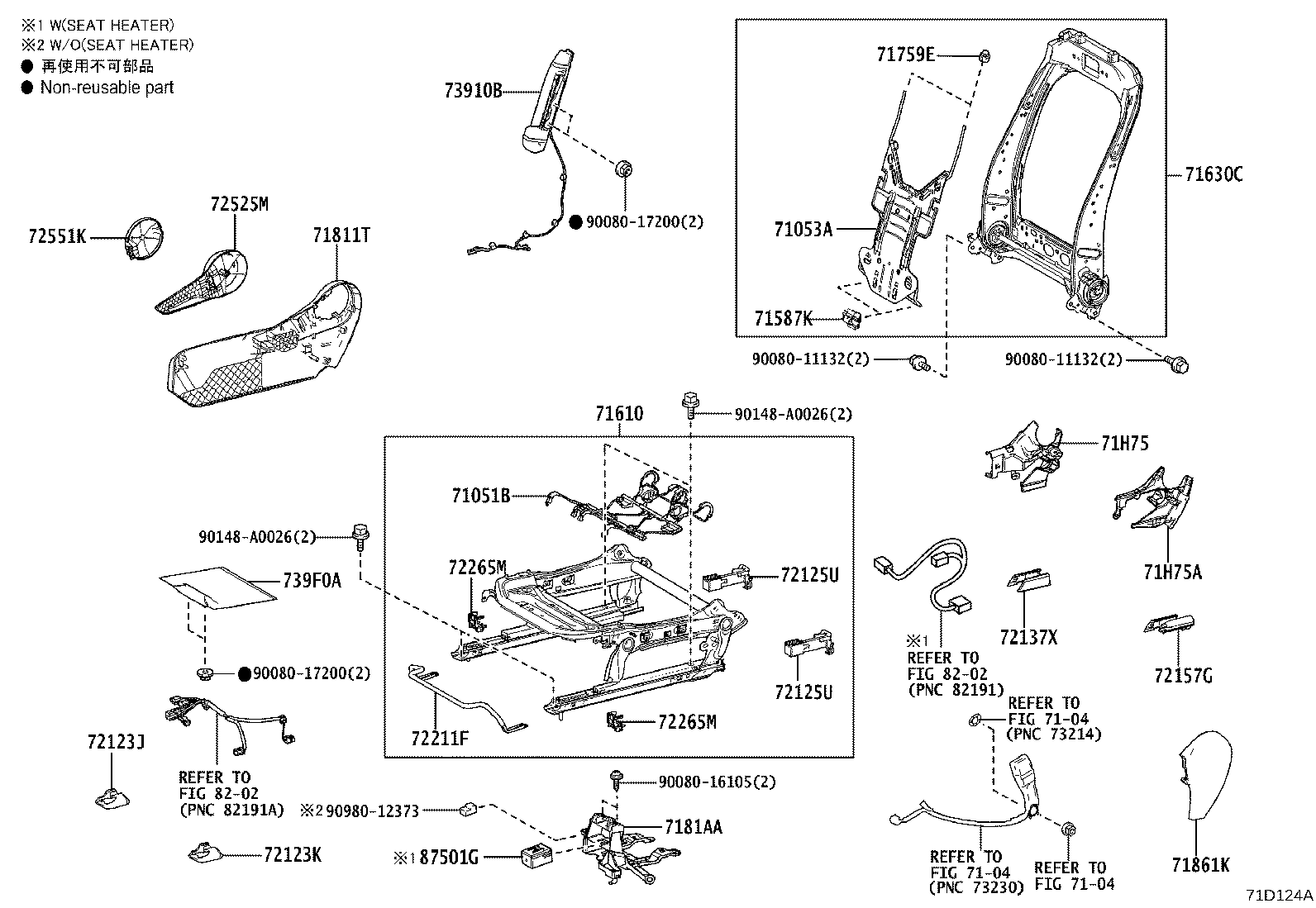

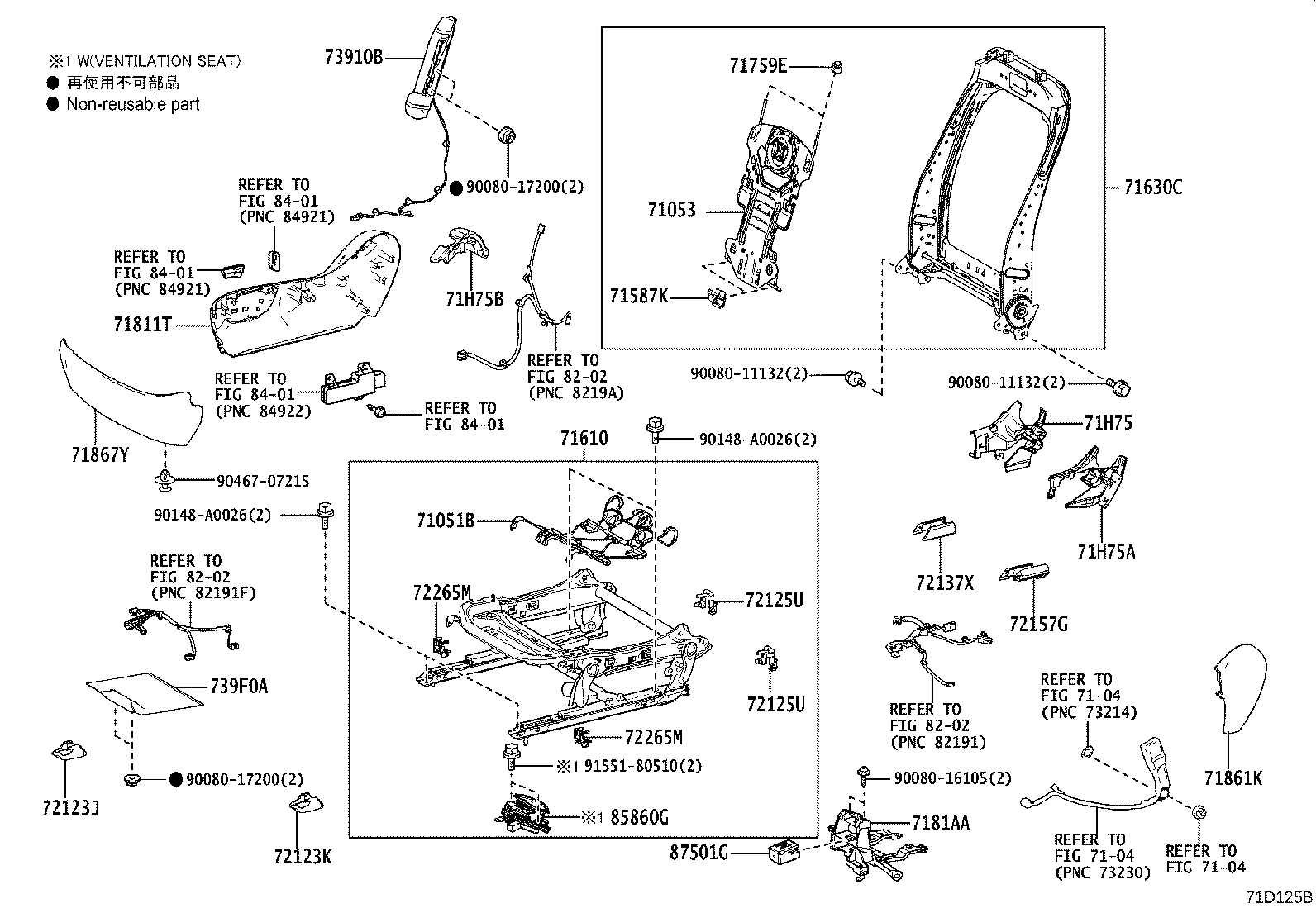

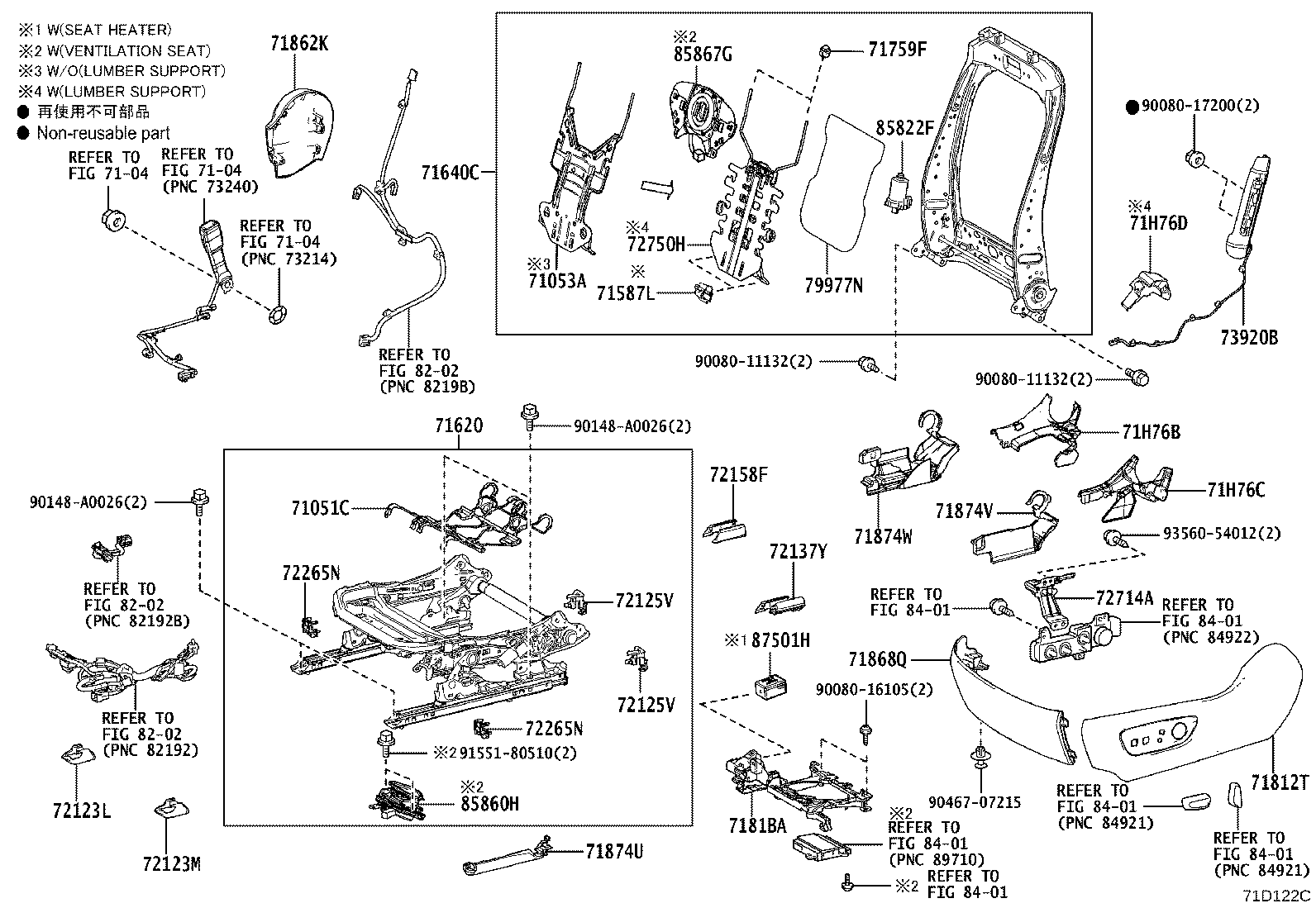

ILLUST NO. 2 OF 4(2011- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051C - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-02360 |
AXLH4# |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-0R020 |
AXLH4#..S,X |
1 | ||
| 71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH | ||||
| 71587-0R010 |
AXLH4# |
2 | ||
| 71620 - SPRING ASSY, FRONT SEAT CUSHION, LH | ||||
| 71620-08100 |
AXLH4#..L |
1 | ||
| 71620-08090 |
AXLH4#..E,S,X |
1 | ||
| 71640C - SPRING ASSY, FRONT SEAT BACK, LH | ||||
| 71640-08080 |
AXLH4#..L |
1 | ||
| 71640-08070 |
AXLH4#..S,X |
1 | ||
| 71759F - HOOK, FRONT SEAT BACK, LH | ||||
| 71759-0R020 |
AXLH4# |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-08040B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71812-0R140C0 |
AXLH4#..L BLACK,TRIM4# |
1 | ||
| 71812-0R140B1 |
AXLH4#..L NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71812-08040C0 |
AXLH4#..X BLACK,TRIM4# |
1 | ||
| 71812-08040B0 |
AXLH4#..X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71812-08040C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 7181BA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-0R010 |
AXLH4# |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R100B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71862-0R100C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71862-0R100B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71862-0R100C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71868Q - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR LH SEAT) | ||||
| 71868-0R050C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71868-0R050C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71868-0R050B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71868-0R050B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-0R040 |
AXLH4# |
1 | ||
| 71874V - SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER | ||||
| 71874-0R020 |
AXLH4# |
1 | ||
| 71874W - SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER | ||||
| 71874-0R030 |
AXLH4# |
1 | ||
| 71H76B - COVER, RECLINING ADJUSTER INSIDE, LH INNER(FOR LH SEAT) | ||||
| 71876-0R030B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-0R030B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71876-0R030C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71876-0R030C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-0R040C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71876-0R040B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-0R040B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71876-0R040C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-08230B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71876-08230C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71876-08230B0 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-08230C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 72123L - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-02110 |
AXLH4# |
1 | ||
| 72123M - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-02110 |
AXLH4# |
1 | ||
| 72125V - COVER, SEAT TRACK, UPPER REAR LH | ||||
| 72125-0R020 |
AXLH4# |
2 | ||
| 72125V - COVER, SEAT TRACK, UPPER REAR LH | ||||
| 72125-0R020 |
AXLH4# |
2 | ||
| 72137Y - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-08010 |
AXLH4# |
1 | ||
| 72158F - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-08010 |
AXLH4# |
1 | ||
| 72265N - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0R020 |
AXLH4# |
2 | ||
| 72265N - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0R020 |
AXLH4# |
2 | ||
| 72714A - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-08010 |
AXLH4#..S,X |
1 | ||
| 72714-0R010 |
AXLH4#..E,L |
1 | ||
| 72750H - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72750-08010 |
AXLH4#..S,X |
1 | ||
| 72750-08020 |
AXLH4#..L |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-08020 |
AXLH4# |
1 | ||
| 79977N - FELT, SEAT BACK | ||||
| 79977-02140 |
AXLH4#..S,X |
1 | ||
| 79977-02140 |
AXLH4#..L |
2 | ||
| 85822F - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-48120 |
AXLH4# |
1 | ||
| 85860H - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85802-0E050 |
AXLH4#..L |
1 | ||
| 85867G - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-0R020 |
AXLH4#..L |
1 | ||
| 87501H - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-0R030 |
AXLH4#..L,S,X |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16105 | ||||
| 90080-17200 | ||||
| 90148-A0026 | ||||
| 90467-07215 | ||||
| 91551-80510 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

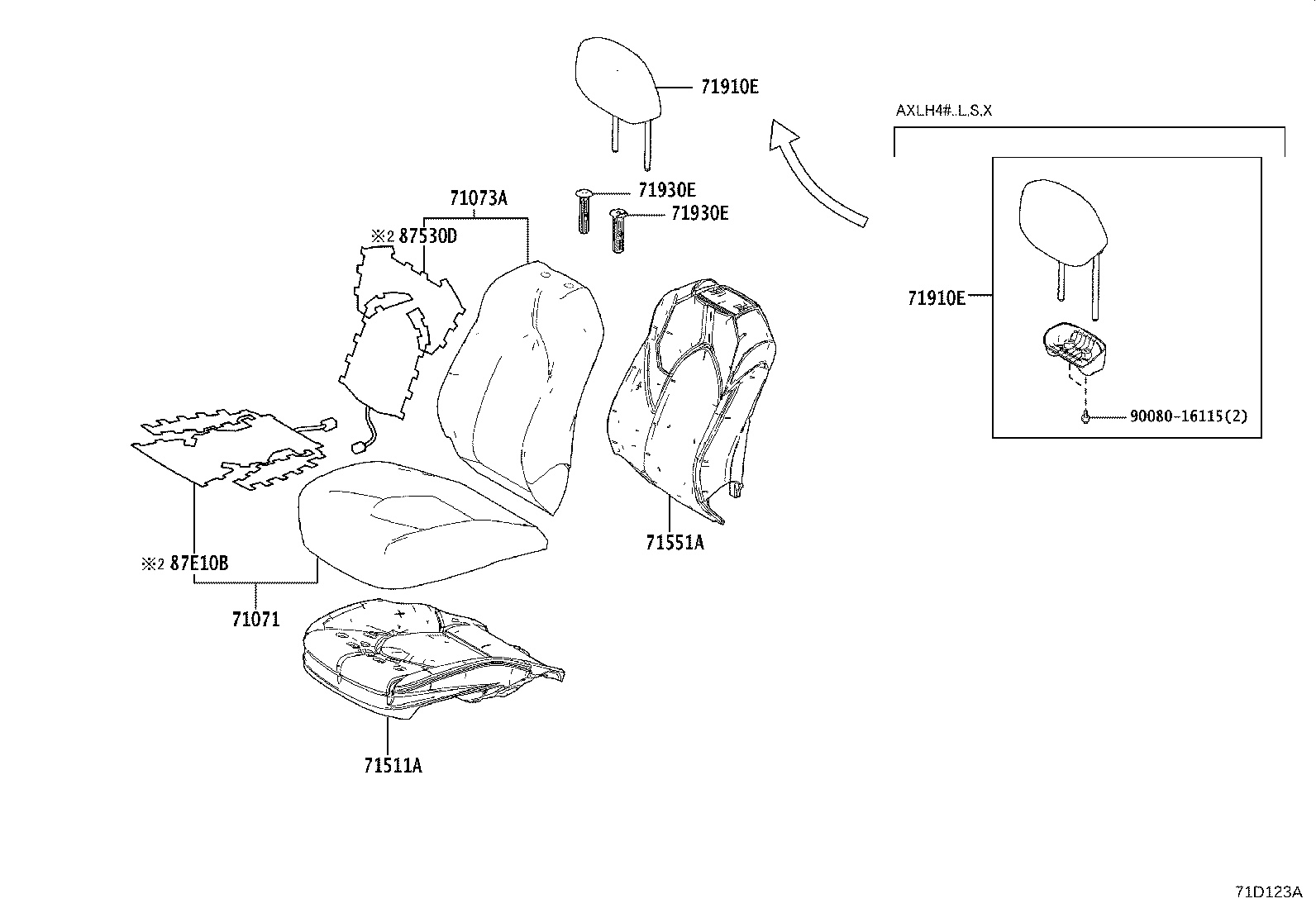

ILLUST NO. 3 OF 4(2011- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-08200B3 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71071-08200C2 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71071-08230E3 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71071-08230B6 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71071-08220B5 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71071-08220B6 |
AXLH4#..X GRAY,TRIM1# |
1 | ||
| 71071-08230B7 |
AXLH4#..L GRAY,TRIM1# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-08250B1 |
AXLH4#..S COOL GRAY/NUTRL WARM GRAY,TRIM11 |
1 | ||
| 71073-08270B3 |
AXLH4#..X GRAY,TRIM1# |
1 | ||
| 71073-08270B4 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71073-08280B7 |
AXLH4#..L GRAY,TRIM1# |
1 | ||
| 71073-08250C0 |
AXLH4#..S NEUTRAL WARM GRAY/BLACK,TRIM12 |
1 | ||
| 71073-08280E3 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71073-08280B6 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-08090 |
AXLH4#..L |
1 | ||
| 71511-08070 |
AXLH4#..E,S,X |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-08030 |
AXLH4#..E,S,X |
1 | ||
| 71551-08050 |
AXLH4#..L |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-08180B0 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71910-08200B4 |
AXLH40..07S..(L,X) TAIWAN SPEC,CHATEAU,TRIM4# |
1 | ||
| 71910-08180B6 |
AXLH4#..S COOL GRAY,TRIM11 |
1 | ||
| 71910-08180B0 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71910-08180B1 |
AXLH4#..L,X GRAY,TRIM1# |
1 | ||
| 71910-08200B5 |
AXLH40..07S..(L,X) TAIWAN SPEC,GRAY,TRIM1# |
1 | ||
| 71910-08180E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71910-08180B7 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM12 |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-08180B0 |
AXLH4#..X CHATEAU,TRIM4# |
1 | ||
| 71910-08200B4 |
AXLH40..07S..(L,X) TAIWAN SPEC,CHATEAU,TRIM4# |
1 | ||
| 71910-08180B6 |
AXLH4#..S COOL GRAY,TRIM11 |
1 | ||
| 71910-08180B0 |
AXLH4#..L CHATEAU,TRIM40 |
1 | ||
| 71910-08180B1 |
AXLH4#..L,X GRAY,TRIM1# |
1 | ||
| 71910-08200B5 |
AXLH40..07S..(L,X) TAIWAN SPEC,GRAY,TRIM1# |
1 | ||
| 71910-08180E0 |
AXLH4#..L NOBLE BROWN,TRIM41 |
1 | ||
| 71910-08180B7 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM12 |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-0R070C0 |
AXLH4#..L,X W(LOCK),BLACK,TRIM4# |
1 | ||
| 71930-0R070B0 |
AXLH4#..S W(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71931-0R050C0 |
AXLH4#..S W/O(LOCK),BLACK,TRIM12 |
1 | ||
| 71930-0R070B0 |
AXLH4#..E,L,X W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71931-0R050C0 |
AXLH4#..L,X W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-0R050B0 |
AXLH4#..S W/O(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71930-0R070C0 |
AXLH4#..S W(LOCK),BLACK,TRIM12 |
1 | ||
| 71931-0R050B0 |
AXLH4#..E,L,X W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-0R070C0 |
AXLH4#..L,X W(LOCK),BLACK,TRIM4# |
1 | ||
| 71930-0R070B0 |
AXLH4#..S W(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71931-0R050C0 |
AXLH4#..S W/O(LOCK),BLACK,TRIM12 |
1 | ||
| 71930-0R070B0 |
AXLH4#..E,L,X W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71931-0R050C0 |
AXLH4#..L,X W/O(LOCK),BLACK,TRIM4# |
1 | ||
| 71931-0R050B0 |
AXLH4#..S W/O(LOCK),NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71930-0R070C0 |
AXLH4#..S W(LOCK),BLACK,TRIM12 |
1 | ||
| 71931-0R050B0 |
AXLH4#..E,L,X W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 87530D - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-08040 |
AXLH4#..S,X |
1 | ||
| 87530-0R080 |
AXLH4#..L |
1 | ||
| 87E10B - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-08050 |
AXLH4#..L |
1 | ||
| 87510-08040 |
AXLH4#..S,X |
1 | ||
| Common parts | ||||
| 90080-16115 | ||||
ILLUST NO. 4 OF 4(2011- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-02360 |
AXLH4# |
1 | ||
| 71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-0R020 |
AXLH4#..S,X |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-0R010 |
AXLH4# |
2 | ||
| 71610 - SPRING ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-08080 |
AXLH4#..L |
1 | ||
| 71610-08070 |
AXLH4#..S,X |
1 | ||
| 71630C - SPRING ASSY, FRONT SEAT BACK, RH | ||||
| 71630-0E160 |
AXLH4#..L |
1 | ||
| 71630-0E140 |
AXLH4#..S,X |
1 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-0R020 |
AXLH4# |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0E220C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71811-0E220B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71811-0E220C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71811-0E220B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-0R010 |
AXLH4# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0R060C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71861-0R060B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71861-0R060C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71861-0R060B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-0R030B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-0R030B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71875-0R030C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71875-0R030C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71H75A - COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT) | ||||
| 71875-0R040C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71875-0R040C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71875-0R040B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-0R040B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 72123J - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-02110 |
AXLH4# |
1 | ||
| 72123K - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-02110 |
AXLH4# |
1 | ||
| 72125U - COVER, SEAT TRACK, UPPER REAR RH | ||||
| 72125-0R020 |
AXLH4#..L,S,X |
2 | ||
| 72125U - COVER, SEAT TRACK, UPPER REAR RH | ||||
| 72125-0R020 |
AXLH4#..L,S,X |
2 | ||
| 72137X - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-08010 |
AXLH4# |
1 | ||
| 72157G - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-08010 |
AXLH4# |
1 | ||
| 72265M - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0R020 |
AXLH4#..L,S,X |
2 | ||
| 72265M - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0R020 |
AXLH4#..L,S,X |
2 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-08020 |
AXLH4# |
1 | ||
| 739F0A - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-0R020 |
AXLH4#..L |
1 | ||
| 739F0-02030 |
AXLH4#..E,S,X |
1 | ||
| 87501G - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-0R030 |
AXLH4#..L,S,X |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16105 | ||||
| 90080-17200 | ||||
| 90148-A0026 | ||||
| 90980-12373 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 4 OF 4(2011- )L,S,X
RH W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-02360 |
AXLH4# |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-0R030 |
AXLH4#..L |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-0R010 |
AXLH4# |
2 | ||
| 71610 - SPRING ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-08080 |
AXLH4#..L |
1 | ||
| 71610-08070 |
AXLH4#..S,X |
1 | ||
| 71630C - SPRING ASSY, FRONT SEAT BACK, RH | ||||
| 71630-0E160 |
AXLH4#..L |
1 | ||
| 71630-0E140 |
AXLH4#..S,X |
1 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-0R020 |
AXLH4# |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0E220C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71811-0E220B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71811-0E220C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71811-0E220B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-0R010 |
AXLH4# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0R060C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71861-0R060B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71861-0R060C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71861-0R060B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71867Y - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT) | ||||
| 71867-0E120B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71867-0E120C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71867-0E120B1 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71867-0E120C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-0R030B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-0R030B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71875-0R030C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71875-0R030C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71H75A - COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT) | ||||
| 71875-0R040C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71875-0R040C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71875-0R040B1 |
AXLH4#..E,L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-0R040B1 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-08240C0 |
AXLH4#..L,X BLACK,TRIM4# |
1 | ||
| 71875-08240B0 |
AXLH4#..S NEUTRAL WARM GRAY,TRIM11 |
1 | ||
| 71875-08240C0 |
AXLH4#..S BLACK,TRIM12 |
1 | ||
| 71875-08240B0 |
AXLH4#..L,X NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 72123J - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-02110 |
AXLH4# |
1 | ||
| 72123K - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-02110 |
AXLH4# |
1 | ||
| 72125U - COVER, SEAT TRACK, UPPER REAR RH | ||||
| 72125-0R020 |
AXLH4#..L,S,X |
2 | ||
| 72125U - COVER, SEAT TRACK, UPPER REAR RH | ||||
| 72125-0R020 |
AXLH4#..L,S,X |
2 | ||
| 72137X - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-08010 |
AXLH4# |
1 | ||
| 72157G - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-08010 |
AXLH4# |
1 | ||
| 72265M - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0R020 |
AXLH4#..L,S,X |
2 | ||
| 72265M - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0R020 |
AXLH4#..L,S,X |
2 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-08020 |
AXLH4# |
1 | ||
| 739F0A - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-0R020 |
AXLH4#..L |
1 | ||
| 739F0-02030 |
AXLH4#..E,S,X |
1 | ||
| 85860G - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85801-0E050 |
AXLH4#..L |
1 | ||
| 87501G - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-0R030 |
AXLH4#..L,S,X |
1 | ||
| Common parts | ||||
| 90080-11132 | ||||
| 90080-16105 | ||||
| 90080-17200 | ||||
| 90148-A0026 | ||||
| 90467-07215 | ||||
| 91551-80510 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
