AXLH40L-PNXLHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

Click highlighted areas on diagram

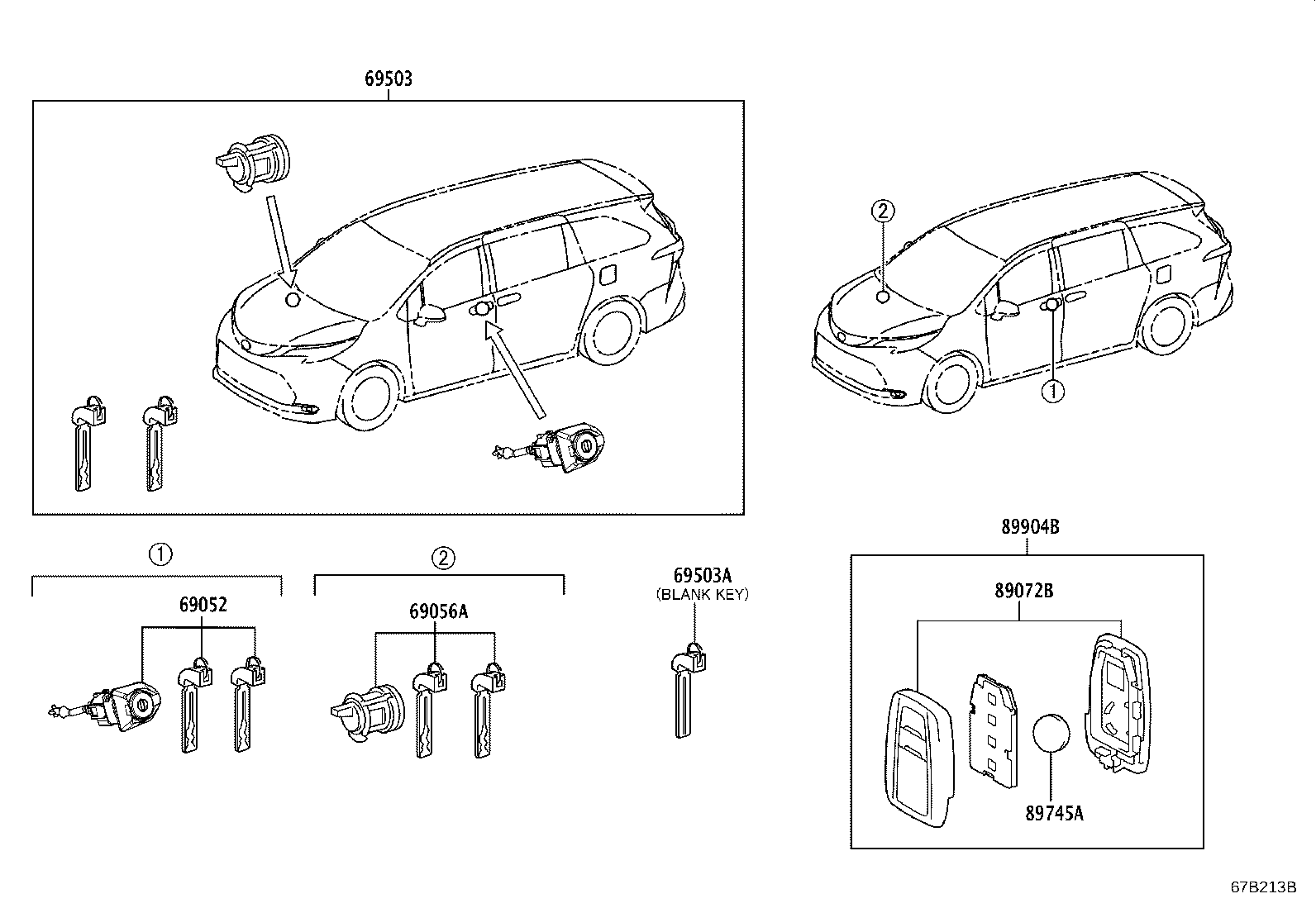

diagram 69052 69056A 69503 69503A 89072B 89745A 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-08050

AXLH4#

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-08010

AXLH4#

 1
69503 - CYLINDER SET, LOCK
69005-08060

AXLH4#

 1
69503A - KEY, BLANK
69515-K0020

AXLH4#

BLANK KEY

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-08030

AXLH4#..L,S,X

 2
89745A - BATTERY, TRANSMITTER
89745-08010

AXLH4#

CR2450

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-08030

AXLH4#..L

KOREA SPEC

 1
8990H-08010

AXLH4#..L,S,X

 1
8990H-08040

AXLH40..07S..(L,X)

TAIWAN SPEC

 1
