AXLH40L-PNXLHA (2020)
Toyota Sienna
Production
Nov 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(2011- )
Click highlighted areas on diagram
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55238C - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-08020 |
AXLH4# |
4 | ||
| 55238C - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-08020 |
AXLH4# |
4 | ||
| 55238C - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-08020 |
AXLH4# |
4 | ||
| 55238C - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-08020 |
AXLH4# |
4 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-08010 |
AXLH4# |
1 | ||
| 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-08030 |
AXLH4# |
1 | ||
| 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-08030 |
AXLH4# |
1 | ||
| 57450 - MEMBER ASSY, FRONT FLOOR CROSS | ||||
| 57450-08030 |
AXLH4# |
1 | ||
| 57495 - PATCH, UPPER REAR FLOOR STRENGTH | ||||
| 57495-08010 |
AXLH4#..07S |
1 | ||
| 58013C - SUPPORT SUB-ASSY, SHIFT & SELECT LEVER | ||||
| 58013-08020 |
AXLH4# |
1 | ||
| 58103D - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE RH | ||||
| 58103-08040 |
AXLH4# |
1 | ||
| 58105A - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH | ||||
| 58104-08010 |
AXLH4# |
1 | ||
| 58110 - PANEL ASSY, FRONT FLOOR | ||||
| 58110-08010 |
AXLH4# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-08090 |
AXLH4# |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-08010 |
AXLH4# |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-08010 |
AXLH4#..07S |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-08020 |
AXLH4# |
1 | ||
| 58127 - PATCH, FRONT FLOOR PANEL | ||||
| 58127-08010 |
AXLH4# |
2 | ||
| 58127 - PATCH, FRONT FLOOR PANEL | ||||
| 58127-08010 |
AXLH4# |
2 | ||
| 58325G - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-08010 |
AXLH4# |
1 | ||
| 58723D - CUSHION, ENGINE SERVICE COVER | ||||
| 58723-08010 |
AXLH4# |
1 | ||
| 58724A - CUSHION, ENGINE SERVICE COVER, NO.2 | ||||
| 58724-08010 |
AXLH4# |
1 | ||
| 58725A - STAY, ENGINE SERVICE COVER | ||||
| 58725-08010 |
AXLH4# |
1 | ||
| 58726C - STAY, ENGINE SERVICE COVER, NO.2 | ||||
| 58726-08010 |
AXLH4# |
1 | ||
| 78114B - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-08010 |
AXLH4# |
1 | ||
| 89966 - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-08010 |
AXLH4# |
1 | ||
| G929NA - PLUG, BATTERY DRAIN | ||||
| G929N-52010 |
AXLH4# |
2 | ||
| Common parts | ||||
| 90182-A0034 | ||||

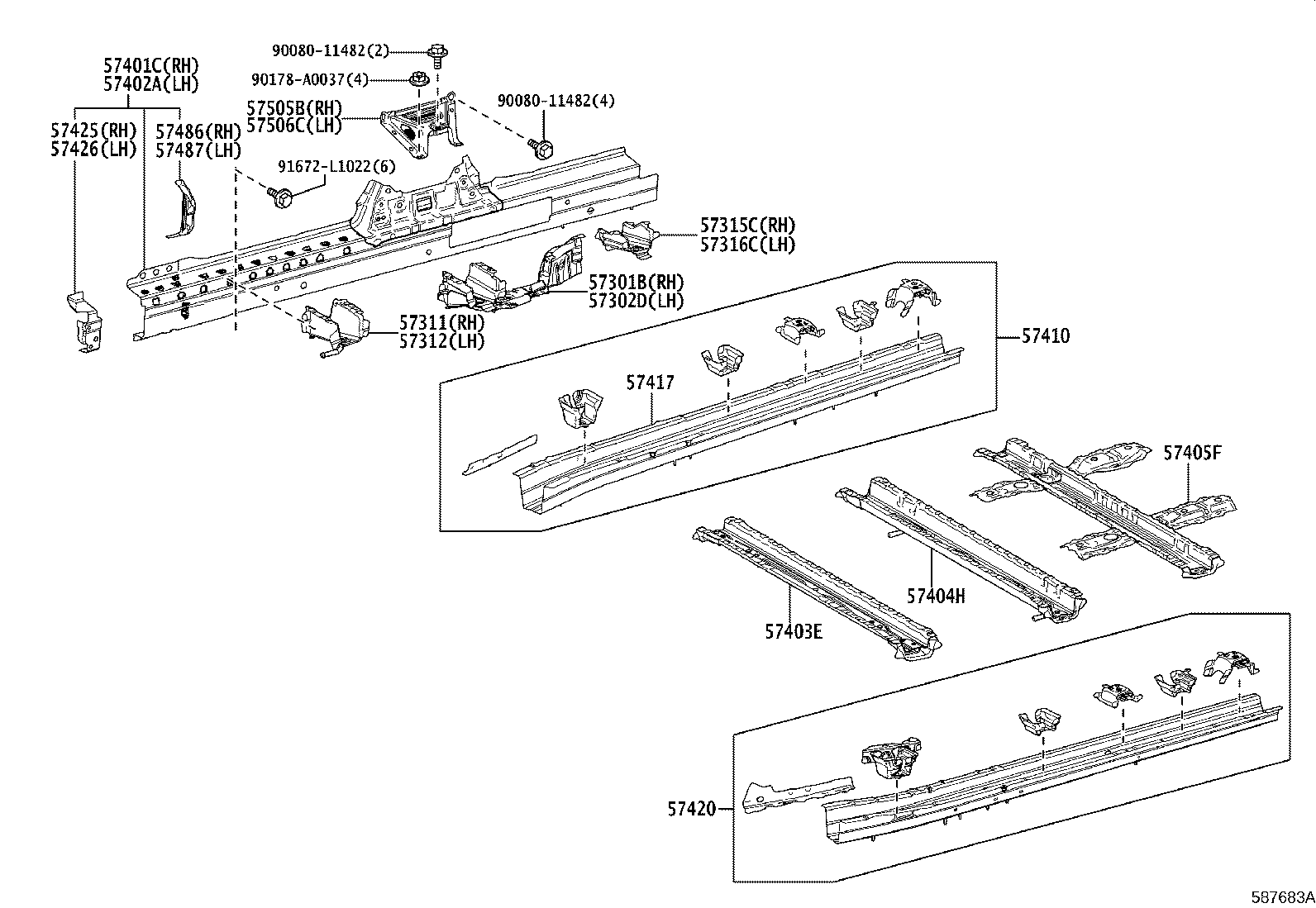

ILLUST NO. 2 OF 3(2011- )07S
Click highlighted areas on diagram
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57301B - OUTRIGGER SUB-ASSY, NO.1 RH | ||||
| 57301-08020 |
AXLH4# |
1 | ||
| 57302D - OUTRIGGER SUB-ASSY, NO.1 LH | ||||
| 57302-08020 |
AXLH4# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57304-08020 |
AXLH4# |
1 | ||
| 57312 - OUTRIGGER, NO.1 LH | ||||
| 57312-08020 |
AXLH4# |
1 | ||
| 57315C - OUTRIGGER, NO.3 RH | ||||
| 57315-08020 |
AXLH4# |
1 | ||
| 57316C - OUTRIGGER, NO.3 LH | ||||
| 57316-08020 |
AXLH4# |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-08040 |
AXLH4# |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-08050 |
AXLH4# |
1 | ||
| 57403E - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | ||||
| 57403-08020 |
AXLH4# |
1 | ||
| 57404H - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57404-08040 |
AXLH4# |
1 | ||
| 57405F - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR | ||||
| 57405-08060 |
AXLH4#..07S |
1 | ||
| 57410 - MEMBER ASSY, FLOOR SIDE, RH | ||||
| 57410-08010 |
AXLH4# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-08030 |
AXLH4#..07S |
1 | ||
| 57420 - MEMBER ASSY, FLOOR SIDE, LH | ||||
| 57420-08010 |
AXLH4# |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-08030 |
AXLH4# |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-08030 |
AXLH4# |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-08040 |
AXLH4# |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-08040 |
AXLH4# |
1 | ||
| 57505B - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH | ||||
| 57505-08010 |
AXLH4# |
1 | ||
| 57506C - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH | ||||
| 57506-08010 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90080-11482 | ||||
| 90178-A0037 | ||||
| 91672-L1022 | ||||
ILLUST NO. 1 OF 3(2011- )
Click highlighted areas on diagram
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-08080 |
AXLH4# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-08020 |
AXLH4# |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-08020 |
AXLH4# |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-08020 |
AXLH4# |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-08030 |
AXLH4# |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-08030 |
AXLH4# |
1 | ||
| 57110 - MEMBER ASSY, FRONT SIDE, RH | ||||
| 57110-08010 |
AXLH4# |
1 | ||
| 57120 - MEMBER ASSY, FRONT SIDE, LH | ||||
| 57120-08010 |
AXLH4# |
1 | ||
