AXLH40L-PNXLHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

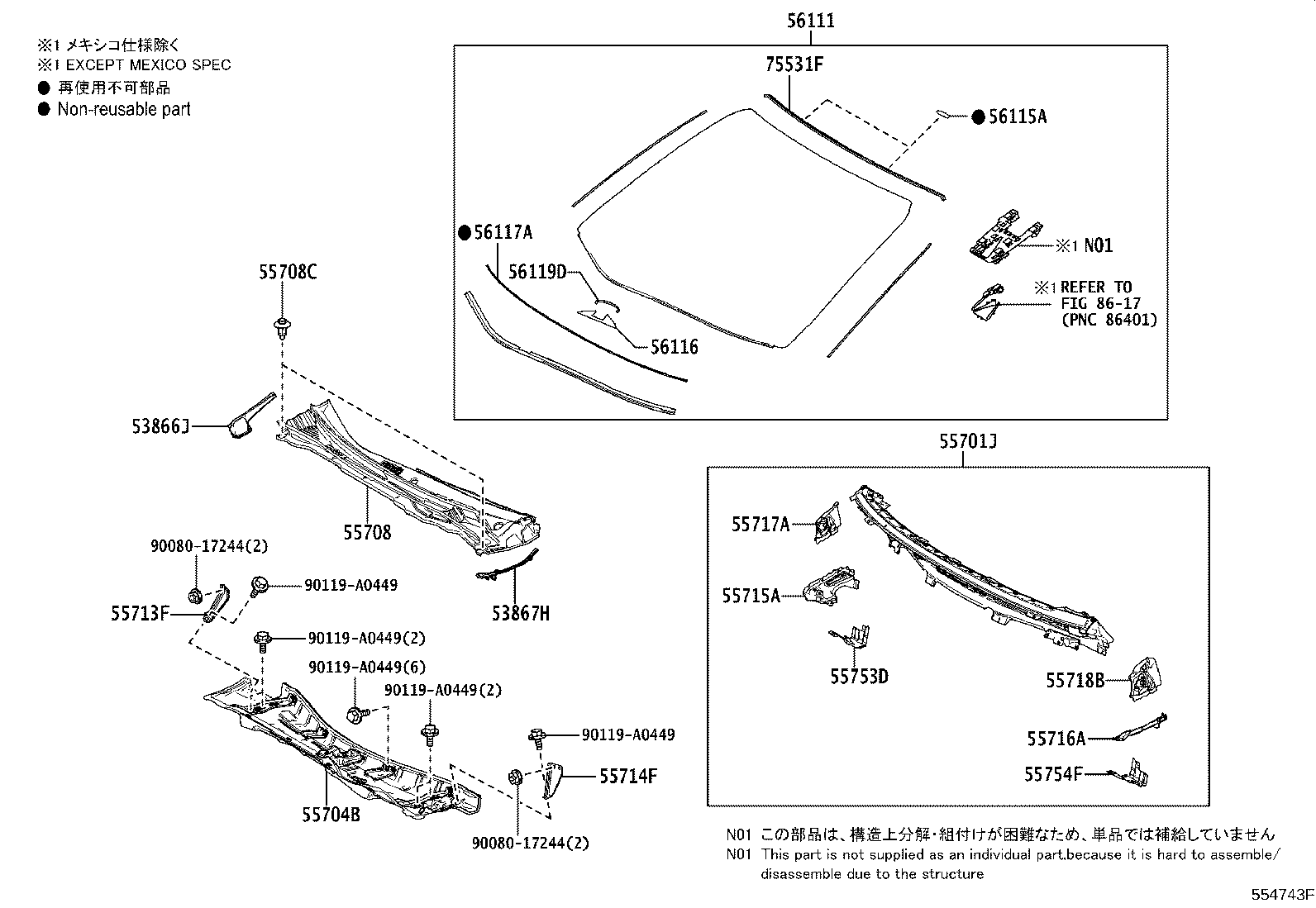

Click highlighted areas on diagram

diagram 53866J 53867H 55701J 55704B 55708 55708C 55713F 55714F 55715A 55716A 55717A 55718B 55753D 55754F 56111 56115A 56116 56117A 56119D 75531F 8617 9008017244 9008017244 90119A0449 90119A0449 90119A0449 90119A0449 90119A0449
Part # Description Qty Price
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-08030

AXLH4#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-08030

AXLH4#

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-08030

AXLH4#

 1
55704B - PANEL SUB-ASSY, COWL VENTILATOR
55704-08030

AXLH4#

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-08050

AXLH4#

 1
55708C - CLIP, COWL TOP VENTILATOR LOUVER
90467-A0035

AXLH4#

 2
55713F - REINFORCEMENT, COWL TOP SIDE, RH
55713-08020

AXLH4#

 1
55714F - REINFORCEMENT, COWL TOP SIDE, LH
55714-08020

AXLH4#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-08020

AXLH4#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-08020

AXLH4#

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-08070

AXLH4#

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-08060

AXLH4#

 1
55753D - SHIELD, COWL WATER EXTRACT, RH
55753-08010

AXLH4#

 1
55754F - SHIELD, COWL WATER EXTRACT, LH
55754-08010

AXLH4#

 1
56111 - GLASS, WINDSHIELD
56101-08350

AXLH40..L,X

MEXICO SPEC&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56101-08400

AXLH40..L

MEXICO SPEC&PLATINUM&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UP DISPLAY-WITH

 1
56101-08300

AXLH4#..L

PLATINUM&HEAD UP DISPLAY-WITH

 1
56101-08230

AXLH4#..L

 1
56101-08250

AXLH40..L

TAIWAN SPEC

 1
56101-08300

AXLH40..L

TAIWAN SPEC&HEAD UP DISPLAY-WITH

 1
56101-08310

AXLH4#..L

PLATINUM&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UP DISPLAY-WITH

 1
56101-08340

AXLH40..E,L,X

MEXICO SPEC

 1
56101-08410

AXLH4#..L

KOREA SPEC&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56101-08420

AXLH4#..L

KOREA SPEC&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UP DISPLAY-WITH

 1
56101-08390

AXLH40..L

MEXICO SPEC&PLATINUM&HEAD UP DISPLAY-WITH

 1
56101-08270

AXLH4#..L

KOREA SPEC

 1
56101-08330

AXLH4#..L

KOREA SPEC&HEAD UP DISPLAY-WITH

 1
56101-08240

AXLH4#..L,S,X

INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56101-08210

AXLH4#..S,X

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-50100

AXLH4#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-08010

AXLH4#..L,S,X

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-08050

AXLH4#..L

L=1524,KOREA SPEC

 1
56117-08050

AXLH4#..L

L=1524,KOREA SPEC&HEAD UP DISPLAY-WITH

 1
56117-08050

AXLH40..L,X

L=1524,MEXICO SPEC&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56117-08050

AXLH40..L

L=1524,MEXICO SPEC&PLATINUM&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UPDISPLAY-WITH

 1
56117-08050

AXLH40..L

L=1524,TAIWAN SPEC

 1
56117-08050

AXLH4#..L

L=1524,PLATINUM&HEAD UP DISPLAY-WITH

 1
56117-08050

AXLH4#

L=1524

 1
56117-08050

AXLH4#..L

L=1524,KOREA SPEC&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UP DISPLAY-WITH

 1
56117-08050

AXLH4#..L

L=1524,KOREA SPEC&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56117-08050

AXLH40..E,L,X

L=1524,MEXICO SPEC

 1
56117-08050

AXLH40..L

L=1524,MEXICO SPEC&PLATINUM&HEAD UP DISPLAY-WITH

 1
56117-08050

AXLH4#..L

L=1524,PLATINUM&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UP DISPLAY-WITH

 1
56117-08050

AXLH40..L

L=1524,TAIWAN SPEC&HEAD UP DISPLAY-WITH

 1
56117-08050

AXLH4#..L,S,X

L=1524,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56119D - DAM, WINDOW GLASS ADHESIVE, NO.3
56119-08010

AXLH4#..L

L=105,PLATINUM&HEAD UP DISPLAY-WITH

 1
56119-08010

AXLH4#..L

L=105,PLATINUM&INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&HEAD UP DISPLAY-WITH

 1
56119-08010

AXLH4#..L,S,X

L=105

 1
56119-08010

AXLH40..L

L=105,TAIWAN SPEC&HEAD UP DISPLAY-WITH

 1
56119-08010

AXLH4#..L,S,X

L=105,INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW

 1
56119-08010

AXLH40..L

L=105,TAIWAN SPEC

 1
75531F - MOULDING, WINDSHIELD, OUTSIDE UPPER
75531-08030

AXLH4#

 1
Common parts
90080-17244
90119-A0449
Linked diagrams
8617
