AXLH40L-PNXLHA (2020)
Toyota Sienna
Production
Nov 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )

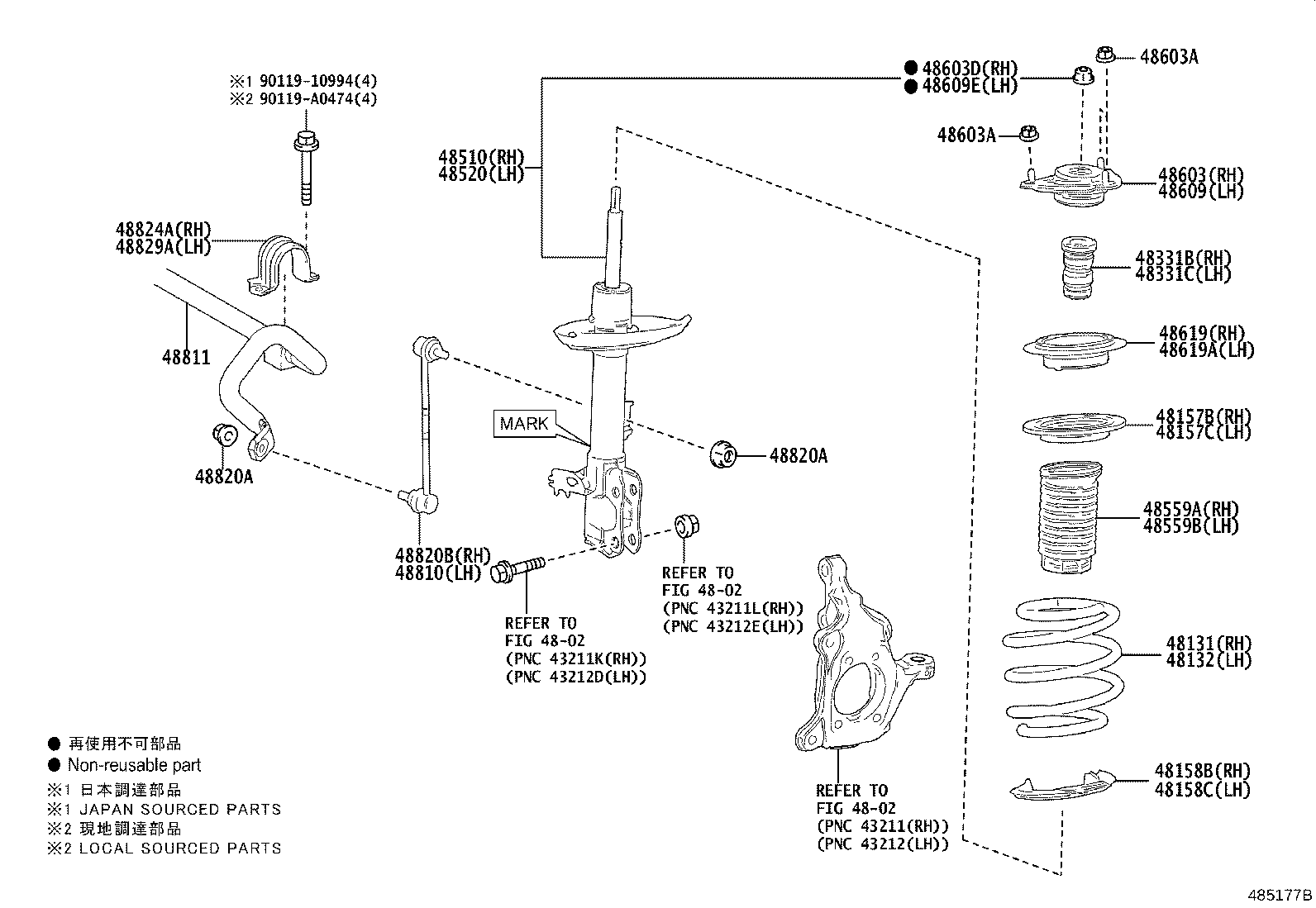

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-08130 |
AXLH40..E,L,X MEXICO SPEC |
1 | ||
| 48131-08120 |
AXLH4#..S |
1 | ||
| 48131-08110 |
AXLH4#..E,L,X |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-08110 |
AXLH4#..E,L,X |
1 | ||
| 48131-08120 |
AXLH4#..S |
1 | ||
| 48131-08130 |
AXLH40..E,L,X MEXICO SPEC |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-06220 |
AXLH4# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-06220 |
AXLH4# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-06260 |
AXLH4# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-06260 |
AXLH4# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0E080 |
AXLH4# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0E080 |
AXLH4# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z472 |
AXLH4#..E,L,X MARK 48510-08110 |
1 | ||
| 48510-8Z473 |
AXLH4#..S MARK 48510-08120 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z319 |
AXLH4#..E,L,X MARK 48520-08110 |
1 | ||
| 48520-8Z320 |
AXLH4#..S MARK 48520-08120 |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-0R030 |
AXLH4# |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-0R030 |
AXLH4# |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0E090 |
AXLH4# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-A0077 |
AXLH4# |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-A0077 |
AXLH4# |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-A0019 |
AXLH4# (L) |
1 | ||
| 90177-14007 |
AXLH4# (J) |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0E090 |
AXLH4# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-A0019 |
AXLH4# (L) |
1 | ||
| 90177-14007 |
AXLH4# (J) |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-0R050 |
AXLH4# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-0R050 |
AXLH4# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-08040 |
AXLH4# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-08020 |
AXLH4#..S |
1 | ||
| 48804-08010 |
AXLH4#..E,L,X |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90178-A0080 |
AXLH4# (L) |
4 | ||
| 94151-21241 |
AXLH4# (J) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90178-A0080 |
AXLH4# (L) |
4 | ||
| 94151-21241 |
AXLH4# (J) |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-08040 |
AXLH4# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-0E060 |
AXLH4# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-0E060 |
AXLH4# |
1 | ||
| Common parts | ||||
| 90119-10994 | ||||
| 90119-A0474 | ||||
| Linked diagrams | ||||
| 4802 | ||||
