AXLH40L-PNXLHA (2020)

Toyota Sienna

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

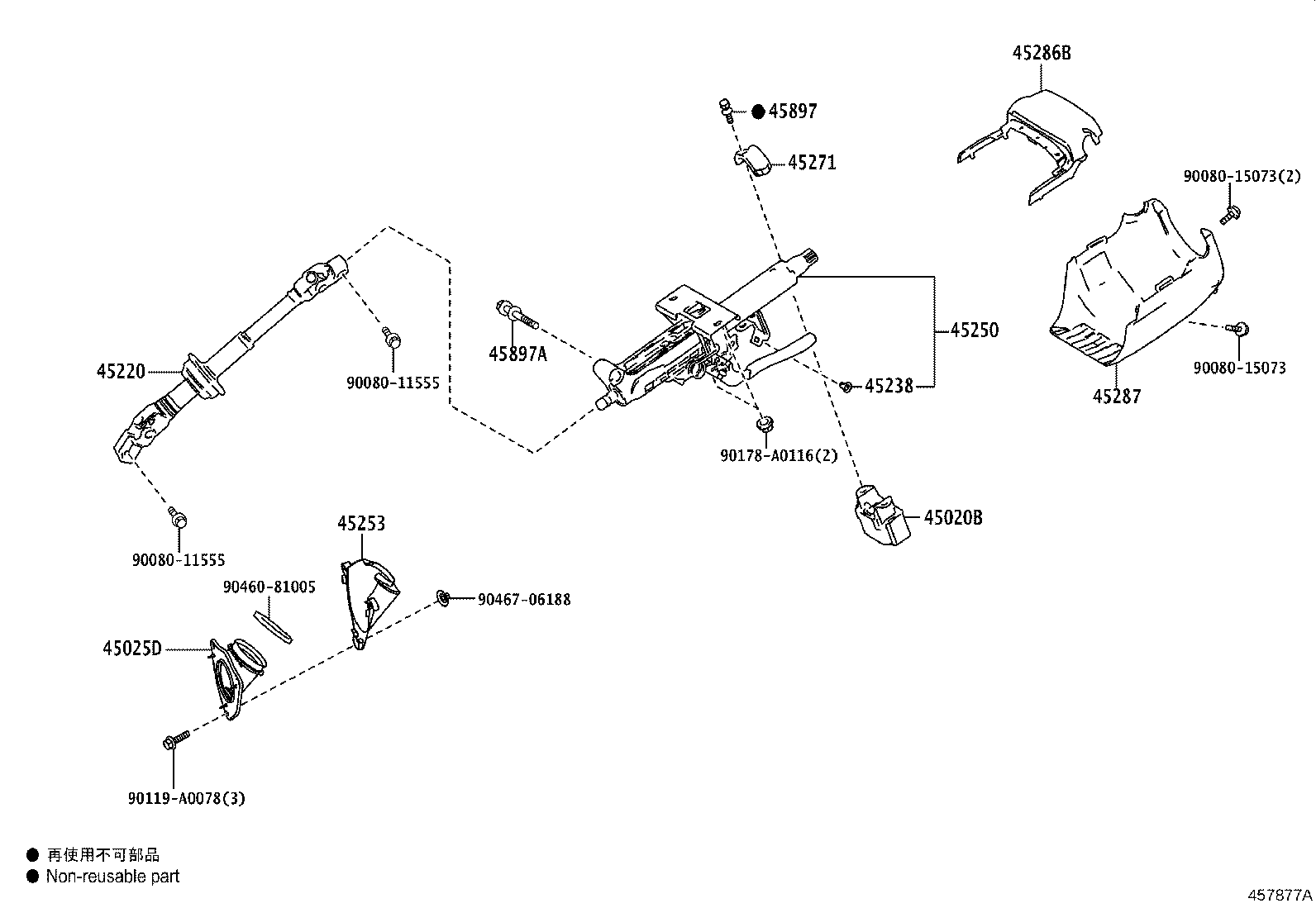

(2011- )E,S,X

Click highlighted areas on diagram

diagram 45020B 45025D 45220 45238 45250 45253 45271 45286B 45287 45897 45897A 9008011555 9008011555 9008015073 9008015073 90119A0078 90178A0116 9046081005 9046706188
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-08020

AXLH4#..E,S,X

 1
45020-08030

AXLH4#..L

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-08060

AXLH4#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-08060

AXLH4#

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010

AXLH4#..L

 1
45238-52010

AXLH4#..E,S,X

 1
45250 - COLUMN ASSY, STEERING
45250-08110

AXLH4#..L

 1
45250-08100

AXLH4#..E,S,X

 1
45253 - COVER, STEERING COLUMN HOLE
45253-08050

AXLH4#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-08010

AXLH4#..E,S,X

 1
45286B - COVER, STEERING COLUMN, UPR
45286-06330C0

AXLH4#..E,S

BLACK,TRIM1#

 1
45286-06330C0

AXLH4#..L,X

BLACK,TRIM1#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-06430C0

AXLH4#..L

BLACK,TRIM1#,4#

 1
45287-06420C0

AXLH4#..E,S

BLACK,TRIM1#

 1
45287-06420C0

AXLH4#..X

BLACK,TRIM1#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-08010

AXLH4#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-A0362

AXLH4#

 1
Common parts
90080-11555
90080-15073
90119-A0078
90178-A0116
90460-81005
90467-06188

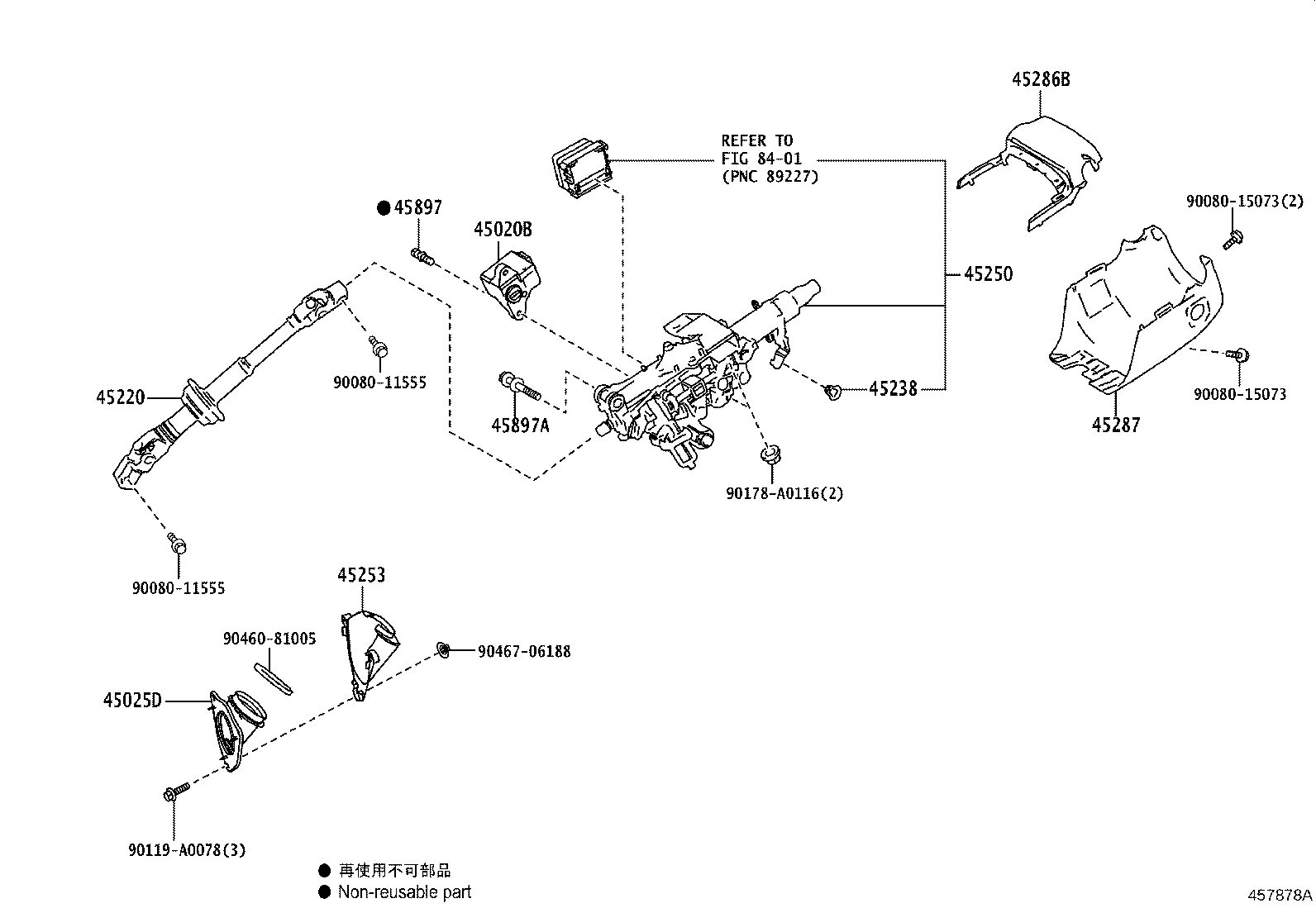

(2011- )L

Click highlighted areas on diagram

diagram 45020B 45025D 45220 45238 45250 45253 45286B 45287 45897 45897A 8401 9008011555 9008011555 9008015073 9008015073 90119A0078 90178A0116 9046081005 9046706188
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-08020

AXLH4#..E,S,X

 1
45020-08030

AXLH4#..L

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-08060

AXLH4#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-08060

AXLH4#

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010

AXLH4#..L

 1
45238-52010

AXLH4#..E,S,X

 1
45250 - COLUMN ASSY, STEERING
45250-08110

AXLH4#..L

 1
45250-08100

AXLH4#..E,S,X

 1
45253 - COVER, STEERING COLUMN HOLE
45253-08050

AXLH4#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-06330C0

AXLH4#..E,S

BLACK,TRIM1#

 1
45286-06330C0

AXLH4#..L,X

BLACK,TRIM1#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-06430C0

AXLH4#..L

BLACK,TRIM1#,4#

 1
45287-06420C0

AXLH4#..E,S

BLACK,TRIM1#

 1
45287-06420C0

AXLH4#..X

BLACK,TRIM1#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-08010

AXLH4#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-A0362

AXLH4#

 1
Common parts
90080-11555
90080-15073
90119-A0078
90178-A0116
90460-81005
90467-06188
Linked diagrams
8401
