ASL30L-PFTEKA (2010)

Toyota Sienna

Production May 2010 - Aug 2013
Engine 1ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1001-1409)

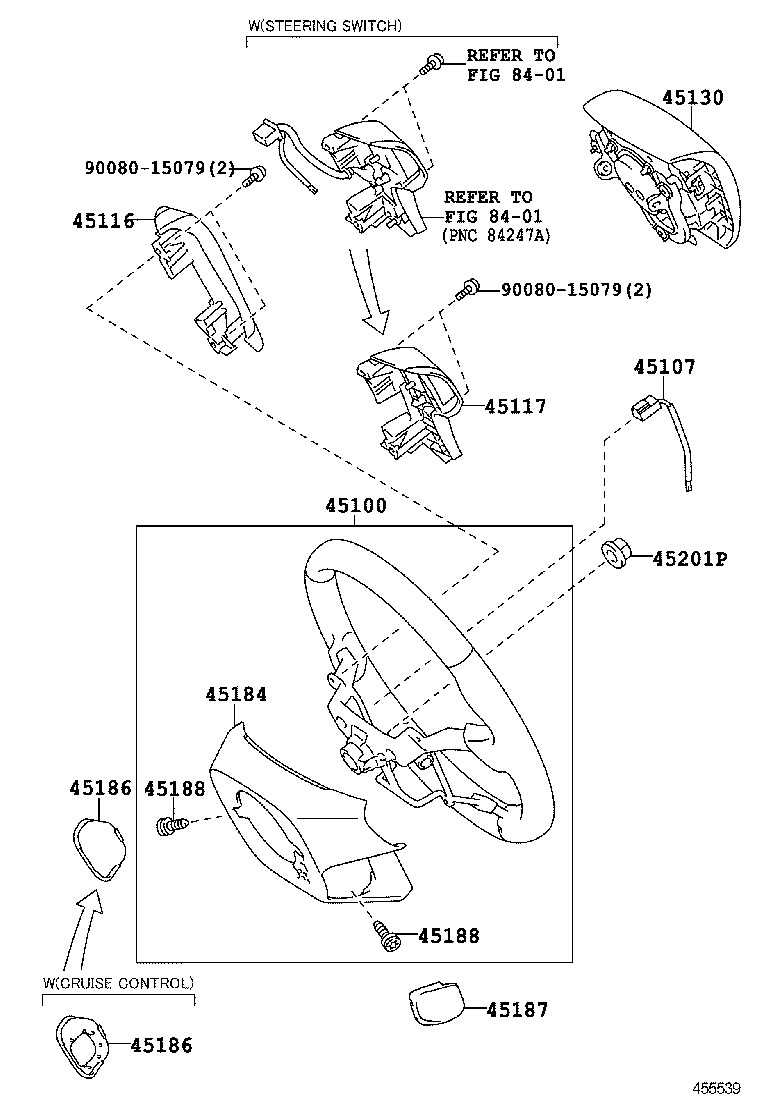

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45116 45117 45130 45184 45186 45186 45187 45188 45188 45201P 8401 8401 9008015079 9008015079
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-08210B0

ASL30

4-SPOKE,LEATHER,LEATHER PACKAGE,LT.GRAY,TRIM1#

 1
45100-08220B0

ASL30;GSL35..STD

4-SPOKE,URETHANE,LT.GRAY,TRIM1#

 1
45100-08210E0

ASL30

4-SPOKE,LEATHER,LEATHER PACKAGE,GREGE,TRIM4#

 1
45100-08220E0

ASL30;GSL35..STD

4-SPOKE,URETHANE,GREGE,TRIM4#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-0C010

ASL30..07S

DE-CONTENT PACKAGE&CRUISE CONTROL-WITHOUT

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-08010B0

GSL35..LE,STD;ASL30,GSL30..LE,SE

LT.GRAY,TRIM1#

 1
45116-08010E0

GSL35..LE,STD;ASL30,GSL30..LE

GREGE,TRIM4#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-08010B0

ASL30;GSL35..STD

LT.GRAY,TRIM1#

 1
45117-08010E0

ASL30;GSL35..STD

GREGE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-08070B0

ASL30,GSL3#

LT.GRAY,TRIM1#

 1
45130-08080E0

ASL30;GSL35..STD

GREGE,TRIM4#

 1
45130-08080B0

ASL30;GSL35..STD

LT.GRAY,TRIM1#

 1
45130-08070E0

ASL30,GSL3#..LE,STD,XLE

GREGE,TRIM4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-08030B0

ASL30;GSL35..STD

LT.GRAY,TRIM1#

 1
45184-08030E0

ASL30;GSL35..STD

GREGE,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-08010E0

ASL30

GREGE,TRIM4#

 1
45186-08020B0

ASL30..07S

CRUISE CONTROL-WITHOUT,LT.GRAY,TRIM1#

 1
45186-08010B0

ASL30

LT.GRAY,TRIM1#

 1
45186-08020E0

ASL30..07S

CRUISE CONTROL-WITHOUT,GREGE,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-08010E0

ASL30

GREGE,TRIM4#

 1
45186-08020B0

ASL30..07S

CRUISE CONTROL-WITHOUT,LT.GRAY,TRIM1#

 1
45186-08010B0

ASL30

LT.GRAY,TRIM1#

 1
45186-08020E0

ASL30..07S

CRUISE CONTROL-WITHOUT,GREGE,TRIM4#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-08010E0

ASL30;GSL35..STD

GREGE,TRIM4#

 1
45187-08010B0

ASL30;GSL35..STD

LT.GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

ASL30;GSL35..STD

L=18.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-07010

ASL30;GSL35..STD

L=18.5

 2
45201P - NUT, STEERING WHEEL SET
90080-17234

ASL30;GSL35..STD

 1
Common parts
90080-15079
Linked diagrams
8401
