ASL30L-PFTEKA (2010)
Toyota Sienna

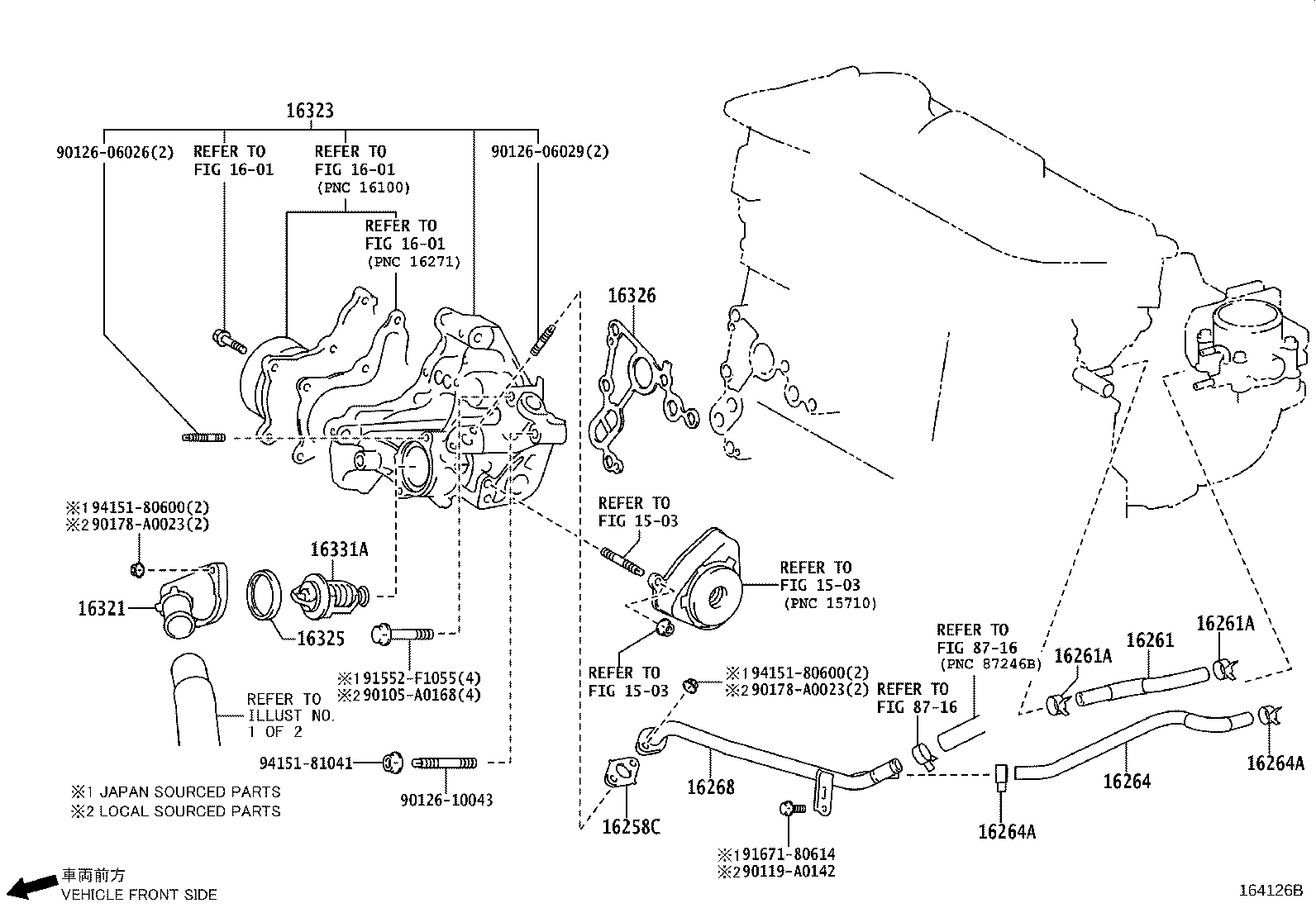

ILLUST NO. 2 OF 2(1005- )1ARFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0H010 |
1ARFE..ASL30 *212 |
1 | ||
| 16258-36010 |
1ARFE..ASL30 *107 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0V020 |
1ARFE..ASL30 *212 |
1 | ||
| 16261-36010 |
1ARFE..ASL30 *107 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-A0017 |
1ARFE..ASL30 (L),*212 |
2 | ||
| 96137-41501 |
1ARFE..ASL30 (J),*212 |
2 | ||
| 96137-41501 |
1ARFE..ASL30 *107 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-A0017 |
1ARFE..ASL30 (L),*212 |
2 | ||
| 96137-41501 |
1ARFE..ASL30 (J),*212 |
2 | ||
| 96137-41501 |
1ARFE..ASL30 *107 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36010 |
1ARFE..ASL30 *107 |
1 | ||
| 16264-0V020 |
1ARFE..ASL30 *212 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ARFE..ASL30 (J),*212 |
2 | ||
| 96137-41501 |
1ARFE..ASL30 *107 |
2 | ||
| 90466-A0017 |
1ARFE..ASL30 (L),*212 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ARFE..ASL30 (J),*212 |
2 | ||
| 96137-41501 |
1ARFE..ASL30 *107 |
2 | ||
| 90466-A0017 |
1ARFE..ASL30 (L),*212 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-36010 |
1ARFE..ASL30 *107 |
1 | ||
| 16268-36010 |
1ARFE..ASL30 (J),*212 |
1 | ||
| 16268-0V080 |
1ARFE..ASL30 (L),*212 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0V010 |
1ARFE..ASL30 *212 |
1 | ||
| 16321-36010 |
1ARFE..ASL30 *107 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-36021 |
1ARFE..ASL30 *107 |
1 | ||
| 16032-36021 |
1ARFE..ASL30 (J),*212 |
1 | ||
| 16032-0V050 |
1ARFE..ASL30 (L),*212 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ARFE..ASL30 *212 |
1 | ||
| 16325-28010 |
1ARFE..ASL30 *107 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36010 |
1ARFE..ASL30 *212 |
1 | ||
| 16326-36010 |
1ARFE..ASL30 *107 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-A3003 |
1ARFE..ASL30 *WAX 82-95,(L),*212 |
1 | ||
| 90916-03129 |
1ARFE..ASL30 *WAX 82-95,*107 |
1 | ||
| 90916-03129 |
1ARFE..ASL30 *WAX 82-95,(J),*212 |
1 | ||
| Common parts | ||||
| 90105-A0168 | ||||
| 90119-A0142 | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-10043 | ||||
| 90178-A0023 | ||||
| 91552-F1055 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-81041 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 1601 | ||||
| 8716 | ||||

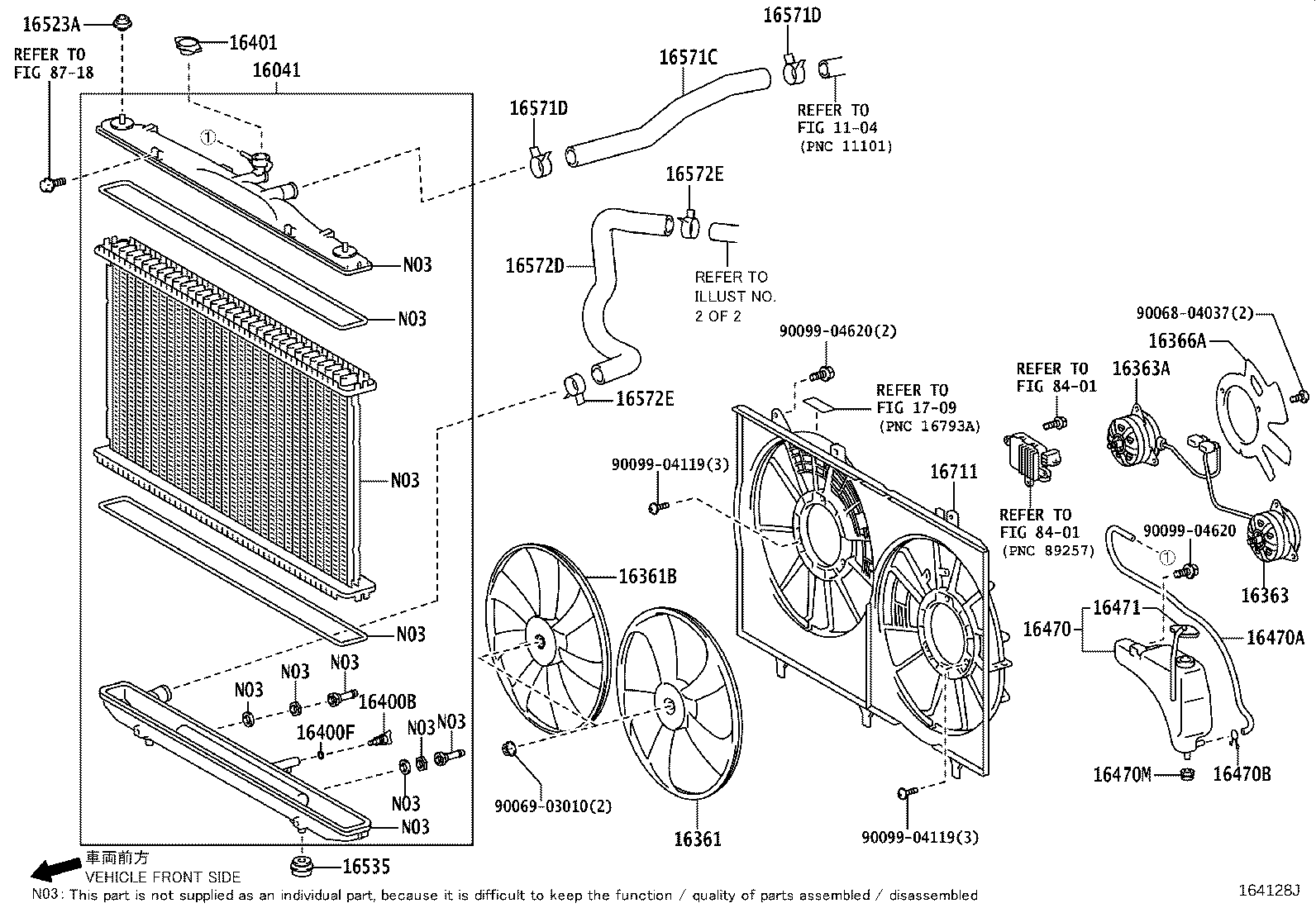

ILLUST NO. 1 OF 2(1005- )1ARFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-0P260 |
1ARFE..ASL30 |
1 | ||
| 16361 - FAN | ||||
| 16361-0P150 |
1ARFE..ASL30 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0P160 |
1ARFE..ASL30 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0V120 |
1ARFE..ASL30 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0V110 |
1ARFE..ASL30 |
1 | ||
| 16366A - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0V100 |
1ARFE..ASL30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1ARFE..ASL30 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ARFE..ASL30 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31480 |
1ARFE..ASL30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0P040 |
1ARFE..ASL30 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0P090 |
1ARFE..ASL30 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
1ARFE..ASL30 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-17028 |
1ARFE..ASL30 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P040 |
1ARFE..ASL30 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-AD010 |
1ARFE..ASL30 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-28030 |
1ARFE..ASL30 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0V050 |
1ARFE..ASL30 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90080-46344 |
1ARFE..ASL30 |
2 | ||
| 90466-A0020 |
1ARFE..ASL30 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90080-46344 |
1ARFE..ASL30 |
2 | ||
| 90466-A0020 |
1ARFE..ASL30 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0V050 |
1ARFE..ASL30 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90080-46344 |
1ARFE..ASL30 |
2 | ||
| 90466-A0020 |
1ARFE..ASL30 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90080-46344 |
1ARFE..ASL30 |
2 | ||
| 90466-A0020 |
1ARFE..ASL30 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0V090 |
1ARFE..ASL30 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90069-03010 | ||||
| 90099-04119 | ||||
| 90099-04620 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||
