USK65L-GKTZKA (2017)

Toyota Sequoia

Production Aug 2017 - Sep 9999
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )

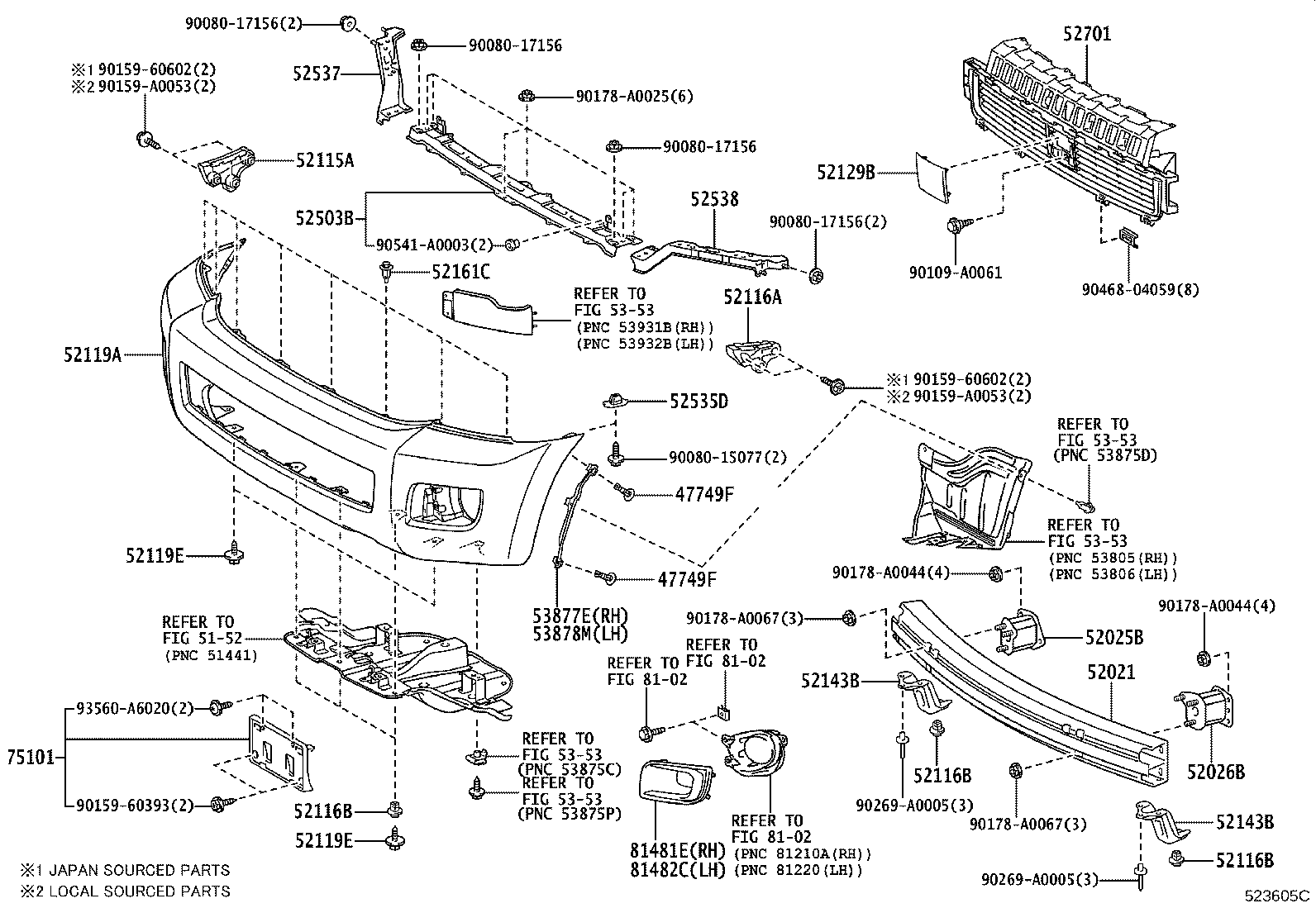

Click highlighted areas on diagram

diagram 47749F 47749F 5152 52021 52025B 52026B 52115A 52116A 52116B 52116B 52116B 52119A 52119E 52119E 52129B 52143B 52143B 52161C 52503B 52535D 52537 52538 52701 5353 5353 5353 5353 5353 53877E 53878M 75101 8102 8102 8102 81481E 81482C 9008015077 9008017156 9008017156 9008017156 9008017156 90109A0061 9015960393 9015960602 9015960602 90159A0053 90159A0053 90178A0025 90178A0044 90178A0044 90178A0067 90178A0067 90269A0005 90269A0005 9046804059 90541A0003 93560A6020
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-08010

USK6#

 4
47749F - CLIP, PIN HOLD
47749-08010

USK6#

 4
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52131-0C040

USK6#..HTWC

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-0C010

USK6#

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-0C010

USK6#..HTWC

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0C050

USK6#..HTWC

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0C020

USK6#..HTWC

 1
52116B - RETAINER, FRONT BUMPER
52116-0C090

USK6#

 5
52116B - RETAINER, FRONT BUMPER
52116-0C090

USK6#

 5
52116B - RETAINER, FRONT BUMPER
52116-0C090

USK6#

 5
52119A - COVER, FRONT BUMPER
52119-0C949

USK6#..LIMD,PLAT

PAINT REQ.

 1
52119E - SCREW, NO.2
90159-60440

USK6#

 5
52119E - SCREW, NO.2
90159-60440

USK6#

 5
52129B - COVER, FRONT BUMPER, LOWER
52129-34010

USK6#

 1
52143B - BRACKET, FRONT BUMPER SIDE
52143-0C030

USK6#..HTWC

 2
52143B - BRACKET, FRONT BUMPER SIDE
52143-0C030

USK6#..HTWC

 2
52161C - PIECE, FRONT BUMPER
52161-02020

USK6#

 8
52503B - RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH
52506-0C061

USK6#..HTWC

 1
52535D - RETAINER, FRONT BUMPER SIDE
52535-30150

USK6#

 2
52537 - RETAINER, FRONT BUMPER END, RH
52537-0C020

USK6#..HTWC

 1
52538 - RETAINER, FRONT BUMPER END, LH
52538-0C020

USK6#..HTWC

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52701-0C040

USK6#..LIMD,PLAT

 1
53877E - BRACKET, FRONT FENDER LINER, RH
53877-0C040

USK6#

 1
53878M - BRACKET, FRONT FENDER LINER, LH
53878-0C040

USK6#

 1
75101 - BRACKET SUB-ASSY, FRONT LICENSE PLATE
75101-0C020

USK6#..HTWC

 1
81481E - COVER, FOG LAMP, RH
52030-0C020

USK6#..LIMD,PLAT

 1
81482C - COVER, FOG LAMP, LH
52040-0C020

USK6#..LIMD,PLAT

 1
Common parts
90080-15077
90080-17156
90109-A0061
90159-60393
90159-60602
90159-A0053
90178-A0025
90178-A0044
90178-A0067
90269-A0005
90468-04059
90541-A0003
93560-A6020
Linked diagrams
5152
5353
8102
