USK65L-GKTZKA (2007)
Toyota Sequoia
Production
Nov 2007
-
Aug 2017
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0711- )

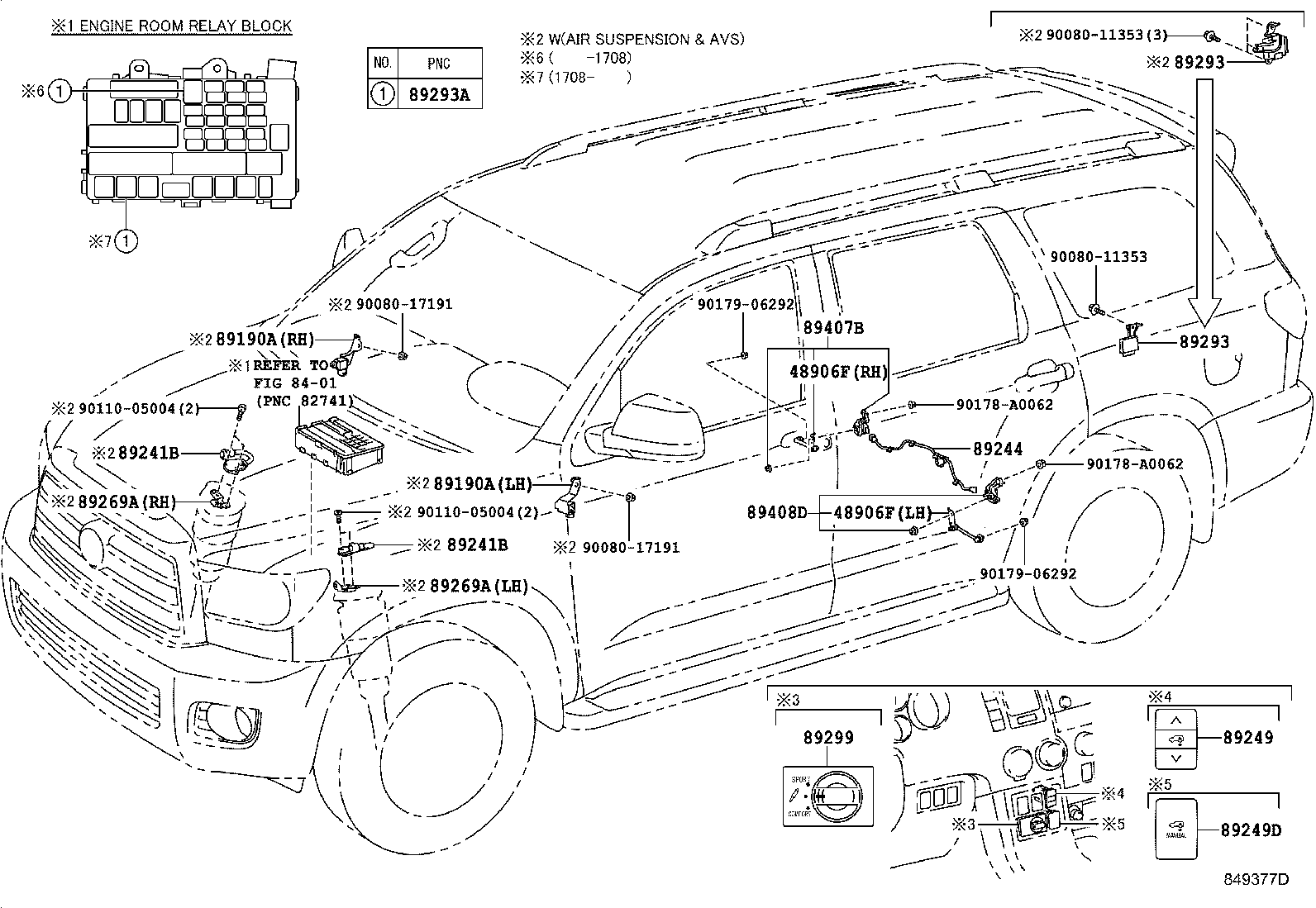

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48906F - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-34020 |
USK6#..PLAT RH |
1 | ||
| 48906-34030 |
USK6#..PLAT LH |
1 | ||
| 48906F - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-34020 |
USK6#..PLAT RH |
1 | ||
| 48906-34030 |
USK6#..PLAT LH |
1 | ||
| 89190A - SENSOR ASSY, ACCELERATION | ||||
| 89190-34010 |
USK6#..PLAT LH |
1 | ||
| 89190-34020 |
USK6#..PLAT RH |
1 | ||
| 89190-34040 |
USK6#..PLAT RH |
1 | ||
| 89190-34030 |
USK6#..PLAT LH |
1 | ||
| 89190A - SENSOR ASSY, ACCELERATION | ||||
| 89190-34010 |
USK6#..PLAT LH |
1 | ||
| 89190-34020 |
USK6#..PLAT RH |
1 | ||
| 89190-34040 |
USK6#..PLAT RH |
1 | ||
| 89190-34030 |
USK6#..PLAT LH |
1 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-34010 |
USK6#..PLAT |
2 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-34010 |
USK6#..PLAT |
2 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-0C010 |
USK6#..PLAT |
1 | ||
| 89249 - SWITCH, ABSORBER CONTROL | ||||
| 89249-0C030 |
USK6#..PLAT |
1 | ||
| 89249D - SWITCH, ABSORBER CONTROL NO.2 | ||||
| 89249-0C041 |
USK6#..PLAT |
1 | ||
| 89249-0C040 |
USK6#..PLAT |
1 | ||
| 89269A - BRACKET, SUSPENSION CONTROL | ||||
| 89269-34010 |
USK6#..PLAT RH |
1 | ||
| 89269-34020 |
USK6#..PLAT LH |
1 | ||
| 89269A - BRACKET, SUSPENSION CONTROL | ||||
| 89269-34010 |
USK6#..PLAT RH |
1 | ||
| 89269-34020 |
USK6#..PLAT LH |
1 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-34030 |
USK6#..PLAT |
1 | ||
| 89293-34031 |
USK6#..PLAT |
1 | ||
| 89293-34051 |
USK6#..PLAT |
1 | ||
| 89293-34050 |
USK6#..PLAT |
1 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-34030 |
USK6#..PLAT |
1 | ||
| 89293-34031 |
USK6#..PLAT |
1 | ||
| 89293-34051 |
USK6#..PLAT |
1 | ||
| 89293-34050 |
USK6#..PLAT |
1 | ||
| 89293A - RELAY, SUSPENSION CONTROL | ||||
| 90080-87024 |
USK6#..PLAT |
1 | ||
| 89299 - SWITCH, SUSPENSION CONTROL | ||||
| 89299-0C010 |
USK6#..PLAT |
1 | ||
| 89407B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-34020 |
USK6#..PLAT |
1 | ||
| 89408D - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH | ||||
| 89408-34030 |
USK6#..PLAT |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-17191 | ||||
| 90110-05004 | ||||
| 90178-A0062 | ||||
| 90179-06292 | ||||
| Linked diagrams | ||||
| 8401 | ||||
